FD Series Circular Connectors: Waterproof Power and Signal Solutions

The FD Series Circular Connectors deliver dependable power and signal transmission for industrial and outdoor equipment. Built with robust construction and effective sealing, these connectors maintain stable connectivity and resist moisture, dust, and vibration in demanding operating conditions.

This series offers multiple connector types and configurations, providing a flexible and cost-effective connection system for equipment manufacturers, system integrators, and industrial users requiring standardized interfaces.

With emphasis on durability, installation flexibility, and consistent electrical performance, FD series connectors serve industrial automation, power equipment, communication systems, machinery, and outdoor electrical devices.

Selecting the Right FD Series Model

The FD series includes several models to match different power and signal transmission requirements:

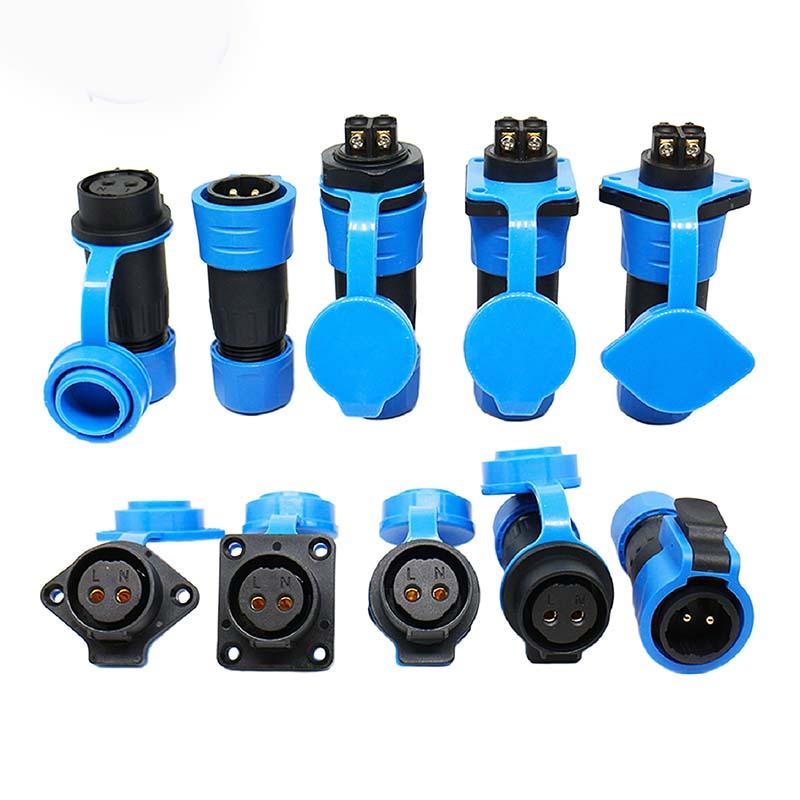

• FD13 Circular Connector – Compact size for space-limited equipment
• FD17 Circular Connector – Balanced performance for general industrial applications
• FD20 Circular Connector – Higher current capacity and enhanced durability
• FD24 Circular Connector – Heavy-duty applications requiring stronger mechanical strength

Multiple pin configurations are available to support different electrical requirements.

Mounting and Connection Options

To accommodate diverse installation needs, the FD series provides flexible structural options:

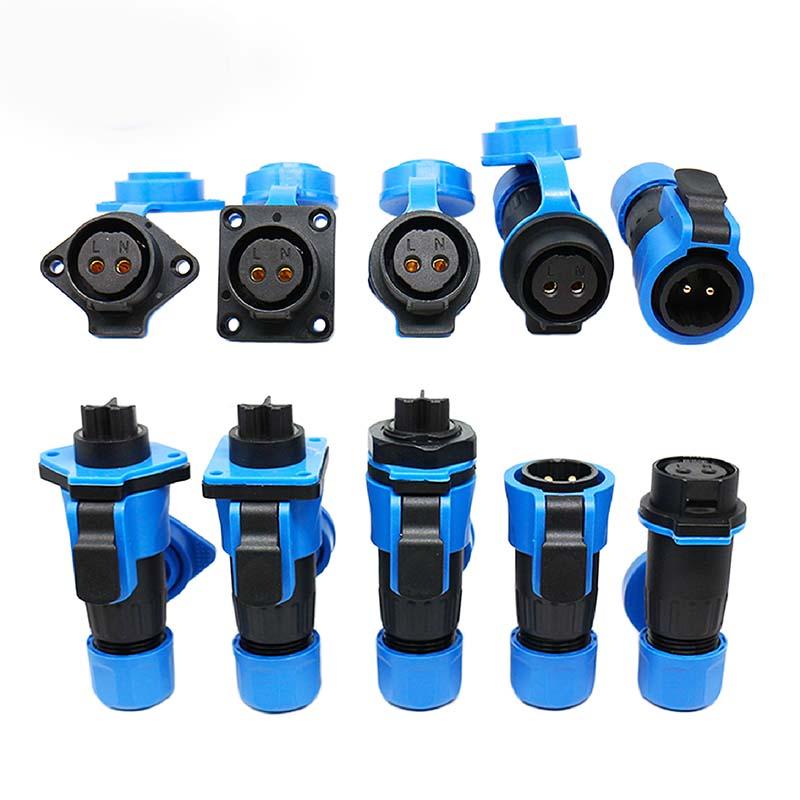

• Flange Mount Connectors – Secure installation on equipment panels
• Panel Mount Connectors – Stable and space-efficient mounting solution
• Docking Connectors – Convenient plug-and-play connection for frequent mating
• Cable Connectors – Pre-wired solutions for faster installation
• Male and Female Connectors – Complete connection system compatibility

These options allow customers to select the most suitable configuration for their specific equipment and application scenarios.

Key Advantages of the FD Series

Wide Product Range

A complete series covering multiple sizes, pin configurations, and mounting styles to meet diverse industrial requirements.

Reliable Waterproof Performance

Designed to provide dependable sealing protection, suitable for outdoor and demanding environments.

Strong Mechanical Durability

Engineered with high-strength materials to withstand vibration, impact, and continuous operation.

Flexible Customization Capability

Support for customized cable length, pin layout, wire type, connector color, and packaging according to project needs.

Consistent Electrical Performance

Precision contact design ensures stable conductivity and reliable signal transmission.

Manufacturing and Quality Assurance

Professional Connector Manufacturer

With more than 15 years of experience in connector and cable assembly production, we have established a strong reputation for quality, reliability, and responsive service in the global market.

Complete In-House Production System

Our factory integrates die-casting, mold development, stamping, CNC machining, injection molding, cable assembly, and final testing and packaging.

This one-stop manufacturing capability ensures strict quality control, stable product consistency, and fast delivery.

Advanced Testing and Quality Assurance

We are equipped with professional testing equipment, including waterproof testing, salt spray testing, insertion and withdrawal force testing, electrical performance testing, and dimensional inspection.

Every product is carefully inspected before shipment to ensure reliable performance.

Certified and Trusted Supplier

Our products comply with international standards such as CE, RoHS, ISO9001, and UL (available for specific models).

Application Fit and Selection Considerations

When selecting an FD series connector, consider the following factors to ensure proper mating and performance:

• Electrical load – Confirm the current and voltage requirements of your application
• Pin configuration – Verify the required pin count and layout against your wiring diagram
• Mounting style – Choose between flange, panel, docking, or cable mount based on your equipment design
• Environmental exposure – Assess the IP rating needed for your operating environment
• Cable specifications – Provide the cable outside diameter and conductor size for proper termination

Unsuitable Applications

FD series connectors are not recommended for applications requiring submersion beyond the rated IP protection, extreme temperature ranges outside the specified limits, or mating cycles exceeding the rated durability. For such requirements, consult our engineering team for alternative solutions.

Inquiry Information Checklist

To receive an accurate quotation and technical recommendation, please provide the following details:

• Required model (FD13, FD17, FD20, FD24) or your specific size requirement
• Pin count and pinout or wiring diagram
• Mating-side connector requirement (plug, socket, or complete set)
• Mounting style preference
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and required IP rating
• Order quantity and target delivery timeline

Whether you need a standard connector or a customized connection solution, our engineering and production teams are ready to support your project with reliable products and professional service. Contact us today to get samples, technical support, or a competitive quotation for the FD series connectors.
