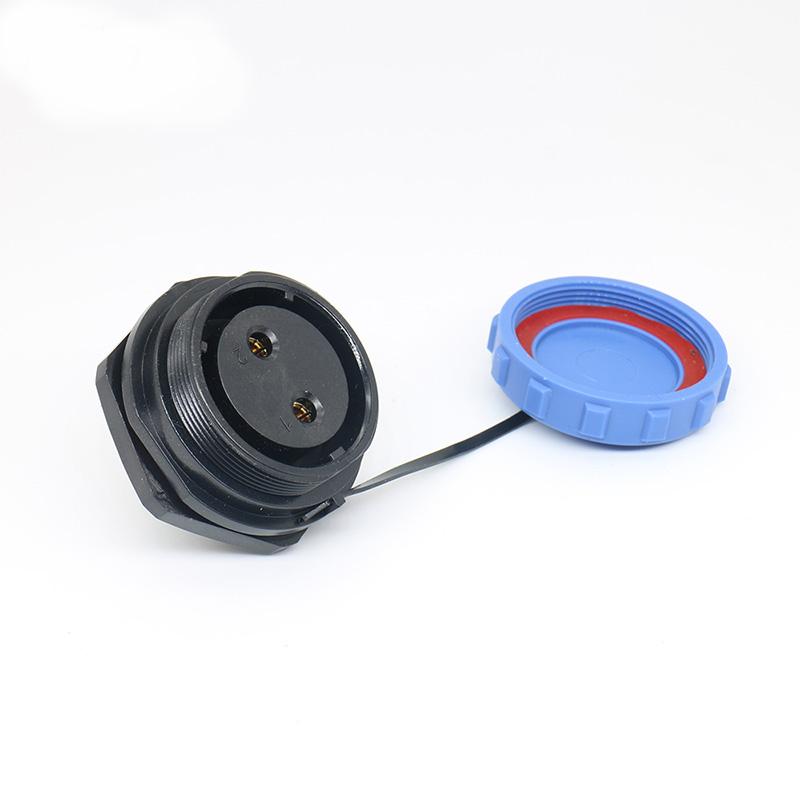

Waterproof SP29 9 Pin Panel Mount Connector for Railway Control in France

LD32/SP32 Electrical Panel Mount Connector

Project Background: Railway Signaling Upgrade in France

A railway infrastructure operator in France was upgrading trackside signaling and control cabinet systems. The project required a reliable multi-pin connector solution to ensure stable signal transmission in demanding outdoor railway environments.

Customer Requirement

The customer needed a waterproof, panel-mount connector capable of integrating multiple signal channels within confined control cabinets. Key requirements included dependable IP-rated environmental protection, a secure mounting method to withstand trackside vibration, and consistent electrical performance over long operational periods.

Why They Selected Our SP29 Panel Mount Connector

The customer selected our Waterproof SP29 9 Pin Panel Mount Connector because it offered:

• IP-rated waterproof protection for outdoor installations
• 9-pin design for multi-signal integration
• Secure panel mount structure for control cabinets
• Stable electrical performance in continuous operation

Application Scenario

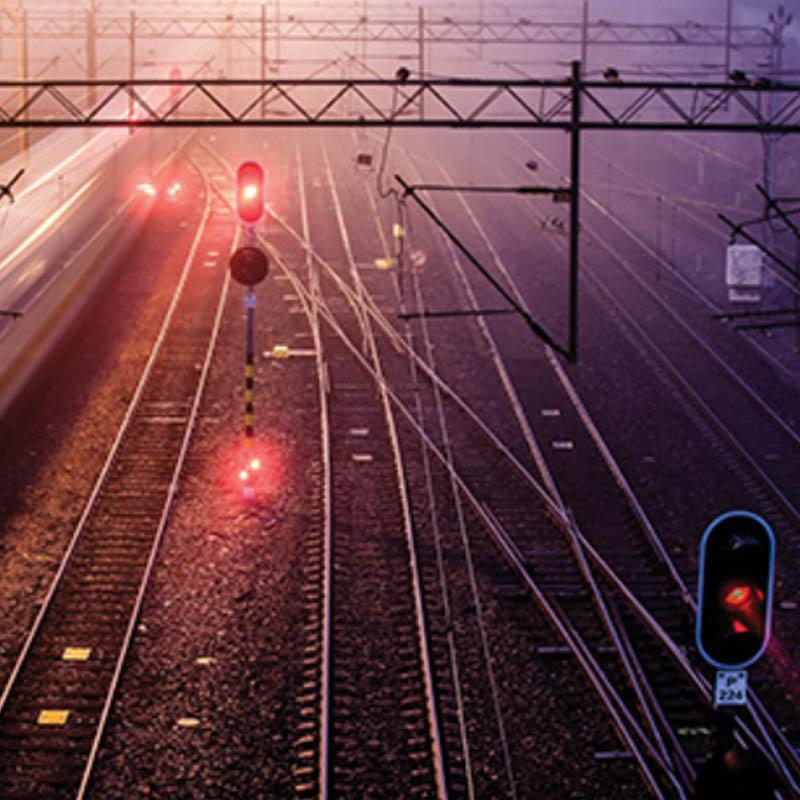

The SP29 panel mount connectors were installed in railway signaling cabinets along the trackside. They were used to connect signal controllers, monitoring modules, and communication interfaces, ensuring reliable data transmission for railway safety systems.

Commissioning and Field Performance

During field deployment and commissioning, the connector demonstrated:

• Stable multi-channel signal transmission
• Reliable performance under vibration from passing trains
• Strong environmental resistance in outdoor conditions
• Secure panel installation with no loosening over time

Customer Feedback

The customer reported improved stability in signal communication systems and reduced maintenance interventions in trackside cabinets, especially in harsh weather conditions.

Project Result

By integrating the SP29 Waterproof 9 Pin Panel Mount Connector, the customer enhanced the reliability of their railway signaling infrastructure and improved overall operational safety.
