Why Sealing Performance Decides Connector Reliability in Harsh Environments

When an industrial system fails in the field, water ingress is often the root cause. For engineers and buyers selecting circular connectors for outdoor, underwater, or extreme-condition applications, the sealing method is not a minor specification — it determines whether the connection survives submersion, thermal cycling, and long-term exposure. This article explains how the SP series achieves IP68 protection through its construction and materials, and what to verify when comparing alternatives.

Integrated Molded Structure vs. Spliced Sealing Rings

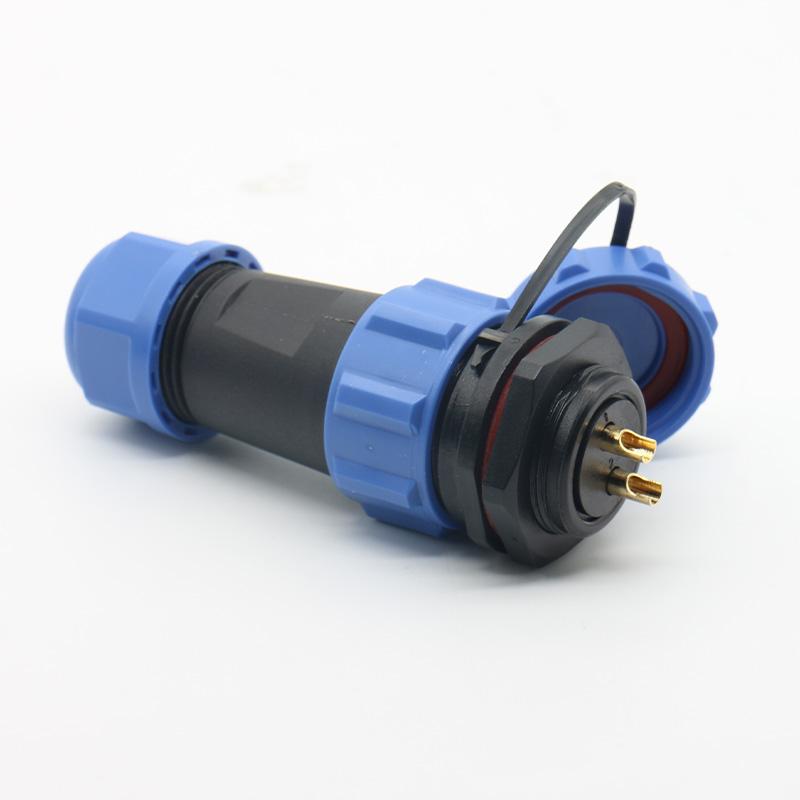

The SP waterproof connectors use an integrated injection-molded structure combined with highly elastic fluoroelastomer sealing rings. This design achieves IP68 protection, maintaining reliable operation at depths up to 5 meters for 72 hours without leakage. In contrast, many competing products rely on spliced sealing rings, which typically reach only IP67 ratings. These spliced designs are more prone to water ingress and short circuits when submerged beyond 1 meter or exposed to moisture for extended periods.

Key Differences at a Glance

• Sealing construction: Integrated injection-molded body with fluoroelastomer rings versus spliced ring assemblies.
• Protection rating: IP68 (5 meters, 72 hours) versus IP67 (1 meter, limited duration).
• Failure mode: SP series resists leakage; spliced seals risk water ingress and short circuits.
• Application fit: SP series suits continuous submersion and demanding outdoor use; IP67 alternatives may suffice for occasional splash exposure.

Thermal Cycling Performance: -40°C to 120°C

Temperature swings put sealing materials under constant stress. The SP connectors pass rigorous high-low temperature cycling tests from -40°C to 120°C with stable sealing integrity. Competing seals often degrade, crack, or lose effectiveness due to thermal expansion and contraction. For installations in climates with extreme seasonal changes or equipment that generates heat, this difference directly affects maintenance intervals and unplanned downtime.

What to Verify Before Specifying a Connector

• Confirm the IP rating test conditions: depth, duration, and whether the connector was mated or unmated during testing.
• Check the temperature range against your actual operating environment, including transient heat sources.
• Ask whether the sealing ring material is fluoroelastomer or a lower-cost alternative that may harden or crack over time.
• Review the mounting method and cable entry — sealing performance depends on the entire assembly, not just the connector body.

Choosing the Right Connector for Your Application

For outdoor lighting, marine equipment, irrigation systems, or industrial machinery exposed to moisture, the SP series provides a verifiable sealing advantage. However, not every application requires IP68. If your installation is indoors, protected from direct water contact, or only exposed to occasional splashes, a lower-rated connector may be a cost-effective choice. Match the protection level to the real environmental risk rather than defaulting to the highest rating.

When evaluating options, request the test reports for IP rating and thermal cycling. Confirm the connector series, pin count, and mating interface match your existing cabling and panel layout. For projects that demand continuous submersion or wide temperature swings, the SP series' integrated sealing design offers a documented performance margin over spliced-ring alternatives.

If you are unsure which sealing level fits your project, review the waterproof connector range or consult the technical team with your operating conditions — depth, temperature range, and exposure duration — to narrow the selection.
