Circular Connectors for Access Control Systems in South Korea

Din Circular Connector

Application Background

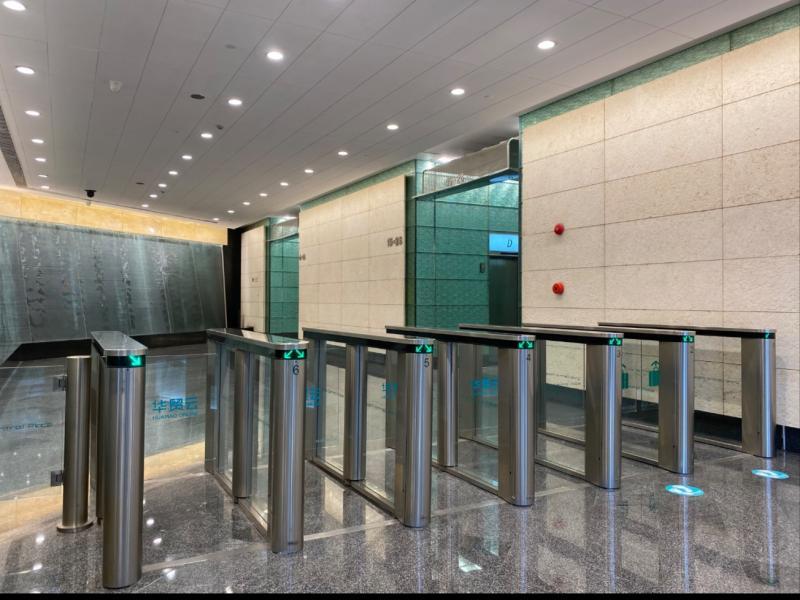

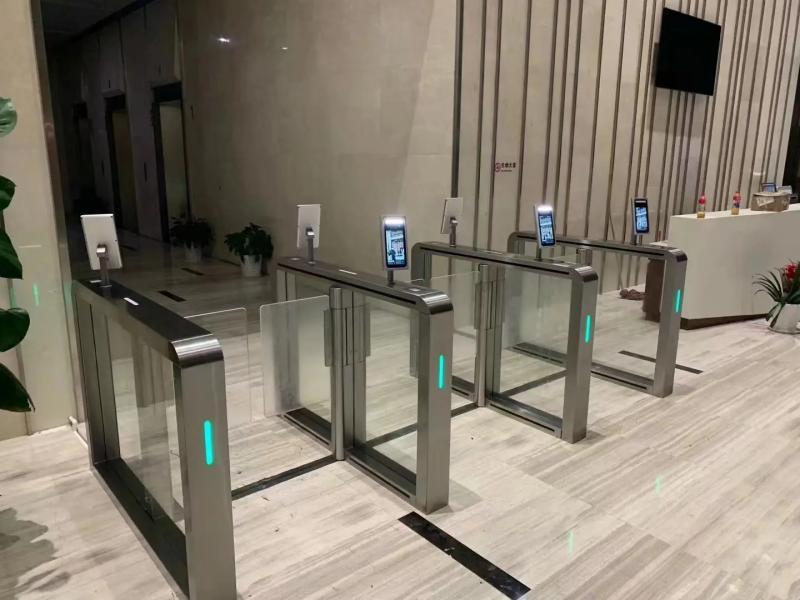

Access control systems are widely deployed across office buildings, residential complexes, and industrial facilities in South Korea. These systems integrate card readers, door controllers, and locking mechanisms that must operate reliably in semi-protected indoor and outdoor environments. The demand for modular expansion and scheduled maintenance in these facilities drives the need for connectors that support quick disconnection and reconnection without specialized tools.

Consistent electrical connections are essential to maintain uninterrupted system operation, especially where maintenance access and modular expansion are expected. In South Korea's varying seasonal climate, temperature fluctuations and humidity can affect connection integrity, making robust connector selection a critical part of system design.

Connector Application

Circular connectors are selected for specific equipment interfaces within access control installations, particularly where detachable connections are required for installation flexibility and serviceability. Typical application points include:

• Door control unit interfaces requiring secure locking mechanisms
• Card reader connections in modular installations that may be reconfigured
• Service and maintenance access points where periodic disconnection is planned

These connectors are chosen based on the electrical load of the connected device, the expected number of mating cycles, and the environmental exposure at the installation point.

Design Characteristics

Circular connectors provide secure engagement and are engineered for repeated connection cycles, making them suitable for access control equipment that may be disconnected during maintenance or reconfiguration. Their robust coupling design helps maintain contact integrity in semi-protected environments where vibration and incidental moisture exposure may occur. The threaded or bayonet coupling mechanisms commonly used in these connectors prevent accidental disconnection, which is a key requirement for door control units that must remain operational.

For installations where the connector may be exposed to dust or light rain, selecting a variant with an appropriate ingress protection rating is recommended. Contact plating options such as gold or nickel affect both durability and signal integrity over the connector's service life.

Operational Considerations

Access control systems demand stable performance over extended service life. Connectors must preserve consistent contact resistance while allowing occasional servicing without degrading mating surfaces. For engineers evaluating connector options, key parameters include contact plating durability, mating cycle rating, and ingress protection appropriate for the installation location. The mating cycle rating should align with the expected frequency of maintenance disconnections, which in typical access control installations ranges from a few cycles per year to more frequent servicing in high-traffic facilities.

When selecting a connector, verify that the current rating matches the door controller or reader power requirements, and confirm that the cable entry diameter accommodates the specified cable type. For installations where space is constrained, consider the connector's overall length and coupling nut dimensions.

Conclusion

Circular connectors offer a practical and field-proven solution for modular connections in access control systems, balancing secure engagement with serviceability. For detailed technical specifications and configuration options, refer to the 12G Series Circular Connectors or consult the Din Circular Connector catalog for interface compatibility guidance. For guidance on connector longevity in similar security applications, review the plugging life requirements for access control card readers.
