M8 Circular Connectors in Engine Sensors: Project Background

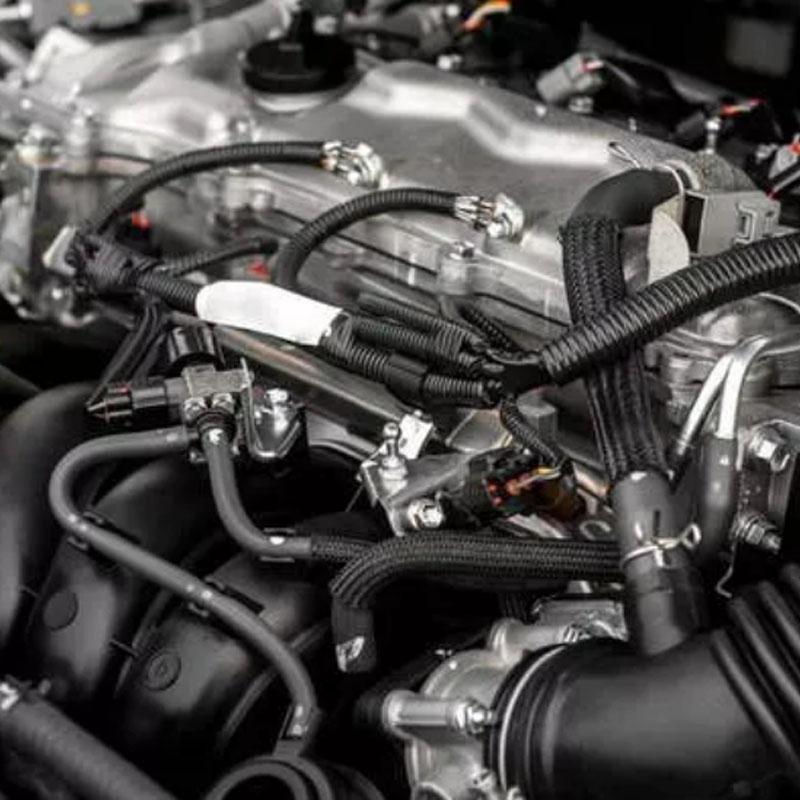

Modern engines depend on accurate sensor data to manage performance, fuel efficiency, and emissions. Temperature, pressure, and oxygen sensors must deliver stable signals to the engine control unit (ECU) under demanding conditions. M8 circular connectors are a common interface for these sensors, providing a compact and secure connection point between the sensor element and the vehicle wiring harness.

This case outlines how M8 connectors address the specific electrical and environmental requirements of engine-mounted sensing applications, supporting both signal integrity and power delivery in a confined space.

Customer Requirement and Operating Environment

Engine compartments expose components to continuous vibration, high ambient heat, oil mist, and abrasive dust. The customer's application required a sensor connection that could withstand these conditions without signal loss or intermittent contact. Key requirements included:

• Stable signal transmission for analog sensor outputs over the engine's operating temperature range.
• Resistance to vibration-induced fretting and connector loosening.
• Protection against oil, water splash, and dust ingress.
• A compact form factor suitable for routing in tight engine bay layouts.

Solution: M8 Connector Configuration

The selected M8 circular connector series provides a threaded locking mechanism that secures the mating interface against vibration. The housing materials and sealing elements are specified to resist common automotive fluids and temperature cycling. The connector's small diameter allows for high-density placement near the ECU and sensor locations without interfering with other engine components.

For this application, the connector supports both signal and low-current power lines, depending on the pin configuration chosen. The design maintains a consistent contact resistance to preserve sensor accuracy over time.

Installation and Commissioning Process

During the commissioning phase, the M8 connectors were mated and unmated multiple times to verify the locking mechanism's integrity and ease of use. The installation process confirmed that the connector's design allows for secure hand-tightening, reducing the risk of over-torque damage to the sensor body. Cable routing and strain relief were checked to ensure no undue force was placed on the connector during engine operation.

Functional tests were performed to verify signal continuity and insulation resistance under simulated vibration and temperature conditions. The results confirmed that the M8 connector maintained a stable connection, with no intermittent signal dropouts observed during the test cycle.

Result and Operational Benefits

The use of M8 circular connectors in this engine sensor application delivered measurable benefits:

• Improved reliability of sensor data transmission, supporting accurate ECU calculations.
• Simplified sensor replacement and maintenance, reducing downtime during service.
• Consistent performance in the presence of vibration, heat, and contamination.

By providing a dependable and serviceable interface, M8 connectors contribute to the overall accuracy and longevity of the engine management system. For engineers evaluating similar sensor connection challenges, the M8 series offers a proven balance of size, durability, and electrical performance.

For more information on related connector solutions, see the M12 Connectors in Engine Control Units or explore the 12G Series Circular Connectors for alternative interface options.

If you are selecting a connector for an engine sensor application, contact our engineering team to discuss your specific pin count, current rating, and environmental requirements.
