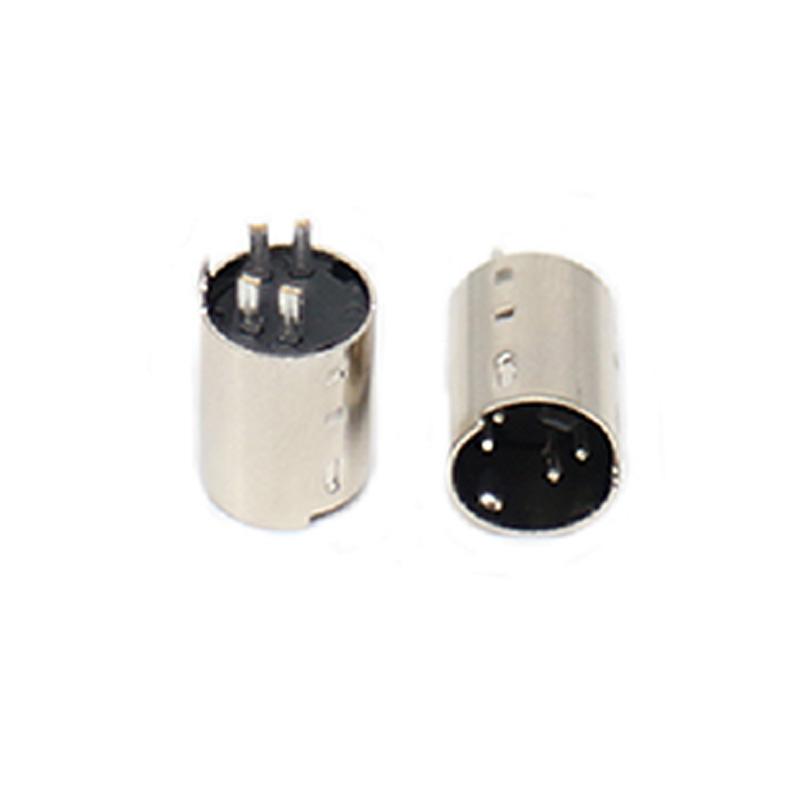

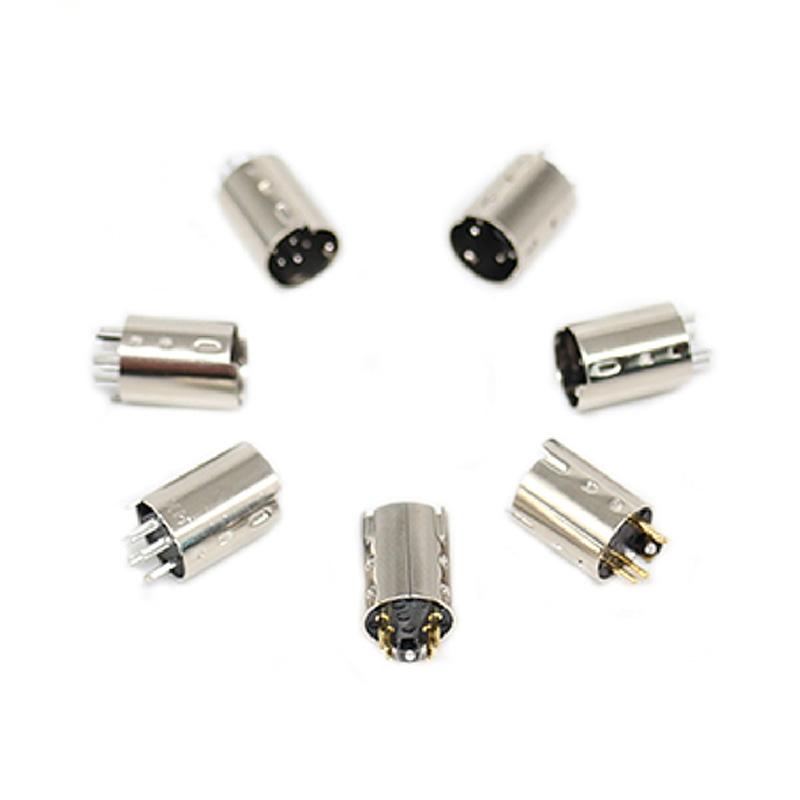

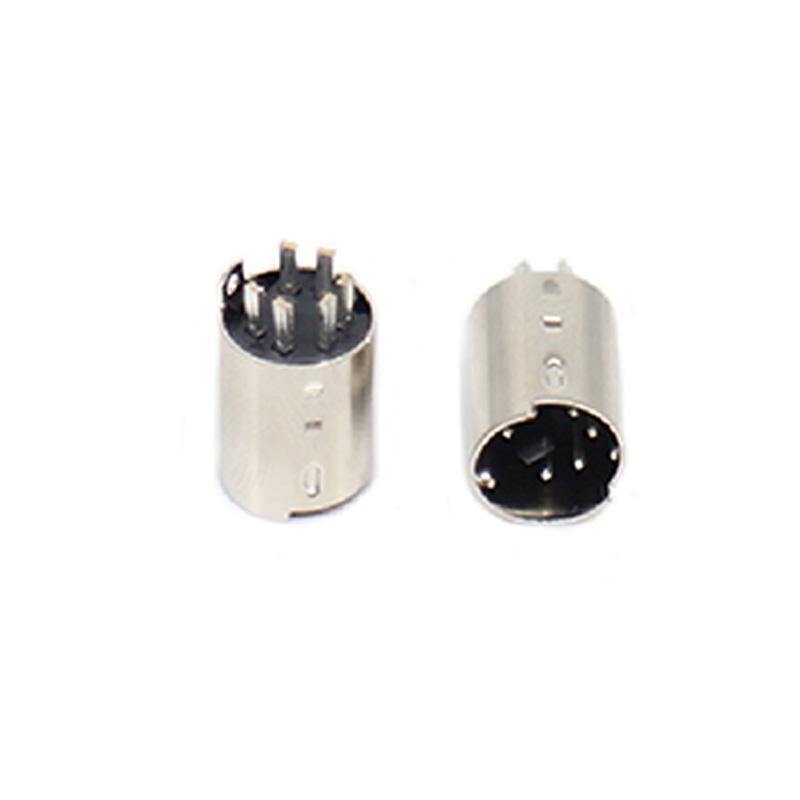

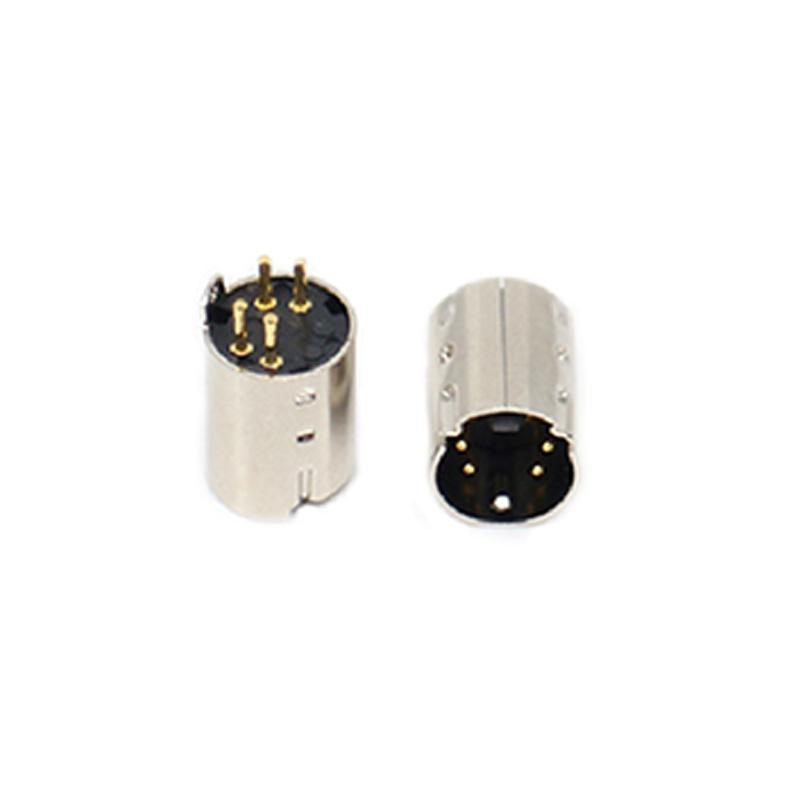

Mini-DIN Connector for DJ Mixers and Audio Interfaces

This Mini-DIN connector is designed for DJ mixers and audio interfaces, supporting stable audio and video signal transmission in professional setups. It suits engineers and technicians building or maintaining equipment where reliable, compact connections are required.

Key Selection Points

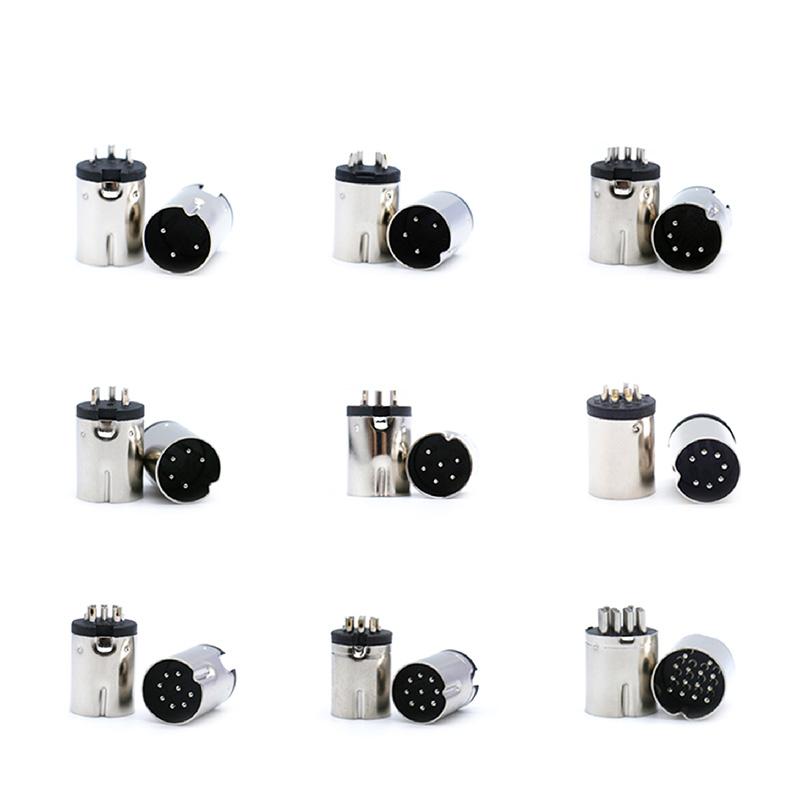

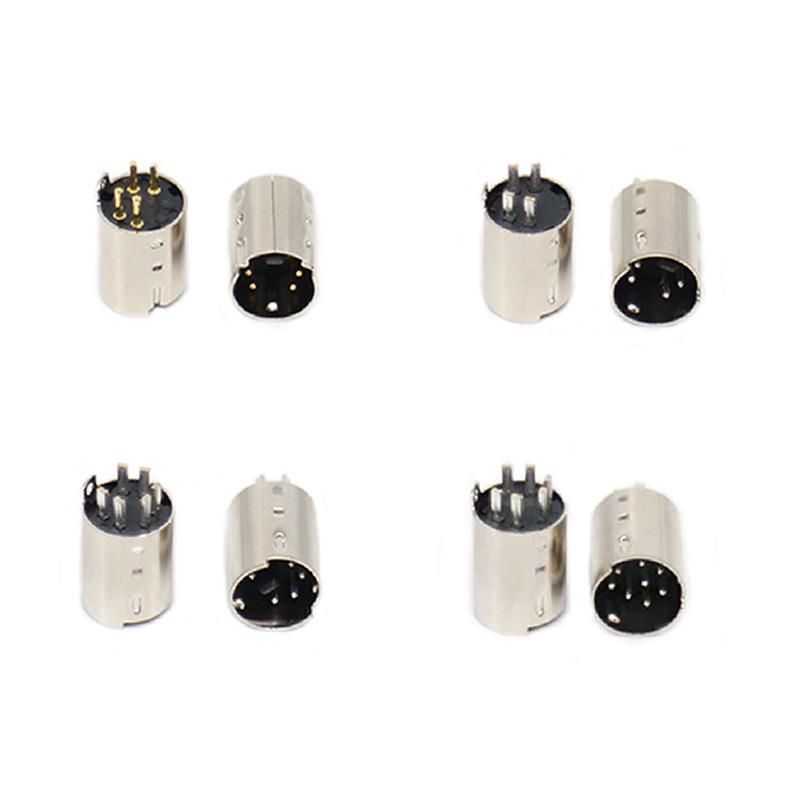

• Core Configuration: Available in 4-8 pin options, with male or female gender choices to match your device layout.
• Contact Quality: Brass cores plated with gold for consistent signal integrity in repeated mating cycles.
• Housing Durability: Nickel-plated brass shell provides mechanical strength for frequent use in tight equipment racks.
• Installation Fit: Plug-and-play design intended for straightforward integration with DJ mixers, audio interfaces, and similar gear.

Application Scope and Boundaries

This connector is suited for DJs, audio engineers, content creators, and broadcasters who need interference-free audio and video signal links. Its compact metal housing fits into dense layouts where space is limited.

It is not intended for high-power mains connections or outdoor waterproof installations. For those requirements, confirm the environmental rating with our team before ordering.

Configuration and Mating Notes

Verify the pin count and gender of your existing device port before ordering. The 4-8 pin range covers common audio interface layouts, but the exact pinout must match your equipment's specification. Send your device model or wiring diagram during inquiry to confirm compatibility.

Quality and Compliance Considerations

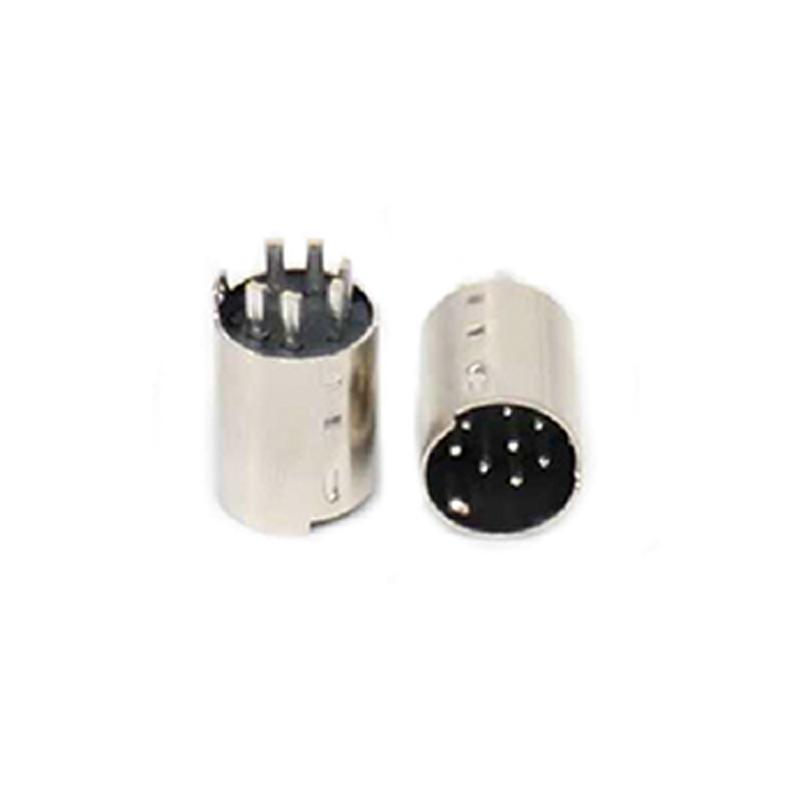

The connector is described as UL certified for safety and reliability. This indicates it meets recognized standards for safe operation in professional audio/video applications. For specific certification documentation or test reports, request them with your inquiry.

Buyer's Inquiry Checklist

• Required pin count (4, 5, 6, 7, or 8) and gender (male or female).
• Your device model or the mating connector's pinout diagram.
• Cable diameter and wire gauge you plan to terminate.
• Operating environment (indoor rack, portable rig, etc.) and expected mating cycles.
• Quantity needed and target delivery timeline.

For related audio and video connection solutions, see our Audio Video Connectors range. For a detailed design reference on similar circular connectors, review the SD20/SP20 Square Flange Connector Design and Installation Guide.
