Din Connector
< >

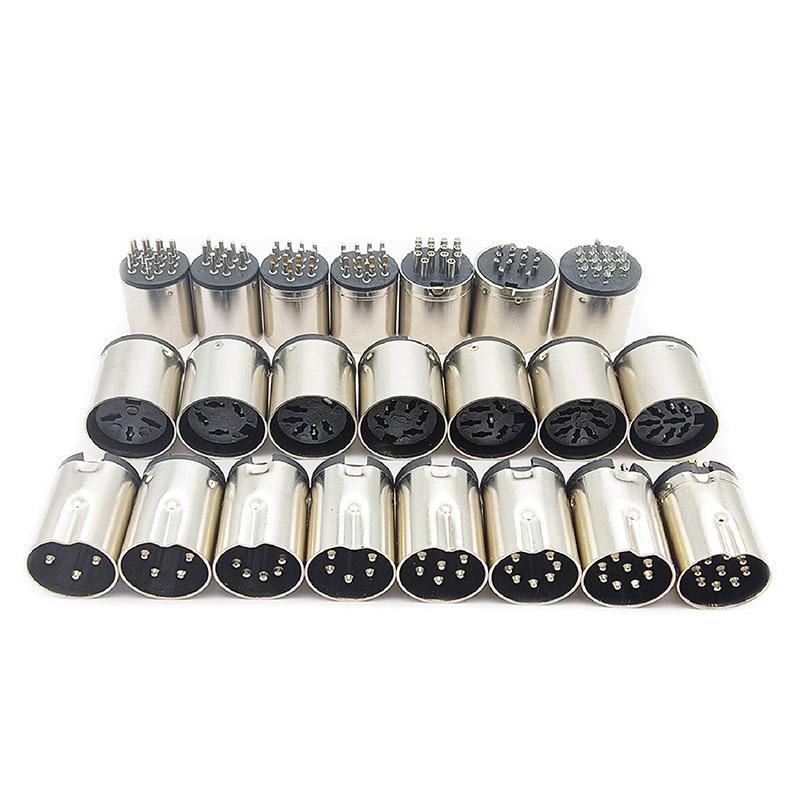

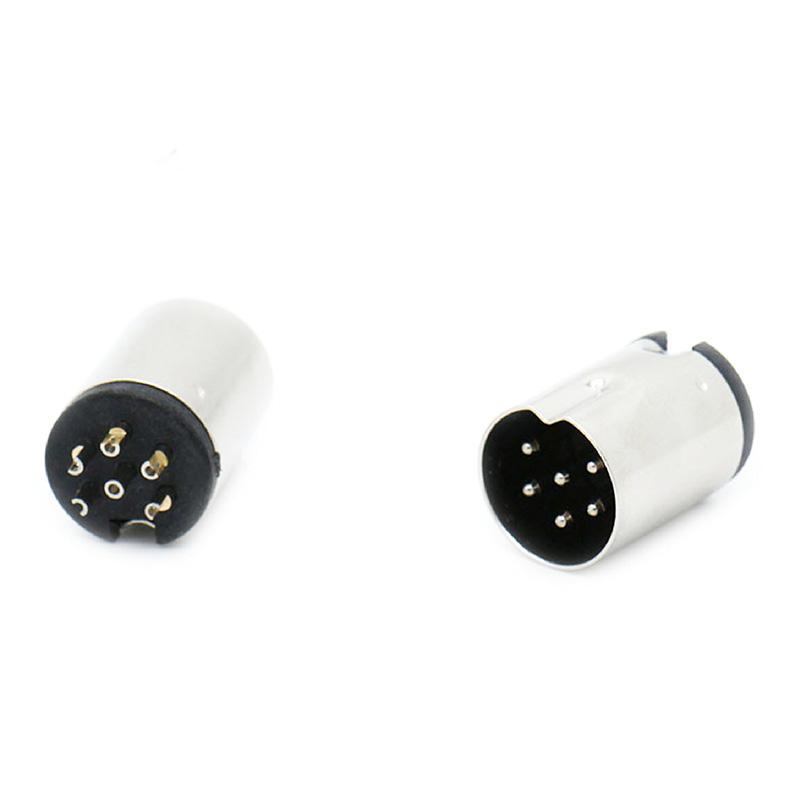

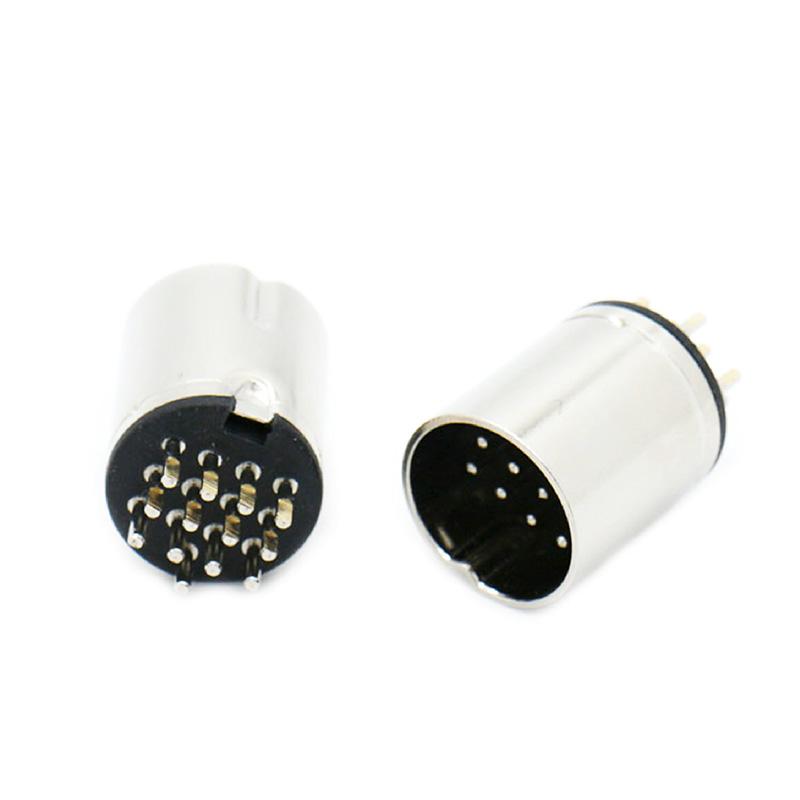

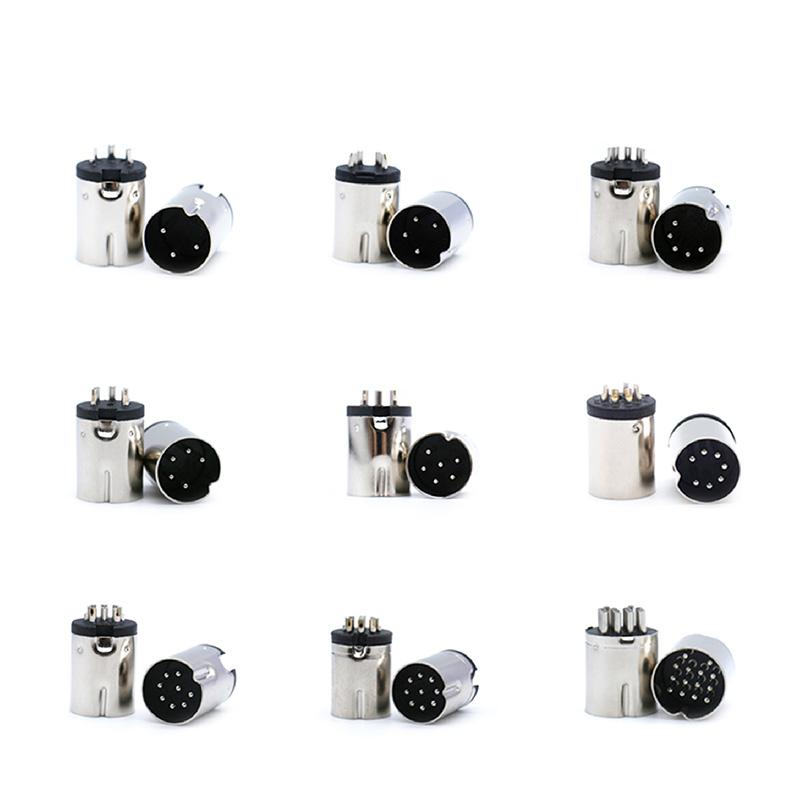

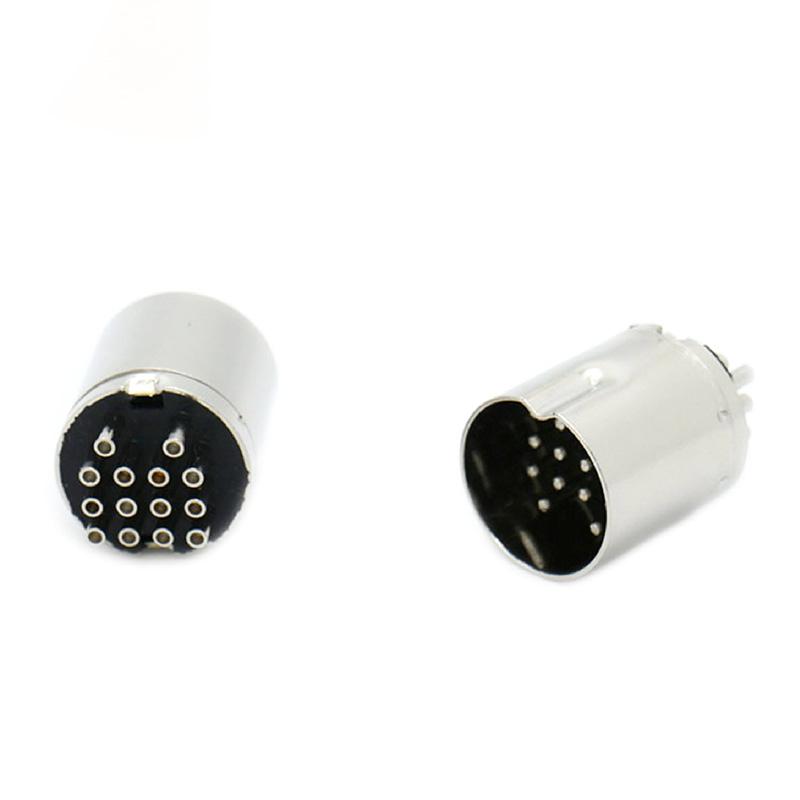

DIN Connector for Broadcast Audio Control Panels

>Number Of CoresNumber Of Cores 2-14Pin
Contact DiameterContact Diameter(mm) 1.5mm/0.8mm
IP RatingIP Rating IP40
Shell MaterialShell Material Nickel Plated Brass
Temperature RangeTemperature Range -40℃ ~ +105℃
TerminationTermination Solder
Rated CurrentRated Current(A) 7A/3A
Rated VoltageRated Voltage(Ac.V) 125V/250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

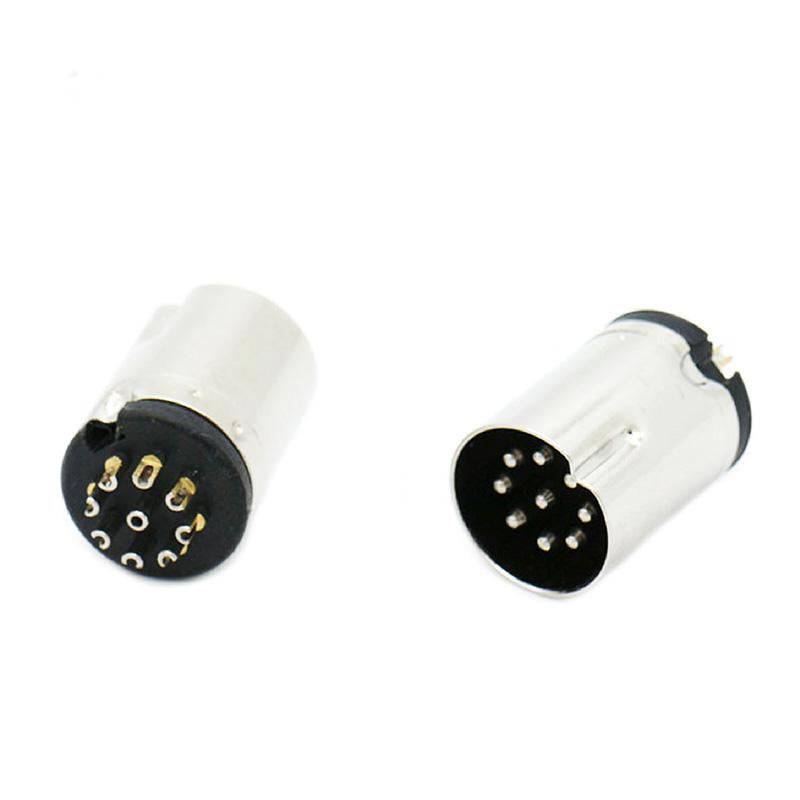

UL Certified DIN Connector for Broadcast Audio Control Panels

This DIN connector is specially designed for broadcast audio control panels and professional AV equipment. With UL certification, it meets recognized safety and reliability standards, ensuring dependable performance in demanding audio and broadcast environments.

Connectors


Reliable Audio Signal Transmission

The connector provides stable and low-loss signal transmission, making it suitable for professional broadcast consoles, audio control panels, and signal routing equipment where consistent audio quality is essential.

Durable Design for Professional Use

Constructed with a robust housing and precision contacts, the connector offers long service life and reliable mechanical strength, even with frequent connections in studio and broadcast applications.

Wide Application in AV Systems

This DIN connector is widely used in broadcast audio control panels, studio audio equipment, AV signal distribution systems, and other professional audio and video devices.

Item

Parameters

Number of Cores

2-14Pin

Gender

Male/Female

Housing Material

Nickel Plated Brass

Cores Material

Brass Plated with Nickel

Insulator Material

PBT

Locking System

Screw Locking

Temperature Range

-40℃, +105℃

Rated Current (A)

3A/7A

Rated Voltage (AC.V)

125V/250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Insulation Resistance (㏁)

≤10㏁

Termination

Solder
