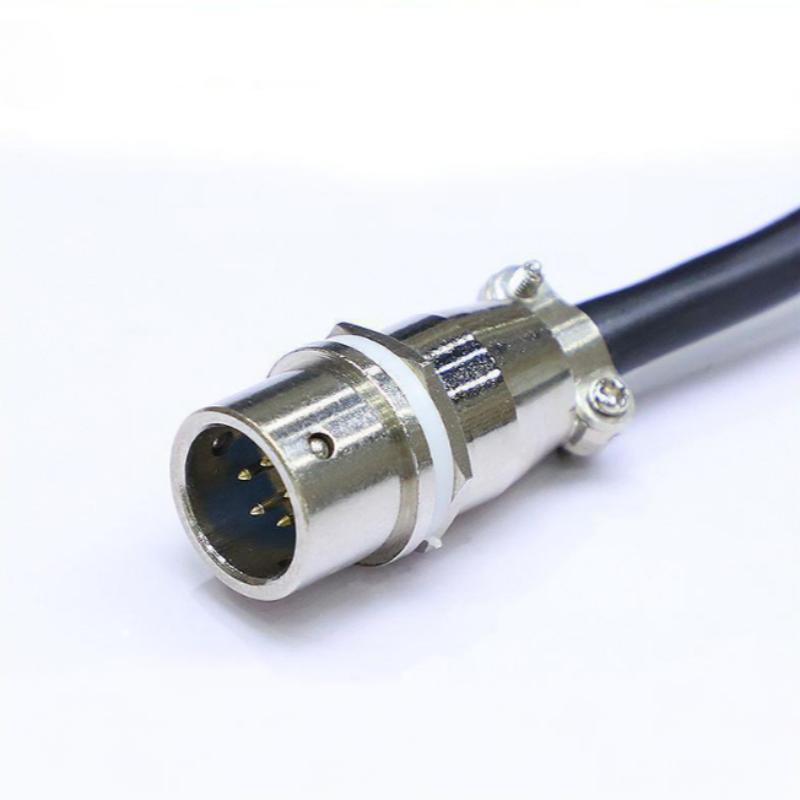

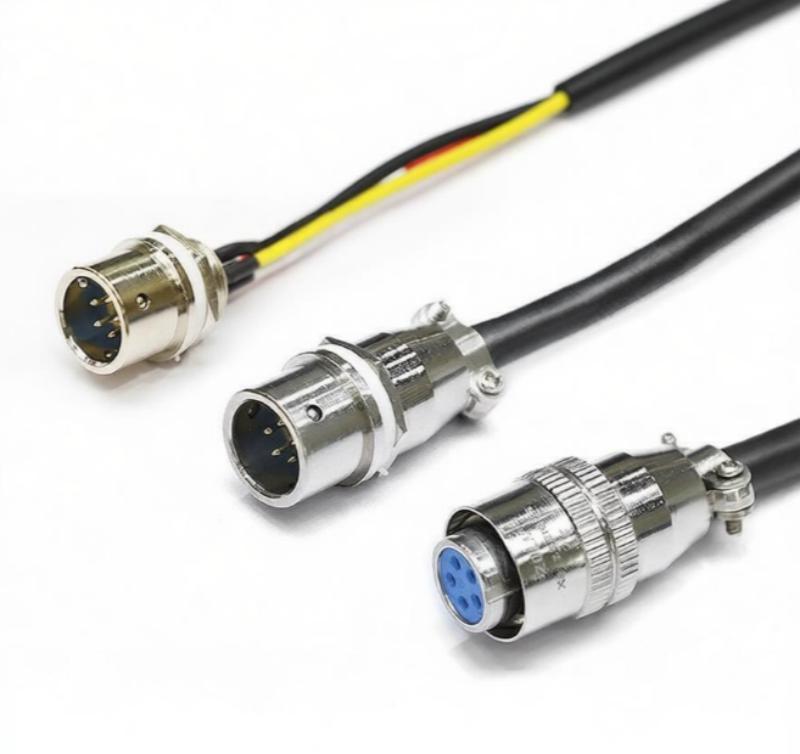

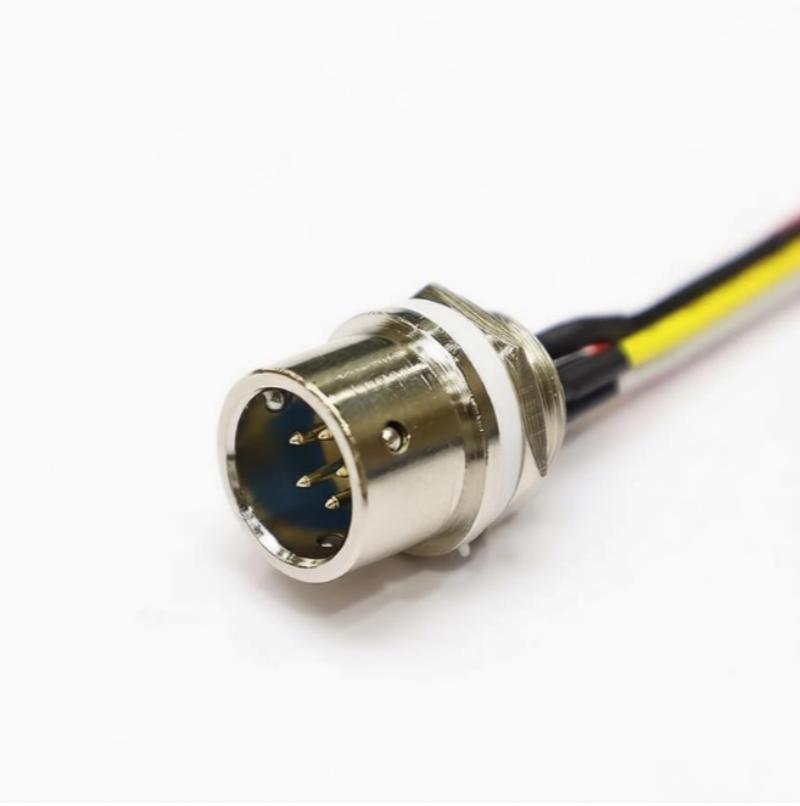

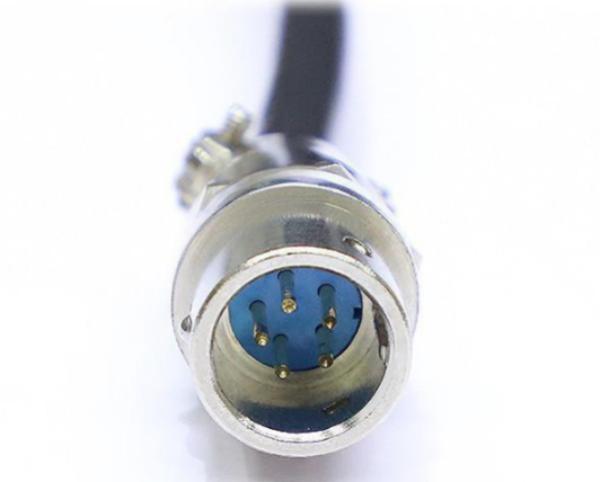

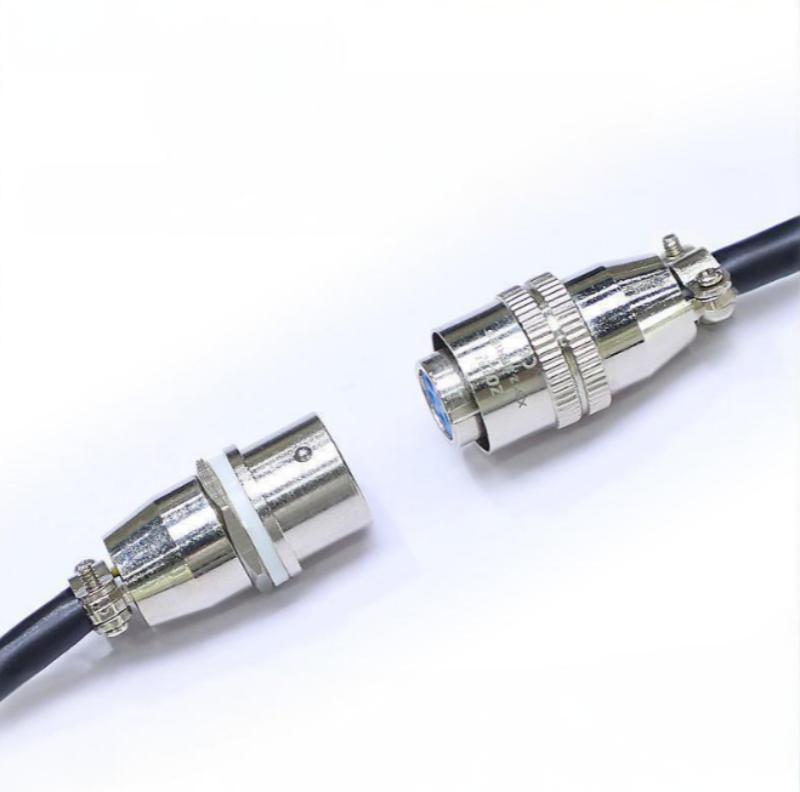

XS9 Aviation Connector with Pre-Wired Plug and Socket Assembly

The XS9 Aviation Connector with Pre-Wired Plug and Socket Assembly is a circular connector solution designed for industrial automation, aerospace, and precision machinery. Unlike standard connectors that require separate wiring and assembly, this pre-wired assembly arrives ready for plug-and-play installation, reducing on-site labor and installation errors.

With its aviation-grade design, the XS9 series supports stable power and signal transmission in demanding environments. The assembly includes both male and female configurations, with a nickel-plated brass housing for durability.

Advantages of the Pre-Wired Design

• Plug-and-Play Installation: Fully assembled at the factory, reducing on-site labor and installation errors.
• Secure Connections: Push-pull or threaded interface ensures reliable mating in industrial and aerospace applications.
• Durable Contacts: High-quality metal contacts maintain stable electrical performance across repeated use.
• Compact and Space-Saving: Circular form factor integrates easily into control panels, machinery, and equipment.

The XS9 pre-wired plug and socket assembly is suited for fast deployment and maintenance in critical applications where connection integrity is essential.

Key Features

• Pre-Wired Assembly: Eliminates manual wiring, reduces installation errors, and accelerates system deployment.
• Aviation-Grade Circular Connector: Provides secure and reliable connections in industrial, aerospace, and automation environments.
• Flexible Pin Options: Supports multiple configurations for power, signal, or combined circuits.
• Rugged Metal Construction: Ensures vibration resistance, impact durability, and long-term reliability.
• Environmental Protection: Dustproof and splash-resistant design suitable for harsh industrial or outdoor conditions.

Factory Expertise

We are a professional connector manufacturer with over 15 years of experience producing XS9 aviation pre-wired assemblies with rigorous quality control.

• R&D Excellence: Connector designs optimized for industrial, aerospace, and automation applications.
• Precision Manufacturing: CNC machining, injection molding, and metal stamping for reliable tolerances.

• In-House Assembly: Full integration of plug, socket, and cables ensures consistency and reliability.
• Comprehensive Testing: Electrical, mechanical, and environmental tests are performed to verify long-term performance.

• Customization & OEM/ODM: Pin counts, cable lengths, shielding, and branding can be tailored to customer requirements.

This vertical integration allows us to provide ready-to-use, factory-direct pre-wired assemblies, supporting both quality and speed to market.

Applications

• Industrial automation and machinery
• Aerospace and avionics systems
• Robotics and motion control
• Sensors, actuators, and monitoring equipment
• Control cabinets and electrical panels
• Any system requiring pre-assembled, reliable circular connectors

Selection Considerations

When selecting an XS9 pre-wired assembly, confirm the mating-side requirement, pinout or drawing, cable outside diameter, conductor size, electrical load, and operating environment. These details help ensure the assembly matches your application. For related circular connector options, see the Aviation Plug Connectors catalog or the XS9 Pre-Wired Aviation Connector solution page.

Contact Us

We provide samples, technical support, and OEM/ODM customization services. Reach out today for factory-direct XS9 Aviation Connector Pre-Wired Assemblies, combining precision engineering, high reliability, and flexible configurations.
