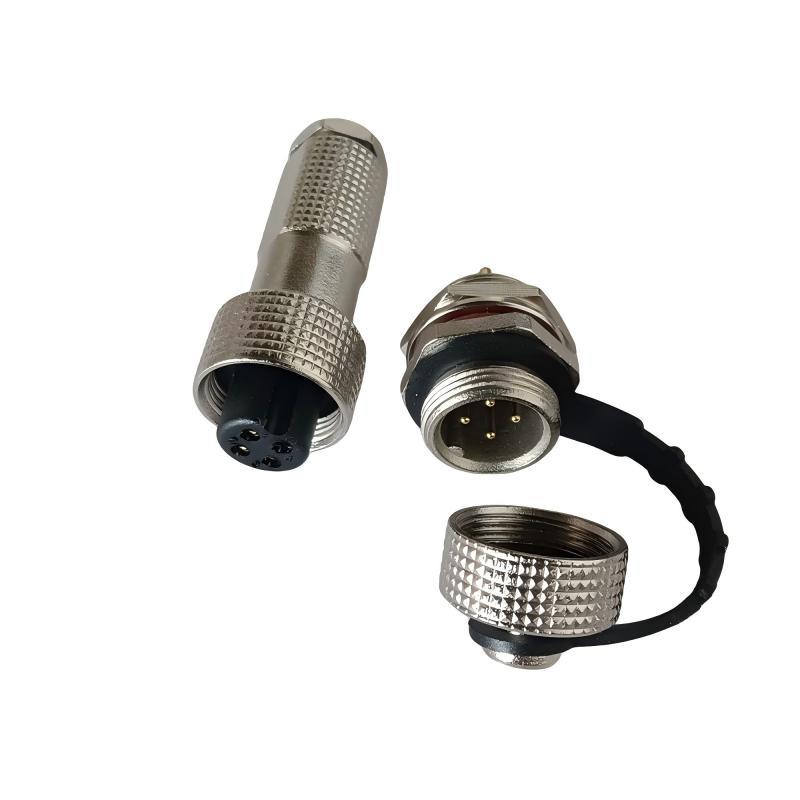

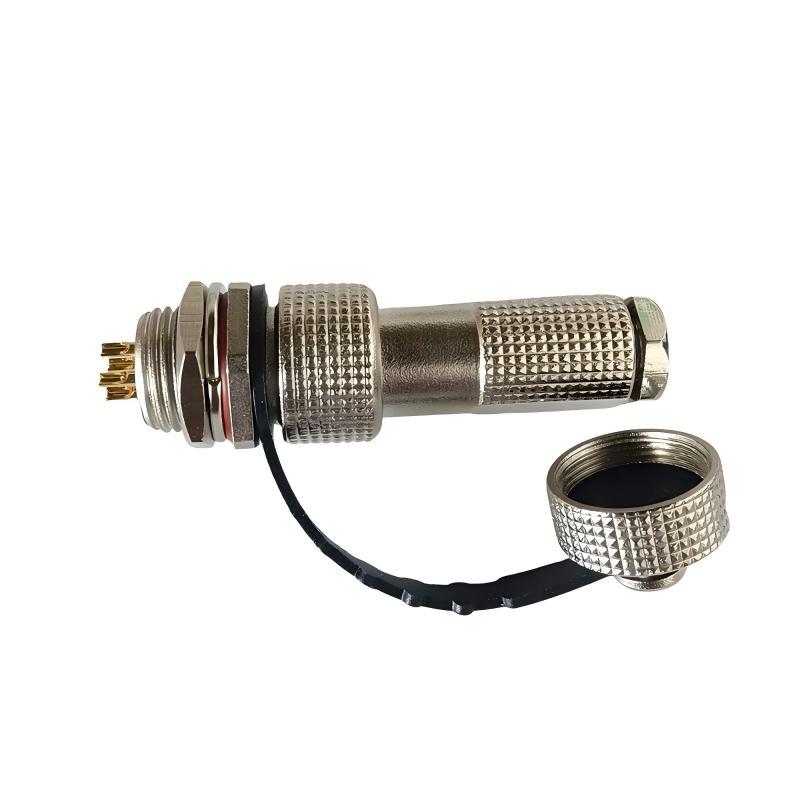

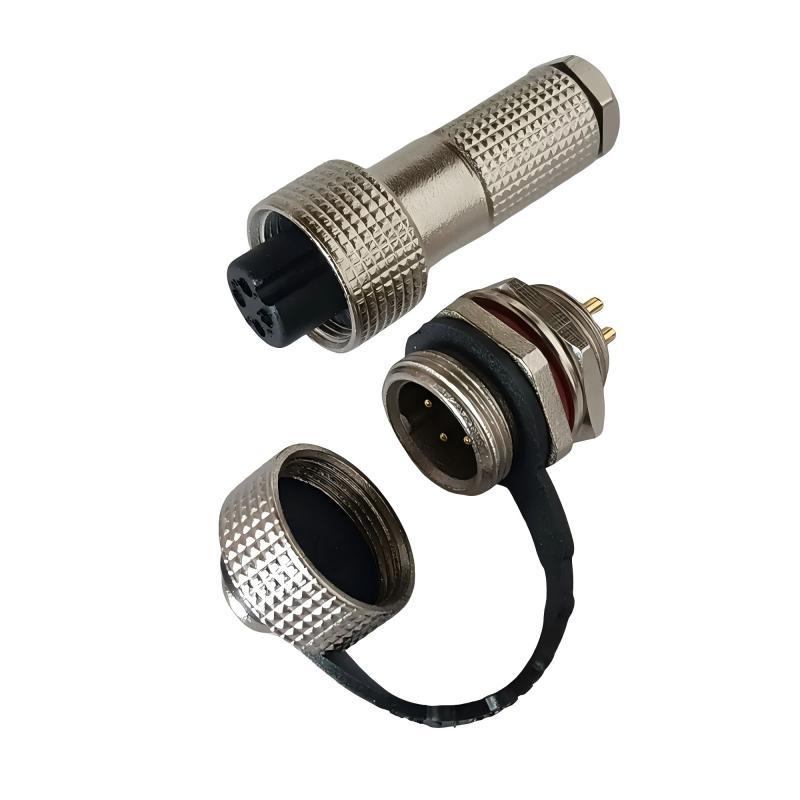

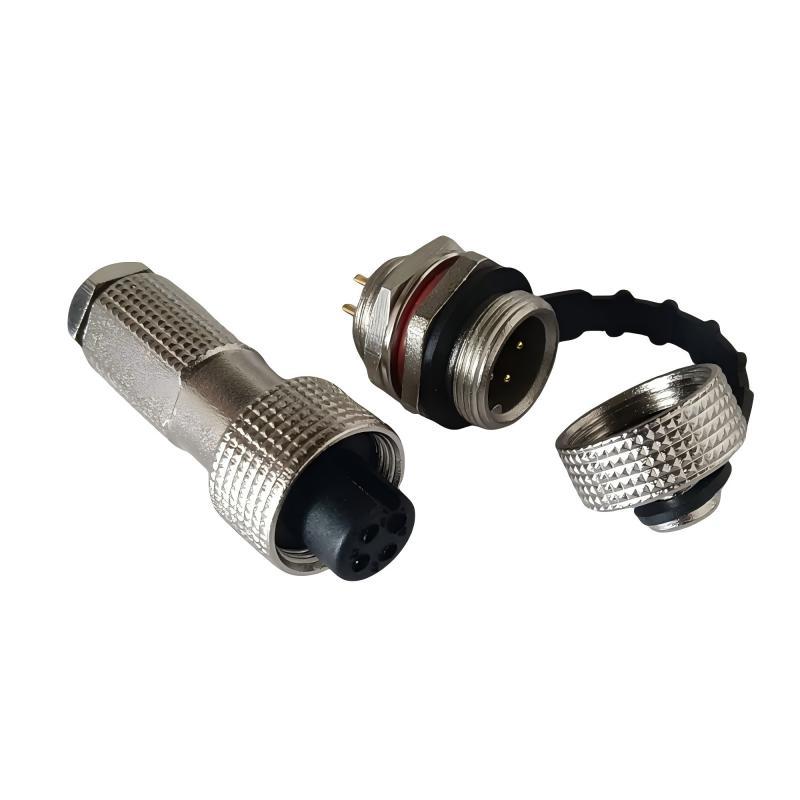

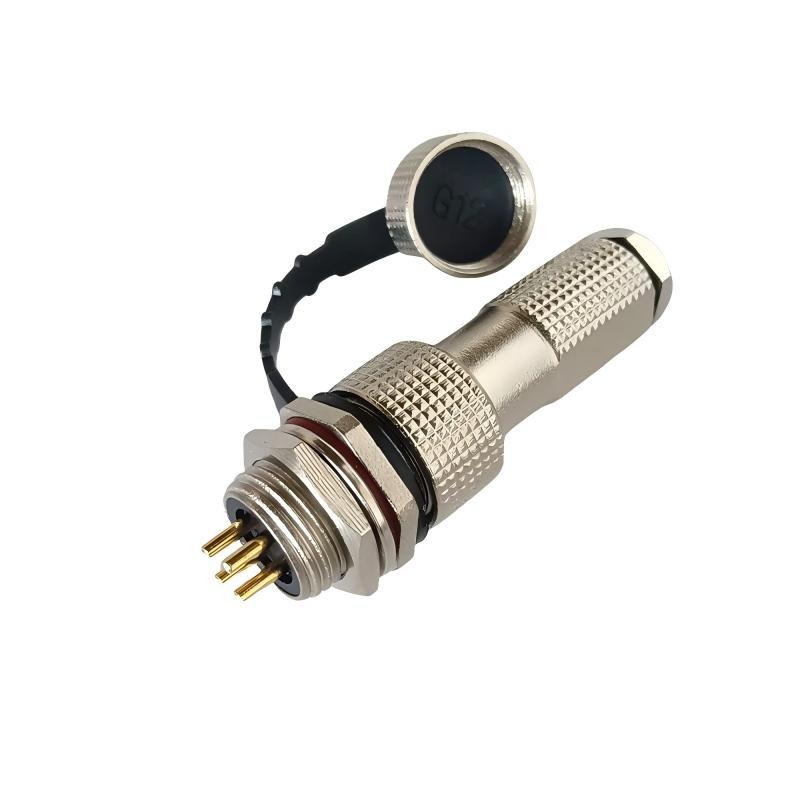

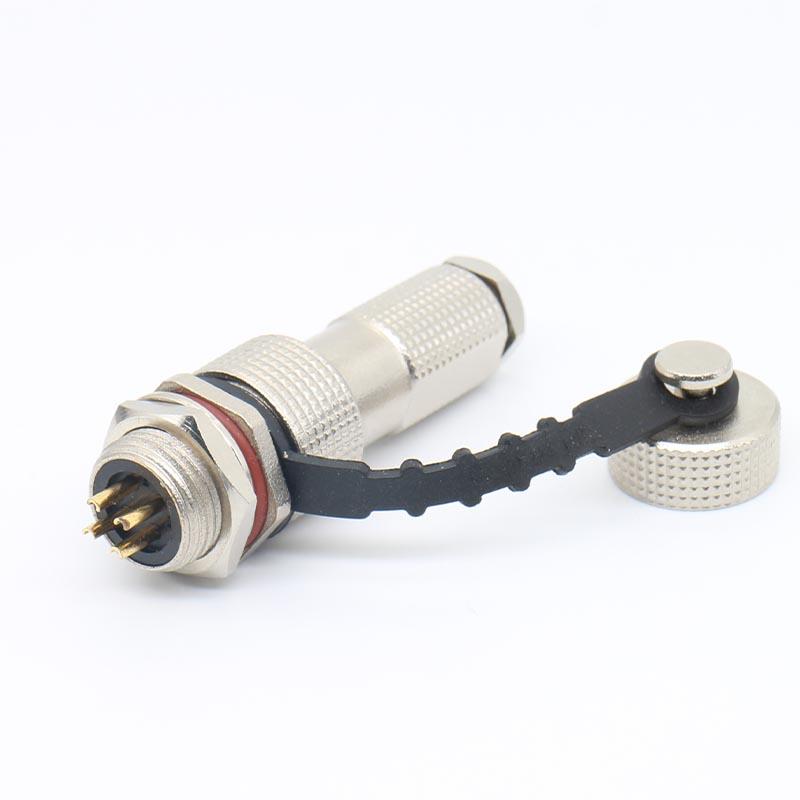

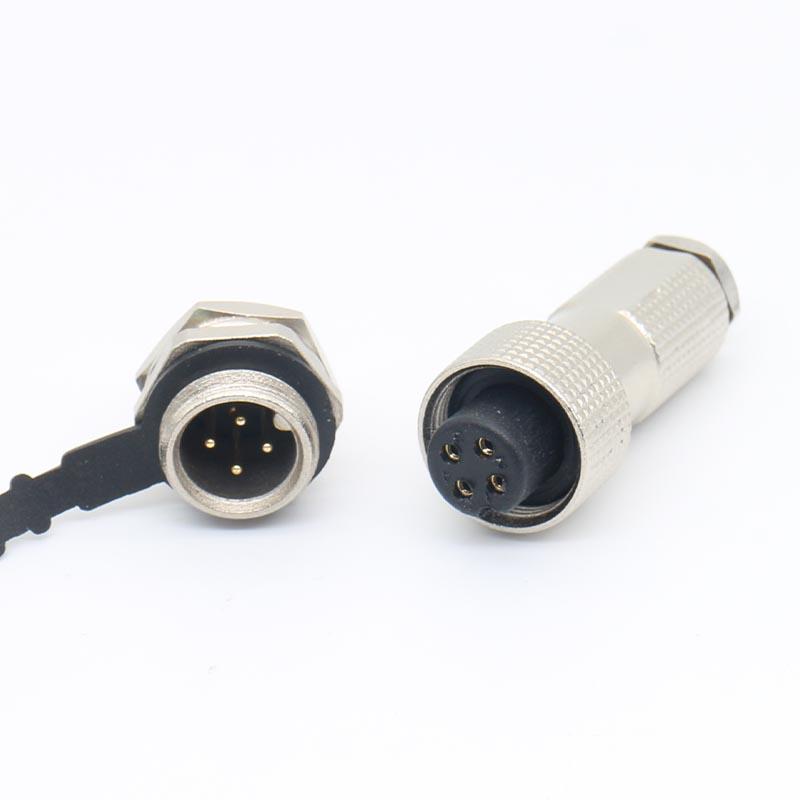

12G 4 Pin Aviation Connector Waterproof IP67 Industrial Circular Electrical Connector

What Is a 12G 4-Pin Aviation Connector?

The 12G 4-Pin aviation connector is a type of industrial circular electrical connector designed for secure power and signal transmission. It features a compact circular structure, durable metal housing, and waterproof sealing, making it suitable for industrial equipment, automation systems, and outdoor electrical applications.

This connector is commonly used where reliable multi-pin electrical connections are required. The 4-pin configuration allows efficient transmission of electrical signals, low-voltage power, or combined signal and power circuits. Its circular design also improves mechanical stability and simplifies installation compared to rectangular connectors.

As a widely used industrial connector, the 12G aviation connector provides dependable connectivity in both fixed and mobile equipment.


Waterproof and Dustproof Protection for Harsh Environments

One of the key advantages of the 12G 4-Pin waterproof aviation connector is its ability to operate in harsh environmental conditions. With protection levels such as IP65 or IP67, the connector prevents dust, moisture, and water from entering the contact area.

This waterproof circular connector is ideal for applications exposed to rain, humidity, or industrial contamination. The sealing structure helps protect internal electrical contacts and maintains consistent electrical performance over time.

Environmental protection is especially important in outdoor electrical systems, industrial machinery, and automation equipment where exposure to harsh conditions is unavoidable.

Durable Metal Housing for Mechanical Strength

The connector housing is typically made from nickel-plated brass or zinc alloy, providing excellent mechanical strength and corrosion resistance. This metal construction protects the connector from impact, vibration, and long-term wear.

The threaded coupling locking system ensures a secure connection between the plug and socket. This prevents accidental disconnection caused by vibration or movement, which is critical for maintaining stable operation in industrial environments.

The rugged construction makes this industrial circular connector suitable for demanding applications where durability is essential.

Reliable Electrical Performance and Signal Integrity

Stable electrical performance is essential for industrial connectors. The 12G 4-Pin aviation connector uses copper alloy contacts with high conductivity to ensure efficient electrical transmission.

Low contact resistance improves current efficiency and reduces energy loss. High insulation resistance helps prevent current leakage and ensures safe operation.

This connector supports both signal transmission and power delivery, making it suitable for control systems, sensors, power supplies, and integrated electrical equipment.

Consistent electrical performance helps improve system reliability and reduces the risk of connection-related failures.

Easy Installation and Secure Connection

The 12G 4-Pin aviation connector is designed for simple installation and secure assembly. It supports common termination methods such as crimp termination and solder termination, allowing flexibility during cable assembly.

The threaded locking mechanism ensures fast and reliable connection while allowing easy disconnection when necessary. This improves maintenance efficiency and reduces installation time.

The connector is also suitable for panel mount and cable mount applications, providing flexibility for various equipment designs.

Wide Range of Industrial and Commercial Applications

Due to its compact size, waterproof performance, and reliable electrical characteristics, the 12G 4-Pin connector is widely used across multiple industries.

Common applications include:

1.Industrial automation equipment

2.Electrical control systems

3.Power supply connections

4.LED lighting systems

5.Sensors and monitoring devices

6.Robotics and machinery

7.Outdoor electrical equipment

8.Test and measurement instruments

Its versatility makes it a preferred choice for engineers and equipment manufacturers.

Designed for Long-Term Reliability and Service Life

The 12G aviation connector is designed to provide long service life under demanding operating conditions. Its high-quality materials and precise contact design ensure consistent performance over repeated use.

The connector can operate across a wide temperature range, making it suitable for both indoor and outdoor environments. Its strong resistance to environmental stress helps reduce maintenance requirements and improve overall system reliability.

Reliable connectors are essential for maintaining stable operation and minimizing equipment downtime.

Conclusion

The 12G 4-Pin waterproof aviation connector is a reliable and durable solution for industrial circular electrical connections. Its waterproof design, strong metal housing, and stable electrical performance make it ideal for power and signal transmission in demanding environments.

With secure locking, flexible installation options, and long service life, this connector is widely used in industrial automation, electrical systems, and outdoor equipment.

As a dependable industrial circular connector, the 12G 4-Pin aviation connector helps ensure safe, stable, and efficient electrical connectivity across a wide range of applications.
