M8 Connector for Smart Lighting Control Systems

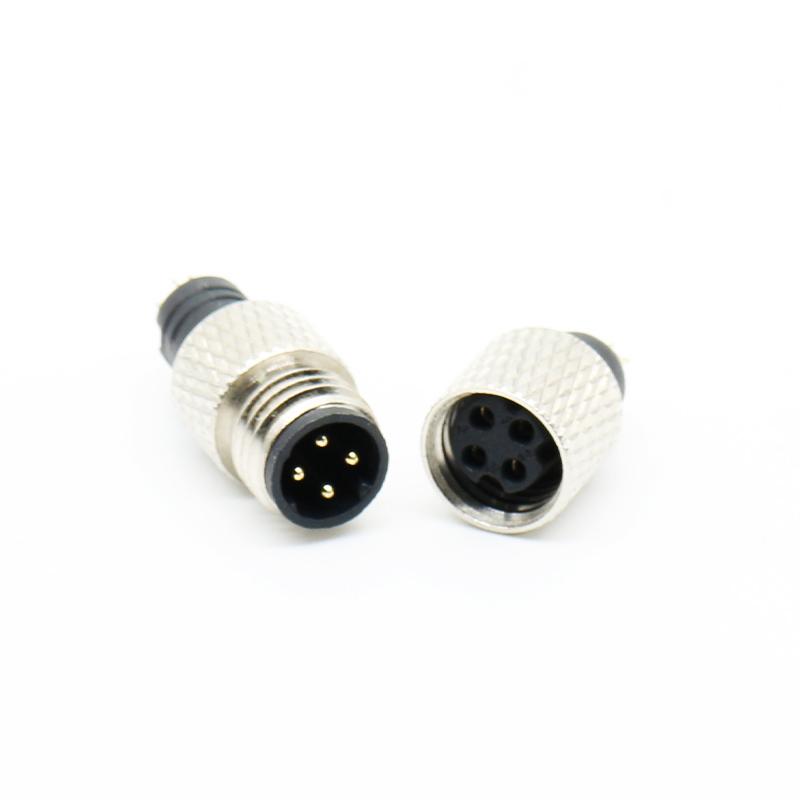

The M8 connector for smart lighting control systems is designed to provide reliable electrical connections in modern home automation environments. Its compact circular structure makes it ideal for smart lighting controllers, sensors, and distributed automation modules where space is limited.

Why Choose an M8 Connector for Smart Lighting?

Smart lighting systems require stable communication between controllers, sensors, and power modules. The M8 connector ensures secure signal and power transmission, helping maintain efficient and responsive lighting control in residential automation systems. Its screw-locking mechanism provides a vibration-resistant connection, which is essential for long-term reliability in wall-mounted and ceiling-installed lighting equipment.

Key Selection Considerations

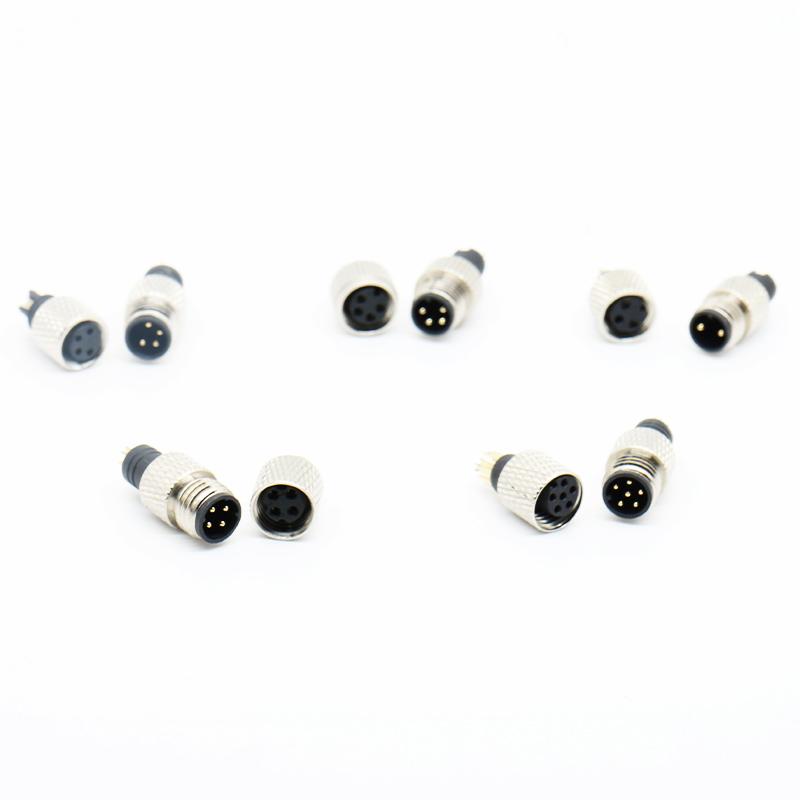

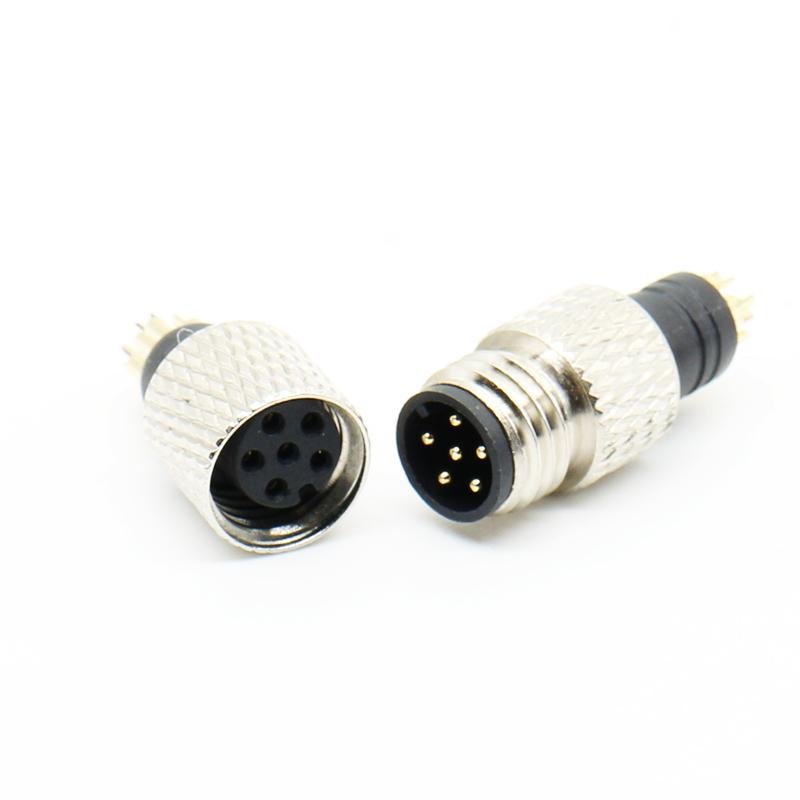

• Pin count and configuration: Available in 2 to 8 pin options, allowing you to match the connector to your specific signal and power requirements.

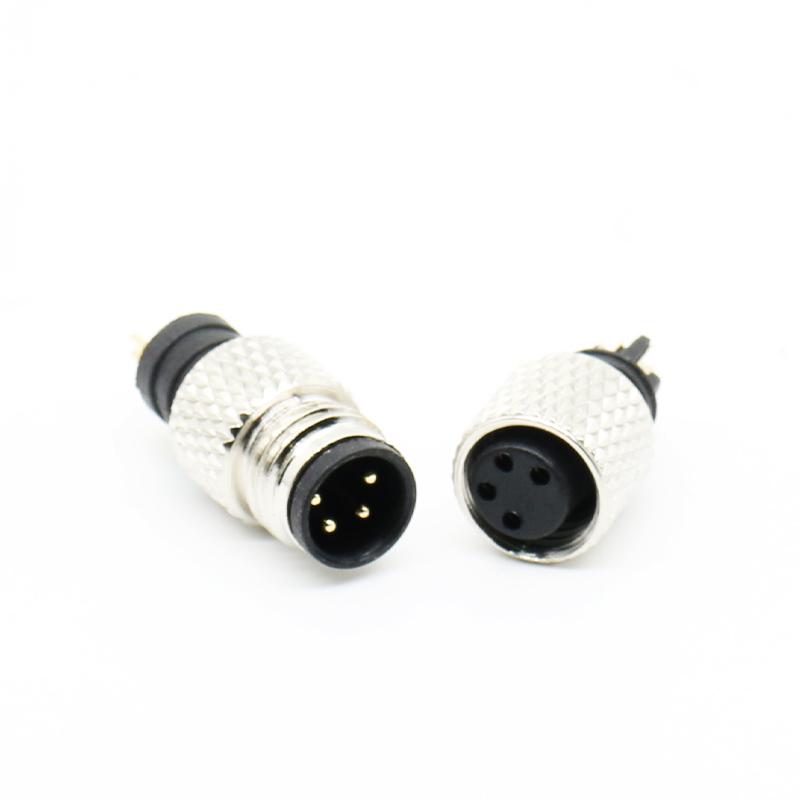

• Gender and orientation: Choose between male and female versions to suit your cable assembly and panel mounting needs.
• Environmental fit: The operating temperature range of -30°C to +85°C supports indoor and sheltered outdoor lighting installations.
• Material compatibility: Zinc alloy housing with nickel plating offers corrosion resistance, while brass contacts with silver or gold plating support reliable conductivity.

Application Scope

This M8 connector is well suited for smart lighting controllers, occupancy sensors, dimming modules, and distributed automation nodes where space is constrained. Its compact form factor and secure locking design make it a practical choice for manufacturers and integrators of smart lighting equipment.

Installation and Integration Notes

Before specifying the connector, confirm the cable diameter, conductor size, and required pinout for your lighting control protocol. The screw-locking system requires access for tightening during installation, so plan for adequate clearance in the enclosure design. For applications involving frequent disconnection, verify that the mating cycle rating meets your maintenance schedule.

When This Connector May Not Be Suitable

For high-current lighting loads exceeding the rated current of this M8 series, consider a larger circular connector such as the 12G Series Circular Connectors. Similarly, if your installation requires a higher ingress protection rating for outdoor exposure, confirm the IP rating of the mated pair before finalizing the design.

Information to Include in Your Inquiry

To receive an accurate quotation and technical recommendation, please provide the following details:

• Required pin count and gender (male or female)
• Cable type, conductor size, and outer diameter
• Mounting style (panel mount, cable mount, or PCB)
• Operating environment and temperature range
• Required IP rating and any specific material requirements

For related smart home connectivity solutions, review the M12 Connector for Smart Home HVAC and Lighting Systems to compare options for larger installations.
