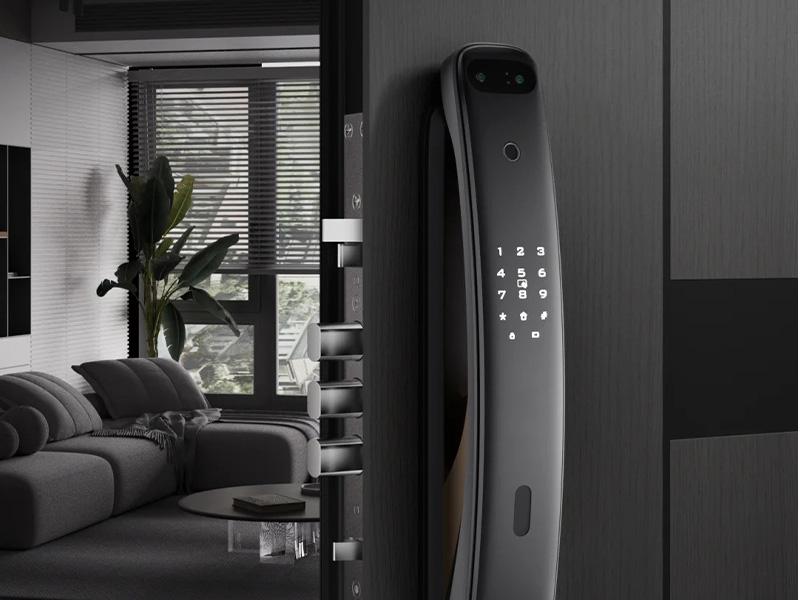

Selecting Miniature Connectors for Home Smart Door Locks

For home smart door locks that demand miniaturization and easy installation, the M5 miniature series connector is a suitable choice. With a diameter of 5mm and a weight of less than 2g, this connector is designed to fit compact lock housings while simplifying the assembly and maintenance process.

Key Specifications and Configuration

The M5 connector for this application typically uses a 4-pin configuration:

• 2 pins for power supply – designed to connect a 3.7V lithium battery.
• 2 pins for signal transmission – used for fingerprint recognition data.

This separation of power and signal lines helps reduce interference and supports reliable operation of the lock's electronic components.

Installation and Maintenance Benefits

One of the main advantages of the M5 connector in this application is its low mating force. With a plugging force of less than 5N, end users can replace the battery themselves without requiring tools. This reduces service calls and improves the overall user experience for a consumer-grade product.

Environmental Protection and Durability

Because the connector is mounted at the door entrance, it must withstand exposure to weather and dust. The M5 series offers an IP65 protection rating, which provides resistance against rain and dust ingress. Additionally, the connector operates within a temperature range of -10°C to 50°C, accommodating typical indoor and outdoor temperature differences in residential settings.

Application Fit and Limitations

This connector is intended for low-power, low-voltage applications such as smart locks, sensors, and compact electronic devices. It is not designed for high-current power distribution or industrial environments requiring higher ingress protection or heavier mechanical locking. For applications with higher power requirements or more demanding environmental conditions, consider larger connector series such as the 12G Series Circular Connectors.

If your project requires a different pin count, a different mounting style, or a higher protection rating, verify the specific M5 variant's datasheet before finalizing the design. The values above apply to the standard configuration described and may vary with cable type and mating cycle.
