GX12 Aviation Connector for IP Security Dome Cameras

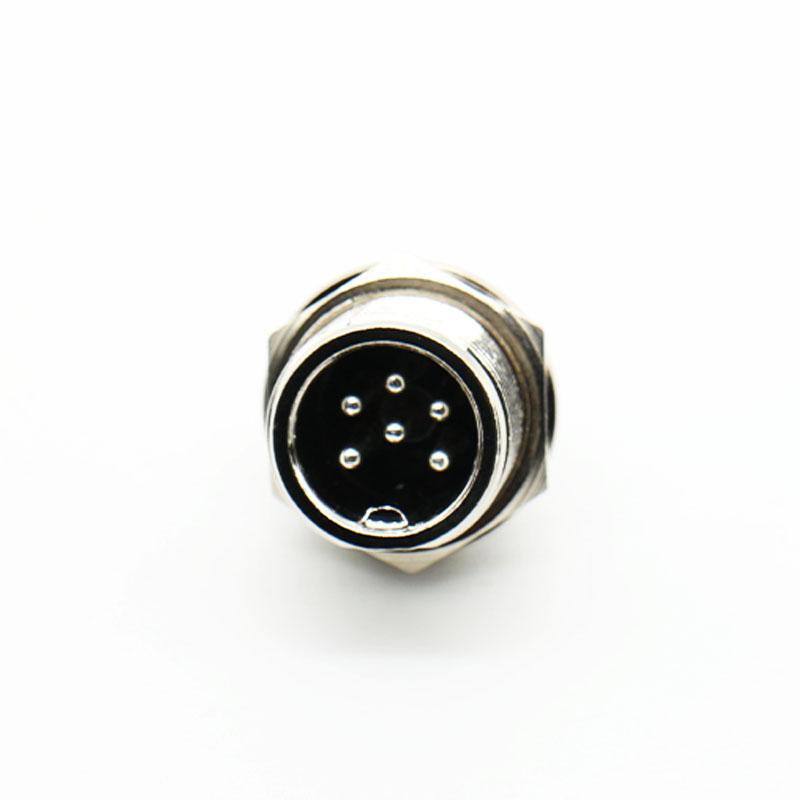

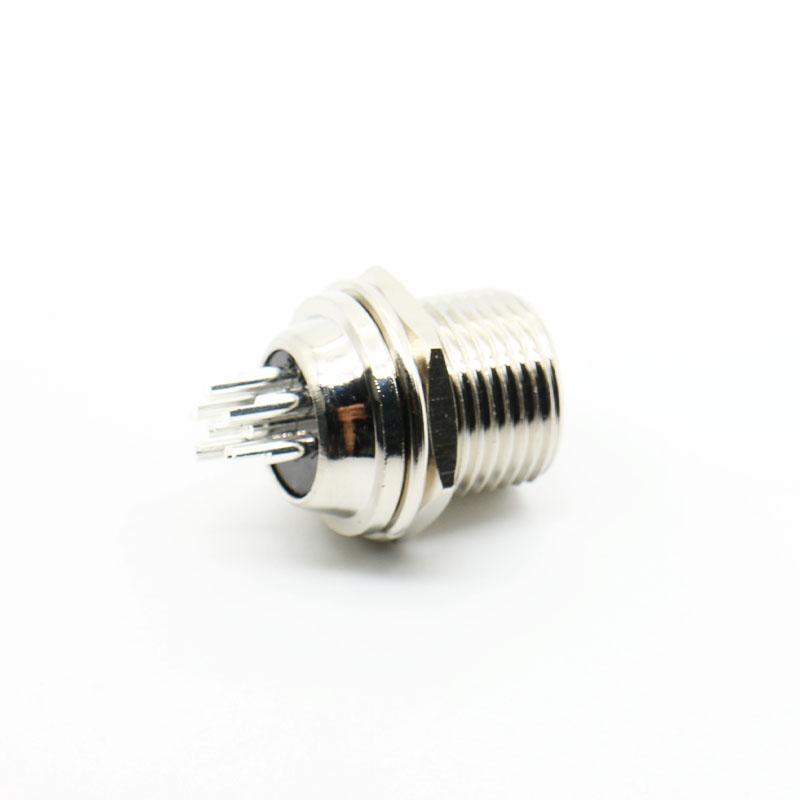

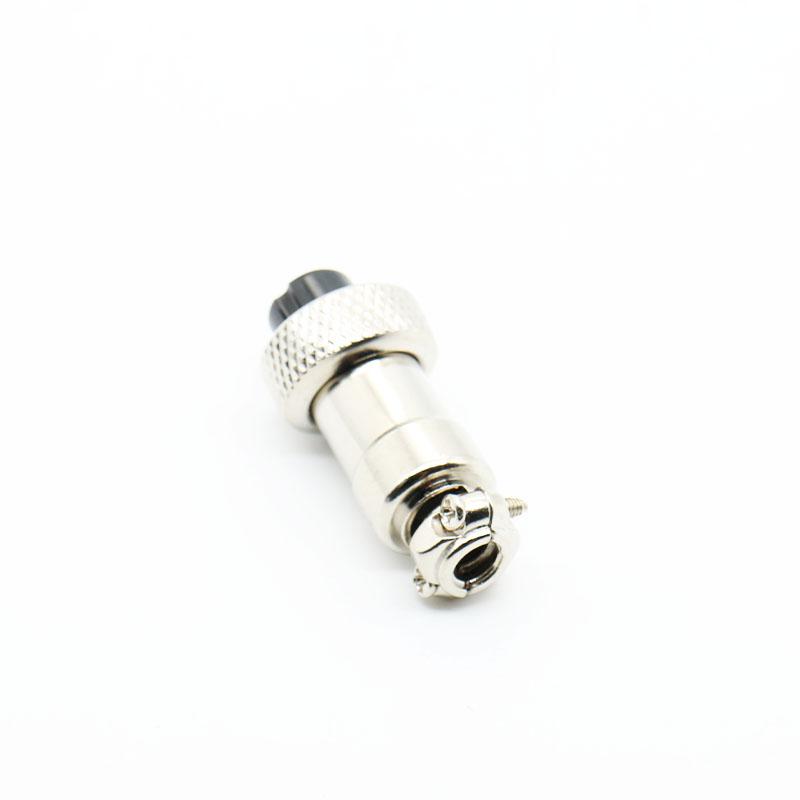

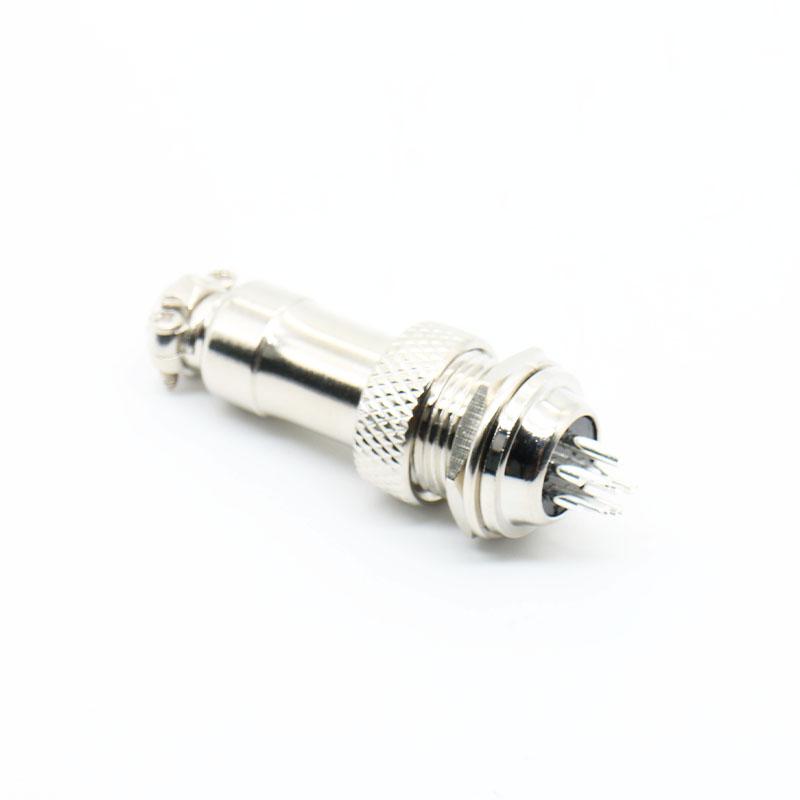

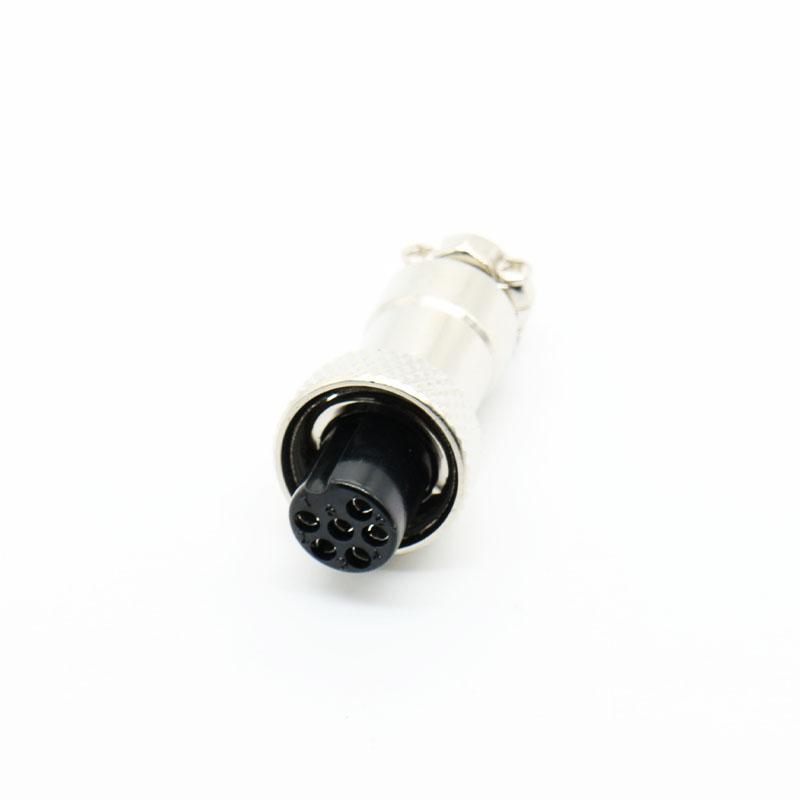

The GX12 circular connector is a screw-locking aviation-style interface built for security monitoring equipment, including IP dome cameras, bullet cameras, and DVR or NVR setups. Its machined metal shell and positive locking design are intended to keep power and signal paths stable in installations where vibration or cable strain could otherwise interrupt a surveillance feed.

Why Choose a GX12 Connector for Your Camera System

When selecting a connector for an IP dome camera, the decision usually comes down to three factors: mechanical retention, electrical stability, and installation effort. The GX12 series addresses each of these with a straightforward design that has been widely adopted in security and instrumentation applications.

• Secure screw locking: The threaded coupling prevents accidental disconnection from vibration or incidental cable pull, a common failure point in panel-mounted camera connections.
• Compact envelope: The small shell diameter suits space-constrained camera housings and junction boxes where larger circular connectors may not fit.
• Metal construction: A zinc alloy housing with nickel plating provides impact resistance and shielding for reliable signal integrity in outdoor-rated enclosures.
• Field-friendly termination: Solder cup contacts allow for quick, reliable assembly without specialized crimp tooling.

Construction and Material Overview

The GX12 connector is built around a threaded coupling system. The housing is machined from zinc alloy and finished with nickel plating for corrosion resistance. Contacts are brass with gold or silver plating, depending on the configuration, to maintain low and stable contact resistance over repeated mating cycles. The insulator is made from phenolic material, which provides good electrical insulation and dimensional stability in typical surveillance operating temperatures.

Applications for GX12 in Security Monitoring

This connector series is commonly specified for the following equipment types:

• IP dome cameras and PTZ camera bases
• Bullet cameras with external cable connections
• Security DVR and NVR I/O panels
• Access control monitoring and intercom devices

For related guidance on camera connector selection, see M8 vs M12 connector selection for outdoor surveillance cameras. For a broader view of the series, review the Aviation Plug Connectors catalog.

Selection Considerations and Boundaries

Before specifying a GX12 connector, confirm the following with your camera or cable assembly supplier:

• Pin count and gender: The series supports 2 to 7 pins in male or female configurations. Verify the pinout of your camera's pigtail or PCB header before ordering.

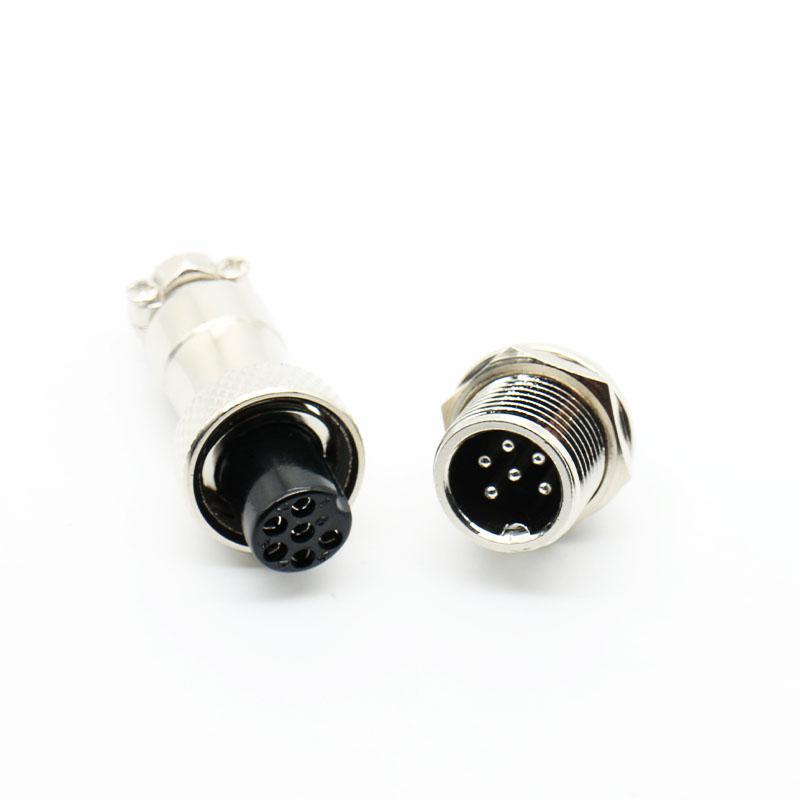

• Mating dependency: The plug and socket must be ordered as a matched pair with the same pin count and keying. A 4-pin plug will not mate with a 5-pin socket.
• Environmental limits: While the metal shell is durable, the GX12 is not inherently rated for submersion. For outdoor installations, the connector must be housed inside an IP-rated camera enclosure or junction box. It is not a waterproof connector on its own.
• Termination method: Solder termination is standard. Ensure your installation team has the correct soldering iron tip and heat-shrink tubing for the cable gauge being used.

Installation and Maintenance Notes

For reliable long-term performance, keep the following points in mind during installation:

• Pre-tin the solder cups and the stripped cable ends before joining to avoid cold solder joints.
• Do not over-tighten the screw-lock collar; snug finger-tight plus a quarter turn with a wrench is typically sufficient to avoid damaging the threads.
• Provide strain relief on the cable within 50 mm of the connector body to prevent flex fatigue at the solder joint.
• Periodically check the coupling nut for loosening in high-vibration environments, such as cameras mounted on poles or traffic gantries.

Inquiry Checklist for Accurate Quoting

To receive an accurate quotation and correct mating parts, please provide the following details when contacting our sales team:

• Required pin count (2-7) and gender (male plug or female socket)
• Cable outer diameter and conductor gauge for the cable assembly
• Whether you need a panel-mount socket or an in-line plug
• Quantity required and target delivery schedule
• Any specific plating preference (gold or silver) for the contacts

For detailed electrical ratings and dimensional data, please refer to the Technical Specifications section on this page. Final configuration should be confirmed with our engineering team before mass production.
