IP67/IP68 Weatherproof Connectors for UK Outdoor Surveillance

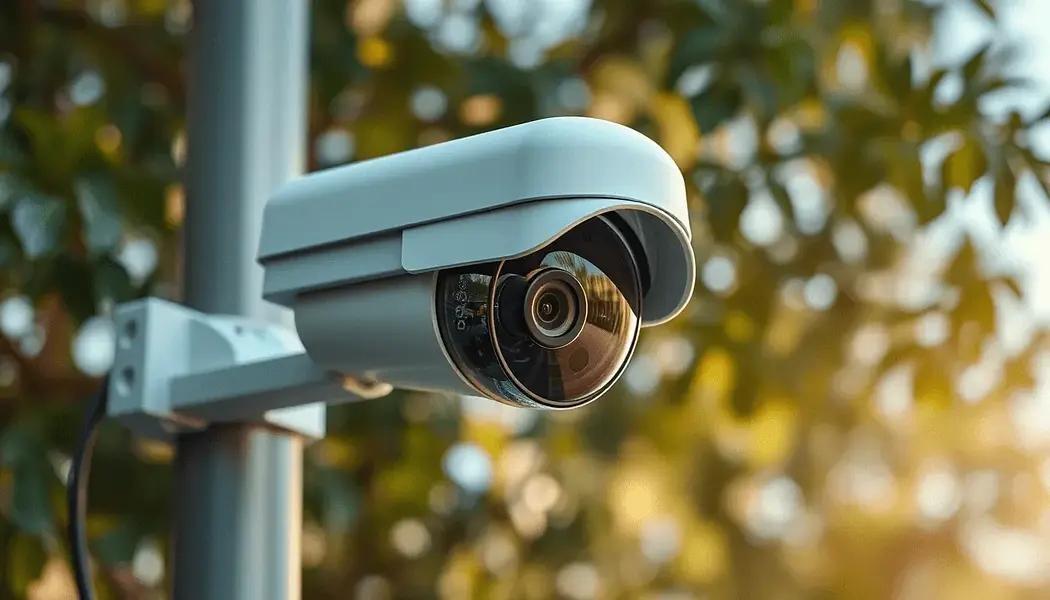

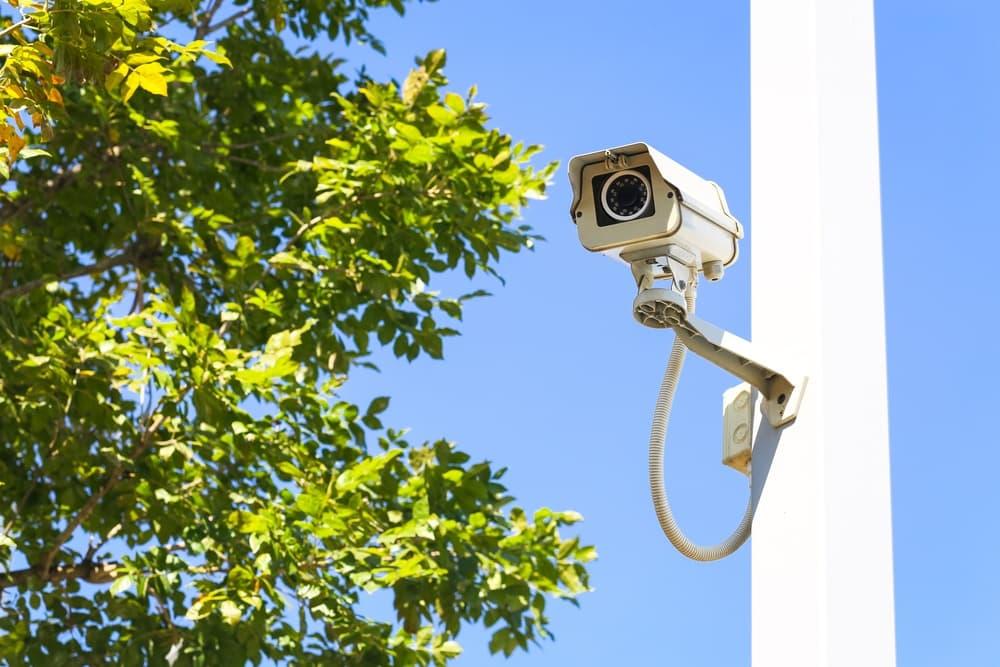

Outdoor surveillance cameras in the UK face a demanding environment: frequent rain, fog, coastal salt spray, and temperature swings from freezing winters to mild summers. Unlike indoor units operating in stable conditions, these installations require connectors that deliver 360° environmental protection while supporting 24/7 reliability for public safety, traffic monitoring, and private property security.

Project Background

A UK-based security system integrator needed to upgrade outdoor camera installations across multiple sites, including coastal towns and inland urban areas. After two years of service, existing connectors showed signs of corrosion and water ingress, leading to intermittent signal loss and rising maintenance costs. The project required a connector solution capable of withstanding the region's demanding weather patterns while supporting power and data transmission for high-definition surveillance equipment.

Environmental and Electrical Requirements

Persistent Moisture:
Average annual rainfall exceeds 1,200 mm in regions like Scotland and Northwest England, requiring connectors with IP67/IP68 ratings to prevent water ingress.
Coastal areas (e.g., Cornwall, Liverpool) face salt-laden air, necessitating corrosion-resistant materials such as stainless steel or UV-stabilized plastics.

Temperature Extremes:
Winter temperatures can drop to -10°C, while summer heatwaves may reach 30°C. Connectors must function across -40°C to +70°C without seal degradation.
Thermal cycling from day-night shifts demands high-elasticity O-rings and compression-retaining gaskets to maintain sealing integrity over thousands of cycles.

Electrical Load and Interface:
Each camera required a reliable 12V DC power supply with a current draw up to 2A, alongside an Ethernet or coaxial signal line for video transmission. The connector interface needed to support repeated mating and unmating during installation and maintenance without compromising the IP rating.

Solution and Connector Selection

After evaluating the environmental and electrical demands, the integrator selected IP68-rated circular connectors with a threaded coupling mechanism. The chosen series offered:

• IP68 protection when mated, ensuring resistance to prolonged immersion and high-pressure water jets
• Corrosion-resistant housing suitable for coastal salt-spray exposure
• Operating temperature range of -40°C to +70°C, covering UK winter and summer extremes
• Secure locking to prevent accidental disconnection from vibration or wind loads

For installations requiring a compact footprint, the team also evaluated M8 and M12 connector options depending on the camera's available space and cable entry orientation. The final selection prioritized sealing integrity and material compatibility over cost to minimize long-term maintenance visits.

Commissioning and Delivery Process

During the pilot installation, the team verified the mating torque and confirmed that O-ring compression remained consistent after repeated connections. Each connector was tested for continuity and insulation resistance before final mounting. The delivery process included pre-assembled cable sets to reduce on-site termination errors and ensure consistent sealing performance across all camera positions.

Results and Operational Benefits

After the upgrade, the surveillance system reported zero water-ingress failures during the first six months of operation, including periods of heavy rainfall and coastal storms. The maintenance interval for connector-related issues extended significantly, reducing downtime for public safety monitoring. The integrator noted that the clear mating feedback and robust locking mechanism simplified field replacements, allowing technicians to complete camera swaps in under 15 minutes.

Proper connector selection and maintenance ensure reliable outdoor surveillance systems protecting critical infrastructure and private properties. As technology evolves, connectors will provide enhanced power delivery, improved environmental protection, and integrated security features.

For engineers evaluating similar outdoor camera deployments, the key decision factors are the required IP rating, material resistance to local environmental conditions, and the electrical load capacity of the connector. Consulting the Aviation Plug Connectors range or reviewing the M8 vs M12 selection guidance for outdoor surveillance cameras can help narrow down suitable options before prototyping.
