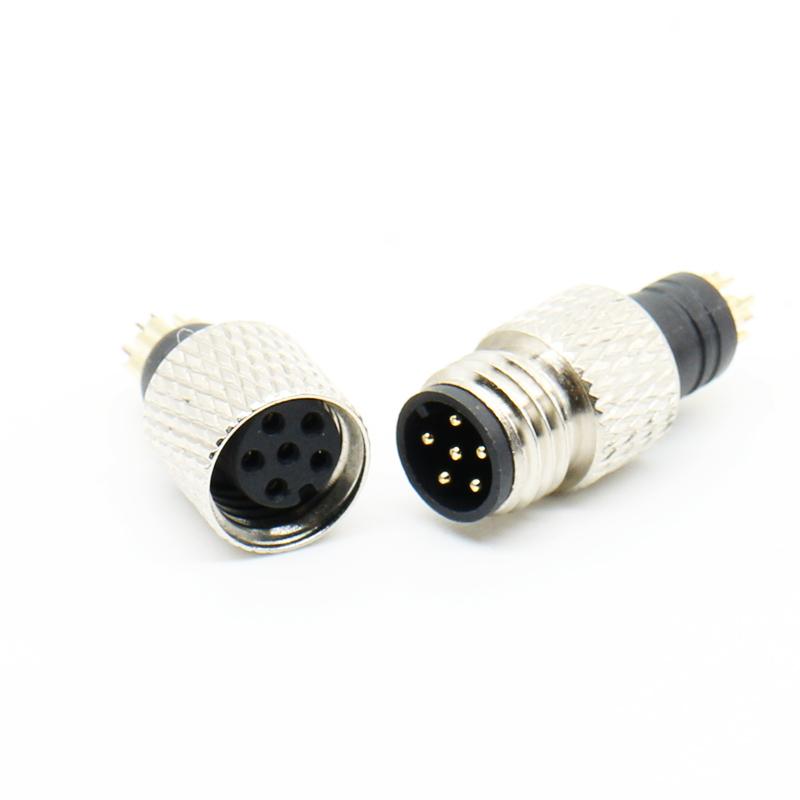

6 Pin Connector
< >

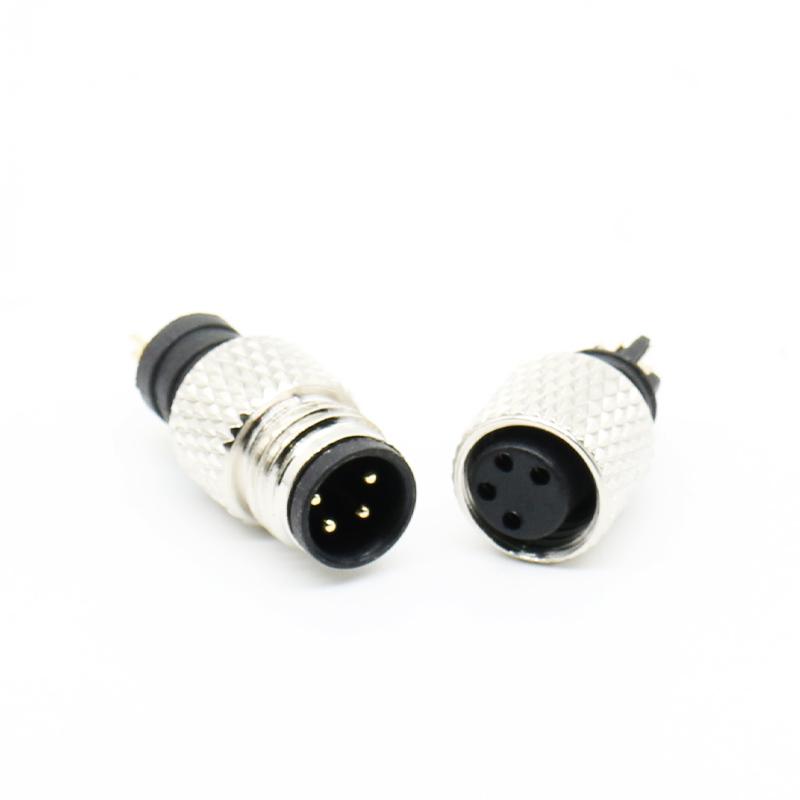

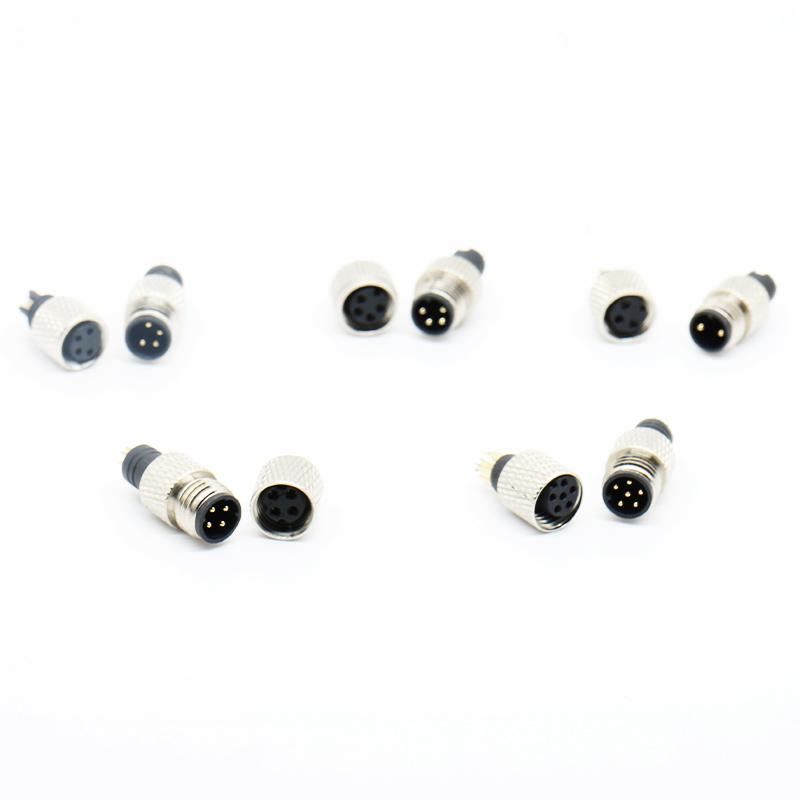

M8 Circular Connector for CCTV Security Camera Systems

>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm/0.72mm/0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A/1A
Rated VoltageRated Voltage(Ac.V) 180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

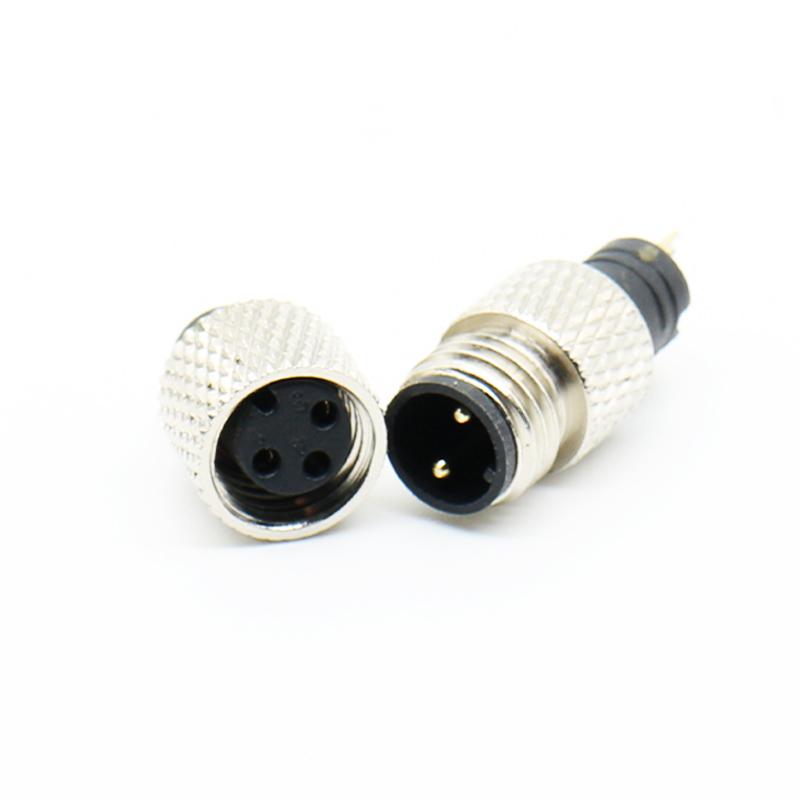

M8 Connector for IP Security Cameras

The M8 circular connector is specially designed for security monitoring applications, providing reliable power and signal transmission for IP cameras, dome cameras, and outdoor CCTV systems. Its compact structure makes it ideal for tight installation spaces inside camera housings and junction boxes.

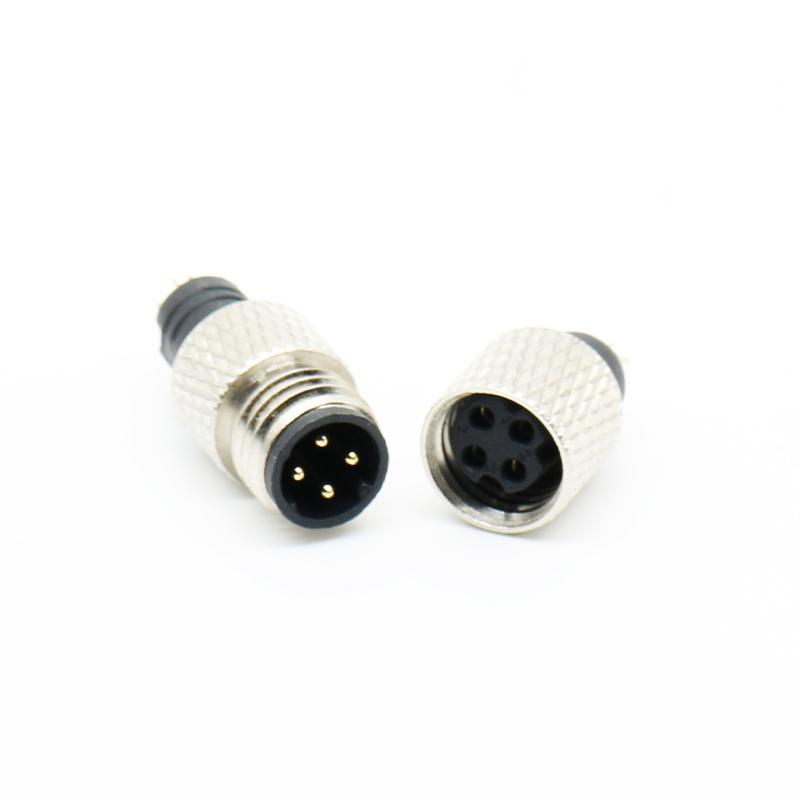

M8 Connector


Stable and Secure Signal Transmission

This M8 connector ensures consistent data and power connectivity, helping maintain uninterrupted video surveillance performance. The screw locking mechanism prevents accidental disconnection and provides vibration resistance, making it suitable for long-term 24/7 monitoring systems.

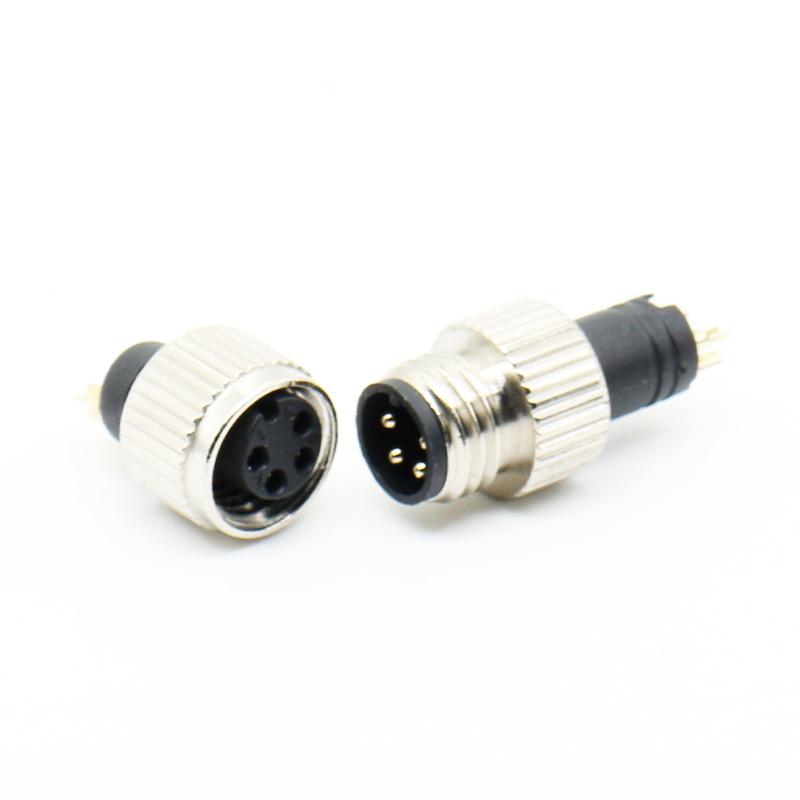

IP67 Waterproof Protection for Outdoor Use

With IP67-rated sealing performance, the M8 circular connector effectively resists water, dust, and harsh environmental conditions. It is an excellent choice for outdoor security cameras, parking lot surveillance systems, perimeter monitoring equipment, and building security installations.

Durable Construction for Harsh Environments

Manufactured with high-quality materials and corrosion-resistant housing, the M8 connector delivers long service life and dependable performance in demanding security applications.

Item

Parameters

Number of Cores

2-8Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Silver/Gold

Insulator Material

PA66

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

3A(2-5Pin)/ 1A(6-8Pin)

Rated Voltage (AC.V)

180V

Test Voltage (AV.C)1Min

1000V

Insulation Resistance (㏁)

1500㏁

Contact Resistance (㏁)

≤10㏁

Termination

Solder
