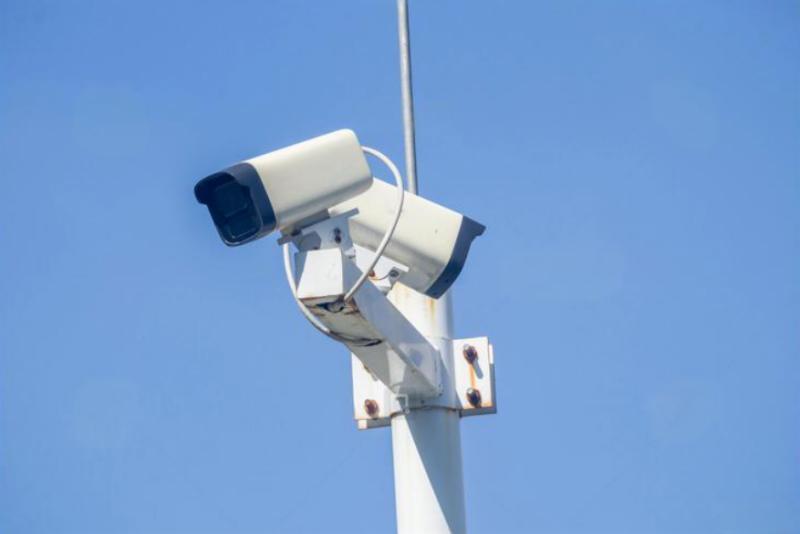

Project Background: Outdoor Surveillance in Germany

Outdoor surveillance systems are widely deployed across public infrastructure, industrial facilities, and transportation hubs in Germany. These installations typically comprise cameras, mounting structures, and centralized monitoring units. The operational environment demands stable electrical connections that can withstand continuous exposure to weather, temperature fluctuations, and mechanical stress.

Connector Application in Camera Systems

M12 connectors are commonly used in industrial-grade surveillance cameras, particularly where higher durability is required. Typical applications include:

• Camera power and signal interfaces
• Connections between camera modules and extension cables
• Integration with network or control systems in protected housings

Design Characteristics and Selection Considerations

M12 connectors feature a threaded coupling mechanism that ensures secure engagement under vibration or movement. Different coding types may be selected depending on power or data requirements. For outdoor camera installations, engineers should verify the required pin count, coding (A, B, D, or X-coded), and whether a field-wireable or molded cable assembly best matches the installation and maintenance plan.

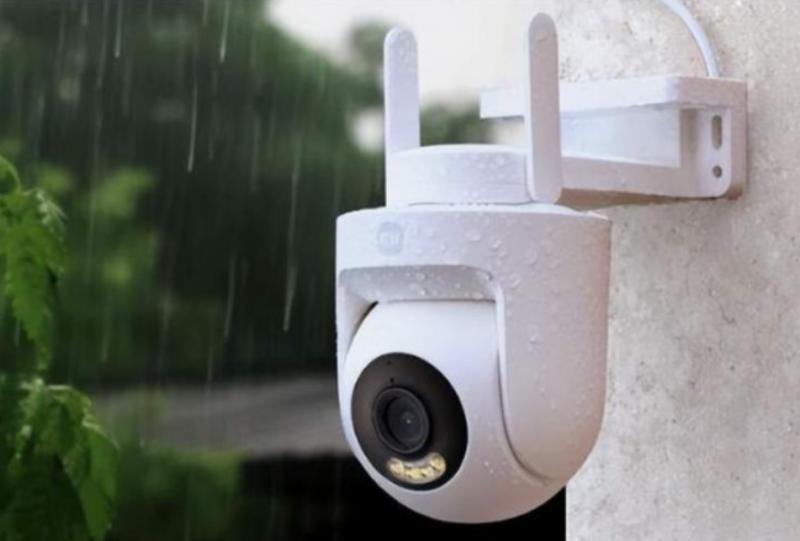

Environmental Performance and Sealing

Outdoor cameras are exposed to rain, dust, and temperature fluctuations. M12 connectors with appropriate sealing (such as IP67) help maintain connection integrity in these conditions. It is important to confirm that the IP rating applies to the mated condition and that the cable gland or backshell is compatible with the specified cable diameter.

Conclusion

M12 connectors provide a reliable interface solution for outdoor surveillance systems requiring durable and weather-resistant connections. For further reference on connector selection and configuration, see the Aviation Plug Connectors catalog or review the M8 vs. M12 selection guidance for outdoor surveillance cameras.
