SP20 Connectors
< >

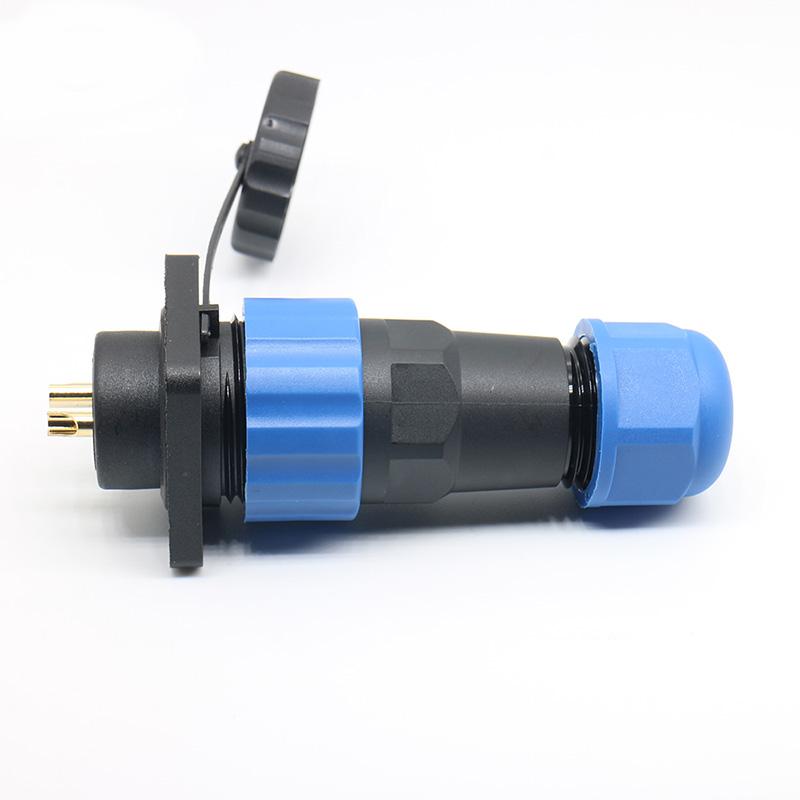

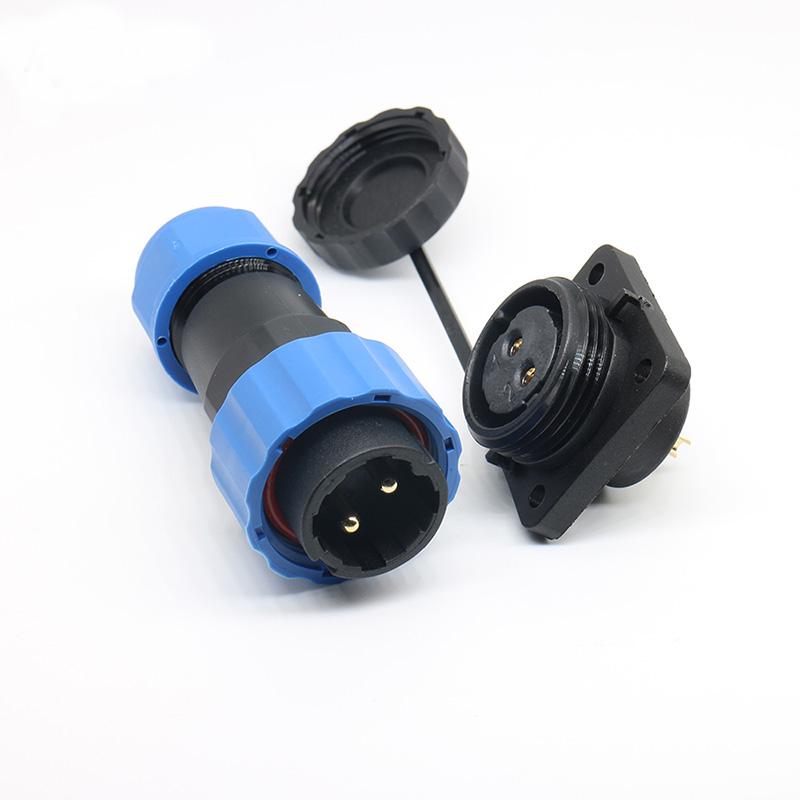

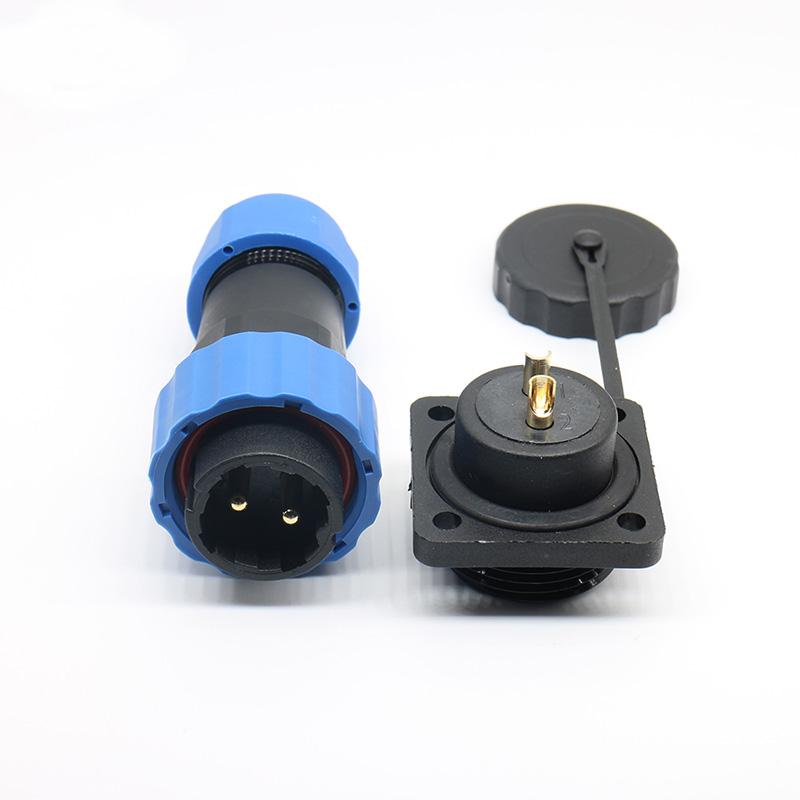

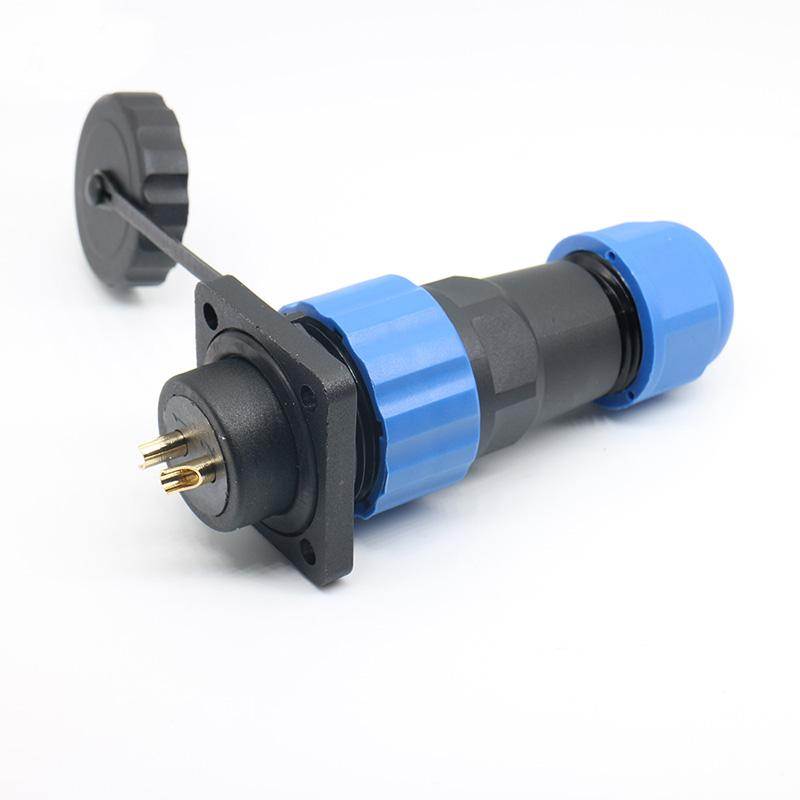

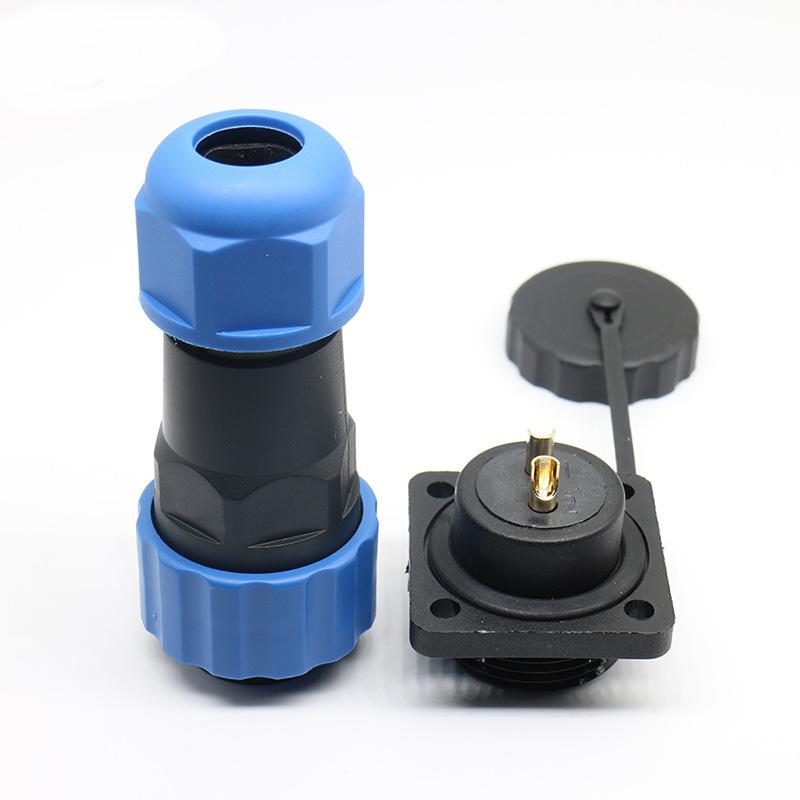

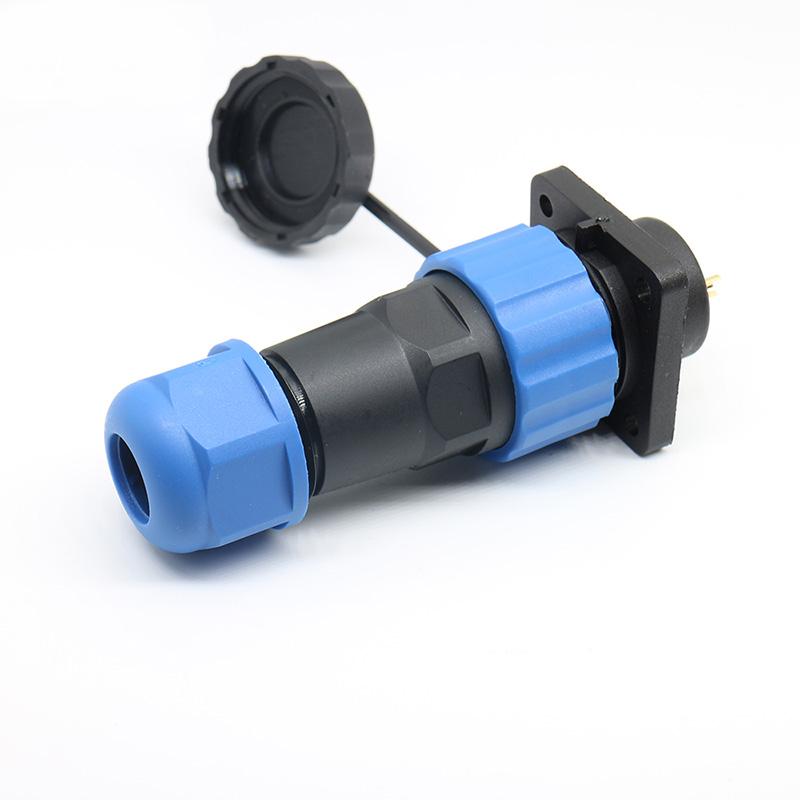

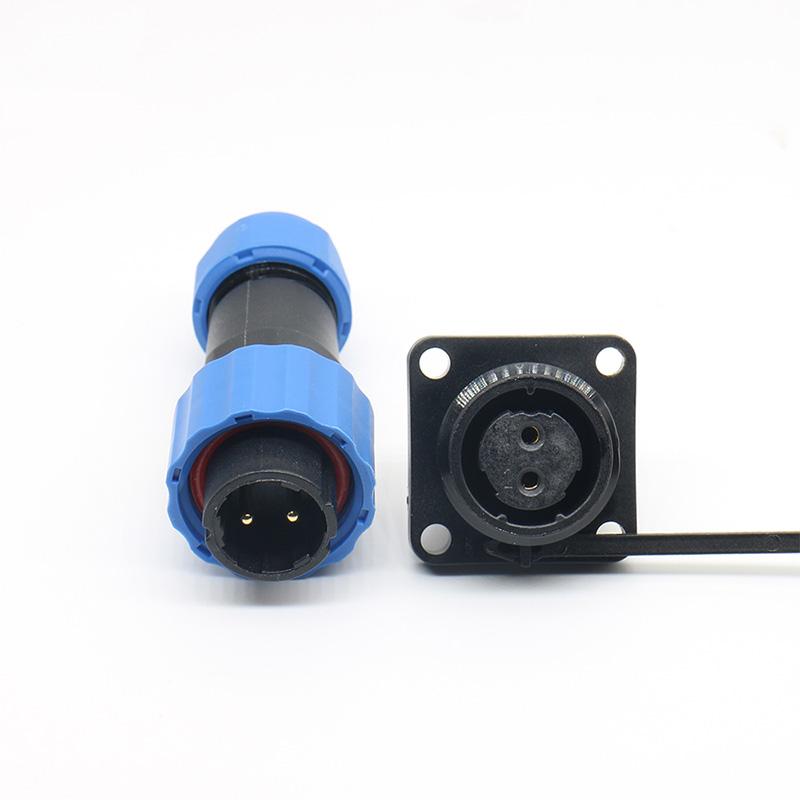

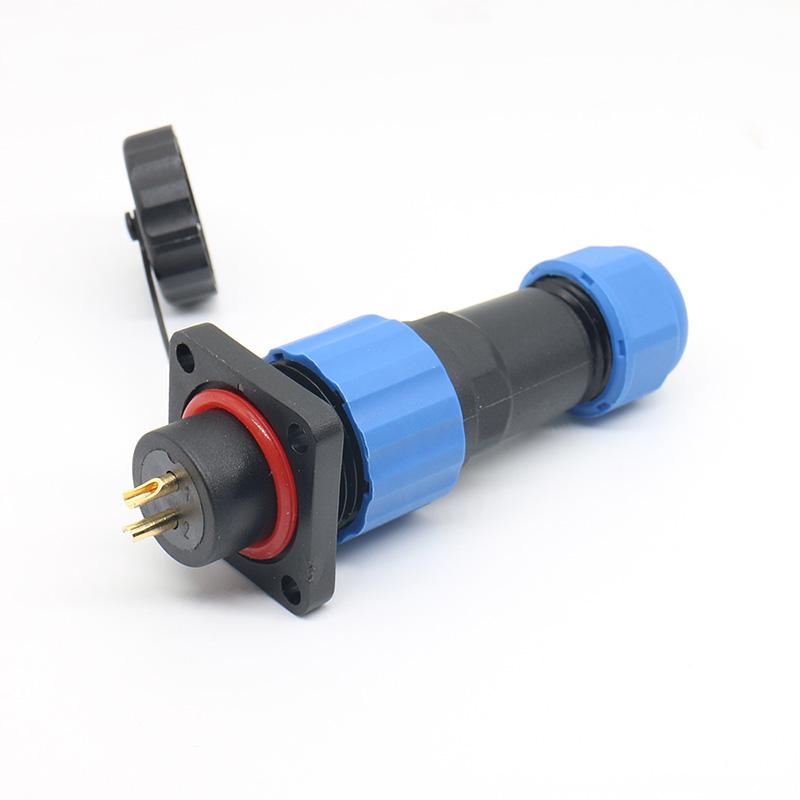

SD20/SP20 Square Flange Connector for Smart Machines

>Number Of CoresNumber Of Cores 2 - 9Pins
Contact DiameterContact Diameter(mm) 1.0mm/1.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA66/PA6
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 5A/10A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

SD20/SP20 Square Flange Connector for Smart Machines

The SD20/SP20 Square Flange Connector is engineered for smart machines and industrial automation systems. Designed with precision and durability in mind, it provides reliable connections and ensures stable signal transmission even in demanding environments.

High-Quality Construction: Made from robust materials to withstand harsh industrial conditions.
Reliable Performance: Maintains secure and stable electrical connections for your machinery.
Easy Installation: Compact design with user-friendly mounting for quick setup.
Versatile Application: Ideal for robotics, smart machines, automated production lines, and other industrial systems.
Durable & Long-Lasting: Built to deliver consistent performance over time, reducing maintenance needs.

Upgrade your smart machines with the SD20/SP20 connector—engineered for efficiency, reliability, and seamless operation in modern industrial applications.

Connectors

Item

Parameters

Number of Cores

2-9Pin

Gender

Male/Female

Housing Material

Thermoplastic PA66/PA6

Cores Material

Brass Plated with Silver

Insulator Material

PPS

Locking System

Threaded Connection

Temperature Range

-20℃, +85℃

Rated Current (A)

5A/10A

Rated Voltage (AC.V)

250V/380V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Welding


Related Products

More》

Related Resource


SD20/SP20 Square Flange Connector
Related Cases
KMYD Connectors KNOWS WHAT YOU NEED,
SD20/SP20 Square Flange Connector for Smart Machines Market Leader！
Marine Navigation and Bridge Control Panels in South Korea
Marine Navigation and Bridge Control Panels in South Korea
Learn how push-pull connectors are applied in marine navigation and bridge control panels in South Korea, supporting compact layouts and efficient maintenance.
Offshore Communication and Control Modules in the United Kingdom
Offshore Communication and Control Modules in the United Kingdom
Discover how push-pull connectors are used in offshore communication and control modules in the UK, supporting compact interfaces and efficient maintenance in platform environments.
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector – the perfect fit for marine LED fishing lights! Engineered for US marine environments, this 9pin connector solves humidity, salt corrosion, and space issues. With IP68 protection, brass nickel-plated contacts, and ABYC C-5/UL 508 compliance, it resists salt fog over 500 hours. Compact Ø21mm×L36mm design halves installation time. 30A rating supports 5–25W lights, reducing failure rates to 0.3% and cutting maintenance costs by 80%, fully complying with USCG.
Underwater Inspection Cameras for Offshore Operations in Norway
Underwater Inspection Cameras for Offshore Operations in Norway
Explore how push-pull connectors are used in underwater inspection camera systems in Norway, supporting reliable signal transmission and efficient equipment handling in offshore environments.

RELATED FAQ

How to reduce attenuation when transmitting video signals of security cameras over a distance of 500 meters?
Q: How to reduce attenuation when transmitting video signals of security cameras over a distance of 500 meters? A: Select shielded M12 D-code connectors (8Pin) that support the Gigabit Ethernet protocol with a transmission rate of 1Gbps, and signal attenuation ≤0.5dB/100 meters (total a
For connectors of home smart door locks that require miniaturization and easy installation, what type should be selected?
Q: For connectors of home smart door locks that require miniaturization and easy installation, what type should be selected? A: Choose the M5 miniature series connectors (5mm in diameter, weight ＜2g). The 2 pins are used for power supply (3.7V lithium battery), and another 2 pins for fing
For the load moment limiter of cranes used outdoors, what connector should be selected?
Q: For the load moment limiter of cranes used outdoors, what connector should be selected? A: Choose LD series waterproof connectors (IP67) with a temperature resistance range of -40~85℃, suitable for outdoor high and low temperature environments. With 4 pins, they transmit weight and a
Related Catalog
Learn More

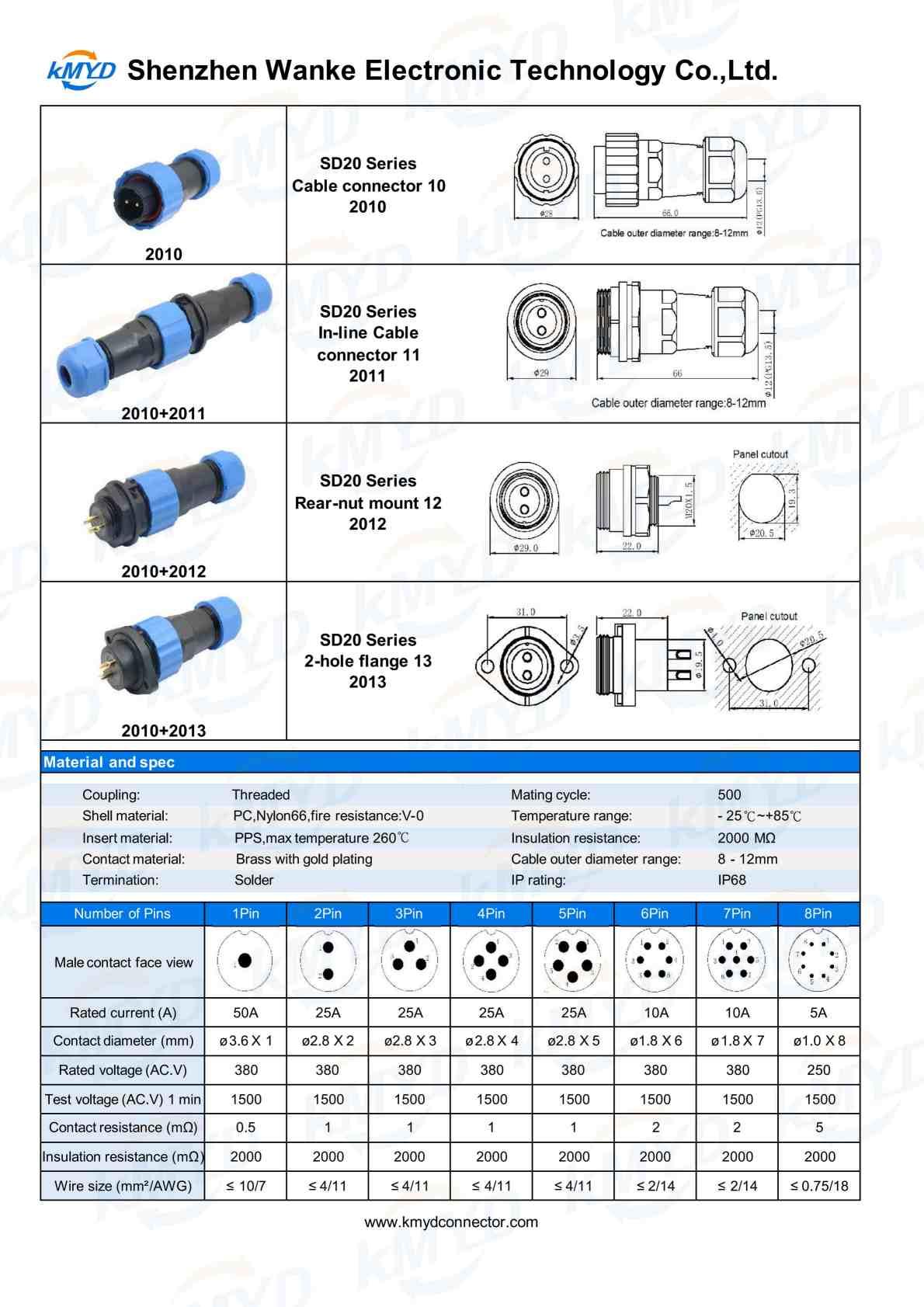

SD20/SP20 Square Flange Connector
