M12 Connector for Solar Inverter Monitoring Systems

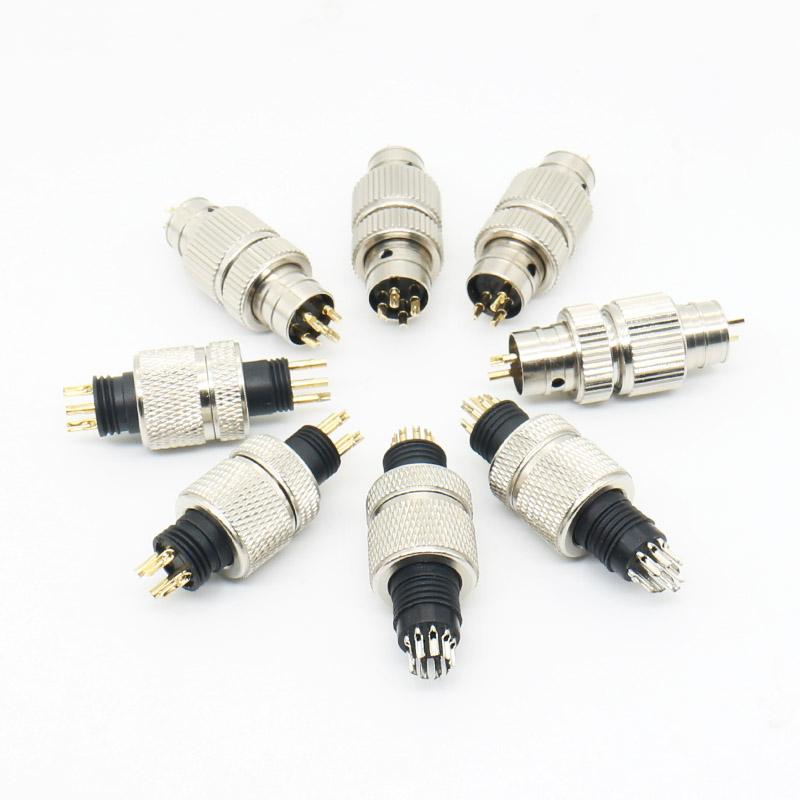

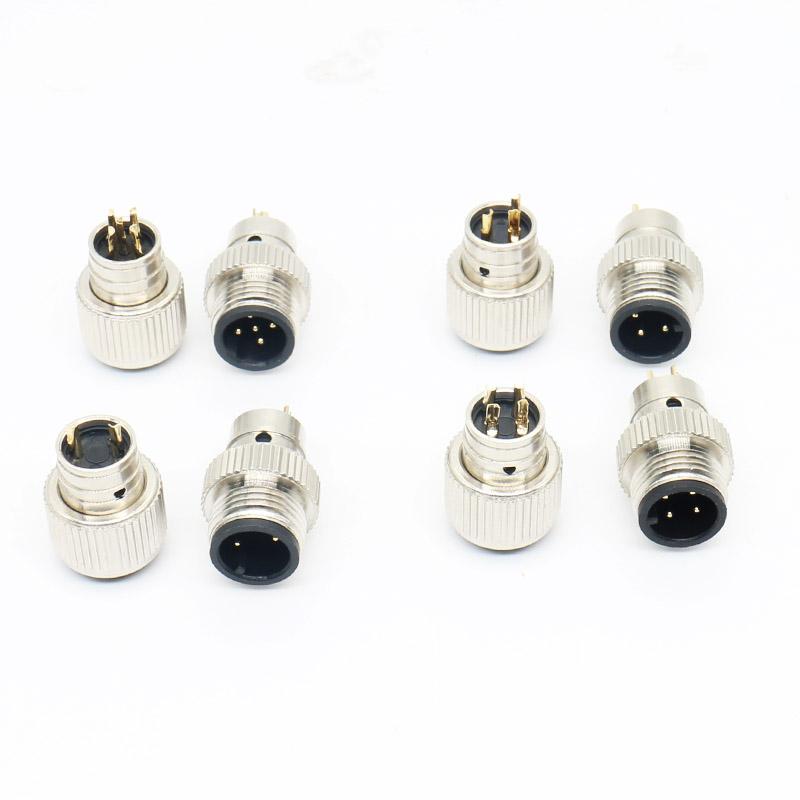

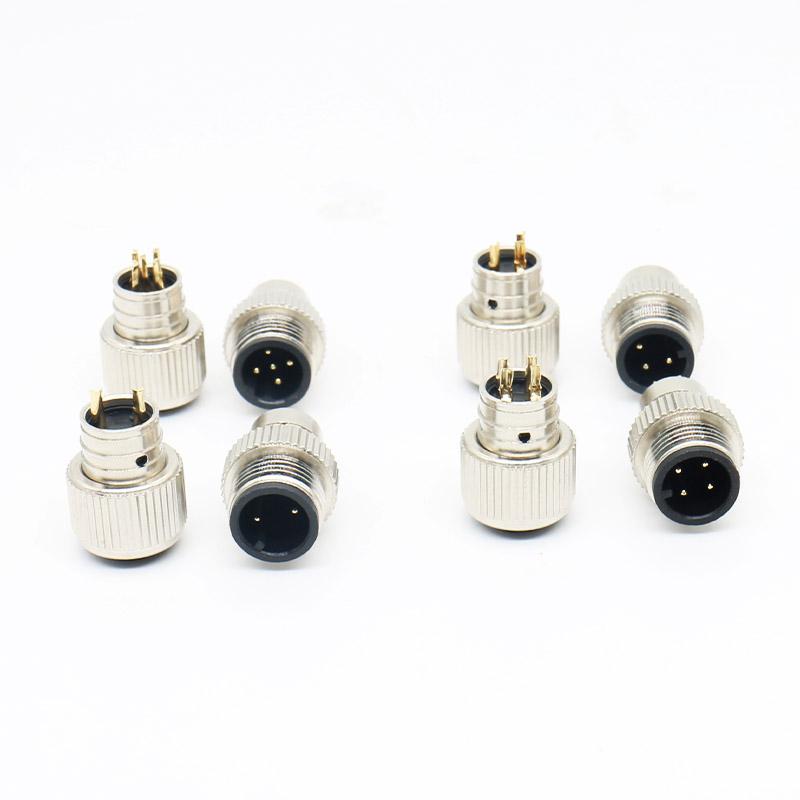

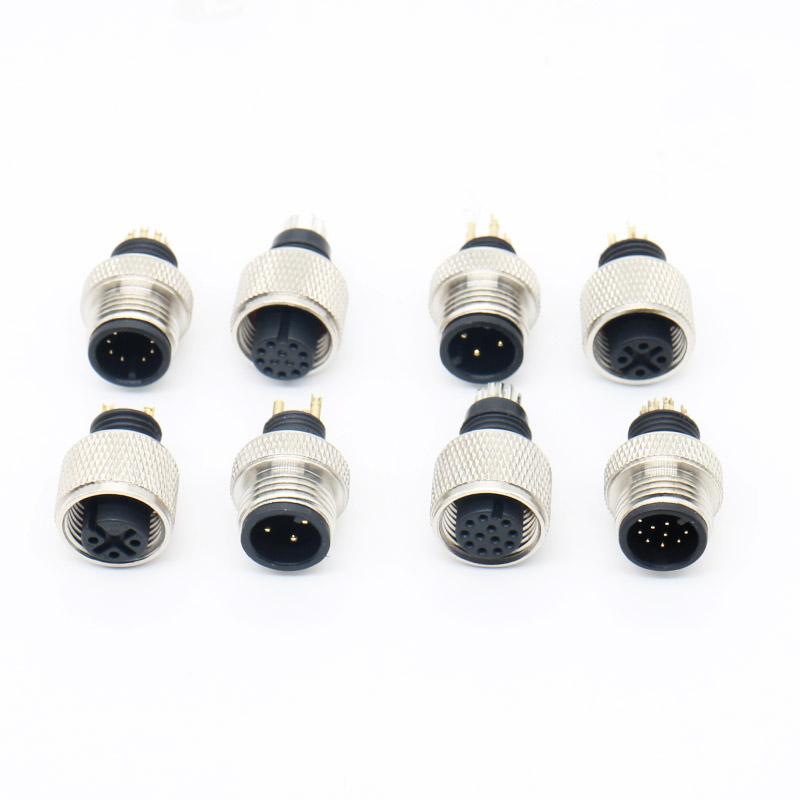

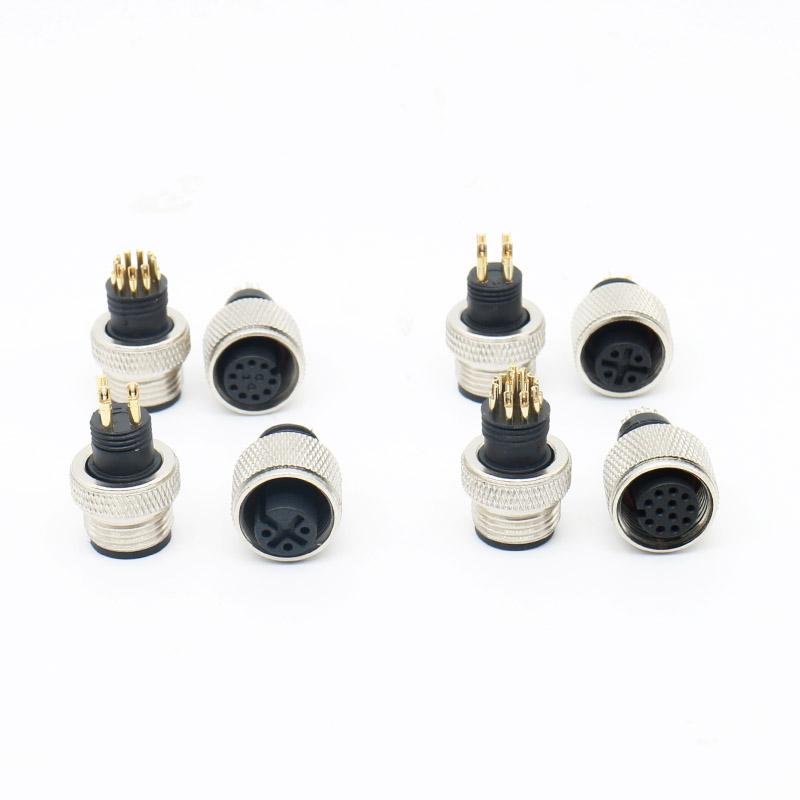

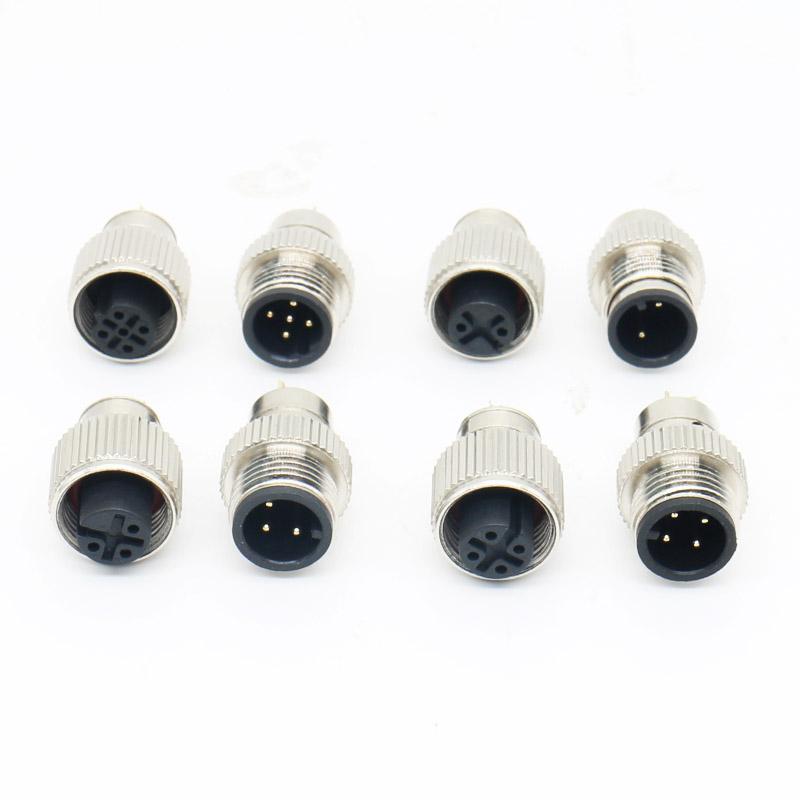

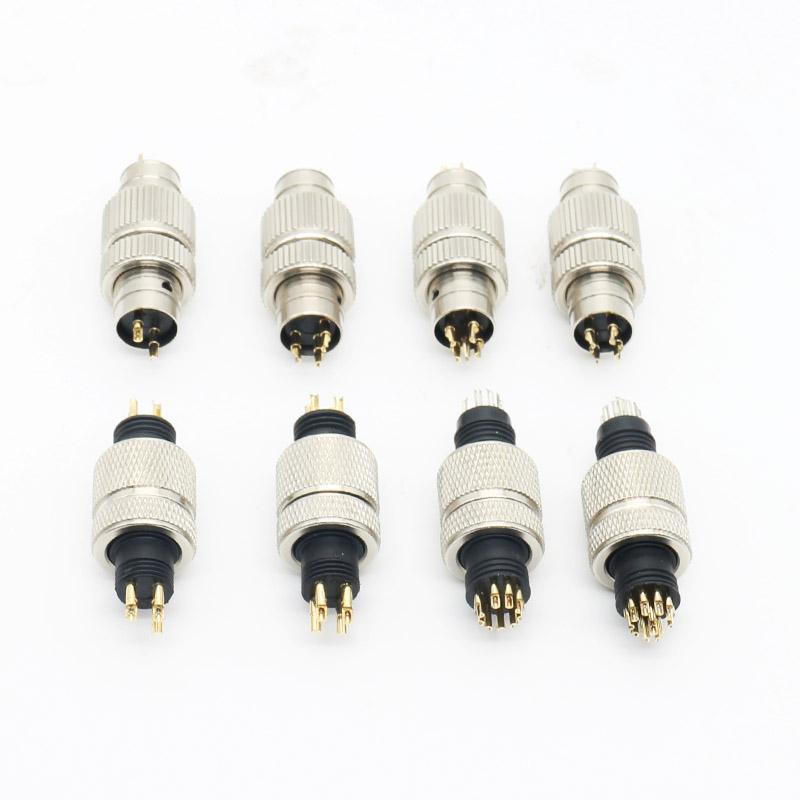

The M12 connector is a compact, threaded circular connector engineered for reliable signal and power transmission in solar inverter monitoring systems. It links sensors, monitoring devices, and control units within photovoltaic installations, supporting stable communication in outdoor renewable energy environments.

Why Choose an M12 Connector for Solar Monitoring?

Solar inverter monitoring demands connectors that withstand harsh outdoor conditions while maintaining signal integrity. The M12 connector addresses these requirements through its mechanical design and environmental sealing.

• Secure locking: The threaded coupling mechanism resists loosening from vibration, a common issue in solar farms with tracking systems or high wind exposure.
• Environmental protection: With an IP67/IP68 rating, the connector is sealed against dust ingress and temporary or prolonged water immersion, making it suitable for exposed cabinet and junction box installations.
• Compact footprint: The M12 form factor fits dense control panels and compact inverter housings where space is limited.
• Material durability: Housing options in PA66 or nickel-plated brass provide corrosion resistance and mechanical strength for long-term outdoor service.

Application Scope in Photovoltaic Systems

This connector is suited for the monitoring and control signal paths of solar power systems, including:

• Inverter status monitoring and communication links
• Photovoltaic array control and data acquisition
• Energy management equipment in distributed generation

It is not intended for high-current DC power transmission between solar panels and inverters; use dedicated solar PV connectors for main power cabling.

Selection Considerations

Before specifying an M12 connector for your monitoring system, confirm the following with your supplier:

• Pin count and gender: Available from 2 to 17 pins, in male or female configurations. Match the pinout to your sensor or device wiring.
• Contact plating: Silver or gold plating on brass contacts affects contact resistance and corrosion resistance; select based on your signal type and environmental exposure.
• Cable and termination: Verify the cable diameter range and termination method (solder, crimp, or screw) against your field wiring practice.
• Mating compatibility: Confirm the coding/keying variant (A, B, D, X, etc.) to prevent mismating with other M12 circuits on site.

Installation and Maintenance Notes

Proper installation is critical to achieving the rated IP protection. Ensure the O-ring is seated correctly and the coupling nut is fully tightened to the specified torque. Periodically inspect connectors in high-vibration locations for loosening. For detailed electrical ratings and dimensional data, refer to the Technical Specifications section.

Inquiry Checklist

To receive an accurate quotation and matching recommendation, please provide the following information:

• Required pin count and gender (male/female)
• Coding/keying variant (A, B, D, X, etc.)
• Cable outer diameter and conductor size
• Termination preference (solder, crimp, or screw)
• Mounting style (panel mount, cable mount, or field-wireable)
• Operating environment details (temperature range, chemical exposure, vibration level)
