YOUR POSITION：HOME > Connectors > M Series Connectors > M8 Series Connectors >
M8 PCB Connectors
< >

M8 Waterproof PCB Mount Connector Straight Type

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm/0.72mm/0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A/1A
Rated VoltageRated Voltage(Ac.V) 180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+8619924482730

M8 PCB MOUNT CONNECTOR

M8 Waterproof PCB Mount Connector
Straight Type

Compact board-level connection solution for industrial and electronic devices.

Direct PCB integration · Straight mounting structure · Waterproof protection · Stable signal and power transmission.

PCB Mount Straight Type Waterproof Design OEM / ODM

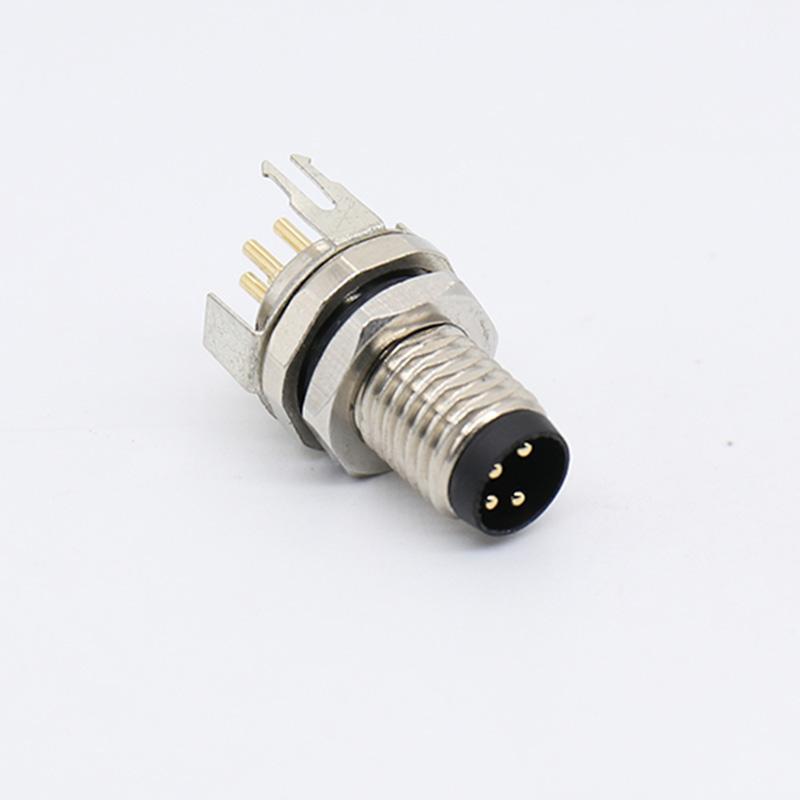

M8 waterproof PCB mount connector straight type main product view
M8 / PCB MOUNTKMYD CONNECTOR
MODEL
M8 PCB Mount Connector
TYPE
Straight Type
INSTALLATION
Direct Board-Level Mounting
APPLICATION
Industrial Electronics

Product Overview

The M8 Waterproof PCB Mount Connector Straight Type is designed for compact electronic and industrial devices that require a stable board-level connection with reliable waterproof protection. Featuring a straight mounting structure, this connector enables efficient integration directly onto PCB systems while maintaining dependable electrical performance in demanding environments.

Its compact M8 design makes it especially suitable for miniaturized equipment where installation space is limited but connection reliability remains essential.

PRODUCT DETAILS

Designed for Direct PCB Integration

View the compact M8 interface, straight mounting structure, and board-level connector layout.

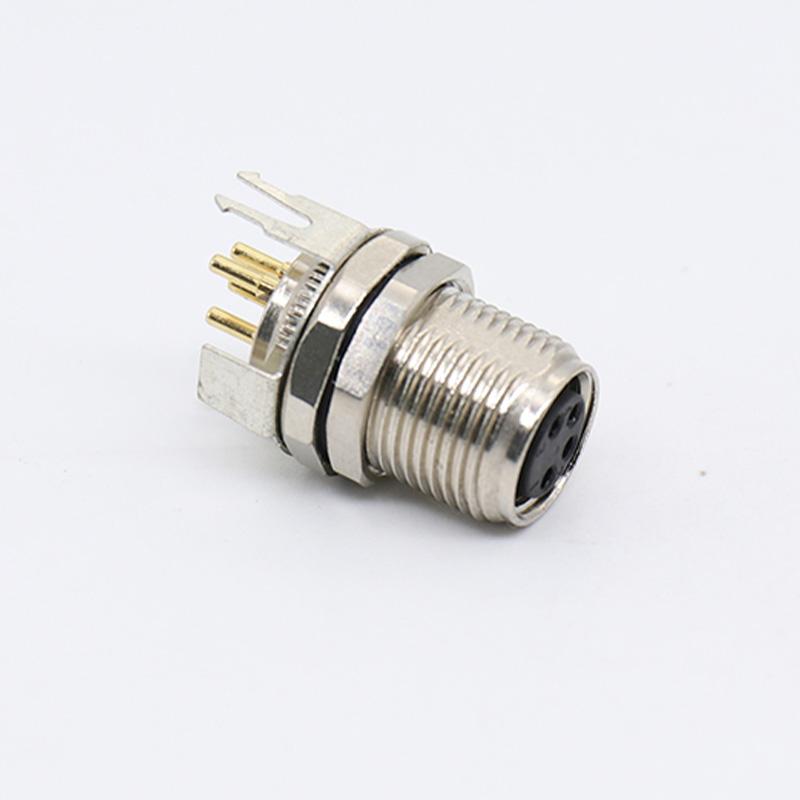

M8 waterproof PCB mount connector product view
01 / PCB MOUNT
Board-Level Installation
Developed for secure integration onto printed circuit boards in compact devices.

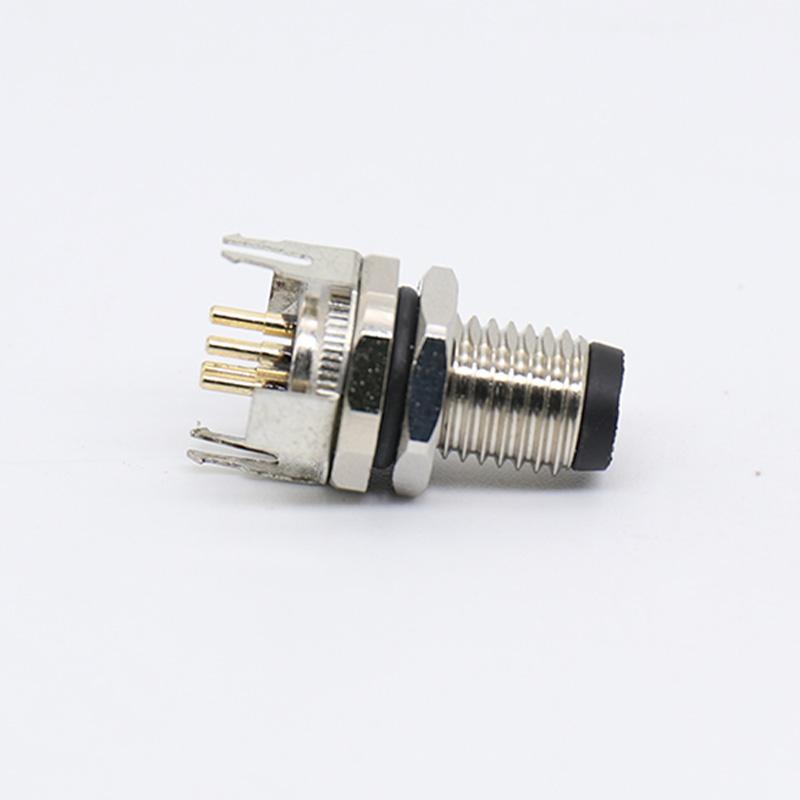

M8 connector straight interface detail
02 / STRAIGHT TYPE
Simplified alignment for PCB layout design.
Compact board connection.
Reliable waterproof protection.
The straight structure supports organized vertical installation and efficient equipment assembly.

Why Choose This M8 PCB Mount Connector

Modern electronic devices require connectors that can integrate seamlessly with circuit boards while maintaining stable transmission and mechanical durability. This PCB mount connector supports secure board-level installation, compact equipment integration, reliable environmental protection, and stable signal and power transmission.

Key Product Features

01   Direct PCB Mounting Structure

Designed for secure integration onto printed circuit boards, reducing additional wiring complexity inside equipment.

02   Waterproof Protection

Sealing structure helps protect internal contacts from moisture, dust, and environmental interference.

03   Compact M8 Size

Optimized for space-limited electronic devices and miniaturized equipment designs.

04   Stable Electrical Performance

Precision contact design supports reliable conductivity for industrial signal and power applications.

05   Straight-Type Configuration
Supports organized vertical installation and simplifies connector alignment during equipment assembly.

Application Areas

The M8 waterproof PCB mount connector straight type is suitable for compact industrial and electronic applications requiring reliable board-level connection.

01   Industrial control boards
02   Smart sensors and devices
03   Automation systems
04   Communication equipment
05   Compact electronic modules
06   Monitoring and data acquisition systems

Factory Manufacturing Strength

KMYD is a professional connector manufacturer with over 15 years of experience in waterproof connectors and cable assembly solutions. Our factory integrates the entire production process, supporting stable quality control, efficient lead times, and reliable supply capability for industrial customers worldwide.

M8 PCB mount connector factory manufacturing
Mold and tooling development CNC precision machining Injection molding Connector assembly PCB-related component testing

Comprehensive Quality Control

Every M8 PCB mount connector undergoes strict inspection before shipment, including electrical conductivity testing, waterproof sealing verification, PCB mounting accuracy inspection, plugging cycle durability testing, and mechanical stability evaluation.

ISO9001CERoHS

Customization Support

✓ Pin configuration customization
✓ PCB mounting structure optimization
✓ Material and housing adjustments
✓ Application-specific connection solutions
✓ Prototype to mass production support

Reliable PCB Connectivity for Modern Equipment

The M8 waterproof PCB mount connector straight type is designed to provide a compact, reliable, and efficient board-level connection solution for industrial and electronic applications.

GET IN TOUCH

Contact Us for M8 PCB Mount Connector Support

We provide samples, technical support, and customized production services according to your project needs. Contact us for more details and competitive quotations.

KMYD CONNECTOR · M SERIES INDUSTRIAL CONNECTORS

 Item

 Parameters

 Number of Cores

 2-8Pin

 Gender

 Male/Female

 Housing Material

 Nickel Plated Brass

 Cores Material

 Gold Plated Brass

 Insulator Material

 PA66

 Locking System

 Screw Locking

 Temperature Range

 -30℃, +85℃

 Rated Current (A)

 3A(2-5Pin)/ 1A(6-8Pin)

 Rated Voltage (AC.V)

 180v

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
