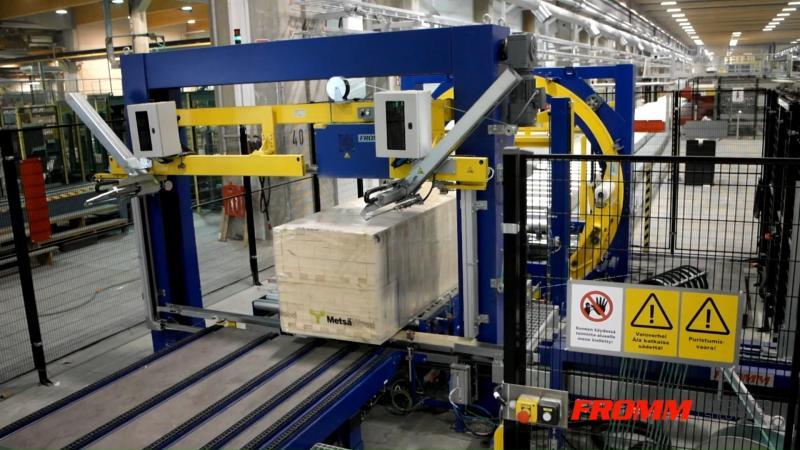

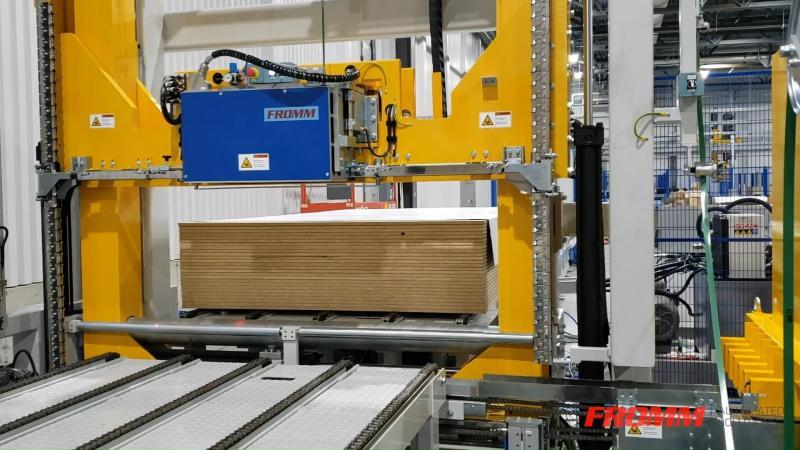

Project Background: Packaging Automation in Italy

Italy's manufacturing sector is a major supplier of packaging machinery for the food, pharmaceutical, and consumer goods industries. Modern packaging lines depend on automation systems that coordinate multiple sensors and controllers to manage machine operations. In this environment, the M12 4-pin waterproof connector serves as a key interface for connecting photoelectric sensors, proximity sensors, and control modules installed along packaging machines.

Interface and Environmental Requirements

These sensors detect product position, package movement, and machine status during the packaging process. The signals they collect are transmitted to PLC control systems, which manage operations such as product alignment, sealing, labeling, and conveyor movement. Reliable electrical connections between sensors and control systems are essential for maintaining consistent production speed.

Connector Solution: M12 4-Pin Waterproof Design

Packaging equipment often operates continuously in high-speed industrial environments, where machines generate vibration and movement. The threaded locking mechanism of the M12 connector helps maintain a stable connection between cables and sensors during long operating cycles. This mechanical locking reduces the risk of accidental disconnection caused by machine vibration, a common issue in high-speed packaging lines.

Standardized Interface for System Integration

Another advantage of the M12 connector is its standardized industrial interface, which is widely used in European automation equipment. This allows packaging machinery manufacturers to easily integrate sensors from different suppliers while maintaining compatible connections. The standardized M12 interface simplifies spare parts management and reduces the need for custom cabling, which is particularly valuable for OEMs building machines for multiple end customers.

Commissioning and Maintenance Benefits

During routine maintenance, technicians can quickly disconnect and reconnect sensors using the M12 connector, simplifying equipment servicing and reducing downtime when components need inspection or replacement. The push-pull or screw-type mating action requires no special tools, allowing faster sensor swaps during shift changes or emergency repairs. For packaging lines that run multiple shifts, this ease of service directly contributes to higher overall equipment effectiveness.

Verified Results and Application Fit

The M12 4-pin connector is suitable for packaging automation applications that require IP67-rated protection against dust and water ingress, stable signal transmission for sensor and PLC communication, and a vibration-resistant locking mechanism. It is not intended for high-current power distribution or applications requiring shielded data transmission at high frequencies. For those requirements, a different connector series should be evaluated.

For engineers selecting connectors for packaging machinery, the key decision points are: the number of signal pins required, the cable diameter and bend radius, the IP rating needed for washdown environments, and the mating cycle frequency expected over the machine's lifetime. The M12 4-pin configuration covers the majority of sensor and actuator connections found on typical packaging lines.

For related connector options and specifications, see the Waterproof Connectors catalog or review the LD20/SP20 Heavy-Duty Square Connector Dimensions and Specs for higher-power applications.

Inquiry Checklist

When requesting a quote or sample, please specify: the exact pin count and coding (A-coded, B-coded, etc.), the cable type and length, the mounting style (panel mount, field-wireable, or molded), the required IP rating, and the operating temperature range of your application. This information helps us confirm the correct M12 configuration for your packaging equipment.
