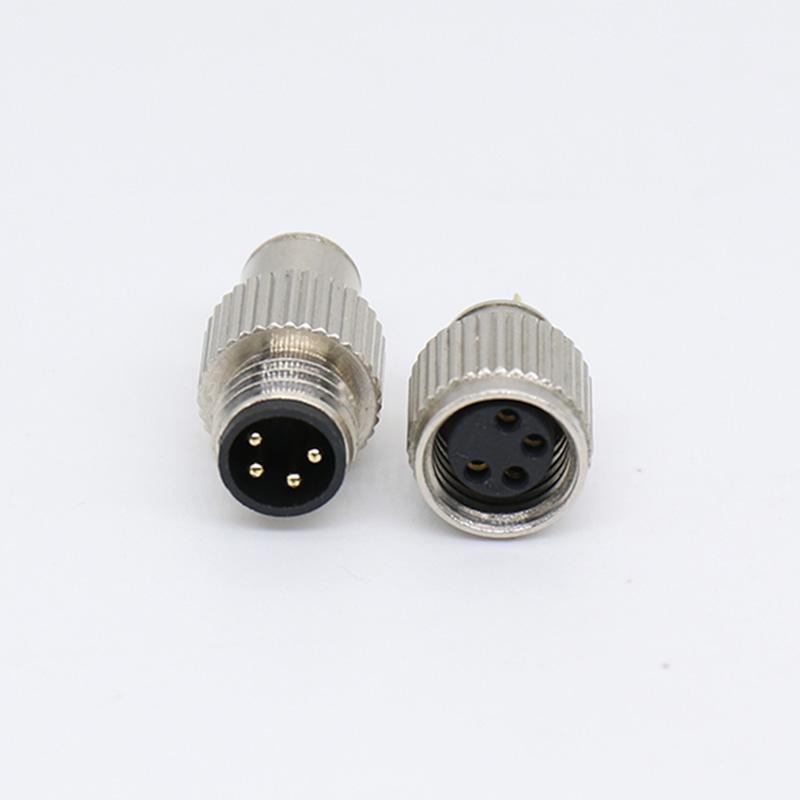

M8 Connectors
< >

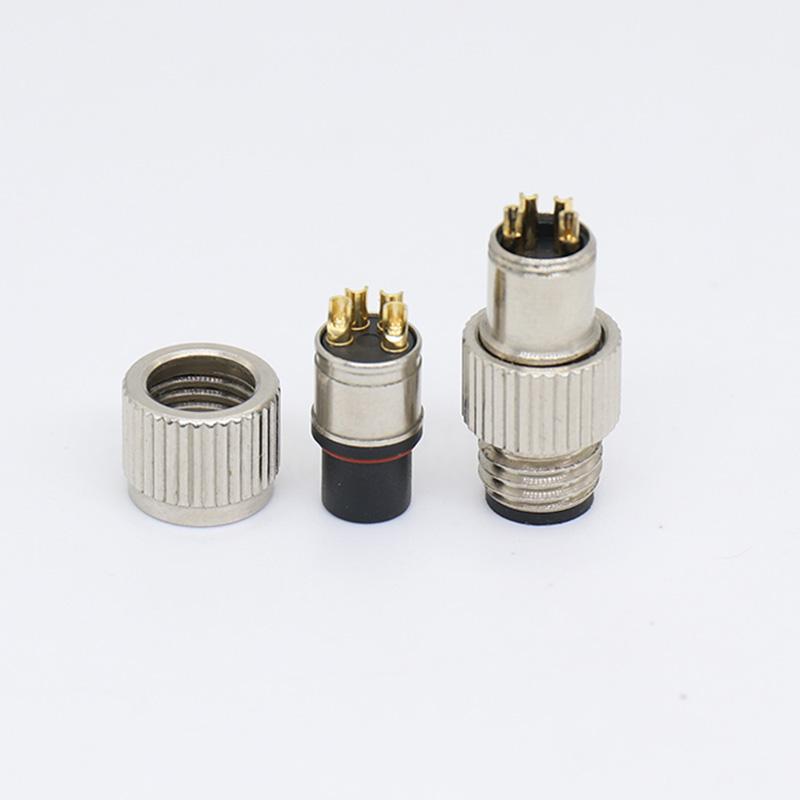

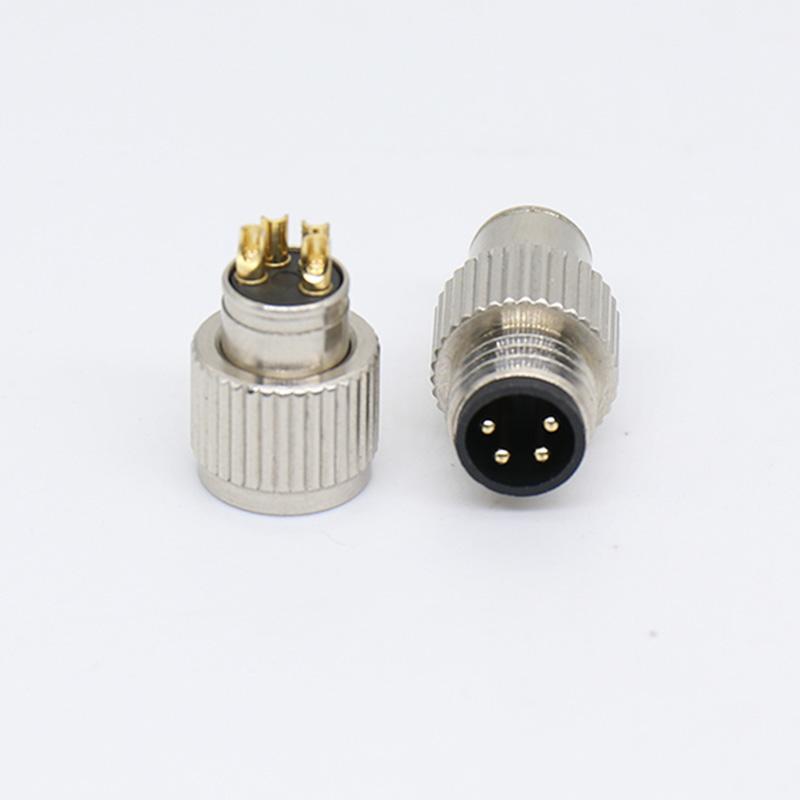

M8 EMI-Shielded Circular Connector for Reliable Signal Transmission

>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm/0.72mm/0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A/1A
Rated VoltageRated Voltage(Ac.V) 180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

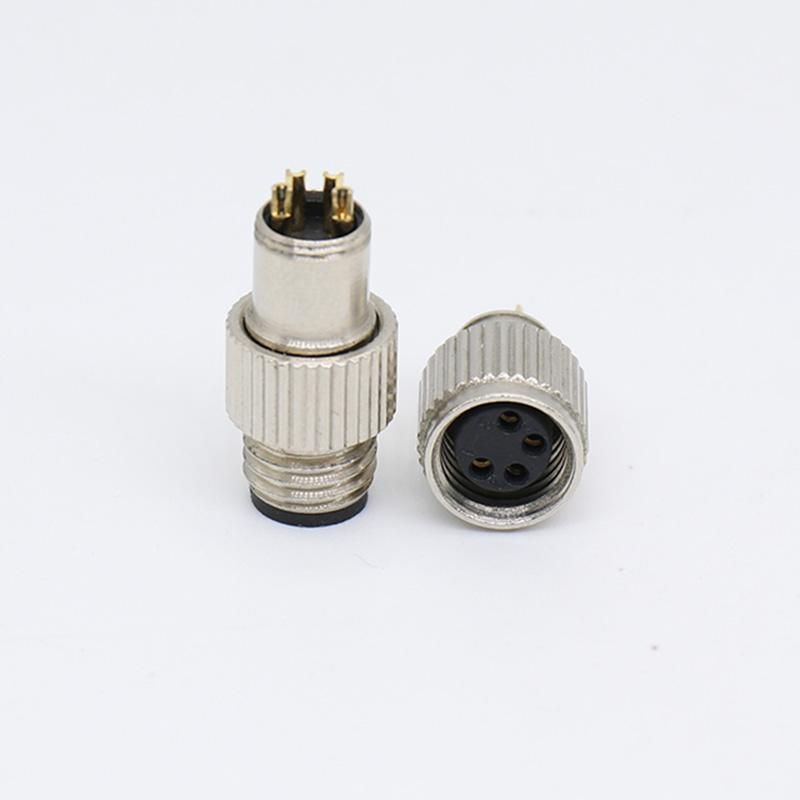

The M8 shielded circular connector is designed for industrial automation systems, sensors, and control equipment requiring stable and interference-free signal transmission. With a compact design and reliable EMI shielding, it effectively reduces electromagnetic interference and ensures stable electrical performance.

Connectors

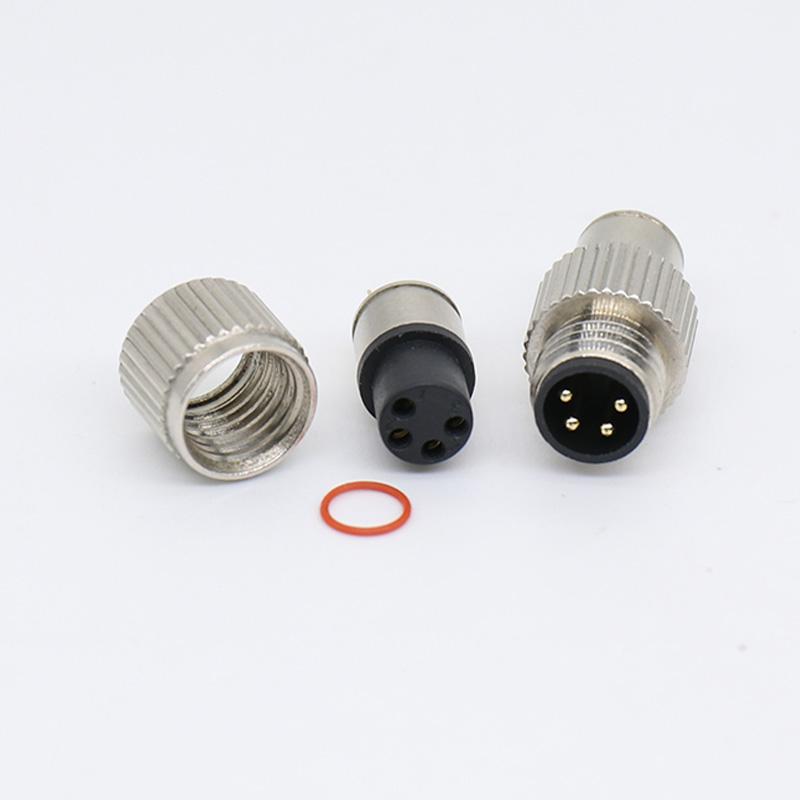

The connector features a nickel-plated brass shell for excellent durability and corrosion resistance, while the high-quality PA66 insulation material provides strong mechanical strength and thermal stability. Its IP67 protection rating allows reliable operation in demanding industrial environments such as factories, automation lines, and sensor networks.

Widely used in industrial sensors, actuators, control systems, and automation equipment, the M8 shielded connector ensures secure connections and long-term reliability.

Item

Parameters

Number of Cores

2-8Pin

Gender

Male/Female

Housing Material

Nickel Plated Brass

Cores Material

Gold Plated Brass

Insulator Material

PA66

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

3A(2-5Pin)/ 1A(6-8Pin)

Rated Voltage (AC.V)

180v

Test Voltage (AV.C)1Min

1000V

Insulation Resistance (㏁)

1500㏁

Insulation Resistance (㏁)

≤10㏁

Termination

Solder
