LD Series Industrial Connectors: Reliable Connectivity for Heavy-Duty Machinery

Engineered for the Toughest Industrial Environments

Our LD Series industrial connectors are built to deliver uncompromising performance in factory automation, robotics, and heavy machinery applications. With rugged construction, IP68 waterproof sealing, and flexible configurations, these connectors ensure stable power and signal transmission even in high-vibration, dusty, or wet conditions.

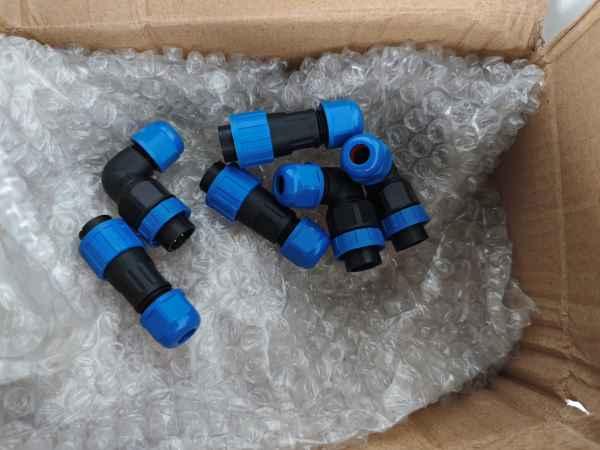

Versatile Configuration Options for LD Waterproof Connectors

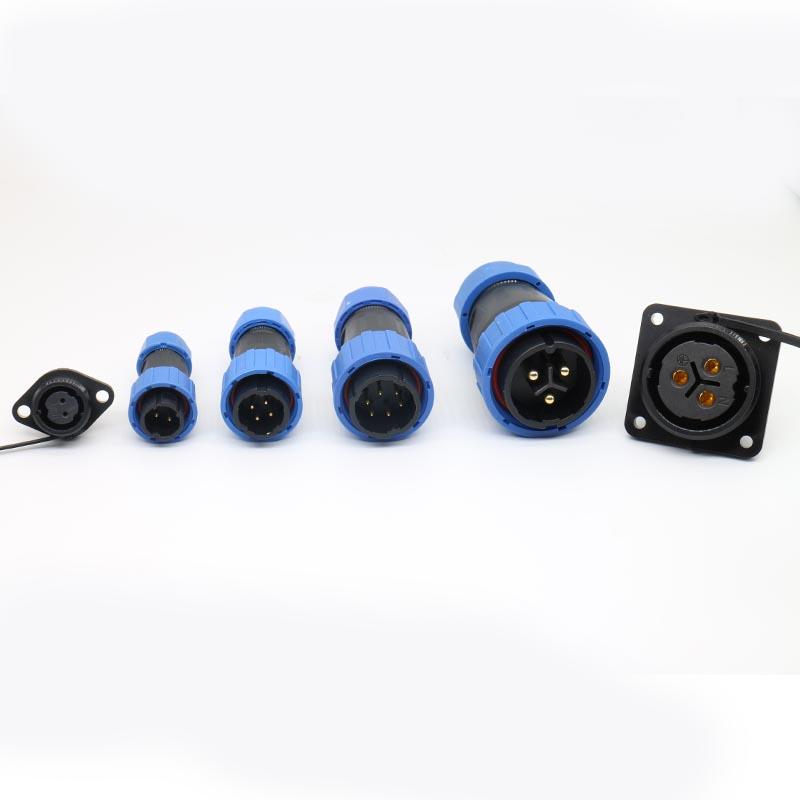

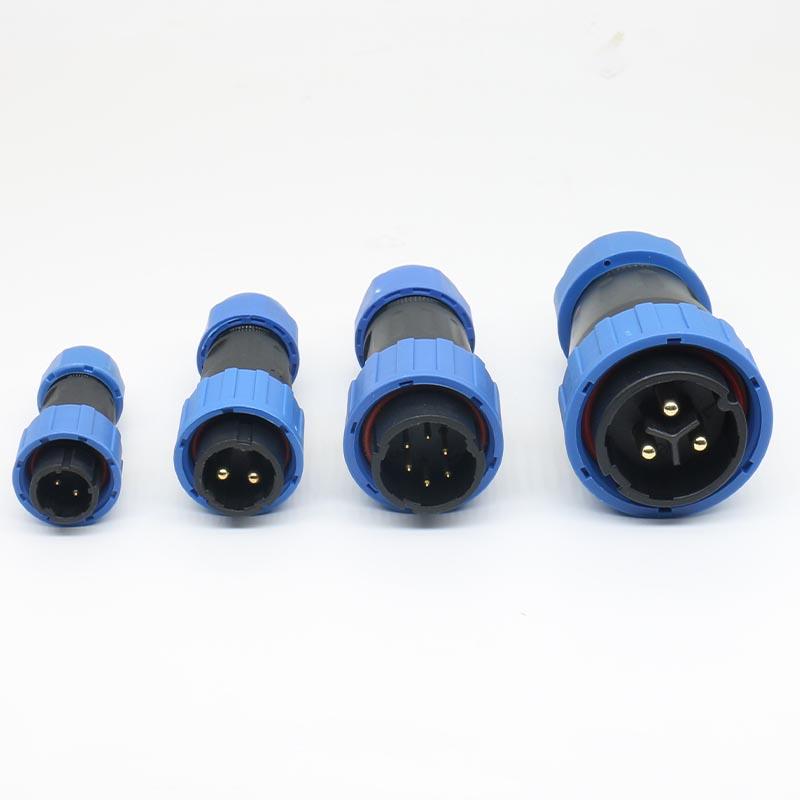

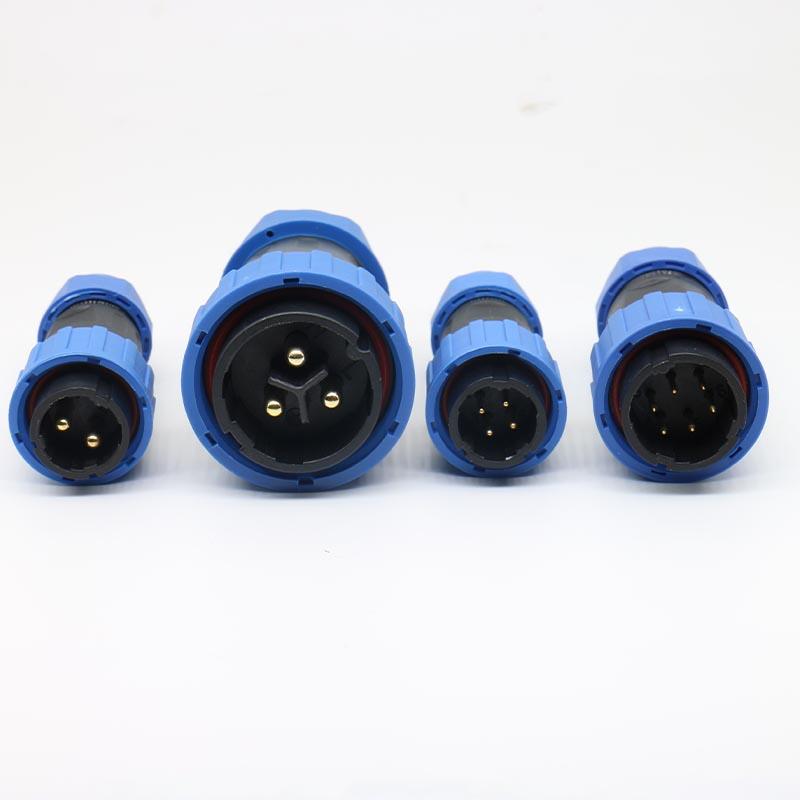

1. Common LD Models Available

Choose from industry-proven models tailored to industrial needs:

• LD12: Compact, 2-8 pin design for sensors, actuators, and low-power control signals.
• LD16: Versatile mid-size option (3-12 pins) for general machinery and PLC connections.
• LD20: High-power model (4-16 pins) for motor drives and heavy-duty industrial equipment.
• LD25: Heavy-duty, 6-24 pin connector for complex automation systems and robotics.
• LD30: High-density 12-37 pin configuration for multi-channel data and power distribution.

2. Flexible Pin Count Configurations

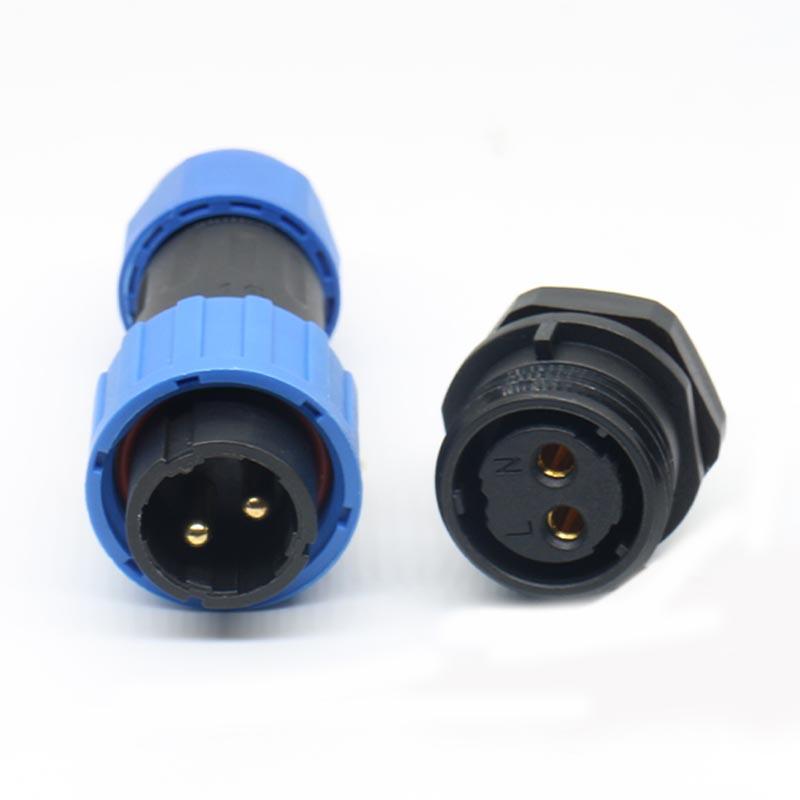

• 2-4 pins: Ideal for power-only connections in small motors and sensors.
• 5-12 pins: For mixed power, signal, and control signals in PLC and conveyor systems.

3. Multiple Socket Types

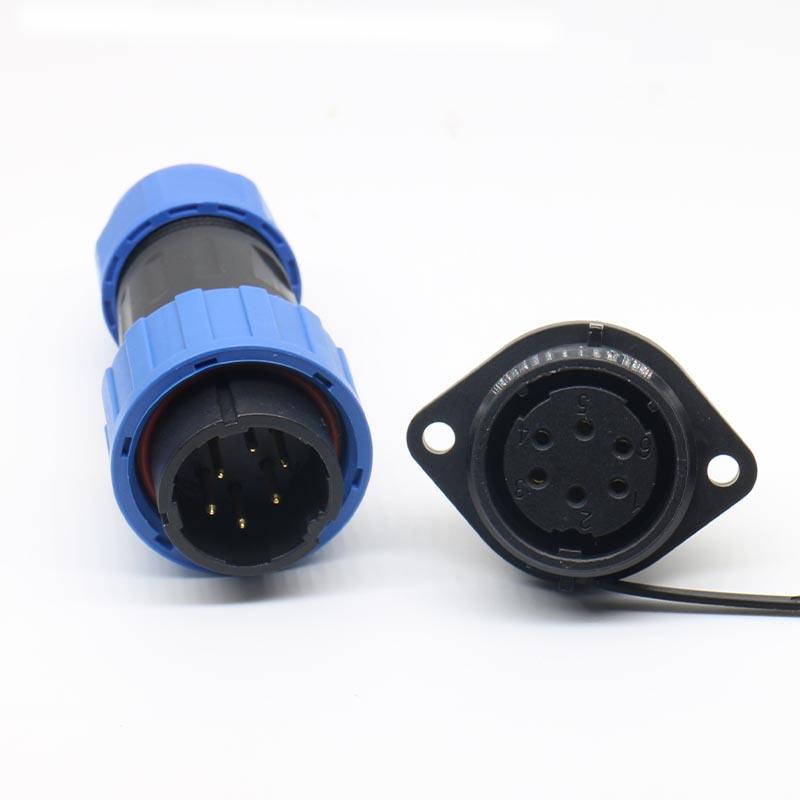

• Panel-Mount Sockets: Front/rear flange and rear-nut designs for secure installation into control cabinets and machinery housings.
• Docking Sockets: Panel-mounted or free-standing designs for quick, secure cable-to-cable or cable-to-panel connections in modular machinery and temporary setups.

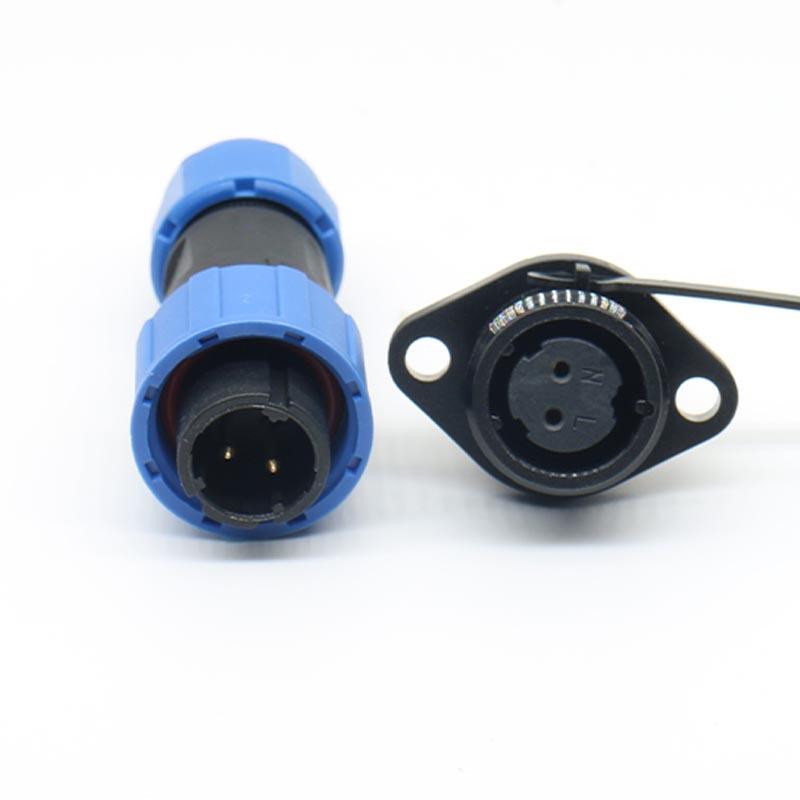

• Flange-Mount Sockets: 2-hole/4-hole flange designs for secure, vibration-proof installation into control cabinets, machinery housings, and outdoor enclosures.

Key Advantages for Industrial Applications

Heavy-Duty Vibration & Shock Resistance

Robust metal housing and secure locking mechanisms withstand continuous vibration from motors, conveyors, and robotics, preventing signal dropout in critical operations.

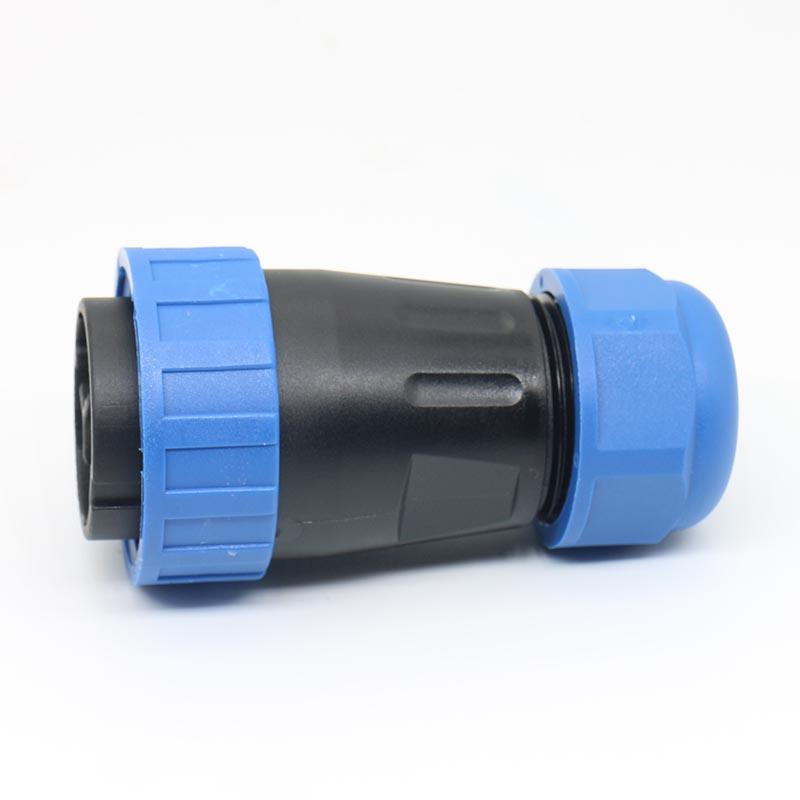

IP68 Waterproof & Dustproof Sealing

Fully sealed design resists water, dust, and oil ingress, making it ideal for outdoor equipment, washdown zones, and manufacturing floors where debris and moisture are common.

High Current & Voltage Capacity

Supports up to 45A current and 400V AC, suitable for powering heavy motors, PLC systems, and control panels while maintaining low signal resistance.

Wide Temperature Tolerance

Operates reliably from -40°C to +105°C, ensuring performance in extreme cold storage facilities and high-temperature welding or foundry environments.

Corrosion-Resistant & Long-Lasting

Nickel-plated brass or stainless steel shell resists industrial chemicals and fumes, with a lifespan of 500+ mating cycles to reduce maintenance costs.

Ideal Industrial Applications

• Factory automation, robotics, and conveyor systems
• Heavy machinery, motor drives, and PLC control panels
• Outdoor industrial equipment and washdown zones
• Material handling systems and packaging machinery
• Foundries, welding stations, and high-temperature production lines

Selection Guidance for Your Application

When choosing an LD Series connector, consider the following decision points:

• Pin count and contact layout: Match the number of cores to your power and signal requirements, and verify the contact arrangement against your mating cable or device.
• Mounting style: Select panel-mount, flange-mount, or docking sockets based on your cabinet design and whether you need cable-to-cable or cable-to-panel connections.
• Environmental exposure: Confirm the IP rating, temperature range, and chemical resistance needed for your specific operating environment.
• Mating compatibility: Verify the plug and socket pairing, including gender and locking mechanism, before ordering.

Application Boundaries

LD Series connectors are well-suited for industrial automation, control systems, and machinery requiring robust environmental sealing. They are not intended for submersible continuous underwater use beyond their rated IP protection, nor for applications requiring high-frequency data transmission where specialized circular or data connectors would be more appropriate. For high-density pin counts in confined spaces, verify dimensional fit before installation.

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please prepare the following information:

• Required model (LD12, LD16, LD20, LD25, LD30) and pin count
• Gender (male plug or female socket) and mounting style
• Cable outer diameter and conductor size for termination
• Operating environment details (temperature, moisture, vibration levels)
• Any custom requirements for housing material or contact plating

Why Choose Our LD Series Industrial Connectors?

We offer a full range of LD connectors tailored to industrial engineers, with pre-configured power and signal models, plus custom options for unique machinery requirements. All products undergo rigorous testing for vibration, waterproofing, and temperature resilience and dedicated technical support. Whether you're building new automation systems or retrofitting existing machinery, our LD connectors provide the reliable connectivity you need to keep operations running smoothly.

For detailed dimensional specifications and technical parameters, refer to the LD20/SP20 Heavy-Duty Square Connector Dimensions and Specs. To see how our connectors perform in real-world automation environments, review our Connectors Video library.

Ready to specify the right LD Series connector for your project? Contact our engineering team with your application details, or send your inquiry via WhatsApp for prompt assistance.
