XS Series Circular Connector for Medical Devices

Name: XS Series Circular Connector for Medical Devices
Brand: KMYD
SKU: 2-7Pin
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (11 reviews)

Number Of Cores	2-7Pin
Contact Diameter(mm)	0.6mm/1.0mm
IP Rating	IP55
Shell Material	Zinc Alloy Plated-Nickel
Temperature Range	-20℃~+80℃
Termination	Solder
Rated Current(A)	5A/7A/10A
Rated Voltage(Ac.V)	250V
Test Voltage(Ac.V)1Min	1500V
Insulation Resistance (MΩ)	≥1000MΩ
Contact Resistance (MΩ)	≤20MΩ
Certification	CE, RoHS,BASCI,ISO9001

Get Quote

+86-19924482730

Professional-Grade Compact XS Circular Connectors for Precision Indoor Equipment

The XS Series Circular Aviation Connector is a premium push-pull self-locking electrical connector engineered for reliable, long-term performance in indoor precision equipment. Combining robust construction, flexible design options, and user-friendly operation, it ensures stable signal and power transmission in compact, space-sensitive applications.

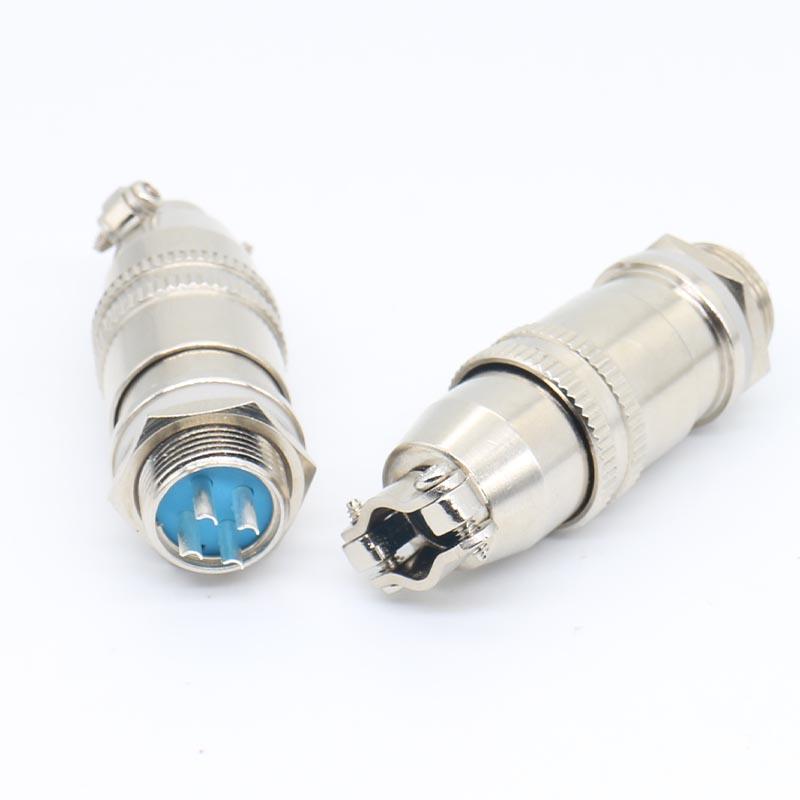

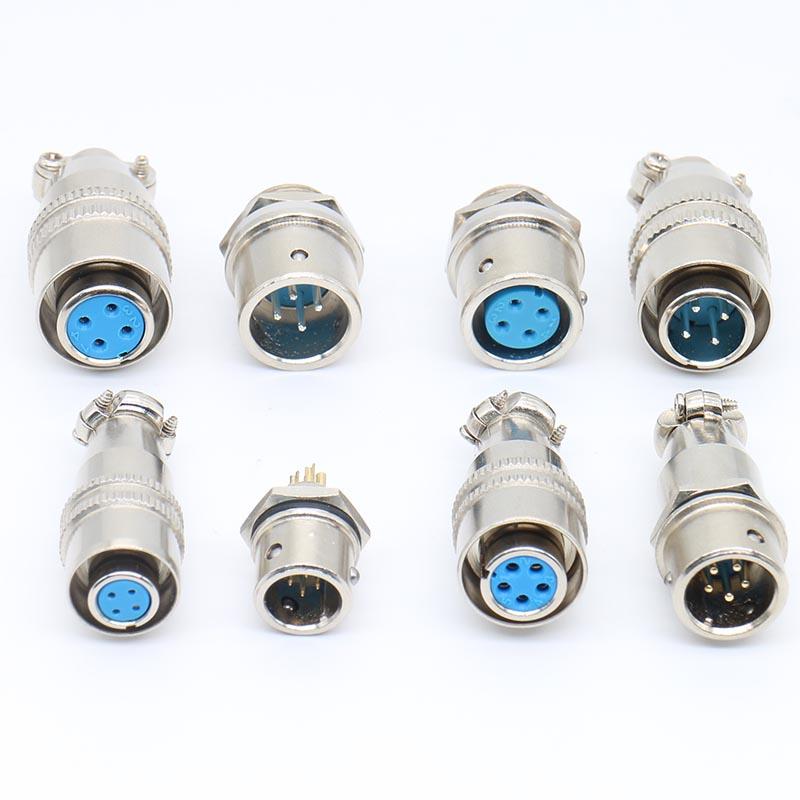

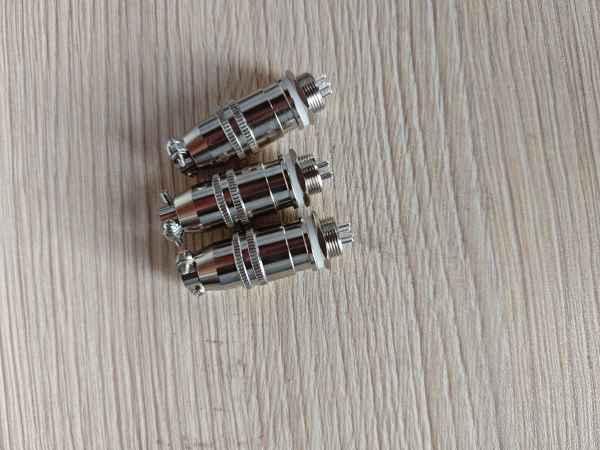

XS Aviation Connector

Flexible Configurations for XS Connectors to Fit Your Needs

Multiple Series Options: Available in XS10/XS12/XS16 (different interface diameters) to match space constraints of your devices.

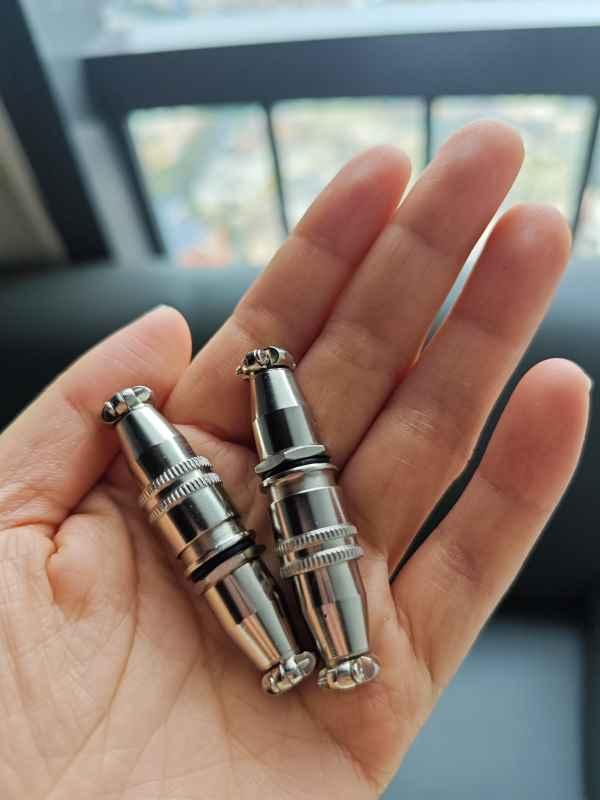

Aviation Connector

Various Pin Counts: Choose from 2-pin to 7-pin versions, supporting both single-circuit power supply and multi-signal transmission.

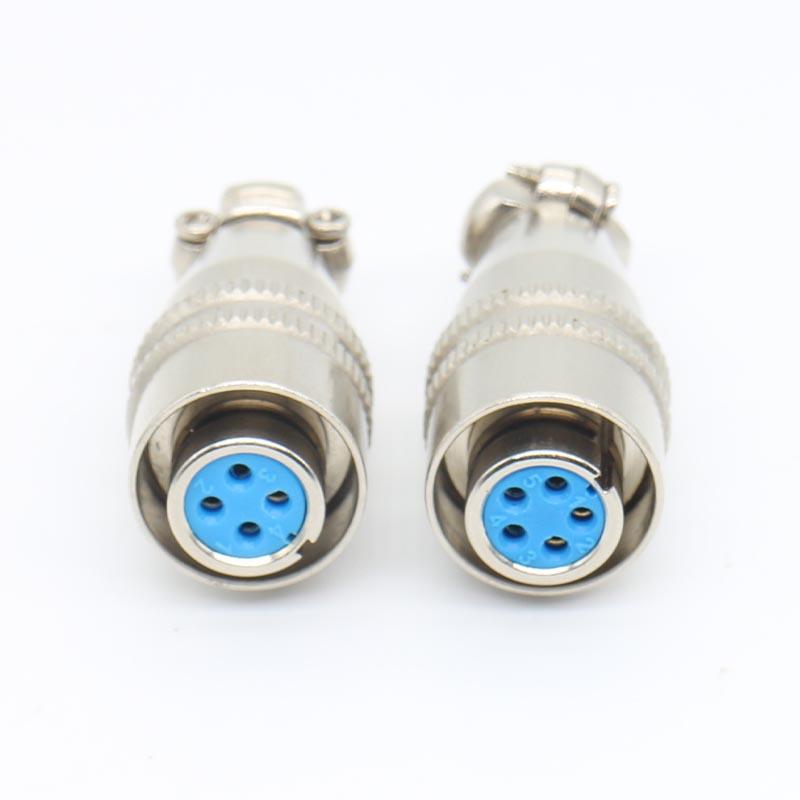

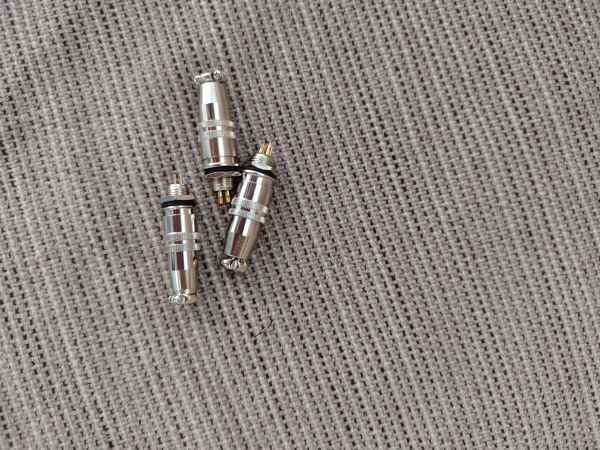

Female Connector

Dual Mounting Types:

Panel Mount: Fixed on device casings for permanent, stable connection ports.

Cable Mount: Directly crimped with cables for flexible, movable wiring setups.

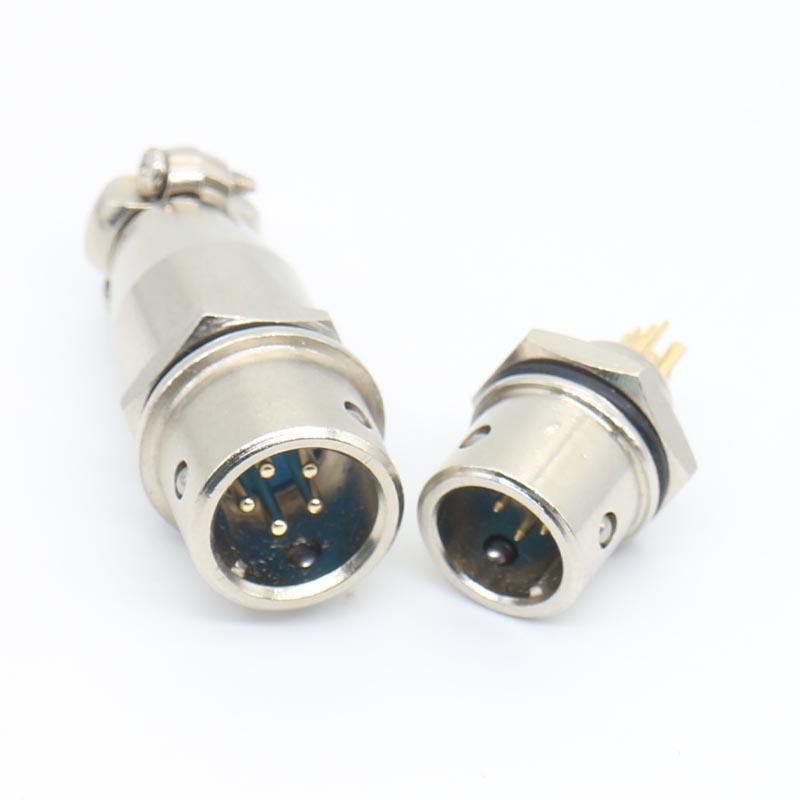

Electrical Connector

Robust Construction and Materials of XS Circular Connectors

Built for performance and extended service life in indoor industrial settings.

Shell: Corrosion-resistant zinc alloy with nickel plating, offering excellent impact resistance and durability.

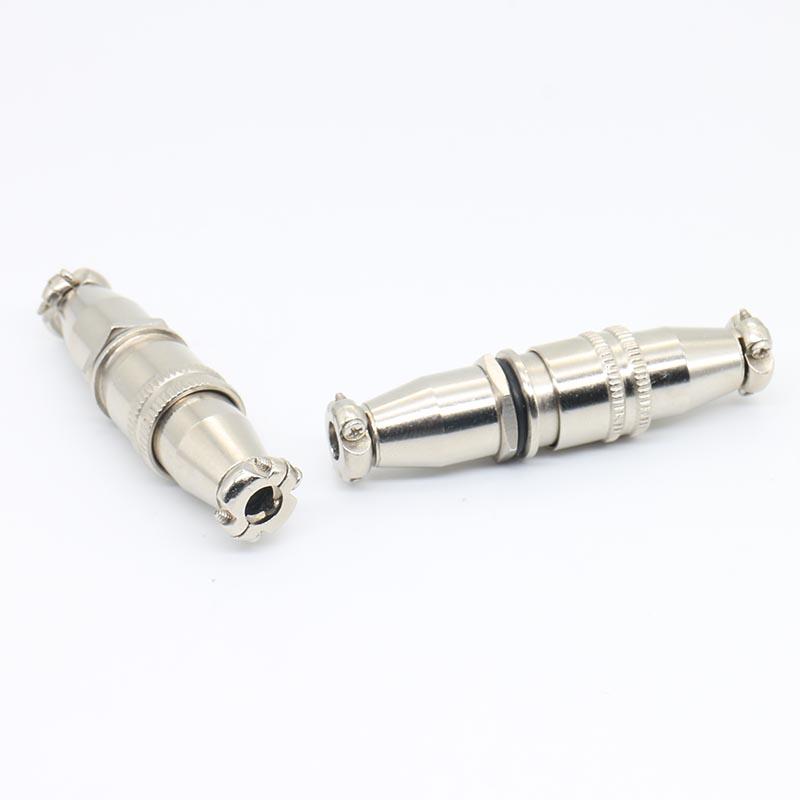

XS Electrical Connector

Contact Pins: Brass with gold/silver plating — low contact resistance, excellent conductivity, and long service life (gold plating for high-frequency signal scenarios; silver plating for high-current power transmission).

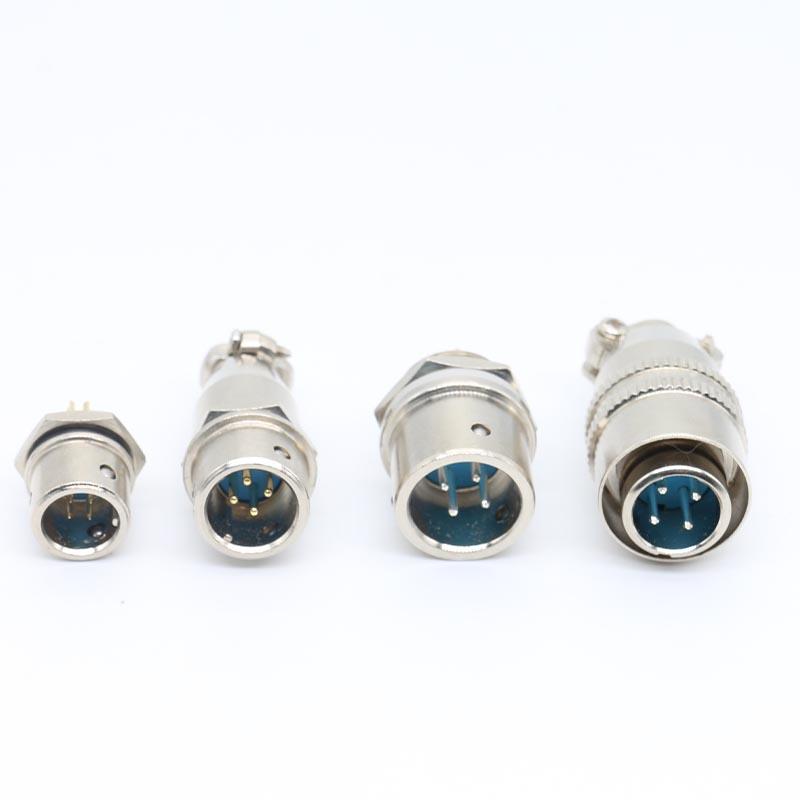

Male Connector

Key Features and Benefits of XS Circular Connectors

Push-Pull Self-Locking Mechanism: Enables quick, one-handed mating and unmating. The secure lock prevents accidental disconnection due to vibration or cable stress, enhancing operational reliability.

Compact & Lightweight Design: Minimizes footprint and weight, making it an ideal solution for modern, miniaturized instruments and equipment.

Optimized for Indoor Use: Engineered to deliver maximum reliability and cost-effectiveness in controlled indoor environments with low exposure to extreme weather, moisture, or chemicals.

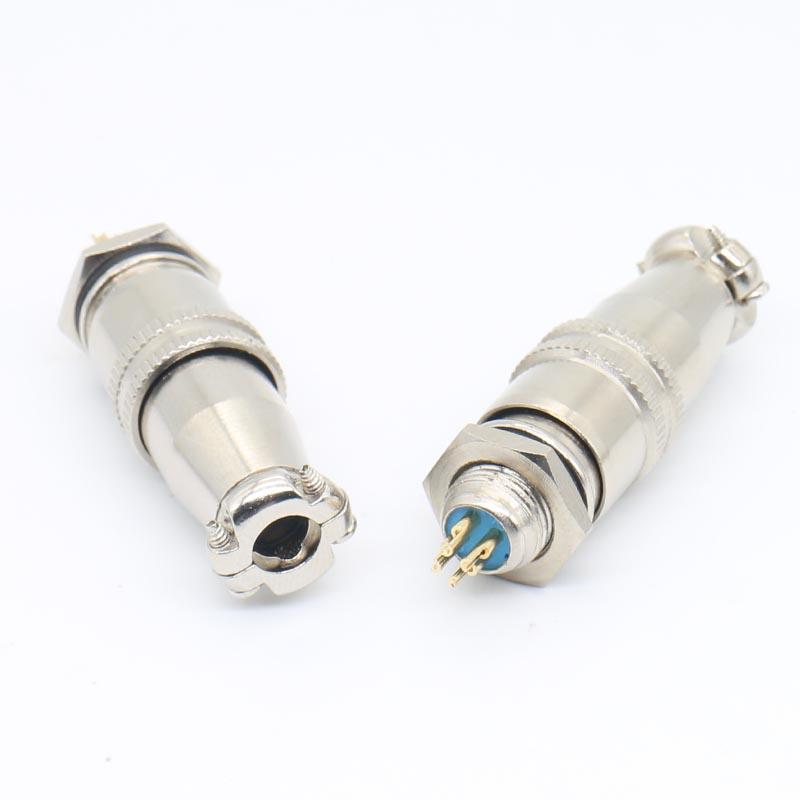

4Pin Connector

Application Scenarios for XS Circular Connectors

Ideal for a wide range of precision indoor equipment, including but not limited to:

Industrial Automation: Servo motors, control cabinet modules, sensor interfaces, PLC connections.
Medical Devices: Diagnostic equipment, patient monitoring systems, laboratory instruments.
Test & Measurement: Precision meters, data acquisition systems, communication terminal equipment.
Professional Electronics: Internal wiring for LED displays, robotics (indoor), broadcast audio/video gear, small power tools, and battery management systems.

Item	Parameters
Number of Cores	2-7Pin
Gender	Male/Female
Housing Material	Zinc Alloy with Nickel Plated
Cores Material	Brass Plated with Silver/Gold
Insulator Material	Phenolics
Locking System	Screw Locking
Temperature Range	-20℃, +85℃
Rated Current (A)	5A/7A/10A
Rated Voltage (AC.V)	250V
Test Voltage (AV.C)1Min	1500V
Insulation Resistance (㏁)	≥1000㏁
Insulation Resistance (㏁)	≤20㏁
Termination	Solder
