SP13 Waterproof Connectors for EV Charging Stations

Electric vehicle (EV) charging stations require reliable, waterproof electrical connections to ensure safe and efficient energy transfer between the charging unit and the vehicle. SP13 waterproof connectors are commonly used to link power modules, control circuits, sensors, and communication interfaces, delivering secure and stable connections in high-voltage and high-current applications.

Project Background and Environmental Challenges

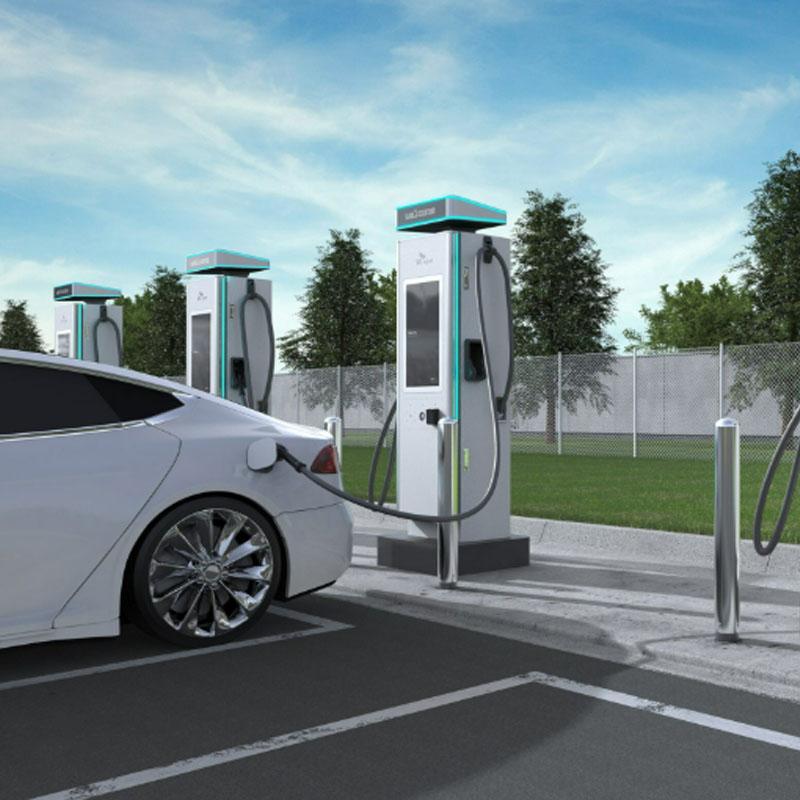

Charging stations are frequently installed outdoors or in semi-exposed locations, where they face rain, dust, temperature fluctuations, and vibration. These conditions can compromise standard connectors, leading to signal loss, short circuits, or electrical faults. The SP13 series addresses these risks with IP68-rated sealing and robust construction, protecting sensitive electronics from environmental damage and enhancing overall system safety.

Key Requirements for EV Charging Infrastructure

For EV charging applications, the SP13 connector must meet specific electrical and mechanical criteria:

• Electrical performance: Support high-voltage and high-current loads with stable contact resistance to minimize power loss.
• Environmental protection: Maintain IP68 sealing to withstand rain, dust, and humidity without compromising performance.
• Mechanical durability: Resist vibration and thermal cycling common in outdoor installations.
• Mating reliability: Provide secure locking and consistent mating cycles for repeated use during maintenance.

Solution and Installation Benefits

SP13 waterproof connectors simplify installation and maintenance in charging stations. When charging modules, sensors, or wiring require replacement or servicing, these connectors enable quick and secure reconnection, reducing downtime. Their design supports straightforward field wiring and panel mounting, allowing technicians to complete repairs efficiently without specialized tools.

Operational Results and System Reliability

By providing dependable and waterproof connectivity, SP13 connectors enhance operational reliability, safety, and efficiency in modern EV charging station applications. The IP68-rated sealing ensures continuous protection against moisture ingress, while the robust housing maintains signal integrity and power delivery under demanding conditions. This results in fewer service interruptions and extended equipment lifespan.

For engineers and buyers evaluating connector options for EV charging infrastructure, the SP13 series offers a balanced combination of electrical capacity, environmental sealing, and ease of maintenance. To explore related products and technical guidance, see the Waterproof Connectors catalog or review the SP13 5-Pin Docking Connector for South Korea Charging Stations case study.

For specific application requirements or to request a sample, please use the inquiry form or contact our sales team via WhatsApp for prompt assistance.
