M12 Waterproof Connector IP67 IP68 Difference Explained

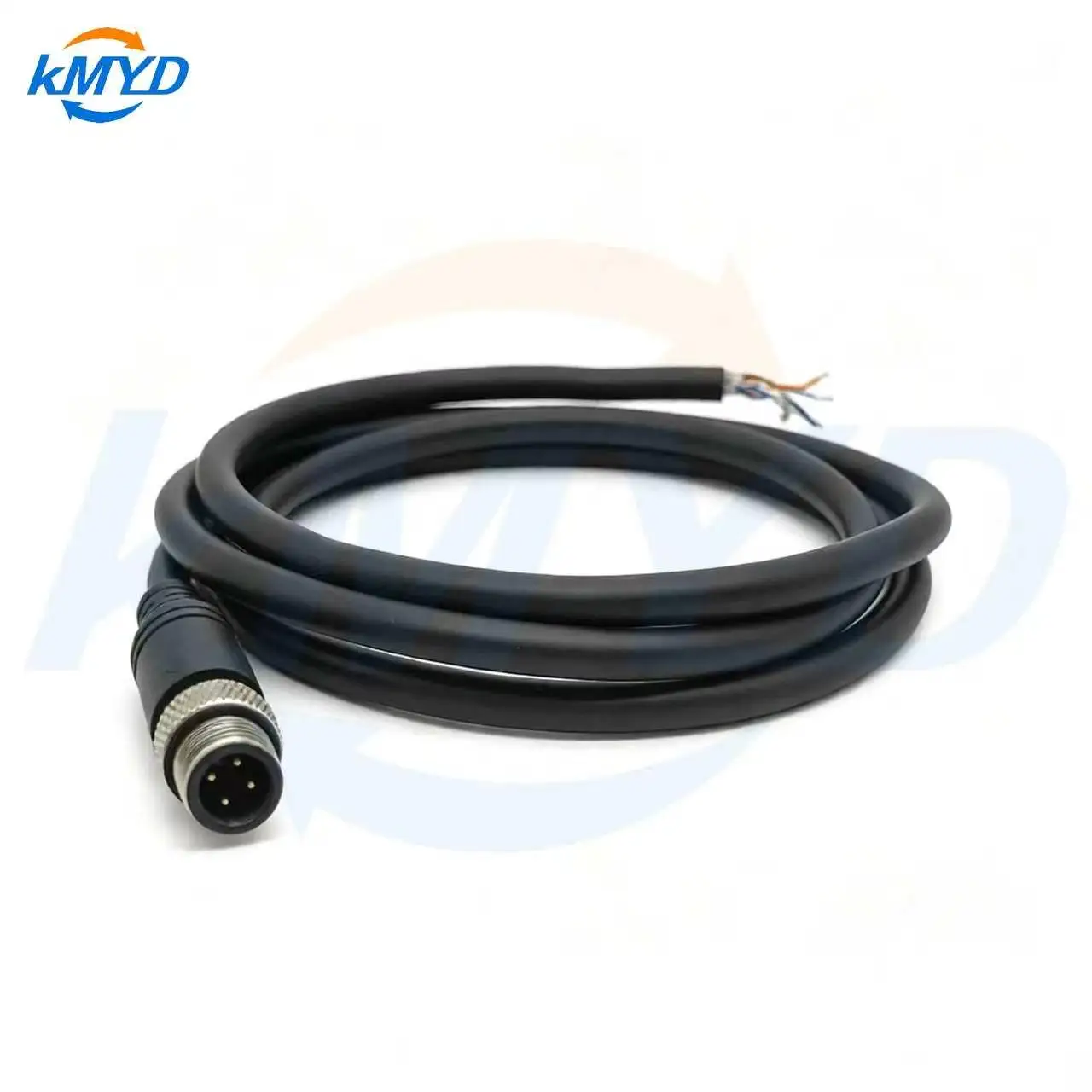

In industrial automation applications, M12 connectors are widely used in sensors, control systems, industrial equipment, and outdoor devices. Their protection ratings are commonly marked as IP67 or IP68. Both ratings provide complete dust protection, but their waterproof performance is based on different testing conditions.

Choosing between IP67 and IP68 is important because the waterproof level directly affects connector reliability, service life, and application suitability. Although IP68 provides stronger water resistance, it does not always mean it is the best choice for every industrial environment.

1. IP67 vs IP68 Test Standard Differences

According to the IEC 60529 standard, the IP protection rating consists of two digits. The first digit represents dust protection, and the second digit represents water protection.

For both IP67 and IP68 M12 connectors, the first digit is 6, which means the connector is completely protected against dust. The main difference is the waterproof testing requirement.

An IP67 M12 connector can withstand temporary immersion, such as accidental water exposure, rain, or short-term flooding. An IP68 M12 connector is designed for longer immersion periods and deeper water environments, but the exact test conditions must be confirmed according to the manufacturer's specification.

2. Key Differences Between IP67 and IP68

It is important to understand that IP68 does not mean unlimited underwater operation. The connector can only guarantee waterproof performance under the specified test conditions. Permanent underwater applications require special designs considering pressure resistance, corrosion protection, and long-term sealing reliability.

3. How to Choose Between IP67 and IP68 M12 Connectors

The correct waterproof rating should be selected according to the actual working environment. Choosing a higher IP level does not always improve system performance if the application does not require continuous water exposure.

For most industrial automation equipment, an IP67 M12 connector can provide sufficient protection. However, outdoor installations, equipment exposed to rainwater accumulation, or systems requiring frequent water contact usually benefit from IP68 protection.

4. Waterproof Structure of M12 Connectors

The waterproof performance of an M12 connector depends on the complete sealing structure, including the housing design, locking mechanism, sealing ring, and cable interface.

A threaded M12 connection creates a secure mechanical seal between the male and female connectors. When combined with high-quality sealing components such as silicone or fluororubber O-rings, the connector can maintain reliable protection against dust and moisture.

During installation, the connector must be fully tightened according to the recommended torque. Improper locking may create gaps in the sealing structure and reduce the actual IP protection level.

5. Verification and Maintenance Requirements

Before purchasing waterproof M12 connectors, customers should request IP test reports and confirm the actual testing conditions, including immersion depth, test duration, and installation method.

Different manufacturers may define different IP68 testing conditions. Therefore, checking the detailed test specification is important when the connector will be installed in outdoor or water-exposed applications.

• Confirm third-party IP test reports before purchase.
• Check sealing rings for aging, cracks, or deformation.
• Ensure correct thread locking during installation.
• Replace damaged sealing components when necessary.

6. FAQ

Is IP68 always better than IP67?

IP68 provides stronger waterproof protection, but it is not always required. For applications with occasional water exposure, IP67 is usually a practical and cost-effective solution.

Can an IP68 M12 connector be used underwater permanently?

No. IP68 means the connector can withstand continuous immersion under specific conditions defined by the manufacturer. Permanent underwater operation requires additional design considerations for pressure, corrosion, and long-term reliability.

Does IP68 replace IP69K?

No. IP68 focuses on continuous immersion protection, while IP69K is designed for high-pressure and high-temperature water cleaning environments. Food processing and pharmaceutical equipment may require IP69K protection.

What affects the waterproof performance of an M12 connector?

The waterproof performance depends on connector design, sealing materials, cable diameter matching, installation quality, and maintenance conditions.

7. Conclusion

For M12 connectors used in industrial automation, both IP67 and IP68 provide complete dust protection, but their waterproof capabilities are different. IP67 is designed for short-term immersion, while IP68 provides higher protection for longer immersion and more demanding environments.

Selecting the correct protection level should always be based on the real operating environment. IP67 is suitable for many industrial applications such as machine tools, automation systems, and factory equipment. IP68 is recommended for outdoor installations, long-term moisture exposure, and applications involving frequent water contact.

For engineers choosing waterproof M12 connectors, evaluating environmental conditions, sealing requirements, and maintenance plans is the key to achieving reliable long-term performance.
