For equipment manufacturers, choosing the correct connector size is not only a matter of pin count. It affects wiring density, shielding performance, installation speed, maintenance convenience, sealing reliability, and the long-term stability of the machine. M8 connectors are often selected for compact sensor and signal ports, M12 connectors are widely used as a standard automation interface, and M16 connectors provide more space for higher pin counts or stronger connection requirements.

1. Definition and Application Scope

An industrial circular connector is a sealed electrical interface designed to connect cables, sensors, controllers, motors, and field devices in environments where vibration, dust, moisture, and repeated maintenance may occur. The circular threaded structure provides mechanical locking, while the internal contacts transmit power, signal, or communication data.

M8, M12 and M16 connectors are commonly used in automation systems because they offer a balance between compact size and dependable connection performance. In servo-driven machines, they may not always carry the main motor power directly, but they are frequently used around the servo system for encoder feedback, brake control, proximity sensors, limit switches, safety signals, and distributed control modules.

This makes them useful in robotics, CNC auxiliary wiring, packaging machines, automated logistics equipment, inspection devices, sensor boxes, and compact industrial control units. The correct connector choice depends on electrical load, available space, shielding demand, cable structure, and the installation environment.

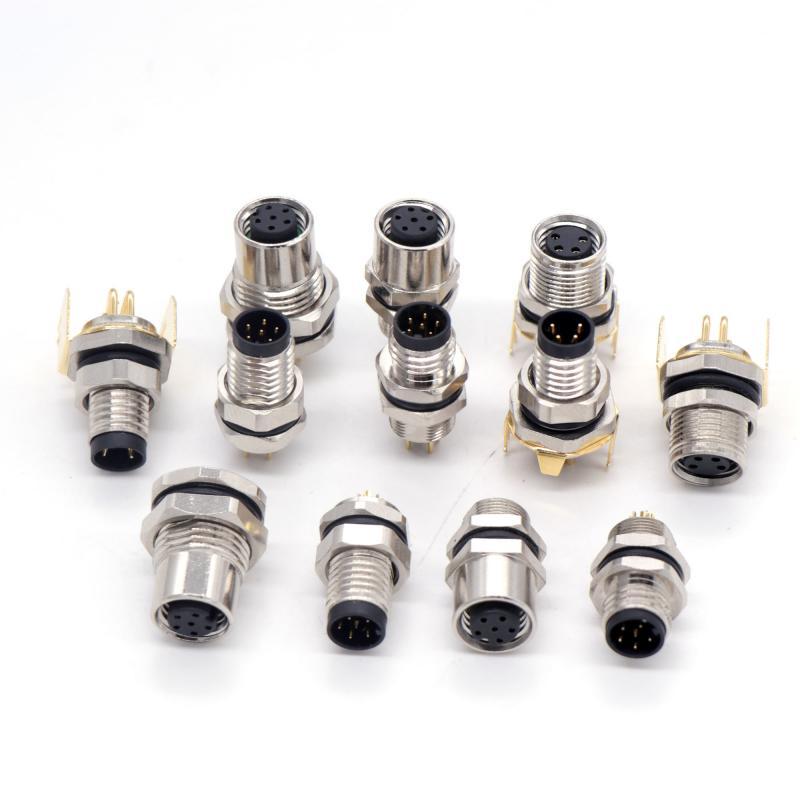

2. Why M8, M12 and M16 Connectors Are Used in Automation

Automation equipment needs connections that are easy to install but difficult to loosen accidentally. A screw-lock circular connector can maintain stable contact even when the machine is exposed to vibration, movement, cable bending, or frequent maintenance work. Compared with loose terminal wiring, a pre-defined connector interface also reduces assembly mistakes and improves repeatability during production.

M8 connectors are especially valuable where the panel is narrow and the circuit only requires a small number of contacts. M12 connectors are widely adopted for sensors, actuators, Ethernet, fieldbus, and power-related industrial interfaces. M16 connectors are useful when a slightly larger shell, more pins, or stronger mechanical structure is required.

In machine design, these connectors can help reduce wiring complexity, organize field-device connections, improve service access, and keep the control cabinet or device housing cleaner. When shielded versions are used, they can also help protect feedback and communication signals from electromagnetic interference generated by motors, drives, and power cables.

3. Size Comparison and Selection Logic

The practical selection logic is simple: choose the smallest connector that can safely meet the electrical, mechanical, and environmental requirements. Oversized connectors increase panel space and cost, while undersized connectors may limit current capacity, pin arrangement, cable diameter, or maintenance reliability.

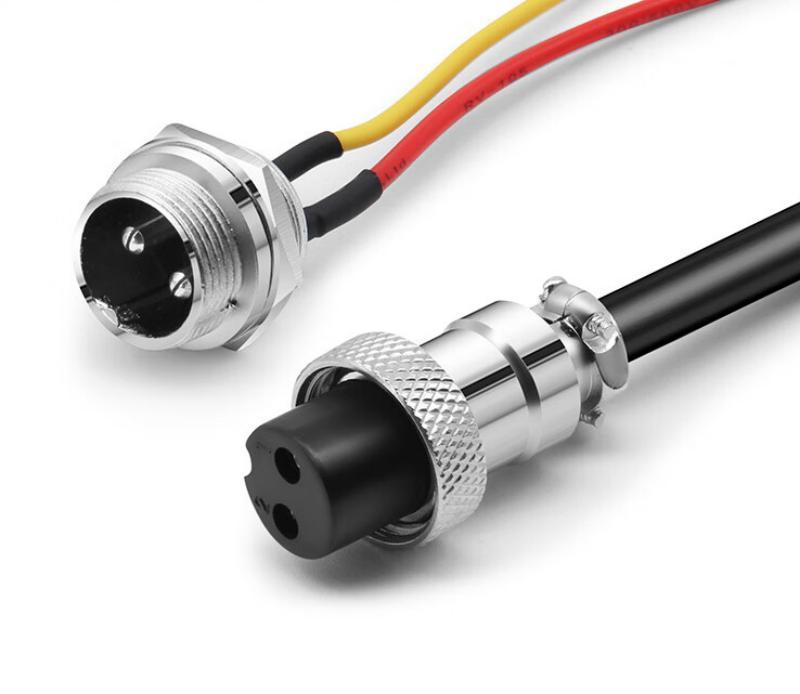

4. Key Features for Industrial Wiring

Compact signal and power arrangement: Depending on the connector size and pin configuration, M8, M12 and M16 connectors can support sensor signals, low-voltage power, control wiring, brake signals, and communication lines. This helps engineers organize machine wiring into clear and serviceable interfaces.

Shielding support: In servo systems and high-speed automation equipment, feedback and communication signals may be affected by electromagnetic noise. Metal housings, shielded cables, and proper grounding design help improve signal stability.

IP-rated protection: Many industrial circular connectors can support IP67 protection when correctly mated and installed. This is important for equipment exposed to dust, coolant mist, water spray, cleaning processes, or outdoor industrial conditions.

Secure locking: Threaded coupling reduces the risk of accidental disconnection caused by vibration, cable pulling, or machine movement. This is one reason circular connectors are preferred over simple push-fit interfaces in demanding automation environments.

These features make M8, M12 and M16 connectors suitable for machine builders that need consistent field wiring, controlled assembly quality, and easier replacement during maintenance.

5. Application Case: Servo-Driven Automation Equipment

A servo-driven packaging machine, robot cell, or CNC auxiliary system usually includes more than the servo motor itself. Around the drive system, there may be sensors, brake circuits, encoder feedback devices, safety switches, valve blocks, remote I/O units, and compact control modules. Each of these parts requires a stable connection method.

M12 connectors are often used for field sensors and I/O modules because they are durable, standardized, and easy to replace. M8 connectors are useful in compact sensor positions where there is limited installation space. M16 connectors can be used on equipment panels where more contacts or a stronger connector body is required.

For machine builders, using a consistent connector family helps simplify cable planning. It also makes maintenance easier because technicians can identify interfaces more quickly, replace damaged cables without rewiring terminals, and reduce downtime when a production line needs service.

6. Selection Checklist

7. Common Application Areas

Industrial robots: M8 and M12 connectors are used for sensors, grippers, limit detection, and compact control interfaces around robot joints and work cells.

CNC machines: Circular connectors support auxiliary sensors, position detection, coolant-related devices, tool changers, and control modules near spindle or axis systems.

Automated logistics systems: Conveyors, sorting systems, barcode stations, and lifting modules often use circular connectors for sensor and actuator wiring.

Packaging equipment: High-speed packaging machines require stable signal connections for detection, counting, sealing, filling, and motion-control coordination.

In these applications, the connector is a small component, but it can strongly influence installation efficiency and field reliability.

8. FAQ

Can M8 connectors be used for servo motor systems?

Yes, but usually for nearby signal, sensor, compact feedback, or auxiliary control wiring rather than high-power servo motor output. The exact use depends on current rating, pin configuration, shielding, and machine design.

Why is M12 so common in automation equipment?

M12 connectors provide a practical balance of size, durability, pin options, sealing performance, and industry compatibility. This makes them suitable for sensors, actuators, I/O modules, and communication interfaces.

When should M16 be selected instead of M12?

M16 may be selected when the design needs more contact space, a larger cable, a stronger body, or a multi-pin panel interface that cannot be comfortably handled by a smaller connector.

Is shielding necessary for every circular connector?

Not always. Shielding is most important for encoder lines, communication signals, and wiring installed near motors, drives, inverters, or other noise-generating equipment.

What is the most important factor when selecting a connector?

The connector should match the electrical rating, pin layout, cable type, installation space, sealing requirement, and maintenance conditions. A connector that fits only one requirement may still fail in the complete machine environment.

9. Conclusion

M8, M12 and M16 circular connectors provide practical connection solutions for industrial automation equipment, including servo-driven systems, sensor networks, compact control boxes, robotic cells, CNC machines, logistics systems, and packaging lines. They help organize machine wiring, improve installation efficiency, and support reliable operation in demanding environments.

Instead of selecting a connector only by size, engineers should evaluate pin configuration, current rating, shielding requirement, protection level, cable structure, and mounting method. M8 is suitable for compact signal connections, M12 is a versatile standard for automation wiring, and M16 is useful when more space, more contacts, or stronger panel connection is required.
