Waterproof Connectors for Electric Vehicle Battery Management Systems in Germany

Germany represents a pioneering market for advanced waterproof connector technology in electric vehicle battery management systems. As Europe's largest automotive manufacturing hub, German OEMs like Volkswagen, BMW, and Mercedes-Benz have pioneered rigorous standards for BMS connectors that address the unique challenges of European driving conditions. The cold climate with frequent rain, combined with high-speed autobahn operations, demands waterproof connectors that maintain reliability across extreme temperature ranges while withstanding intense vibration and pressure fluctuations at sustained highway speeds.

Technical Requirements and German Standards

German automotive engineers have established particularly demanding specifications for waterproof connectors used in BMS applications. Beyond the standard IP67 and IP6K9K ratings, many German manufacturers specify enhanced protection against road salt and de-icing chemicals prevalent during winter months. These connectors typically undergo accelerated aging tests simulating 10-15 years of service life in harsh European environments. Technical specifications often include contact ratings of 3-5A per pin, operating voltages up to 48V DC for low-voltage signal transmission, and compliance with DIN and VDE standards in addition to international ISO 16750 requirements. German OEMs frequently mandate redundant sealing systems with both O-rings and gasket seals, along with potting compound protection for critical internal components.

Design Features and Reliability

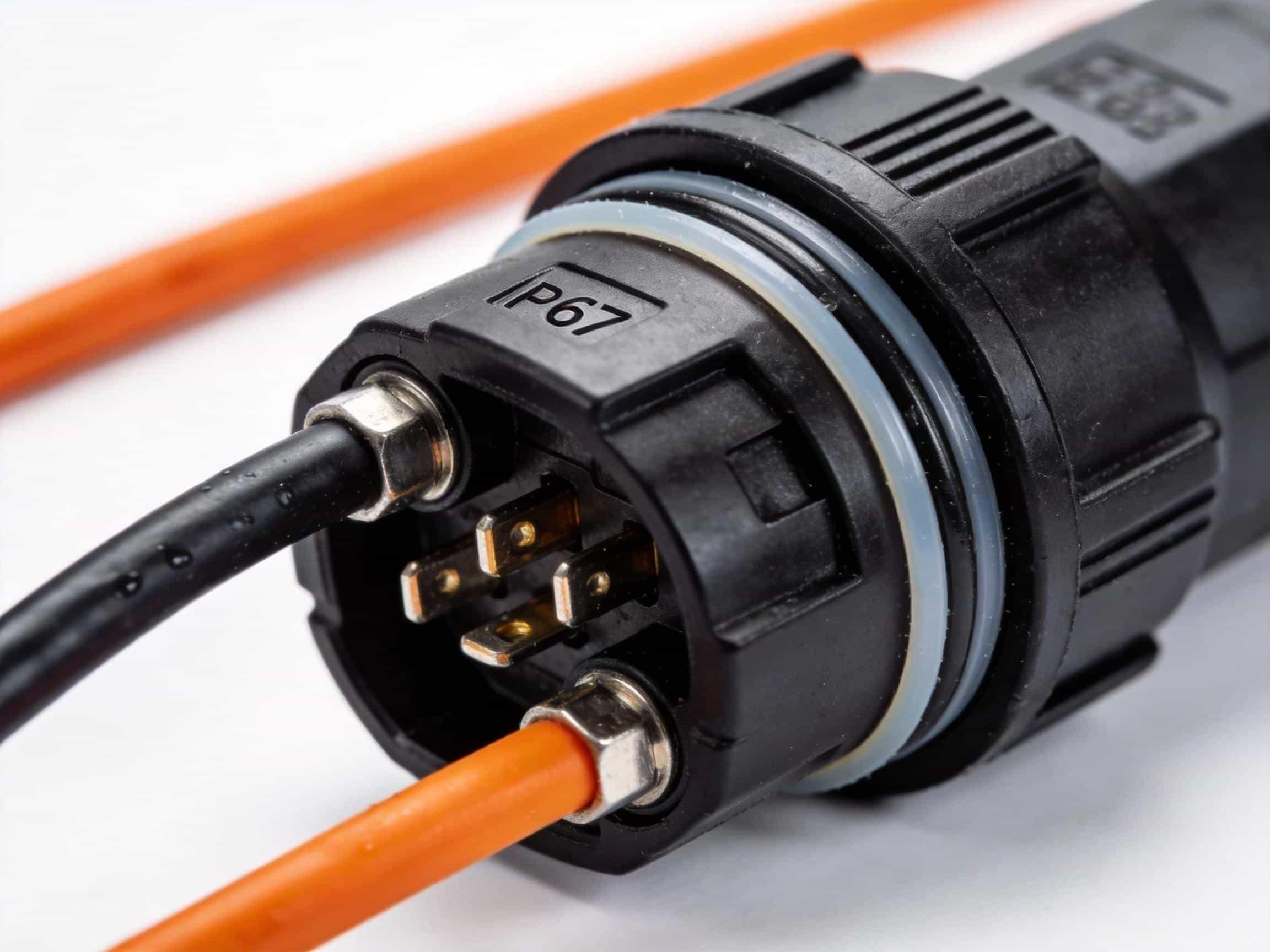

Modern waterproof BMS connectors employ compact designs optimized for space-constrained battery enclosures. Common configurations include 2, 3, 4, and 6-pin arrangements with optional locking mechanisms to prevent accidental disconnection. The housings typically use high-performance thermoplastics such as PBT or nylon with glass-fiber reinforcement, offering excellent chemical resistance to electrolytes and battery cooling fluids. Contact materials often combine gold plating over nickel for corrosion resistance and low contact resistance. Color-coding systems facilitate correct mating during assembly, reducing installation errors. Leading manufacturers implement high-temperature potting compounds and conformal coatings on internal components, further enhancing moisture protection in demanding operating environments.

Industry Impact

The growing EV market drives continuous innovation in waterproof connector technology for BMS applications. As battery pack voltages increase to 800V and beyond, connector designs evolve to meet enhanced creepage and clearance requirements while maintaining compact footprints. Recent developments focus on integrated sensor capabilities, hybrid power/signal configurations, and intelligent features for real-time connection health monitoring. These advancements support the automotive industry's push for higher energy density, faster charging speeds, and extended battery warranty periods—ultimately contributing to more reliable, efficient, and cost-effective electric vehicles.

For engineers evaluating connector options for EV battery management systems, the selection process should consider the specific pin count, current rating, sealing method, and housing material that match the application's environmental exposure and service life expectations. Waterproof Connectors designed for automotive use offer the IP ratings and chemical resistance needed for under-vehicle and battery-enclosure installations. For higher-current panel-mounted applications, the LD32/SP32 Electrical Panel Mount Connector provides a robust solution with verified electrical performance.

To discuss your specific BMS connector requirements or request samples for validation testing, please contact our engineering team through the inquiry form below.
