B Series Push-Pull Connectors: Secure Latching for Signal and Low-Power Applications

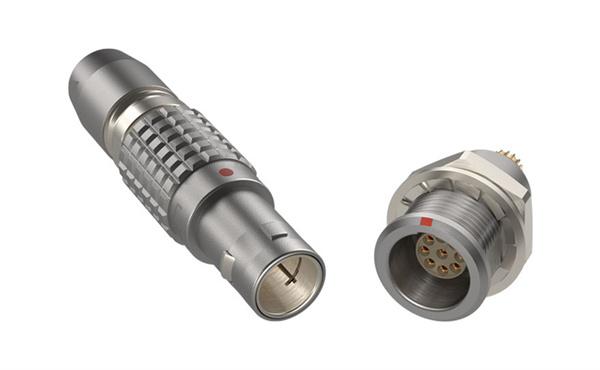

B Series push-pull connectors deliver a dependable, self-latching connection for signal and low-power transmission in industrial and instrumentation environments. Their push-pull locking mechanism provides secure mating with quick, tool-free operation, making them suitable for applications where stable performance and easy handling are priorities.

Key Selection Considerations for B Series Connectors

When evaluating B Series connectors for your equipment, focus on these decision points to ensure a correct match:

• Mating interface and locking: Confirm the push-pull locking style matches your panel or cable assembly requirements and that the mating connector is from the same series.
• Pin count and contact layout: Verify the number of contacts and the pinout arrangement against your signal or low-power wiring diagram before ordering.
• Electrical limits: Check that the rated current and voltage meet your application's actual load, not just the nominal values.
• Environmental protection: Confirm the IP rating and operating temperature range suit the installation environment, especially for exposed or washdown areas.
• Termination and cable range: Ensure the termination method and acceptable cable diameter match your conductor size and cable jacket.

Application Fit and Installation Guidance

B Series connectors are engineered for signal and low-power circuits in industrial controls, instrumentation, and test equipment. The self-latching design reduces the risk of accidental disconnection in vibration-prone settings while allowing rapid connect and disconnect cycles.

For installation, prepare cable ends carefully according to the termination style, and verify the pinout against the mating connector drawing before assembly. After mating, perform a continuity check and confirm the latch has fully engaged to avoid intermittent contact.

Suitable and Unsuitable Use Cases

These connectors suit applications requiring frequent but secure connections, such as portable instruments, sensors, and control panels. They are not intended for high-current power distribution or environments demanding heavy-duty sealing beyond the connector's rated IP protection. For higher pin counts or ruggedized circular interfaces, consider other series in the KMYD range.

Information to Include in Your Inquiry

To receive an accurate quotation and configuration recommendation, provide the following details:

• Required pin count and pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Mating-side requirement (plug or socket, cable or panel mount)
• Operating environment and IP rating needed
• Order quantity and target delivery timeline

For a broader view of compatible circular connector options, review the 12G Series Circular Connectors for higher-pin-count and IP67-rated alternatives. For application examples in demanding environments, see the Push-Pull Connectors for Surgical Power Equipment in Germany case study.

Contact our team with your application details to confirm the correct B Series configuration for your project.
