T Series Push-pull Connectors for Lightweight Electronic Equipment

M8 Waterproof Connector Types and Specifications

What Makes the T Series a Practical Choice for Portable Equipment

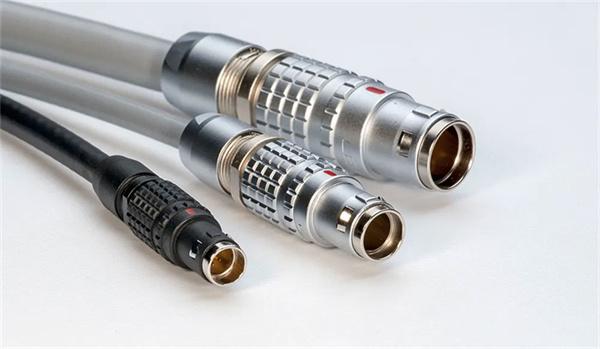

The T Series push-pull connectors are designed for electronic equipment and portable devices where weight reduction and reliable signal transmission matter. Their push-pull coupling mechanism enables quick, secure connections without requiring tools, which is particularly useful in field service, test instrumentation, and handheld devices where repeated mating cycles are common.

Key Selection Considerations for T Series Connectors

When evaluating the T Series for your application, focus on these decision points:

• Mating mechanism: The push-pull design provides a positive lock while allowing fast disconnection, reducing operator fatigue during frequent connect-disconnect cycles.
• Housing construction: The plastic housing contributes to the lightweight profile, making it suitable for weight-sensitive portable equipment.
• Contact configuration: Multi-core contact options support various signal and low-power applications, but you should verify the exact pin count and layout against your wiring requirements.
• Environmental fit: Confirm the operating temperature range and any required ingress protection for your specific installation environment before finalizing the connector choice.

Application Fit and Boundaries

The T Series works well in indoor electronic devices, test equipment, and portable instruments where weight is a priority. However, for applications requiring high current capacity, heavy-duty mechanical strength, or exposure to harsh outdoor conditions, you should evaluate other connector families with metal housings or higher IP ratings. Always verify the specific electrical and environmental limits against your actual operating conditions.

What to Confirm Before Ordering

To ensure the T Series connector matches your application, prepare the following details when contacting us:

• Required pin count and pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage) per contact
• Operating environment, including temperature and any moisture exposure
• Mating-side connector requirement (plug or socket, straight or angled)
• Order quantity and target delivery timeline

For a broader view of circular connector options, you may also review the 12G Series Circular Connectors to compare alternative configurations.
