E Series Push-pull Connectors: A Practical Choice for Signal and Power

The E Series push-pull connectors provide a cost-effective and reliable interconnection solution for general signal and power applications. Designed for quick, secure mating, these connectors are a practical choice for engineers working with automation equipment, electronic systems, and other industrial devices where dependable performance and ease of use are required.

Key Selection Criteria for E Series Connectors

When evaluating the E Series for your project, consider these primary decision points to ensure the connector meets your application's specific needs:

• Application Environment: Assess the operating environment for exposure to moisture, dust, or vibration. While the E Series is designed for general industrial use, confirm the required Ingress Protection (IP) rating for your specific conditions.
• Electrical Load: Determine the voltage and current requirements of your circuit. Verify that the chosen E Series connector's rated electrical specifications align with your system's power demands.
• Mating and Mounting: Decide between a plug or socket configuration and the appropriate mounting style—whether cable-mounted for flexible routing or panel-mounted for a fixed bulkhead connection.
• Cable and Termination: Match the connector's termination method and cable range to your wire gauge and cable outer diameter. Proper cable preparation is essential for a secure and reliable connection.

Understanding E Series Configuration and Mating

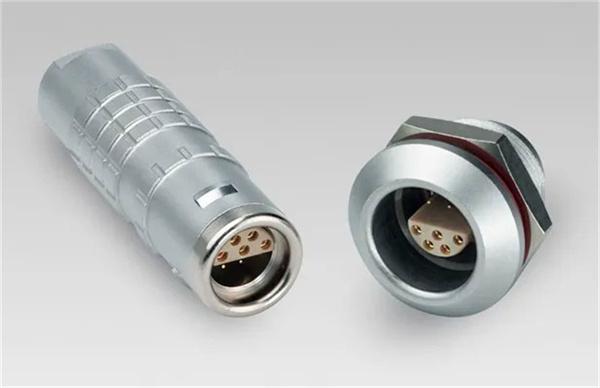

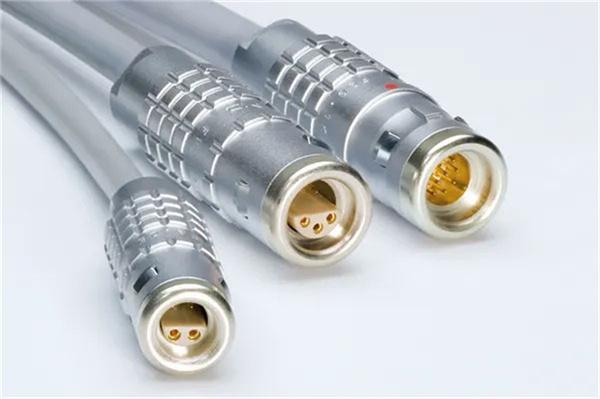

The E Series push-pull mechanism provides a secure, quick-locking connection that is easy to engage and disengage, even in confined spaces. To ensure correct mating, it is crucial to confirm the connector's gender (plug vs. socket) and keying configuration. The keying or coding prevents mismating, safeguarding your circuits and equipment. Always verify the pinout or contact arrangement against your system's wiring diagram before installation.

Suitable Applications and Boundaries

The E Series is well-suited for a broad range of standard industrial applications, including control systems, instrumentation, and data communication equipment. Its balanced performance and cost make it an excellent default choice for many projects.

However, for applications demanding extreme environmental sealing, high mating-cycle durability, or specialized high-frequency performance, you may need to consider a more specialized connector series. It is important to evaluate the E Series' specifications against the specific demands of your application to confirm it is the right fit.

Information to Include in Your Inquiry

To receive an accurate quotation and ensure the correct connector is selected, please provide the following details with your inquiry:

• Required pin count and contact arrangement (pinout).
• Specific model number or series configuration, if known.
• Electrical load: operating voltage and current.
• Cable type, conductor size (AWG), and cable outer diameter.
• Required mounting style (cable or panel mount) and connector gender.
• Environmental requirements, such as IP rating and operating temperature range.
• Estimated order quantity.

For a broader view of our interconnection solutions, you may also consult our 12G Series Circular Connectors for high-reliability applications. If you are ready to proceed, please use the inquiry form or contact us via WhatsApp to discuss your project requirements.
