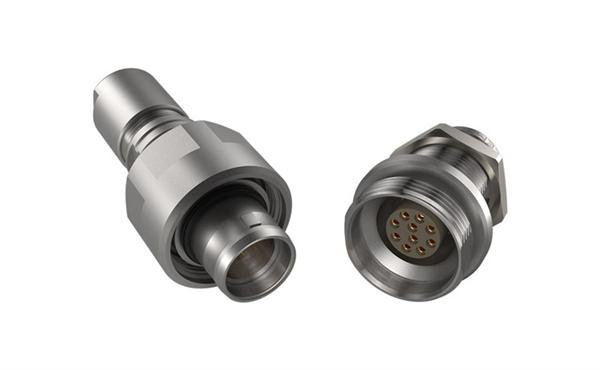

W Series Push-pull Connectors: Built for Moisture and Vibration Resistance

W Series push-pull connectors are engineered for demanding applications where moisture ingress and mechanical vibration threaten connection reliability. Their waterproof sealing and secure locking mechanism maintain stable electrical performance in outdoor installations, marine equipment, and industrial machinery where standard connectors may fail prematurely.

Selection Criteria for Wet and High-Vibration Environments

When selecting a connector for wet or high-vibration applications, engineers typically evaluate three factors: sealing integrity, locking security, and long-term durability. The W Series addresses each of these through its waterproof structure and high-strength shell design.

• Waterproof sealing: The connector's sealing system prevents moisture penetration, making it suitable for outdoor and washdown environments.
• Secure locking: The push-pull locking mechanism resists accidental disconnection caused by vibration or cable strain.
• High-strength shell: The rugged housing protects internal contacts from mechanical impact and environmental stress.

Application Suitability and Boundaries

W Series connectors are well-suited for outdoor lighting, marine electronics, industrial sensors, and other equipment exposed to humidity or periodic water contact. However, they are not designed for permanent submersion or explosive atmospheres. For applications requiring continuous underwater operation or intrinsically safe certification, consult our technical team to evaluate alternative series.

Installation and Mating Considerations

Proper installation is essential to maintain the connector's waterproof performance. Ensure the mating surfaces are clean and free of debris before connection, and verify that the locking mechanism engages fully. For panel-mounted configurations, confirm that the mounting hole dimensions and panel thickness match the connector's specifications to preserve sealing integrity.

What to Include in Your Inquiry

To receive an accurate recommendation and quotation, please provide the following details:

• Required pin count and contact arrangement
• Cable outside diameter and conductor size
• Rated current and voltage for your application
• Mounting style: cable, panel, or PCB
• Environmental conditions: temperature range, chemical exposure, and IP requirement
• Estimated order quantity and target delivery timeline

For related circular connector options with similar environmental protection, review the 12G Series Circular Connectors. If you need guidance on waterproof connector types and specification comparisons, see 12G Series Circular Connectors.

Contact our engineering team through the inquiry form or WhatsApp to discuss your specific application requirements and receive a tailored connector solution.
