M12 Connectors in In-Vehicle Displays: Project Background

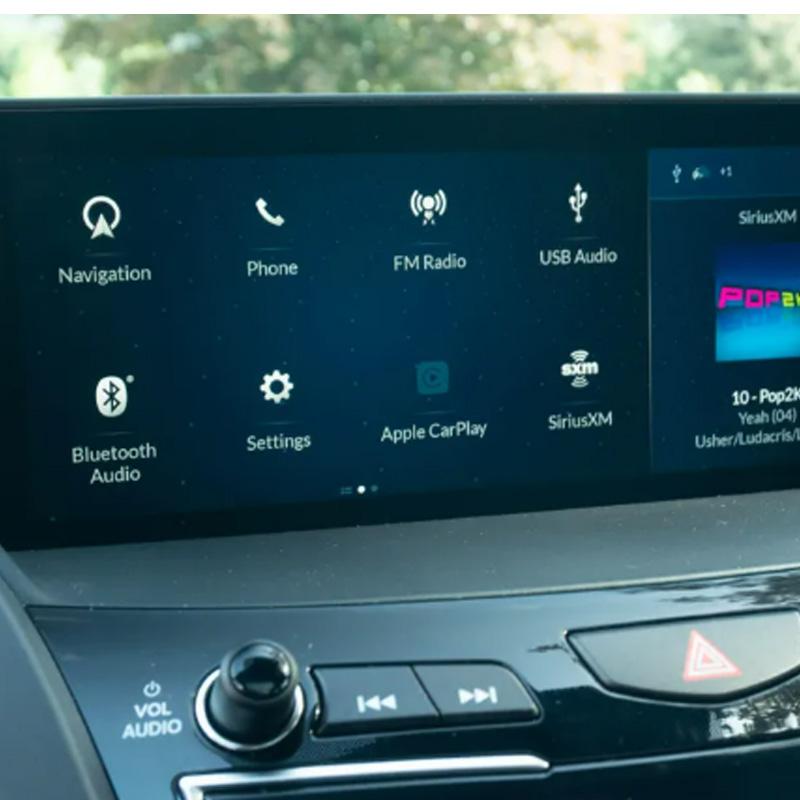

Modern vehicles increasingly rely on in-vehicle displays for navigation, infotainment, and vehicle system monitoring. M12 connectors are widely used to connect these displays to power supplies, control modules, and sensor networks, ensuring stable signal and power transmission even under harsh automotive conditions.

This application case examines how M12 circular connectors support reliable connectivity for display units in commercial and passenger vehicles, where space constraints and environmental stress are key design factors.

Application Requirements for Display Connectivity

Vehicle displays are often exposed to vibration, temperature fluctuations, and occasional moisture from condensation or cleaning. M12 connectors, with their robust metal housings and secure threaded locking mechanisms, maintain reliable connections, preventing signal loss or display malfunction. Their high durability and resistance to mechanical stress make them ideal for maintaining performance in complex vehicle environments.

Typical electrical and mechanical requirements for in-vehicle display connections include:

• Stable power delivery for display backlighting and processing units
• Reliable signal transmission for video data and control commands
• Vibration resistance across operating temperature ranges
• Secure mating to prevent accidental disconnection during vehicle operation
• Compact form factor suitable for limited dashboard space

Solution: M12 Connector Configuration for Display Modules

M12 connectors offer multiple coding options and pin configurations to match specific display interface requirements. The threaded coupling mechanism provides a positive lock that withstands vibration, while the IP-rated sealing protects against moisture ingress when properly mated. For in-vehicle display applications, engineers typically select connector variants based on pin count, current rating, and signal integrity needs.

When replacing or upgrading display modules, these connectors allow quick and secure reconnection without the need for extensive rewiring. This modular approach reduces maintenance time and minimizes the risk of wiring errors during service operations.

Installation and Commissioning Considerations

Proper installation of M12 connectors in display applications requires attention to cable strain relief, mating torque, and routing. The connectors should be secured to prevent movement that could stress the cable termination. During commissioning, continuity testing and signal integrity verification help confirm correct pin assignment before final assembly.

Result and System Reliability

By providing dependable connectivity, M12 connectors enhance system reliability, improve display performance, and ensure consistent operation of in-vehicle information and entertainment systems. The standardized interface simplifies spare parts management and supports straightforward field replacement when display modules require service.

For engineers evaluating connector options for display applications, the M12 series offers a proven balance of mechanical robustness, environmental protection, and electrical performance. Related connector solutions for automotive environments include M12 connectors in engine control units and M12 connectors in sensors, which address similar reliability requirements.

To discuss your specific in-vehicle display connector requirements or request samples, please contact our engineering team through the inquiry form or WhatsApp. We can help verify the appropriate coding, pin configuration, and cable assembly options for your application.
