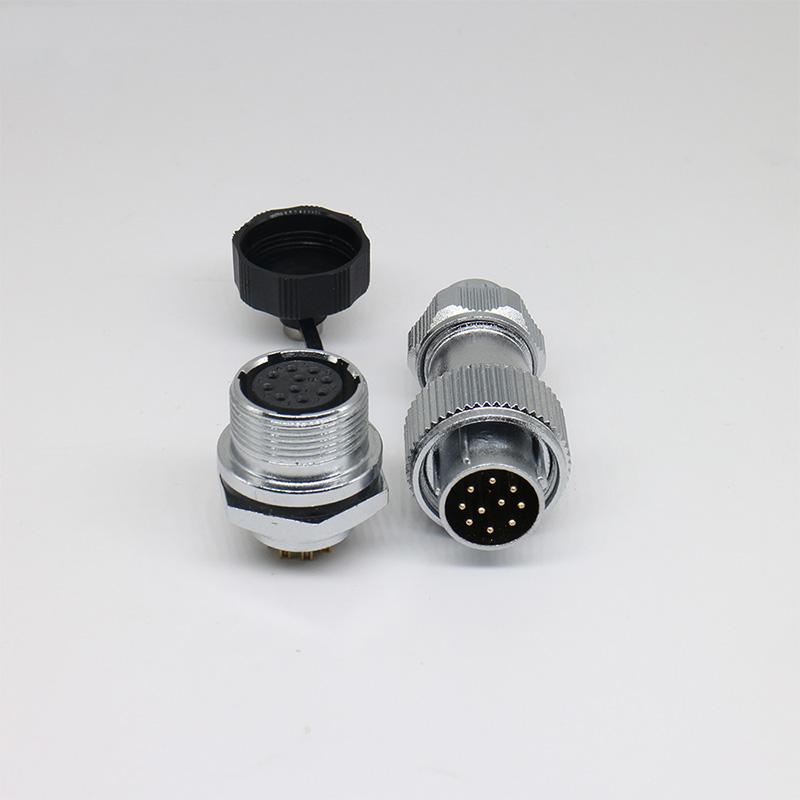

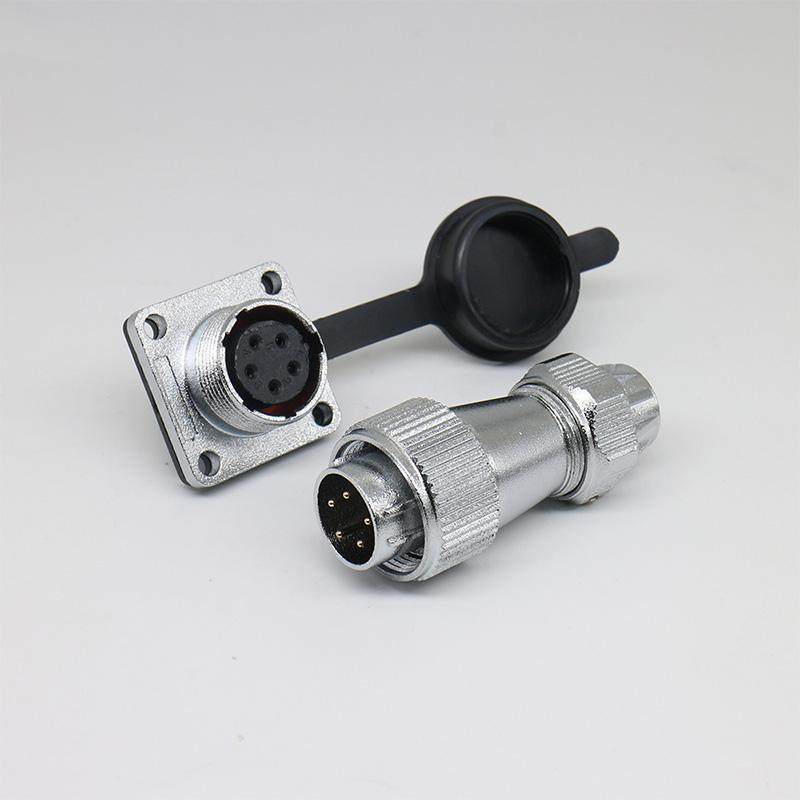

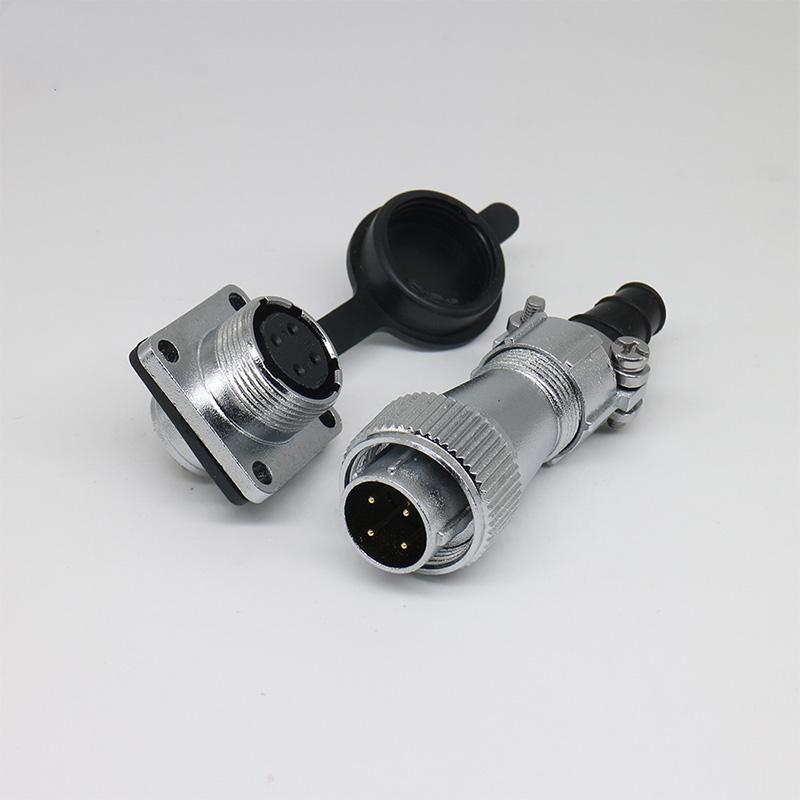

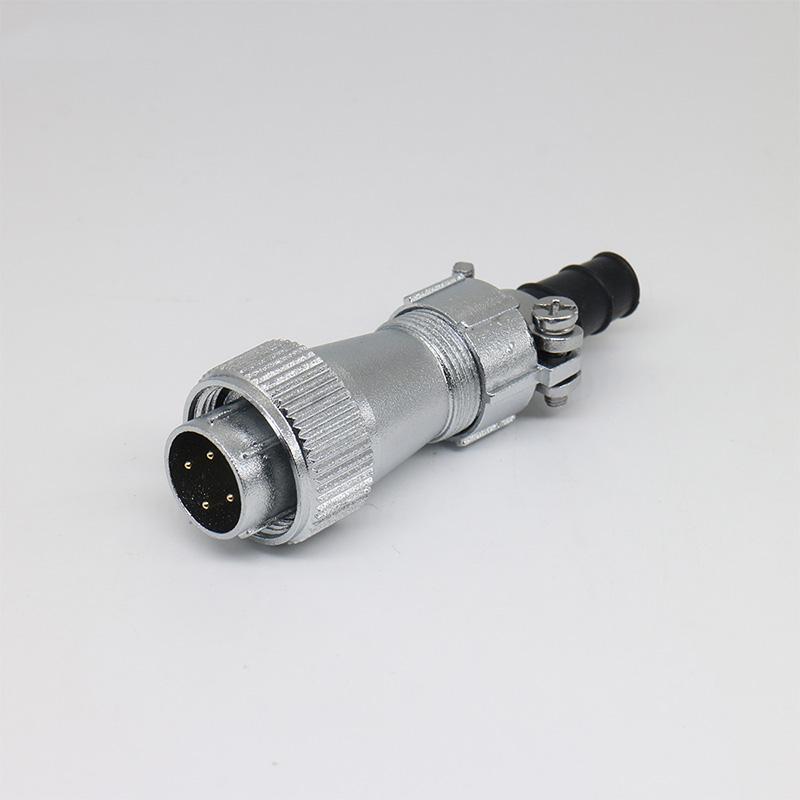

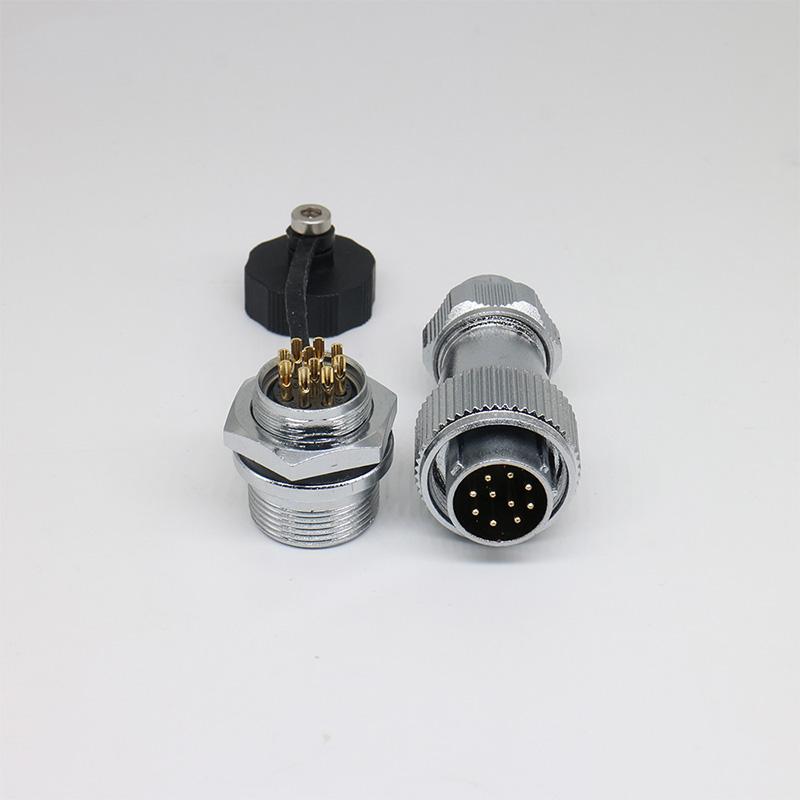

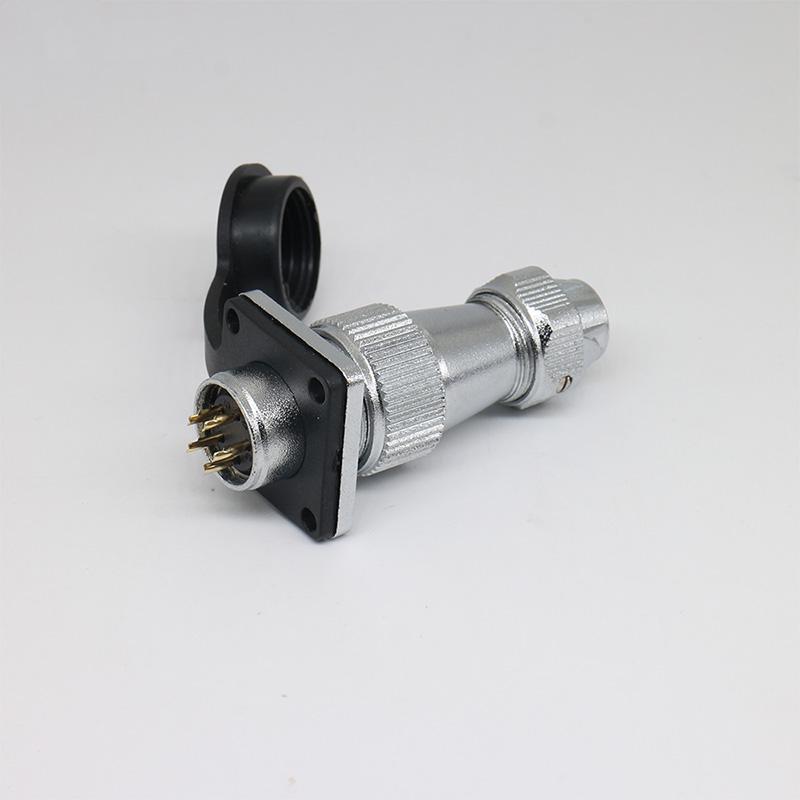

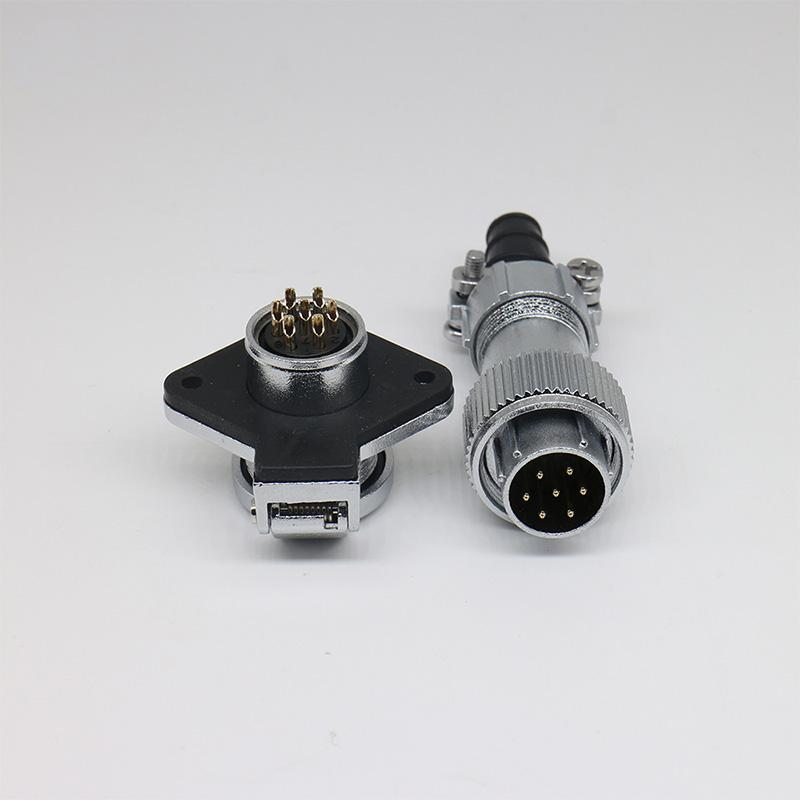

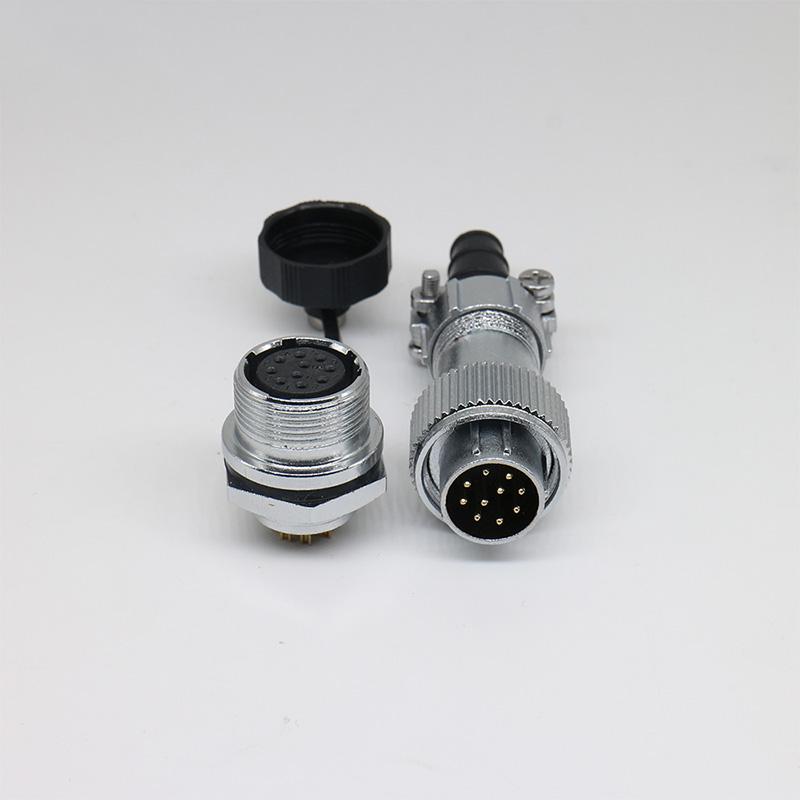

WF16 Connectors
< >

WF16 Heavy-Duty Circular Connector for Industrial Power and Signal Transmission

>Number Of CoresNumber Of Cores 2 - 10Pins
Contact DiameterContact Diameter(mm) 1.0mm - 3.0mm
IP RatingIP Rating IP67
Shell MaterialShell Material Zinc Alloy With Nickel Plated
Temperature RangeTemperature Range −40 °C ~ +85 °C
TerminationTermination Solder
Rated CurrentRated Current(A) 5A
Rated VoltageRated Voltage(Ac.V) 500V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥1000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 1 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

WF16 Heavy-Duty Circular Connector for Industrial Power and Signal Transmission

The WF16 heavy-duty circular connector is designed to provide reliable electrical connections for industrial power and signal transmission. With its robust metal housing and stable contact structure, this connector ensures long-term performance in demanding industrial environments.

It is widely used in machinery, automation equipment, control systems, and electrical installations where secure and stable connections are essential.

WF16 Connectors


Durable Construction for Harsh Industrial Environments
The WF16 connector features a rugged metal shell that provides excellent mechanical strength and durability. This design helps protect the internal contacts and ensures reliable performance even under vibration or frequent connection cycles.

Stable Power and Signal Transmission
Engineered for dependable electrical performance, the WF16 connector supports both power and signal transmission. Its precision contacts ensure stable conductivity and reduce signal loss, making it suitable for various industrial applications.

Secure and Reliable Connection

The connector uses a threaded locking mechanism that provides a firm and secure connection. This structure helps prevent accidental disconnection and ensures reliable operation in equipment and machinery.

Connectors


Wide Range of Industrial Applications
The WF16 circular connector is commonly used in:

Industrial machinery

Automation systems

Power distribution equipment

Control cabinets

Electrical devices and instruments

It provides a reliable solution for industrial power and signal connections.

Item

Parameters

Number of Cores

2-10Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Gold

Insulator Material

PBT/PA66

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

5A

Rated Voltage (AC.V)

500V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

1000㏁

Contact Resistance (㏁)

≤1㏁

Termination

Solder
