WF20 Connectors
< >

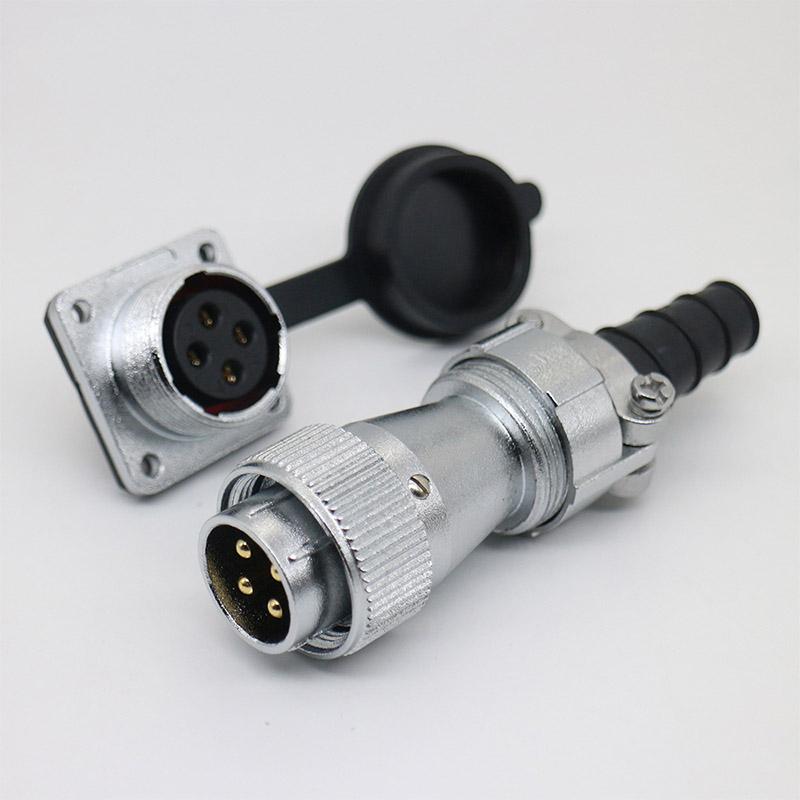

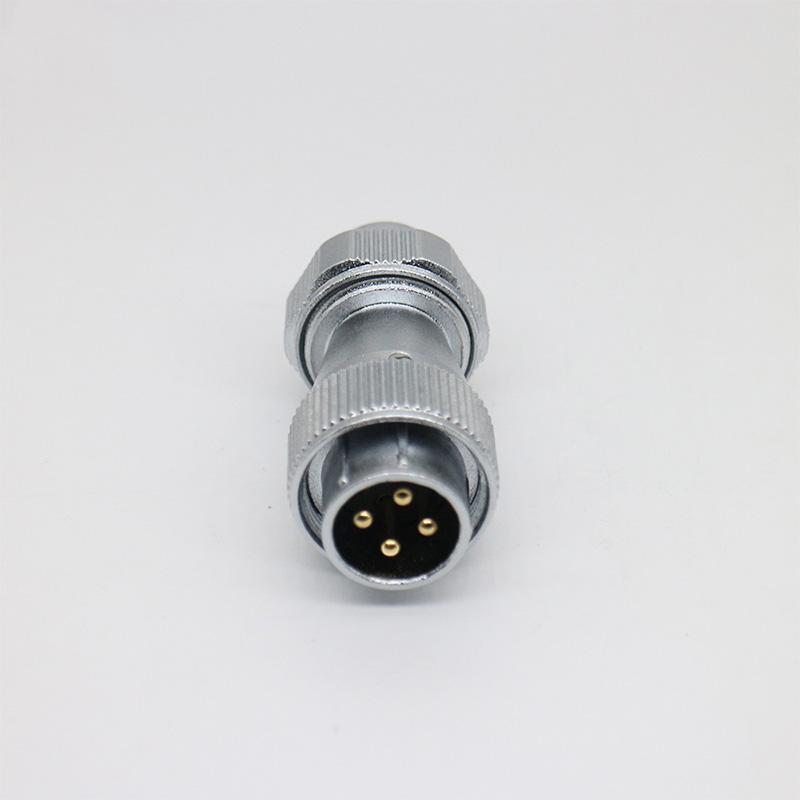

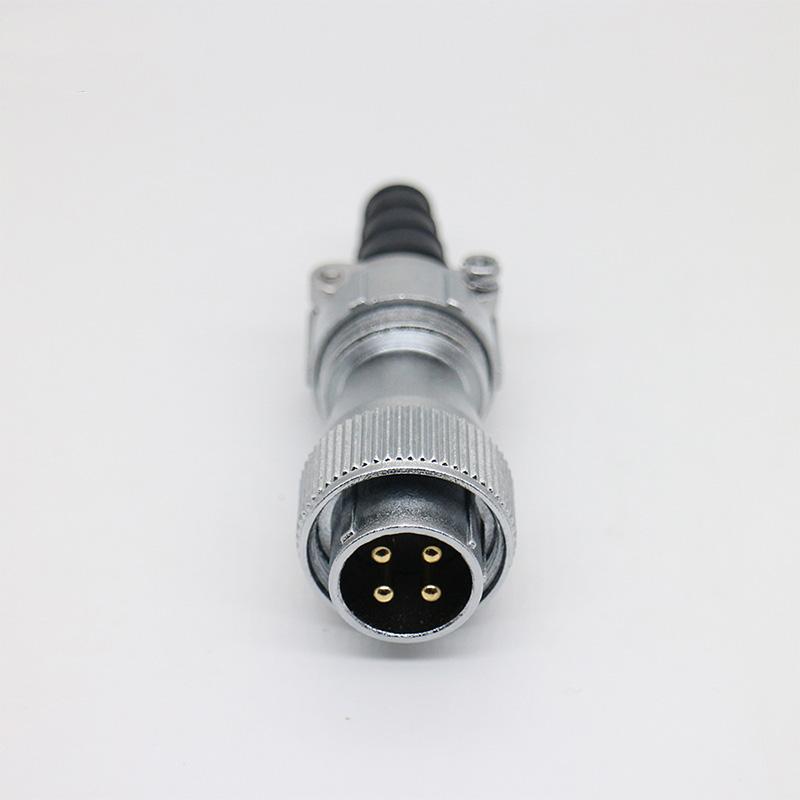

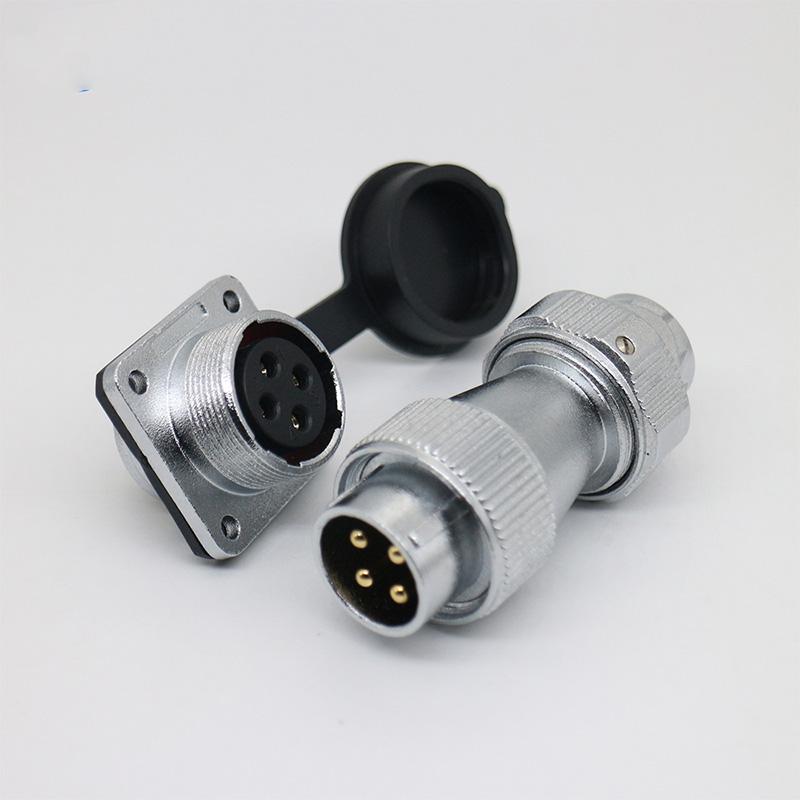

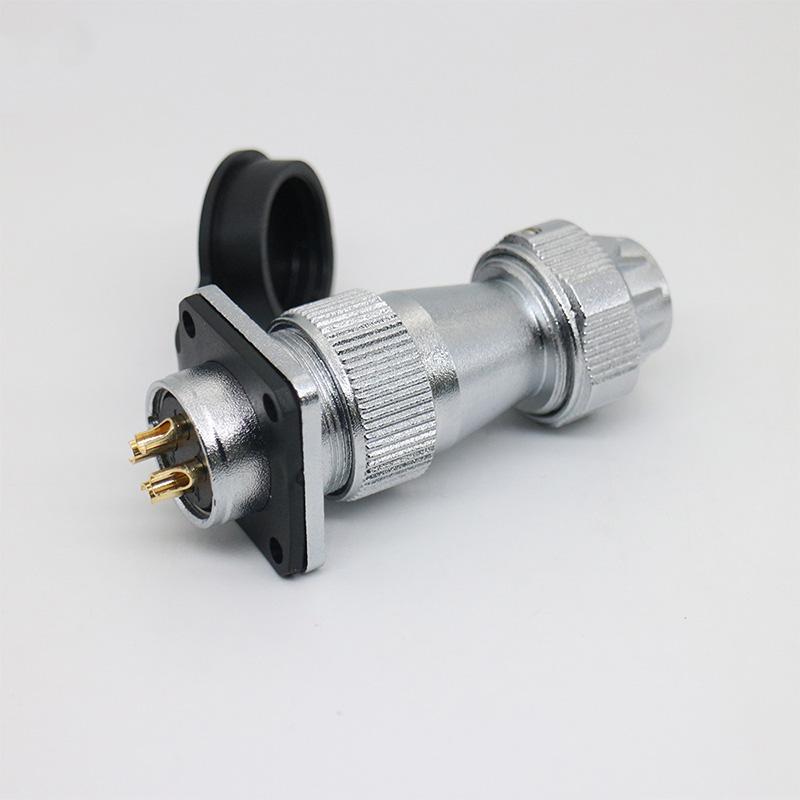

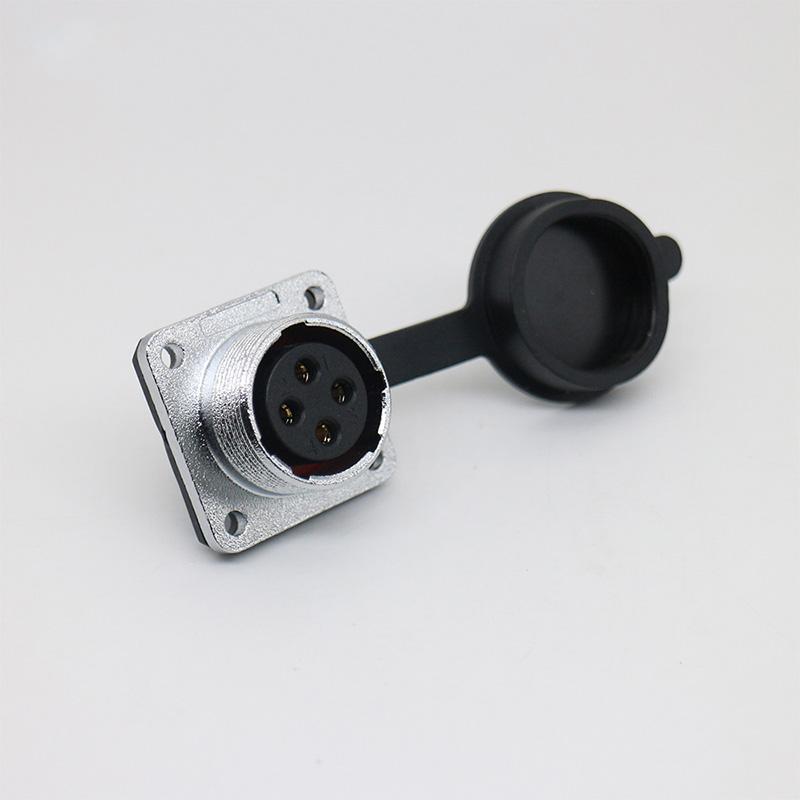

WF20 Waterproof Circular Connector for Robotics and Factory Equipment

>Number Of CoresNumber Of Cores 2-12Pin
Contact DiameterContact Diameter(mm) 1.0mm-2.0mm
IP RatingIP Rating IP67
Shell MaterialShell Material Zinc Alloy With Nickel Plated
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder/Crimp
Rated CurrentRated Current(A) 5 - 10A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) ≥ 500MΩ
Contact ResistanceContact Resistance (MΩ) ≤5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

The WF20 Waterproof Circular Connector is designed for demanding industrial environments. With its robust construction and high-performance materials, it ensures reliable power and signal transmission in robotics and factory automation applications.

Key Features of WF20 Connector

Waterproof & Dustproof: Rated IP67, ideal for harsh industrial settings.

Durable Construction: High-quality metal shell ensures long-lasting performance.

Versatile Connectivity: Supports multiple pin configurations for power and signal.

Easy Assembly: User-friendly design allows quick installation and maintenance.

Wide Temperature Range: Operates efficiently in extreme conditions from -40°C to +85°C.

WF20 Connectors

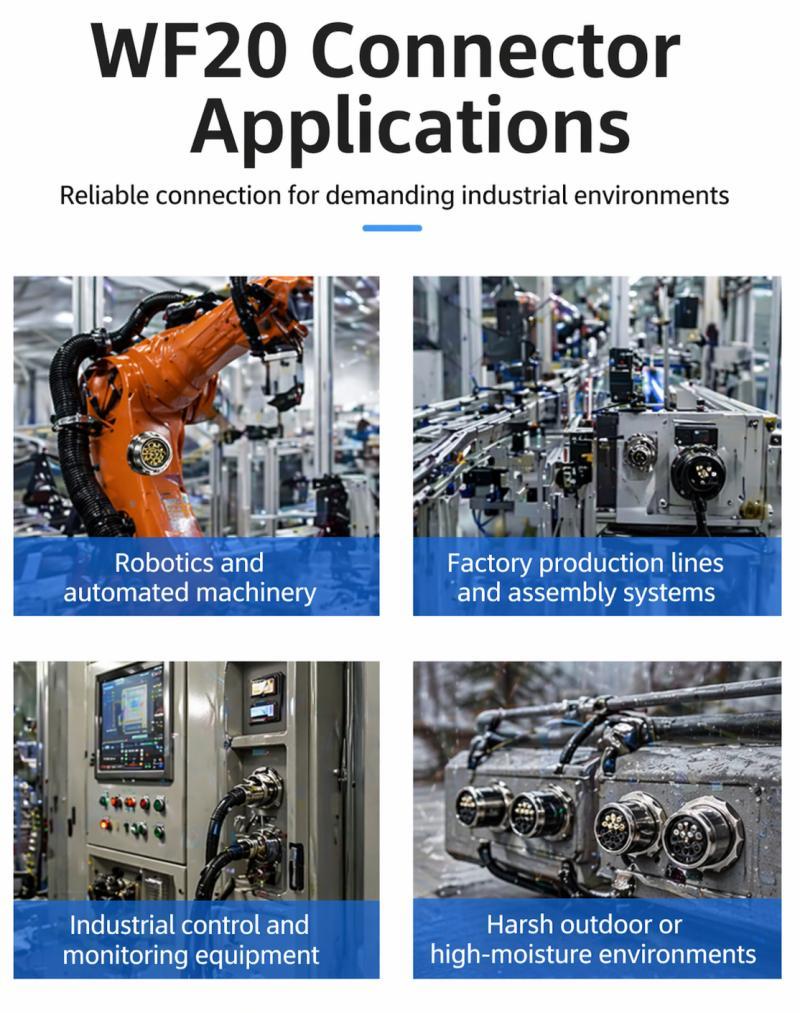

Applications

Robotics and automated machinery

Factory production lines and assembly systems

Industrial control and monitoring equipment

Harsh outdoor or high-moisture environments

Why Choose WF20 Connector

Built to meet industrial standards, the WF20 connector provides secure, waterproof connections while maintaining signal integrity. Perfect for manufacturers, engineers, and system integrators looking for reliable circular connectors for their equipment.

Item

Parameters

Number of Cores

2-12Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Gold

Insulator Material

PA66/PBT

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

5 -10A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1000V

Insulation Resistance (㏁)

500㏁

Contact Resistance (㏁)

≤5㏁

Termination

Solder


Related Products

More》

Related Application

More》

Related Resource


WF20 Waterproof Circular Connector
Related Catalog
Learn More
WF20 Connectors
PDF
Download Resources
Get More Downloads >
