P Series Push-pull Connectors: Selection and Application Guide

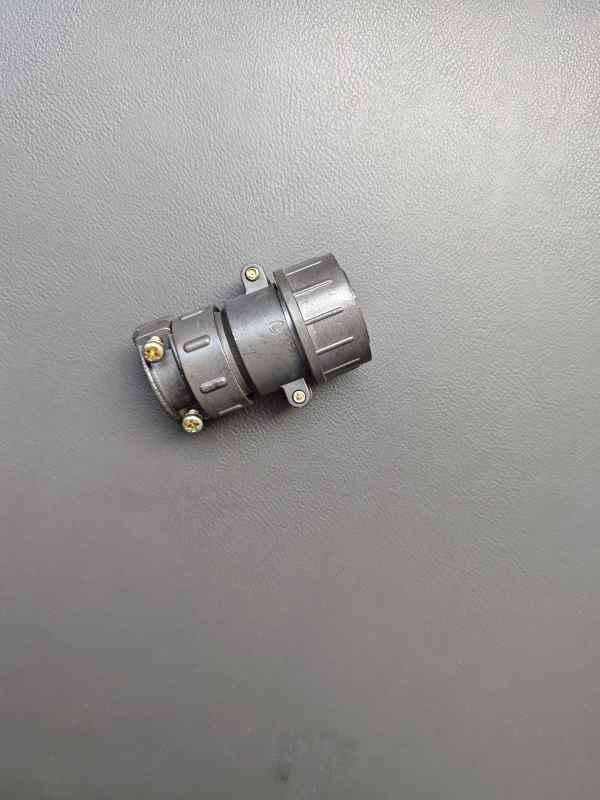

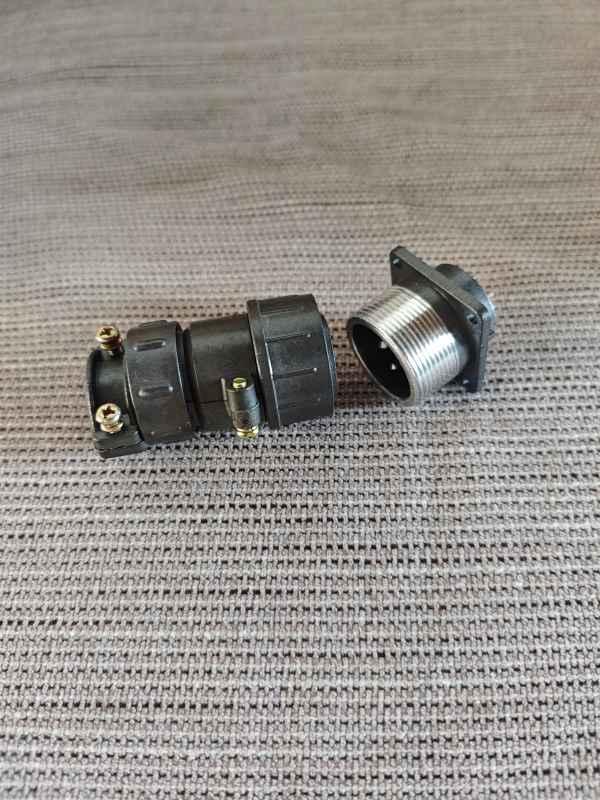

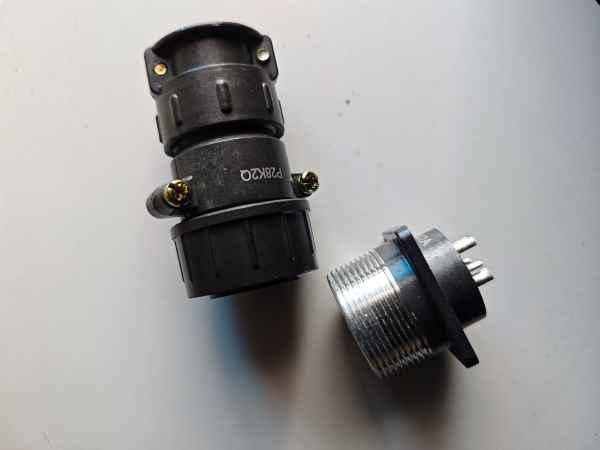

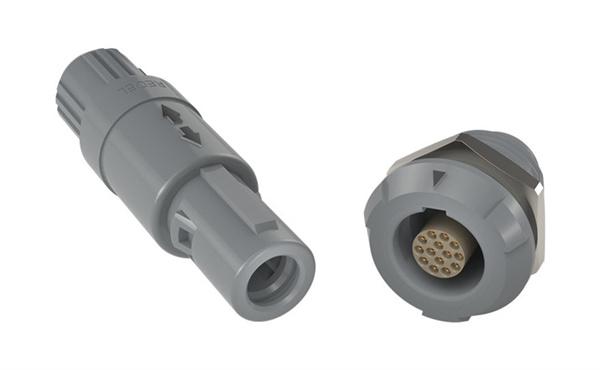

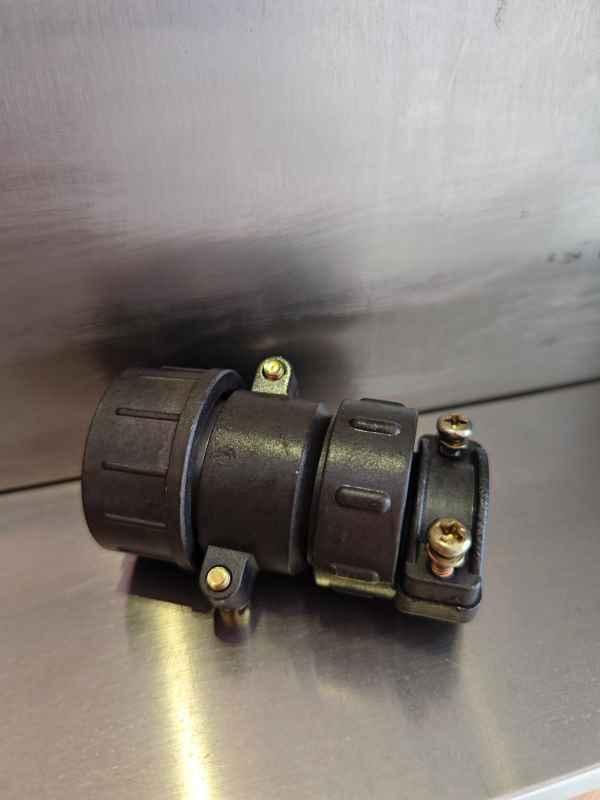

The P Series push-pull connectors are designed for reliable, quick-disconnect operation in space-constrained environments. With a multi-pin configuration and durable shell, these connectors provide secure locking and stable performance for industrial control, instrumentation, and communication equipment. This guide helps engineers and procurement specialists evaluate the P Series against their specific application requirements.

Key Decision Points for P Series Connectors

When selecting a P Series connector, consider the following factors to ensure a proper match for your equipment:

• Contact Arrangement: The series supports multiple contact configurations. Confirm the required pin count and layout against your device's pinout before ordering.
• Locking Mechanism: The push-pull locking design provides secure mating and quick disconnection. Verify the actuation force and cycle life meet your maintenance or field-service needs.
• Environmental Protection: Assess the operating environment for dust, moisture, or chemical exposure. The durable shell offers mechanical protection, but the specific IP rating should be confirmed for your application.
• Cable and Termination: Determine the cable outer diameter and conductor size to ensure compatibility with the connector's termination method and strain relief.
• Mating Side: Identify whether you need a plug, socket, or a complete cable assembly. Provide the mating-side requirement to ensure correct pairing.

Interpreting P Series Specifications

The P Series is built for stable signal and power transmission. While the exact electrical ratings (current, voltage) and contact diameter are listed in the Technical Specifications field, the selection logic depends on your load requirements. For high-vibration environments, the secure locking mechanism is a key advantage. For applications requiring frequent disconnection, the push-pull design reduces operator effort compared to threaded couplings.

The multi-pin configuration allows for mixed signal and power contacts in a single housing, which can simplify cabling in compact equipment. However, the final configuration—including pin assignment and shell size—must be verified against your device's interface drawing.

Suitable and Unsuitable Applications

Suitable for:

• Industrial control panels and automation equipment where quick disconnect is required.
• Instrumentation and test equipment needing reliable, repeatable mating.
• Communication devices where space is limited and a secure locking mechanism is essential.

Not recommended for:

• Applications requiring high-power transmission beyond the connector's rated current; verify the electrical limits first.
• Environments with continuous submersion or extreme chemical exposure unless the specific IP rating and material compatibility are confirmed.
• Retrofit into existing systems without verifying the mating interface and pinout compatibility.

Installation and Mating Considerations

Proper installation is critical for achieving the connector's rated performance. Before assembly, confirm the following:

• The cable outer diameter fits within the connector's cable range for a proper seal and strain relief.
• The conductor size is compatible with the contact termination method (e.g., crimp or solder).
• The mating connector (plug or socket) is from the same series and has the correct keying to prevent misalignment.

For detailed dimensional data and mounting specifications, refer to the Technical Specifications field. If a specific parameter is not listed, contact our engineering team with your application details for confirmation.

Inquiry Checklist for P Series Connectors

To receive an accurate quotation and technical recommendation, please provide the following information in your inquiry:

• Required pin count and contact arrangement (pinout drawing if available).
• Mating side requirement: plug, socket, or complete cable assembly.
• Cable outer diameter and conductor size.
• Electrical load: rated current and voltage per contact.
• Environmental conditions: temperature range, IP rating needed, and exposure to chemicals or vibration.
• Order quantity and target delivery schedule.

For related connector options, explore the 12G Series Circular Connectors or review the Push-pull Connectors in Electrosurgical Equipment in Germany case study for application insights.
