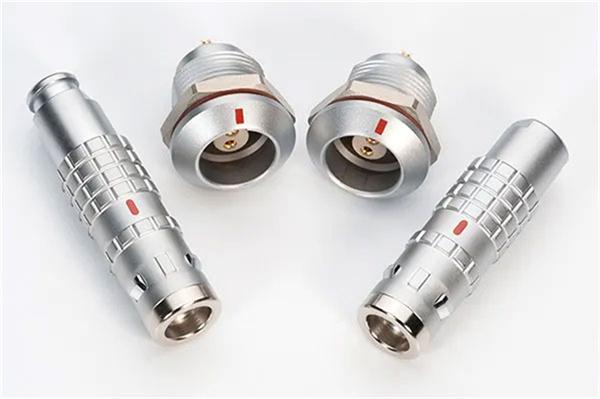

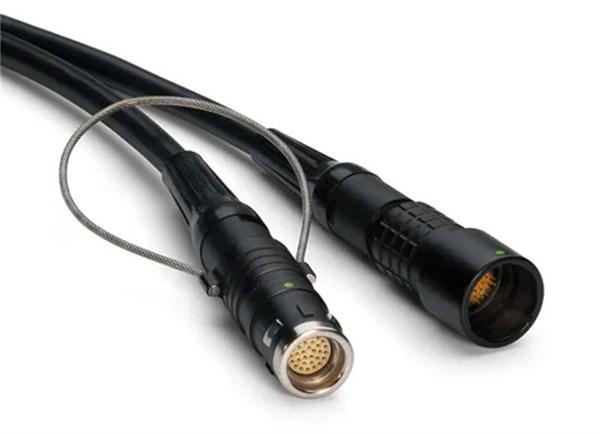

K Series Push-Pull Connectors: Waterproof Sealing and Metal Construction

The K Series is a push-pull connector family designed for reliable signal and power transmission in outdoor and demanding industrial environments. Its waterproof sealing and robust metal housing make it a practical choice for applications where vibration, moisture, or repeated mating cycles are a concern. This page explains the key selection factors, application boundaries, and the information you should prepare before ordering.

What to Consider When Selecting a K Series Connector

Before choosing a specific model, review these decision points against your application requirements:

• Mating interface and locking: Confirm that the push-pull locking mechanism matches your required insertion and withdrawal force, and that the connector is available in the plug or socket configuration you need.
• Electrical load: Verify the rated current and voltage against your actual load. The K Series supports signal and power transmission, but the exact limits depend on the contact size and pin count of the chosen model.
• Environmental protection: The IP-rated sealing is intended for mated connections. Confirm that your installation keeps the connector within its rated protection when unmated, and that the operating temperature range suits your environment.
• Cable and termination: Check the acceptable cable outside diameter and conductor size for the termination style you plan to use, whether soldering, crimping, or another method.
• Mounting and space: Determine whether you need a cable-mounted, panel-mounted, or flange-mounted version, and verify the panel cutout dimensions against your enclosure.

Application Fit and Boundaries

The K Series is well suited to outdoor equipment, industrial machinery, and portable devices where a quick, secure connection is needed and where the connector remains mated during operation. Its metal housing provides mechanical strength, and the waterproof sealing protects the contacts from moisture and dust ingress.

However, the K Series is not a universal solution. It is not suitable for applications requiring high-density contacts beyond the series' pin count range, nor for environments exceeding the rated temperature or IP protection limits. If your application involves continuous submersion, extreme chemical exposure, or very high mating cycles, confirm the specific model's ratings with the manufacturer before purchase.

How to Prepare Your Inquiry

To receive an accurate quotation and configuration recommendation, please provide the following details when contacting us:

• Required pin count and contact arrangement (pinout or wiring diagram)
• Mating-side requirement: plug, socket, or both
• Cable outside diameter and conductor size
• Electrical load: current, voltage, and signal type
• Environmental conditions: temperature, moisture, and exposure level
• Mounting style: cable, panel, or flange
• Order quantity and target delivery date

For a broader view of compatible connector families and mounting options, you may also review the 12G Series Circular Connectors or the M8 Waterproof Connector Types and Specifications for comparison.

Related Resources

If your application involves surgical power equipment or similar precision devices, the Push-Pull Connectors for Surgical Power Equipment in Germany case study may offer useful context. For general selection guidance, the 12G 2-10 Pin Aviation Circular Connector for High-Reliability Systems article explains similar trade-offs in pin count and environmental sealing.

For further assistance, please use the inquiry form or contact us via WhatsApp with the details listed above. Our team will confirm the exact model, configuration, and availability for your project.
