WF 2-15 Pin Waterproof Circular Connectors IP67/IP68

GOST OHS Circular Connector with Multiple Core Count Options

WF 2-15 Pin Waterproof Circular Connectors: Selection Guide for Industrial Applications

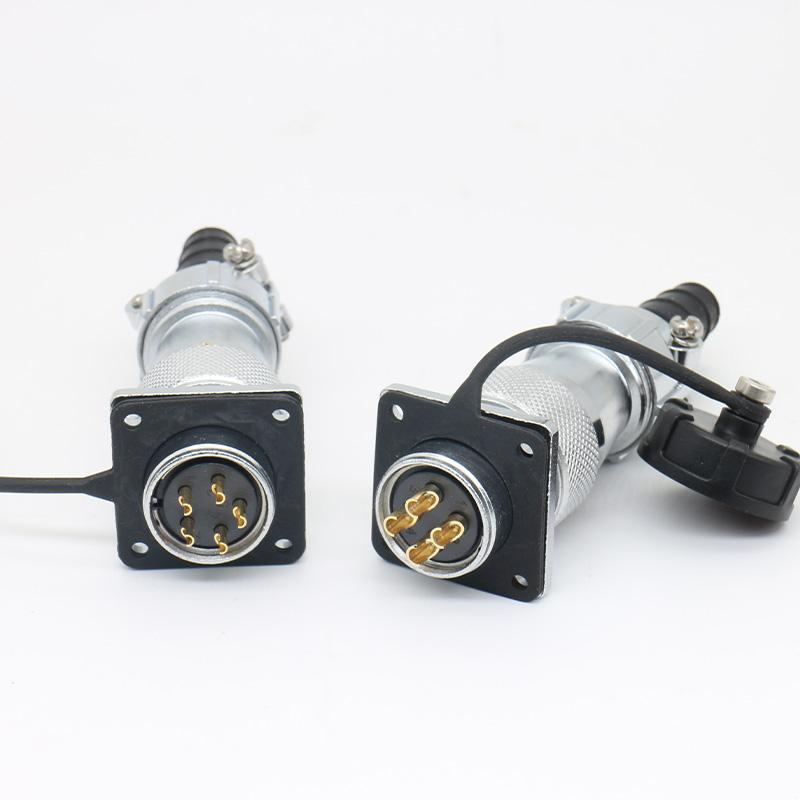

The WF 2-15 pin waterproof circular connector is an industrial-grade solution designed for automation systems, machinery, and harsh-environment electronics. It combines robust waterproof protection with flexible pin configurations, making it suitable for applications where reliability and environmental resistance are critical. With 2–15 pin options, this connector supports multi-line power, signal, or mixed circuits, providing a compact and organized solution for complex industrial wiring needs.

Key Selection Criteria for WF Series Connectors

When evaluating the WF series for your project, consider these decision points:

• Pin count and circuit layout: Choose between 2 and 15 pins based on the number of power, signal, or mixed circuits you need to consolidate.
• Environmental protection: The IP67/IP68 rating determines suitability for wet, dusty, or washdown environments; confirm the unmated rating if your application requires protection before connection.
• Housing and contact materials: Zinc alloy with chrome plating provides mechanical strength, while brass contacts with gold or silver plating support signal integrity and corrosion resistance.
• Mating and mounting configuration: Verify whether you need male or female contacts and panel-mount or cable-mount versions for your installation.
• Application environment: Confirm vibration levels, temperature range, and chemical exposure to ensure the connector matches your operating conditions.

Construction and Material Overview

The WF series uses a zinc alloy housing with chrome plating for mechanical durability in demanding installations. Contact cores are machined from brass and plated with gold or silver to maintain low-resistance electrical performance. This material combination supports repeated mating cycles and resists corrosion in industrial settings.

Installation and Integration Considerations

Before specifying the WF connector, confirm the following with your engineering team:

• Cable outside diameter and conductor size for proper cable entry and termination
• Required pinout or wiring diagram for your specific circuit configuration
• Panel cutout dimensions and mounting style (panel-mount versus cable-mount)
• Mating-side connector requirements to ensure compatible gender and keying

Suitable and Unsuitable Applications

The WF series is well suited for industrial automation, robotics, sensors, actuators, outdoor electrical installations, and panel-mounted machinery where water ingress and vibration are concerns. It is not intended for applications requiring high-frequency data transmission, submersible operation while unmated, or environments with extreme chemical exposure beyond standard industrial contaminants. For specialized requirements, confirm compatibility with our engineering team before ordering.

Manufacturing and Quality Assurance

As a professional connector manufacturer with over 15 years of experience, we produce WF series connectors with strict quality control and advanced manufacturing processes:

• R&D expertise focused on optimized waterproof circular connector designs

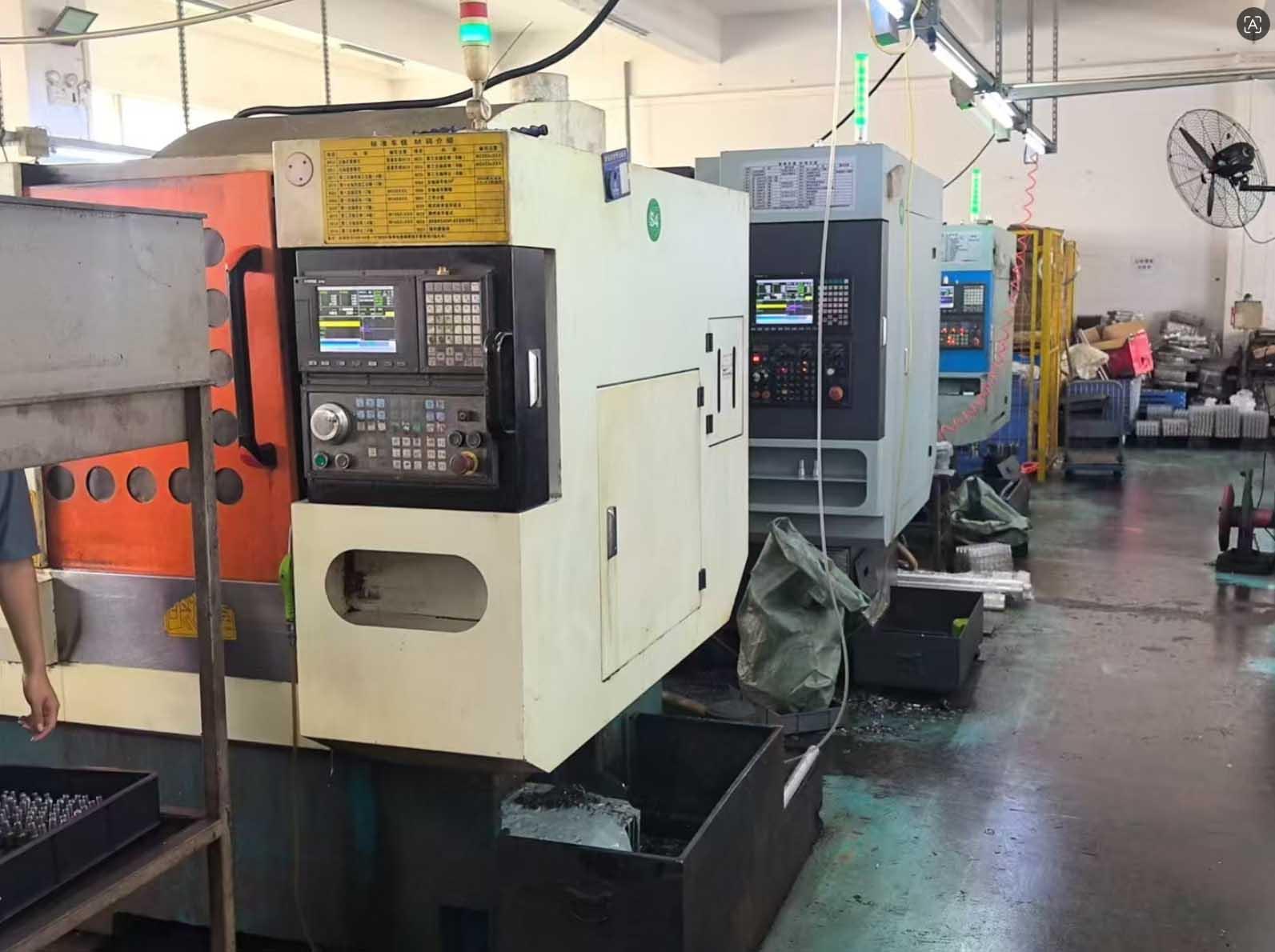

• Precision manufacturing using CNC machining, metal stamping, and injection molding for reliable tolerances
• Integrated in-house assembly ensuring precise connector-to-cable or panel integration
• Comprehensive electrical, mechanical, and environmental testing for long-term reliability
• Customization and OEM/ODM support for pin counts, cable lengths, housing materials, and branding

Inquiry Checklist for WF Connector Orders

To receive an accurate quotation and matching recommendation, please provide the following information:

• Required pin count (2-15) and gender (male or female)
• Mating-side connector type or drawing
• Cable outside diameter and conductor size
• Electrical load (current and voltage) for your application
• Environmental conditions (moisture, temperature, vibration)
• Order quantity and any customization requirements

For related connector options, see the 12G Series Circular Connectors or the GOST OHS Circular Connector with Multiple Core Count Options.

Contact us for samples, technical support, and OEM/ODM customization services. Reach out today for factory-direct WF 2-15 pin waterproof circular connectors combining precision engineering, environmental protection, and flexible options for industrial applications.
