SF12 Connector
< >

6 Pin SF12 Wire Connector Customization

MOQMOQ >200
>Number Of CoresNumber Of Cores 6 Pin
Contact DiameterContact Diameter(mm) 1.0 mm
IP RatingIP Rating IP66
Shell MaterialShell Material Zinc alloy
Temperature RangeTemperature Range -25°C ~ +85°C
TerminationTermination Solder / Crimp
Rated CurrentRated Current(A) 3A Max
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) ≥1000 MΩ
Contact ResistanceContact Resistance (MΩ) ≤10 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

6 Pin SF12 Wire Connector Customization
The 6 Pin SF12 Wire Connector is a compact and reliable circular connection solution designed for stable signal and low-power transmission in industrial and electronic equipment. With its durable structure and precision contact design, the SF12 series ensures consistent electrical performance in applications where space efficiency and dependable connectivity are essential.

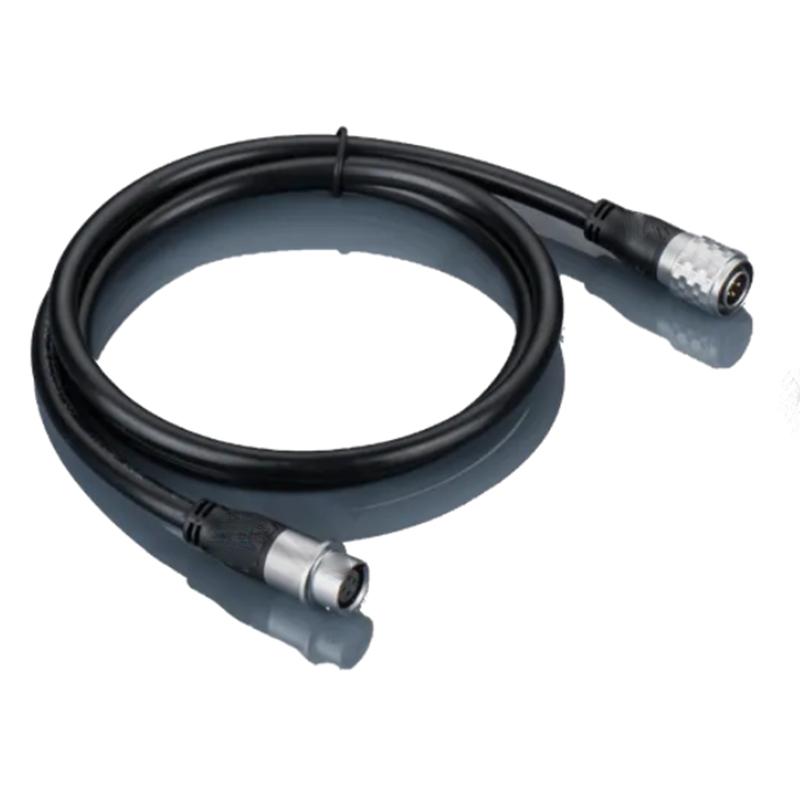

SF12 Connector
As a customizable wire connector, the SF12 6 pin model can be supplied with tailored cable assemblies to match different installation environments and system requirements, helping improve wiring efficiency and reduce on-site assembly time.

Compact Structure with Reliable Connection Performance
The SF12 connector is engineered for equipment that requires secure multi-core connections within limited installation space. Its threaded locking design provides stable mating and helps maintain reliable performance during continuous operation.
Key advantages include:
6 Pin configuration for multi-signal transmission
Compact SF12 size suitable for space-limited equipment
Secure threaded locking for vibration resistance
Stable electrical contact for reliable signal performance
Durable housing for long-term industrial use

Smooth connection and disconnection for maintenance convenience

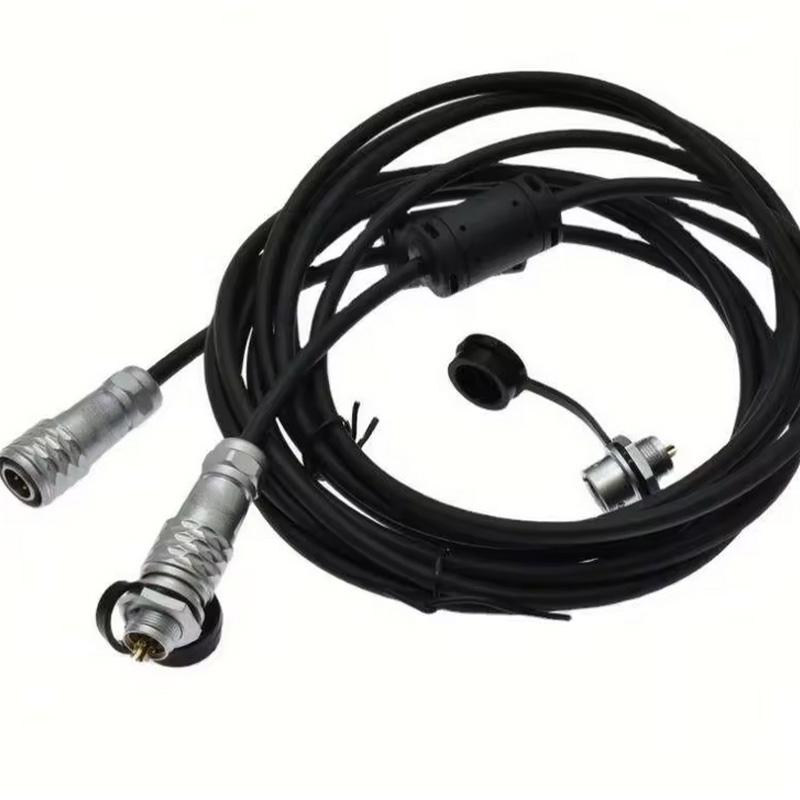

Circular Connector


Flexible Customization for Wire and Assembly

The SF12 wire connector is designed to support a wide range of customization requirements for industrial and equipment manufacturers. Instead of supplying only connectors, we provide complete wiring solutions adapted to real application needs.
Customization options include:
Custom cable length based on equipment layout
Selection of PVC, PUR, or silicone cable materials
Different wire gauges for signal or power transmission
Shielded cable design for interference-sensitive systems
Straight or right-angle cable outlet configurations
Multi-connector cable assembly solutions
OEM labeling and packaging support
This flexibility allows seamless integration into different devices and production systems.



Typical Applications for SF12 Wire Connector

The 6 Pin SF12 wire connector is widely used in equipment requiring stable and compact electrical connections, such as:
Industrial automation and control systems
Sensors and instrumentation devices
LED lighting and display equipment
Testing and measurement systems
Small machinery and electronic equipment
Communication and monitoring devices


Manufacturing Capability - Focused on Precision and Consistency

Our factory specializes in circular connectors and customized cable assemblies, with production processes designed to ensure stable quality and repeatable performance across batches. From component machining to final cable termination, every step is carefully controlled to meet industrial reliability standards.

Connector

Our manufacturing strengths include:
Dedicated production lines for small and medium circular connectors
Precision assembly for stable electrical contact performance
Experienced technical team supporting customized projects
Stable batch production for long-term supply
Flexible manufacturing for OEM and small-batch orders

Efficient order processing and delivery coordination

Connector

This structured production capability supports equipment manufacturers requiring reliable connectors for ongoing production.

Quality Assurance & Compliance
Each SF12 connector assembly undergoes strict inspection to ensure dependable performance in real operating environments.
Quality checks include:
Electrical continuity and insulation testing
Contact stability and resistance verification
Mechanical connection durability testing
Cable termination reliability inspection
Visual and dimensional quality control
Connector
Manufacturing is carried out in accordance with international standards, including:
ISO9001 Quality Management System
CE Certification

RoHS Environmental Compliance

Connector

A Flexible and Reliable Connection Solution
The 6 Pin SF12 Wire Connector Customization provides a compact, customizable, and dependable connection solution for modern industrial and electronic equipment. With strong manufacturing capability and flexible wiring support, it is designed to meet the needs of both standard production and customized engineering applications.

 Item

 Parameters

 Number of Cores

 6 Pin

 Gender

 Male/Female

 Shell Material

 Zinc Alloy

 Locking System

 Push-Pull Self-Locking

 Temperature Range

 -25°C ~ +85°C

 Rated Current (A)

 3A Max

 Rated Voltage (AC.V)

 250V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 ≥1000 MΩ

 Contact Resistance (㏁)

 ≤10 mΩ

 Termination

 Solder / Crimp
