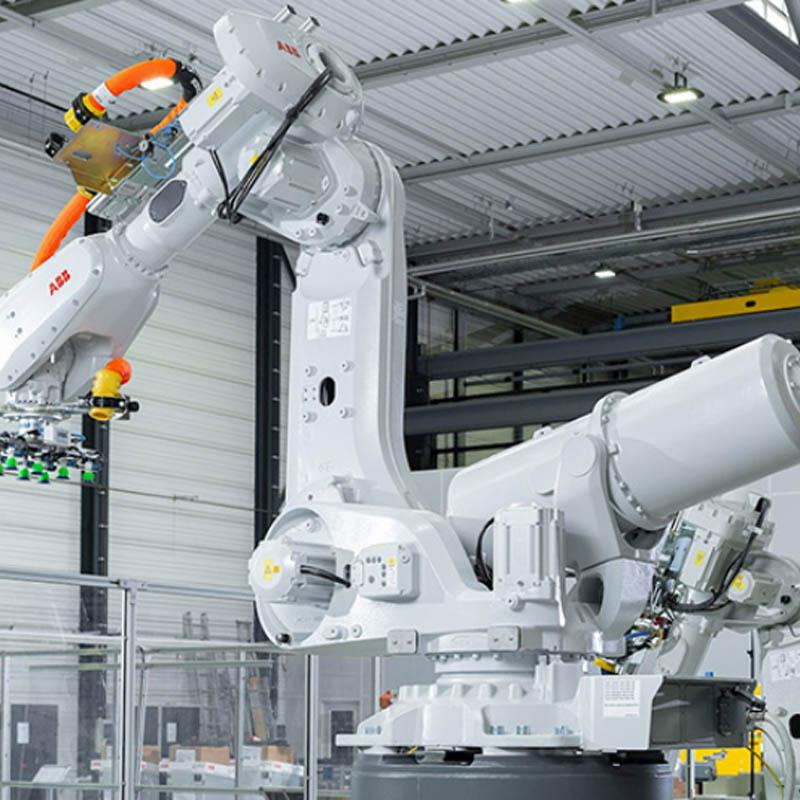

MS5015 Military Standard Connectors in Industrial Robot Arms

Industrial robot arms demand reliable electrical connections to ensure precise movement, stable power delivery, and continuous automated operation. MS5015 military standard connectors are widely used to connect servo motors, control units, power distribution systems, and feedback sensors, providing secure and durable electrical connections throughout robotic systems.

Industrial robot arms operate in demanding environments with constant motion, vibration, and exposure to dust, oil, and temperature variations. MS5015 connectors, known for their rugged construction and high mechanical strength, maintain dependable connections under these harsh operating conditions. Their high current capacity makes them particularly suitable for powering motors and supporting critical control signals in heavy-duty robotic applications.

Additionally, MS5015 connectors support efficient installation and maintenance. When robotic components require servicing, replacement, or system upgrades, these connectors allow quick and secure reconnection, minimizing production downtime. By providing reliable connectivity, MS5015 military standard connectors help enhance operational stability, system durability, and overall performance in modern industrial robot arm applications.

Project Background and Industry Context

In automated manufacturing facilities, industrial robot arms perform repetitive tasks such as welding, material handling, and assembly. These systems require connectors that can withstand continuous flexing, vibration, and exposure to industrial lubricants and temperature fluctuations. MS5015 connectors are selected for their proven performance in military and industrial applications, offering a robust solution for robotic power and signal transmission.

Customer Requirements and Technical Challenges

When integrating MS5015 connectors into robot arm systems, engineers typically evaluate the following parameters:

• Electrical load: Current ratings for servo motors and control circuits, typically ranging from 13A to 150A depending on contact size.
• Environmental protection: Sealing against dust, oil mist, and moisture, with IP67-rated mating interfaces for washdown environments.
• Mechanical durability: Vibration resistance and mating cycle life, often exceeding 500 cycles for maintenance access.
• Cable and mounting: Cable entry options (straight or angled) and panel or cable-mount configurations to fit robot arm routing.

These requirements help determine the appropriate shell size, contact arrangement, and accessory options for each robot axis or control cabinet.

Solution and Implementation Approach

For robot arm power distribution, MS5015 connectors with size 20 to 36 shells provide the necessary pin counts and current capacities. Servo motor connections typically use 4 to 8 contacts for power and encoder feedback, while control cabinets may require larger shell sizes for multi-circuit wiring. The threaded coupling mechanism ensures a secure connection that resists loosening from vibration.

During installation, technicians verify correct keying and contact alignment before mating. For applications with frequent maintenance access, panel-mount receptacles with strain relief accessories simplify cable replacement without disturbing internal wiring.

Commissioning and Delivery Process

Before deployment, each connector assembly is tested for continuity, insulation resistance, and dielectric withstand voltage. In robot arm applications, additional checks include torque verification on coupling nuts and visual inspection of contact seating. Documentation of test results supports quality assurance and traceability for end users.

Delivery includes the connector components, assembly instructions, and recommended torque specifications. For custom cable lengths or specialized contact arrangements, engineering support is available to confirm compatibility with existing robot arm designs.

Results and Operational Benefits

MS5015 connectors contribute to reduced downtime in robot arm operations by enabling faster component replacement and reliable reconnection. Their rugged construction minimizes connection failures caused by vibration or environmental exposure, supporting consistent production output. For engineers evaluating connector options, MS5015 offers a balance of electrical performance, mechanical strength, and field-serviceability.

For related connector solutions in robotic systems, see the Aviation Plug Connectors series or review the LD20/SP20 Heavy-Duty Square Connector Dimensions and Specs for alternative mounting configurations.

Inquiry and Next Steps

To discuss MS5015 connector configurations for your robot arm application, contact our engineering team with your electrical load, environmental rating, and mounting requirements. We can provide technical guidance on shell size selection, contact arrangements, and accessory options.
