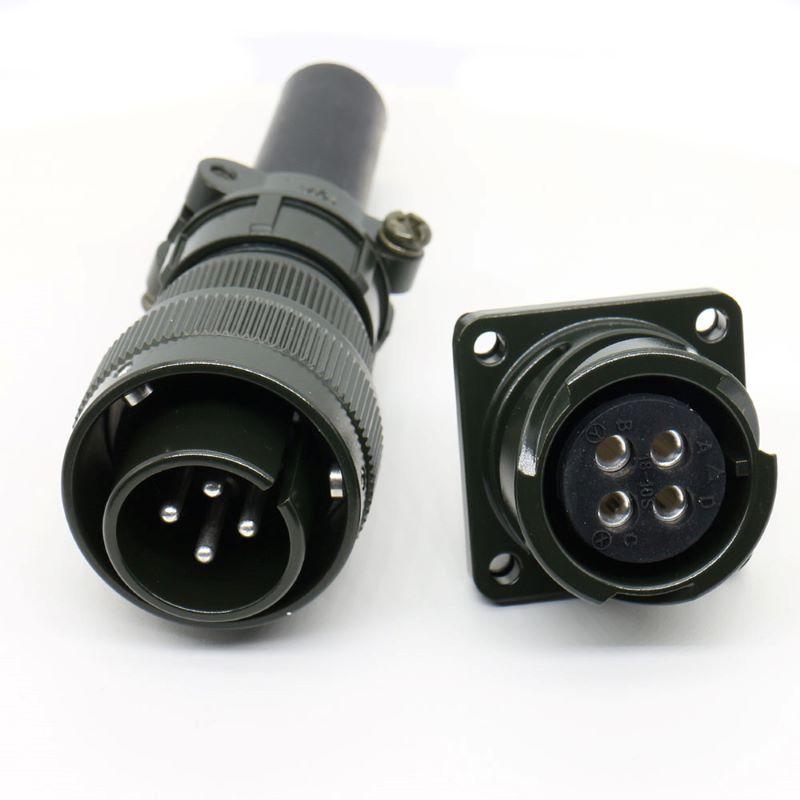

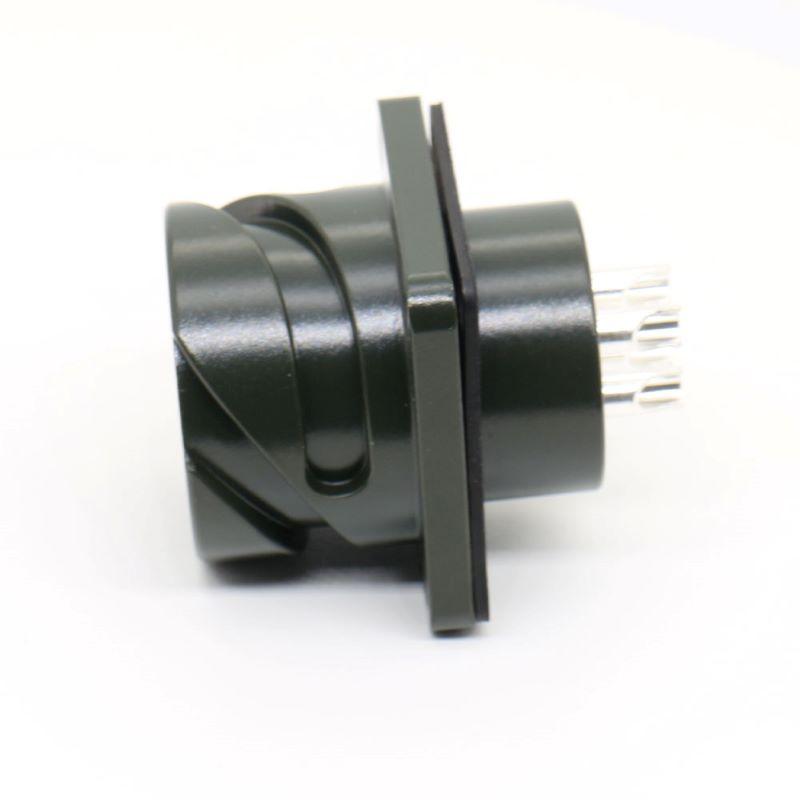

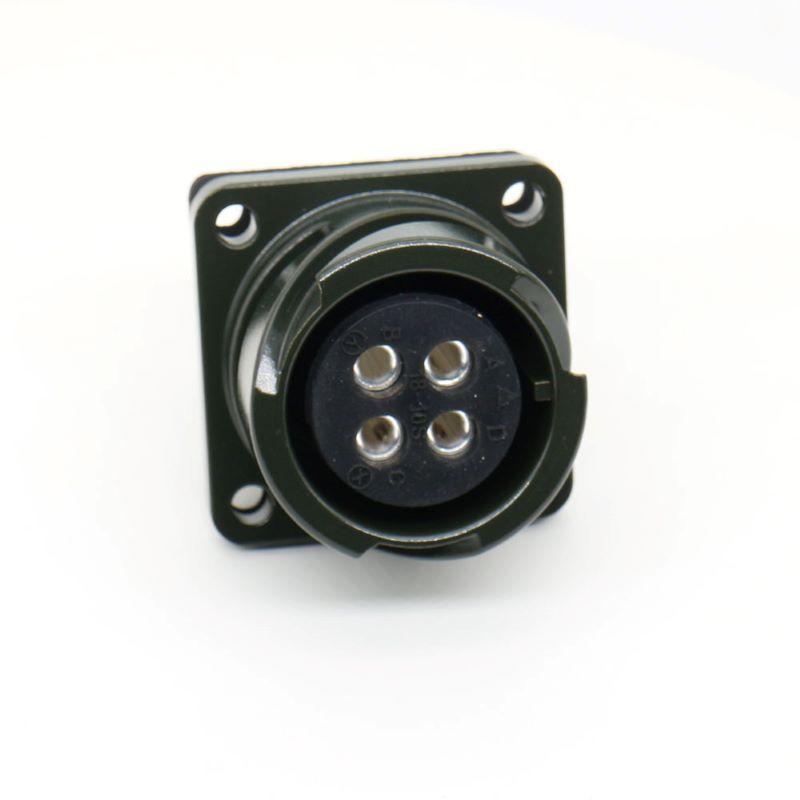

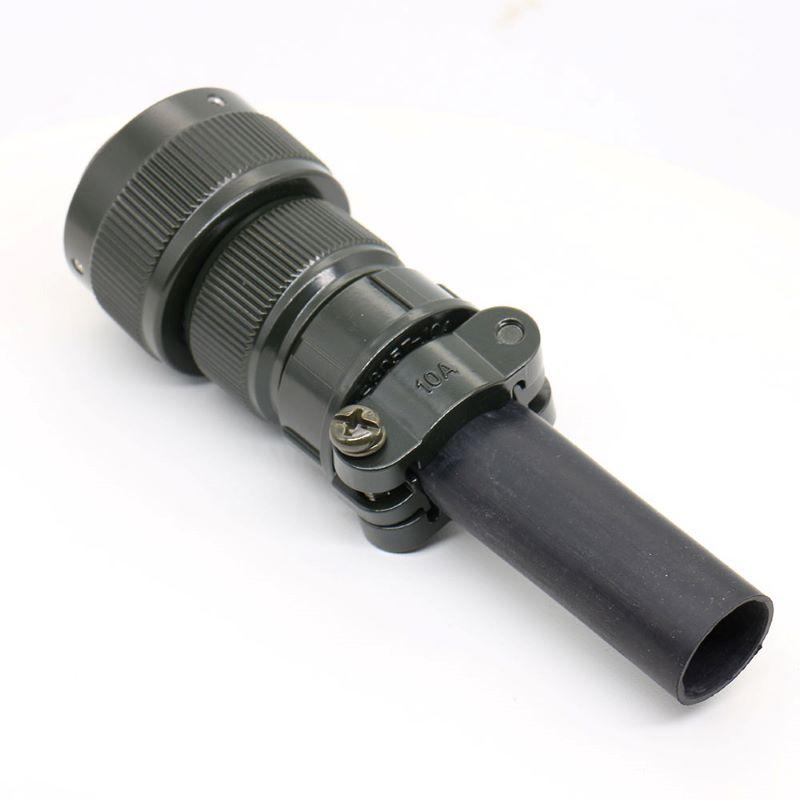

VG95234 Circular Connector for Rail Transit Systems

The VG95234 circular connector is engineered for the demanding environments of rail transit systems. Built to withstand high vibration, extreme temperatures, and long-term wear, it ensures uninterrupted signal and power transmission for trains, subways, and light rail vehicles.

Key Selection Criteria for VG95234 Connectors

When evaluating the VG95234 series for your rail application, consider these decision points:

• Pin Configuration: Available in 2 to 61 pins, with male and female gender options to match your wiring layout.
• Environmental Rating: The operating temperature range of -55°C to +125°C suits both interior and exterior rolling stock installations.
• Locking Mechanism: The bayonet locking system provides secure mating that resists loosening under continuous vibration.
• Material Compatibility: Aluminum alloy housing with silver-plated brass contacts and thermoset epoxy resin insulation supports long service life.

Application Scope in Rail Transit

The VG95234 connector is suitable for onboard communication systems, signaling equipment, power distribution modules, and control units in trains and transit infrastructure. Its construction addresses the vibration, shock, and corrosion challenges typical of rail environments.

Construction and Reliability Considerations

The connector's robust locking mechanism and precise contact alignment contribute to stable electrical performance under harsh operating conditions. The modular design allows for quicker installation and replacement, which can reduce downtime during maintenance cycles.

Where the VG95234 Is and Is Not Recommended

Suitable for: Rail rolling stock, signaling and control systems, onboard power distribution, and transit infrastructure where vibration resistance and a wide temperature range are required.

Not recommended for: Applications requiring submersion protection while mated, high-density miniaturized layouts beyond the 61-pin limit, or environments where the aluminum alloy housing may be incompatible with specific chemical exposures. Confirm your specific environmental conditions before selection.

Information to Include in Your Inquiry

To receive an accurate quotation and configuration match, please provide:

• Required pin count and gender (male or female)
• Mating cable type and wire gauge
• Mounting style (cable, panel, or bulkhead)
• Operating environment details, including temperature extremes and vibration levels
• Any applicable drawing or pinout requirements

For related circular connector options, review the 12G Series Circular Connectors or the Din Circular Connector catalog for additional configurations.
