Push-Pull Connectors for Professional Camera Systems in France

LD20/SP20 Heavy-Duty Square Connector

Project Background: Broadcast and Film Production in France

In the French broadcast and film production market, professional camera systems rely on multiple interconnected components, including camera bodies, external monitors, power distribution modules, and signal transmission units. Production crews frequently assemble and disassemble these systems on location, often under tight shooting schedules and in varied environmental conditions ranging from studio floors to outdoor sets.

Customer Requirement: Fast, Reliable Interconnects for Mobile Rigs

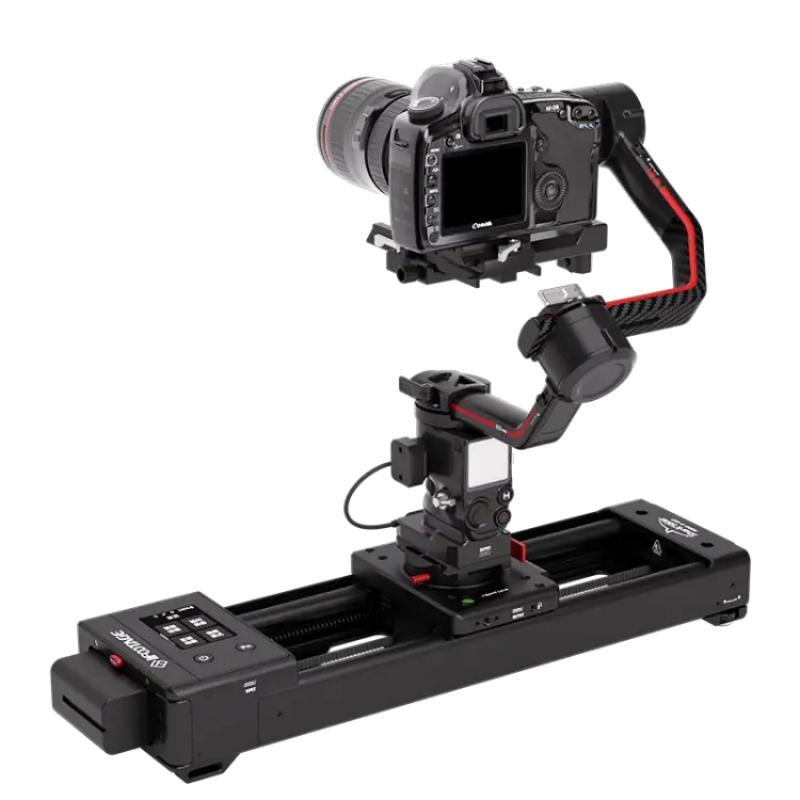

The primary requirement was a connector solution that could support rapid setup and teardown of camera rigs without compromising signal integrity. The customer needed interfaces for control signals and power delivery between camera bodies and peripheral modules, with a locking mechanism that could be operated in confined spaces—such as when cameras are mounted on gimbals, tripods, or shoulder rigs—where rotational access is limited.

Solution: Push-Pull Connectors for Signal and Power Interfaces

Push-pull connectors were selected for the signal and control interfaces between camera units and external modules. In mobile configurations, these connectors were also integrated into cable assemblies linking cameras to power supplies and transmission systems. The quick-locking, non-rotational push-pull mechanism allows technicians to engage and release connections with a single axial motion, simplifying operation in tight rigs and reducing the time required for cable changes between scenes.

Commissioning and Handling in Practice

During commissioning, technicians managed multiple cables simultaneously in constrained spaces on mounted rigs. The push-pull design proved effective for blind mating and release, particularly where access to the connector was limited by camera housing or rig structure. The compact structure of the connectors also helped reduce cable congestion in tightly configured systems, contributing to cleaner cable management on set.

Verified Results: Connection Stability During Operation

Throughout operation, the connectors maintained stable engagement despite continuous movement and repositioning of equipment between takes. The secure locking mechanism held connections firmly under vibration and handling, while still permitting quick release when reconfiguration was required. This combination of stability and operational speed supported the production team's workflow efficiency during both studio and location shoots.

Conclusion and Related Resources

For professional camera systems in France, push-pull connectors offer a practical solution for managing complex signal and power interconnections while maintaining operational efficiency in fast-paced production environments. For related applications, see our Aviation Plug Connectors or explore the Push-pull Connectors Case collection for additional deployment examples.
