Push-Pull Connectors for Surgical Power Equipment in Germany

LD20/SP20 Heavy-Duty Square Connector

Project Background: Surgical Power Equipment in German Hospitals

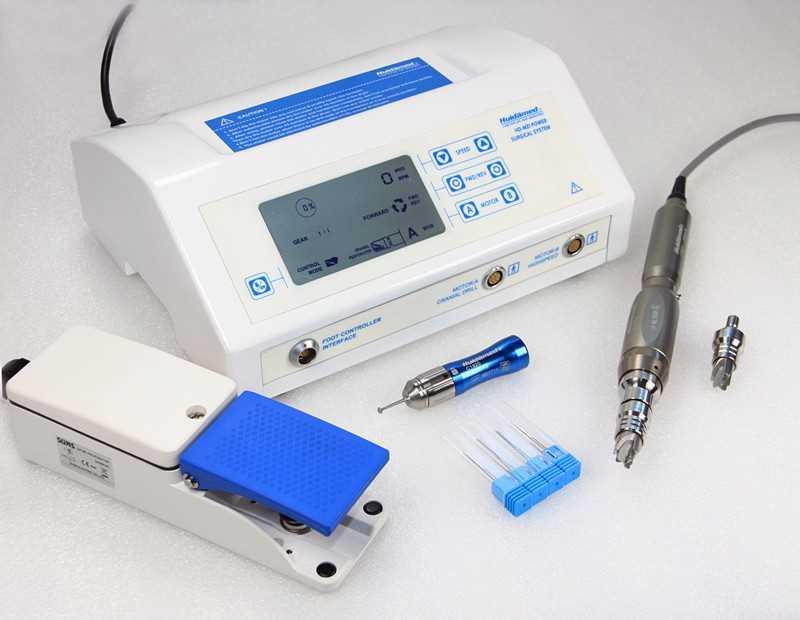

In Germany, surgical power equipment—including electric drills and saw systems used in orthopedic procedures—typically comprises a control unit, detachable handpieces, and foot-operated control interfaces. These components are interconnected through shielded cable assemblies that must remain easy to handle within sterile environments.

German hospital operating routines impose strict operational demands on such equipment, covering pre-procedure setup, intraoperative adjustments, and post-procedure disassembly for cleaning and sterilization. The connector interface must therefore support rapid, reliable changes without compromising sterility protocols.

Equipment Interface and Electrical Requirements

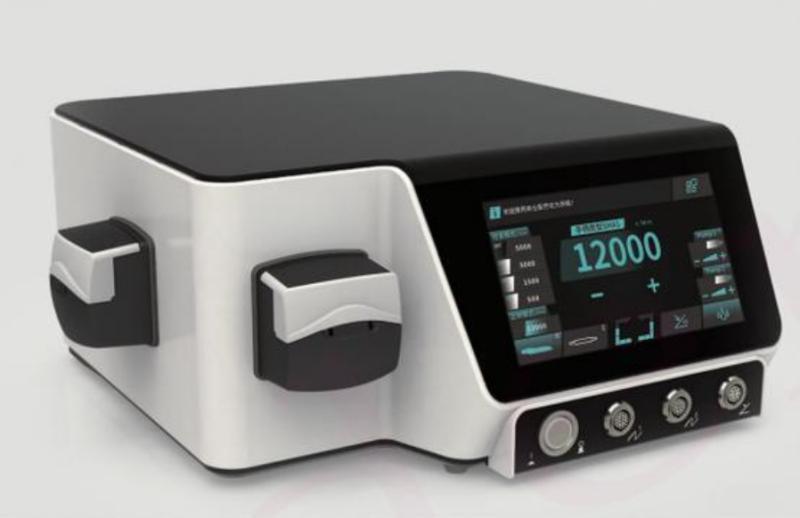

Push-pull connectors are typically deployed at the interface between the main control unit and detachable handpieces. In certain configurations, they also serve footswitch connections or auxiliary control modules.

The electrical load at these interfaces generally consists of low-voltage control signals and power transmission through multi-pin arrangements. The connectors must maintain stable contact integrity across repeated mating cycles while supporting the cable diameters and shielding requirements specified by the equipment manufacturer.

Mechanical and Environmental Design Considerations

Connectors selected for this application are compact, with multi-pin configurations that accommodate both control and power lines. Keying features ensure correct insertion orientation, minimizing the risk of mismating during fast-paced surgical setup.

The outer housing is engineered to withstand regular handling, including repeated connection cycles during daily operations. The push-pull locking mechanism keeps the connector securely engaged even when cables are moved or repositioned, while the release sleeve enables controlled disconnection when needed.

Installation and Workflow Integration

Quick attachment and removal without rotational movement is a defining advantage of push-pull connectors in this setting. This is particularly valuable when space around the equipment is limited or when operators are wearing surgical gloves.

The balance between secure locking and ease of release supports efficient operating room workflows, where equipment adjustments must be made without delay. The connector design also accommodates the cleaning and sterilization cycles typical of German hospital reprocessing procedures.

Result and Application Fit

For surgical power equipment, push-pull connectors deliver a practical interface solution aligned with the need for reliable connections, compact integration, and straightforward handling in clinical environments. The design supports the operational rhythm of German surgical departments, where equipment reliability and rapid turnaround are essential.
