M8 Right-Angle Assembly Connector
< >

M8 Right Angle Assembly Connector Factory Direct

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm/0.72mm/0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A/1A
Rated VoltageRated Voltage(Ac.V) 180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+8619924482730

M8 RIGHT ANGLE CONNECTOR

M8 Right Angle Assembly Connector

Factory direct industrial connection solution for compact automation and sensor systems.

Right-angle cable routing · Field assembly structure · Compact M8 interface · OEM / ODM customization.

Right Angle Assembly Type Space-Saving Factory Direct

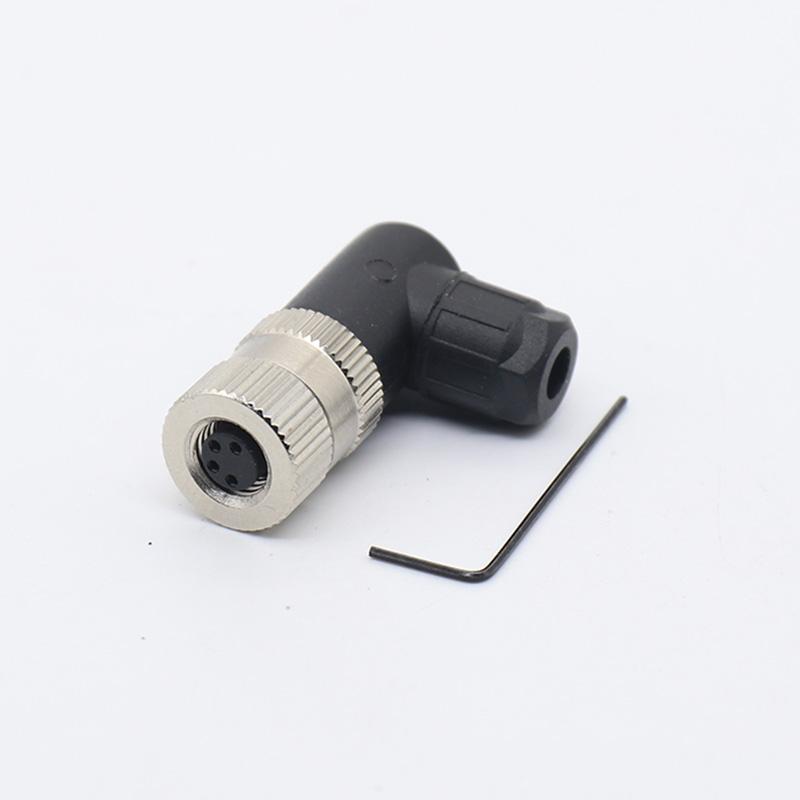

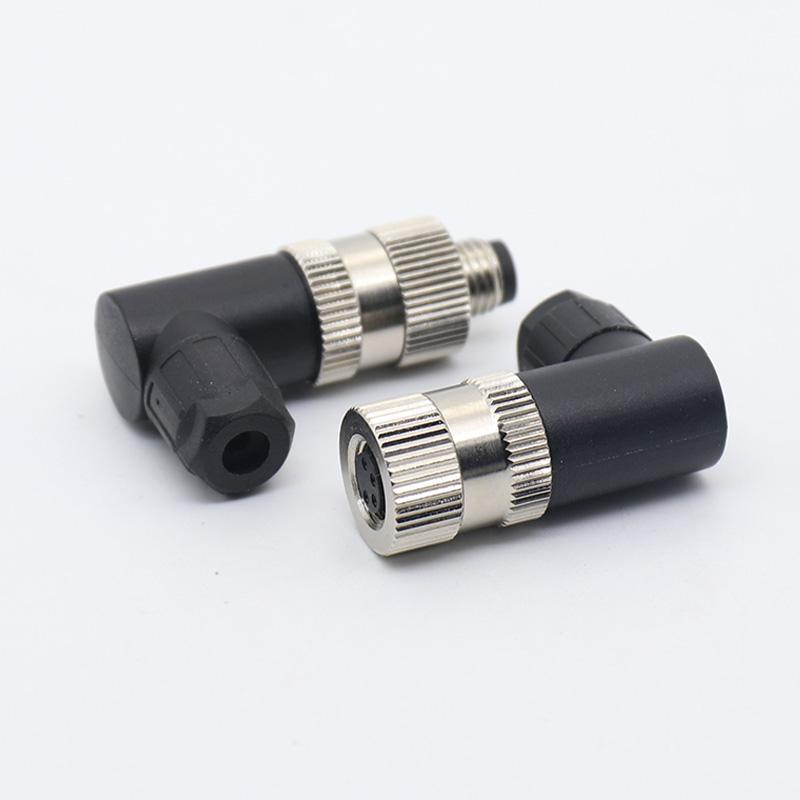

M8 right angle assembly connector main product view
M8 / RIGHT ANGLEKMYD CONNECTOR
MODEL
M8 Right Angle Assembly Connector
STRUCTURE
Field-Assembled Connector
DESIGN
90° Right-Angle Cable Routing
APPLICATION
Sensors & Automation

Product Overview

The M8 Right Angle Assembly Connector is designed for industrial automation and sensor systems that require a compact, space-saving, and field-assembled connection solution. Its right-angle structure helps optimize cable routing in limited installation spaces, making it suitable for equipment with dense layouts or restricted wiring directions.

As an assembly-type connector, it allows flexible on-site cable installation and maintenance, helping engineers reduce downtime and improve wiring efficiency in industrial environments.

PRODUCT DETAILS

Optimized for Compact Industrial Equipment

View the right-angle connector structure, compact M8 interface, and field assembly design.

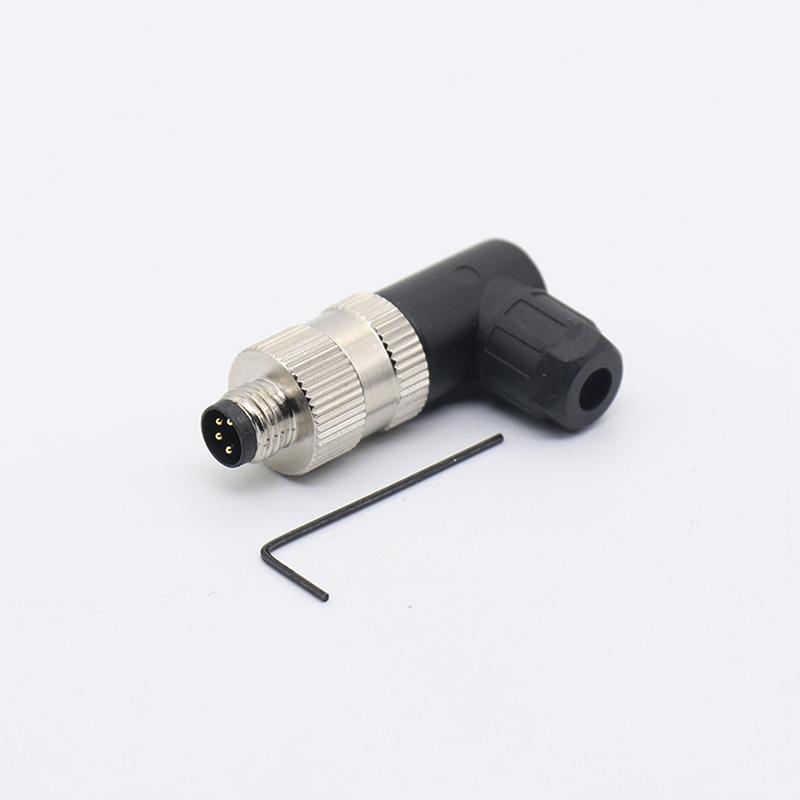

M8 right angle assembly connector product view
01 / RIGHT ANGLE DESIGN
Space-Saving Cable Routing
The 90° structure reduces cable bending stress and supports cleaner equipment layouts.

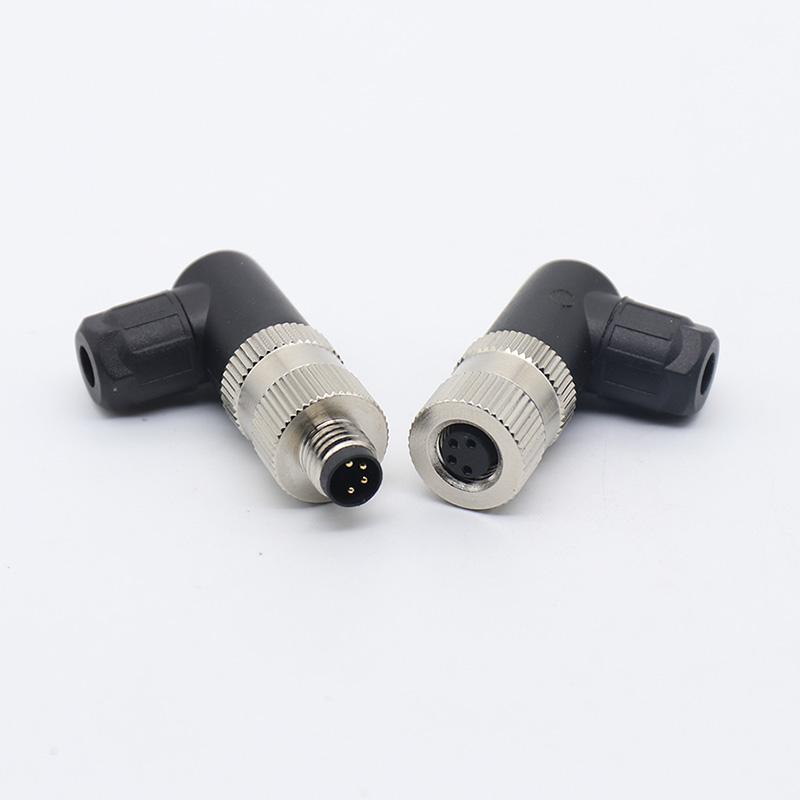

M8 assembly connector interface detail
02 / ASSEMBLY TYPE
Flexible on-site cable installation and maintenance.
Compact routing.
Flexible field wiring.
Ideal for machinery layouts where straight connectors may interfere with nearby components.

Why Choose This Right Angle Assembly Connector

In automation systems, control cabinets, and sensor networks, installation space is often limited. The right-angle design helps reduce cable bending stress, improve cable management, save installation space, and create cleaner equipment layouts.

Key Product Features

01   Right-Angle Compact Design

Improves installation flexibility in confined spaces and reduces cable interference in dense equipment layouts.

02   Flexible Assembly Structure

Allows users to assemble cables on-site, adjust cable length, simplify maintenance, and reduce wiring costs for customized installations.

03   Stable Signal Transmission

Precision contact structure supports reliable conductivity for sensors, actuators, and industrial control systems.

04   Durable Industrial Housing

Designed for repeated use and stable operation in industrial environments.

05   Easy Field Assembly
Supports convenient cable termination and maintenance without requiring complex tooling, making it efficient for project-based field wiring.

Application Areas

The M8 right angle assembly connector is suitable for compact systems that require efficient wiring direction control and reliable field connection.

01   Industrial automation systems
02   Sensor and actuator connections
03   Robotics equipment
04   PLC and control systems
05   Smart manufacturing devices
06   Compact electronic equipment

Factory Direct Advantage

KMYD is a professional connector manufacturer with more than 15 years of experience in industrial connectors and cable assembly production. As a direct factory supplier, we provide stable product quality, competitive factory pricing, fast production and delivery, and flexible OEM / ODM customization support.

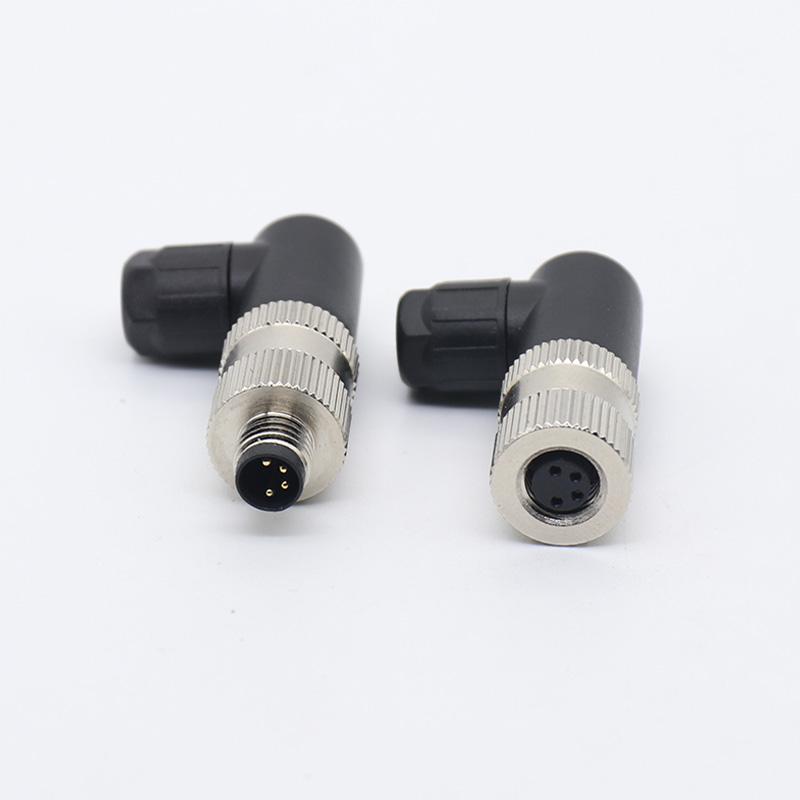

M8 right angle connector factory direct manufacturing
Mold development Precision machining Injection molding Connector assembly Cable processing and testing

Strict Quality Inspection

Each connector undergoes comprehensive testing before shipment, including electrical conductivity testing, contact stability verification, assembly structure inspection, durability and plugging cycle testing, and dimensional accuracy inspection.

ISO9001CERoHS

Customization Services

✓ Pin configuration options
✓ Cable specification matching
✓ Connector housing customization
✓ Packaging and branding support
✓ Prototype to mass production support

Professional Manufacturing, Reliable Connection

The M8 right angle assembly connector is designed to provide a flexible, compact, and efficient industrial connection solution while helping customers optimize equipment installation and maintenance.

GET IN TOUCH

Contact Us for M8 Right Angle Assembly Connector Support

We provide samples, technical consultation, factory-direct pricing, and customized production services for industrial connector projects.

KMYD CONNECTOR · M SERIES INDUSTRIAL CONNECTORS

 Item

 Parameters

 Number of Cores

 2-8Pin

Gender

 Male/Female

 Housing Material

 Nickel Plated Brass

 Cores Material

 Gold Plated Brass

 Insulator Material

 PA66

 Locking System

 Screw Locking

 Temperature Range

 -30℃, +85℃

 Rated Current (A)

 3A(2-5Pin)/ 1A(6-8Pin)

 Rated Voltage (AC.V)

 180v

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
