GX16 Circular Connector
< >

GX16 Circular Connector

>Number Of CoresNumber Of Cores 2-10Pin
Contact DiameterContact Diameter(mm) 2.5mm(2-4Pin)/ 2mm(5Pin) / 1.2mm(6-10Pin)
IP RatingIP Rating
Shell MaterialShell Material
Temperature RangeTemperature Range -30℃, +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 15A(2-4Pin)/ 10A(5Pin)/ 7A(6-10Pin)
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

GX16 Circular Connector – Robust and Reliable Connectivity for Demanding Applications


Engineered for durability and stable performance, the GX16 aviation connector is a premium circular connector designed to ensure secure electrical connections in high-vibration and harsh environments. Featuring a metal shell, threaded locking mechanism, and precision pin contacts, it delivers outstanding mechanical strength and excellent electrical conductivity.


GX16 Circular Connector Key Features:

Robust Metal Construction: Zinc alloy shell with nickel plating provides corrosion resistance and long-lasting durability.

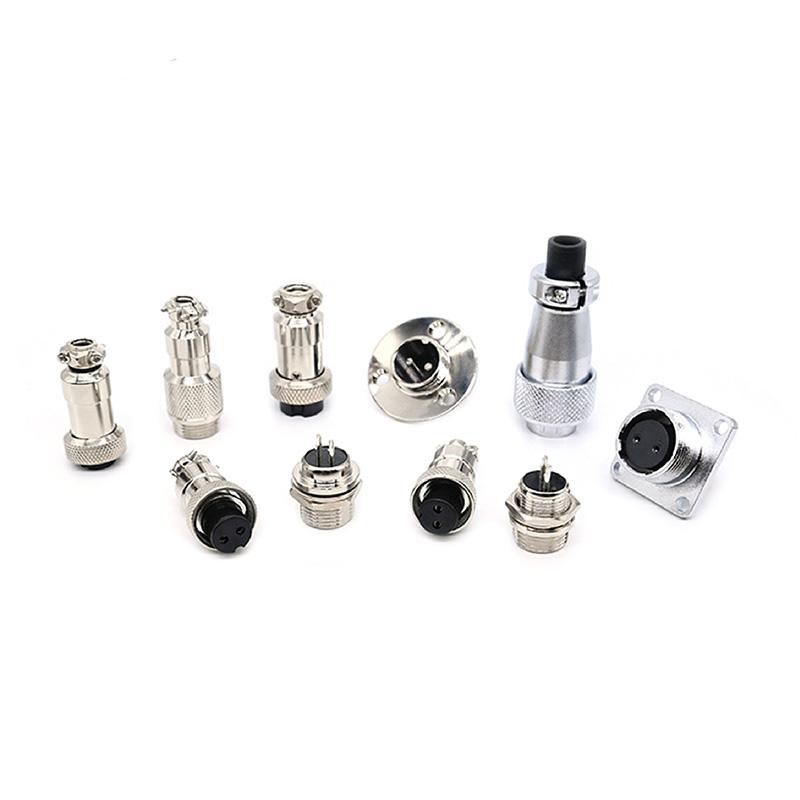

GX16 Connector


GX16 Circular Connector Secure Locking System: Threaded coupling ensures stable mating and prevents accidental disconnection.

GX16 Avitation Connector

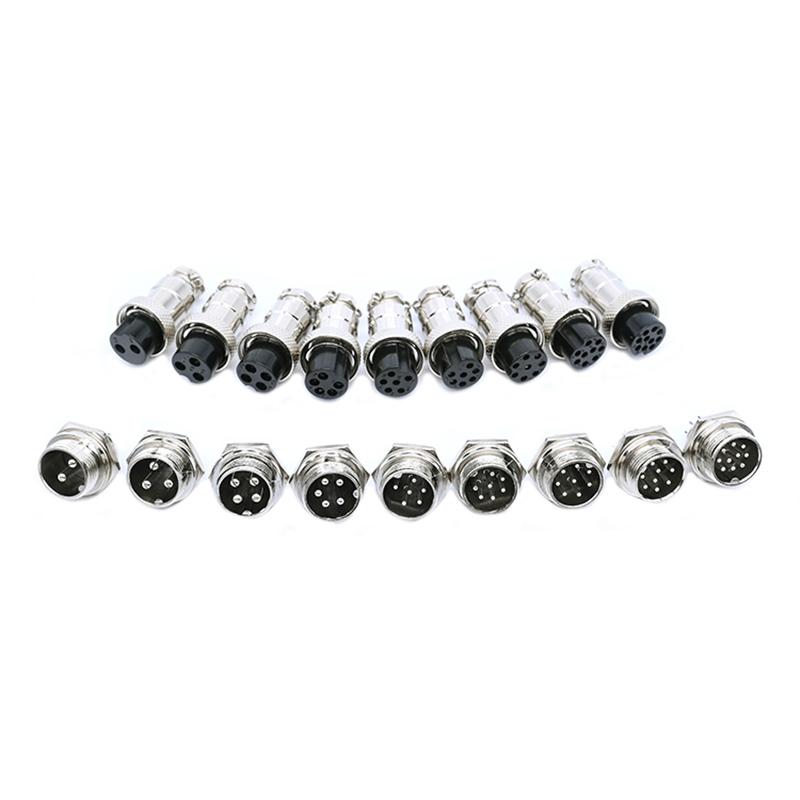

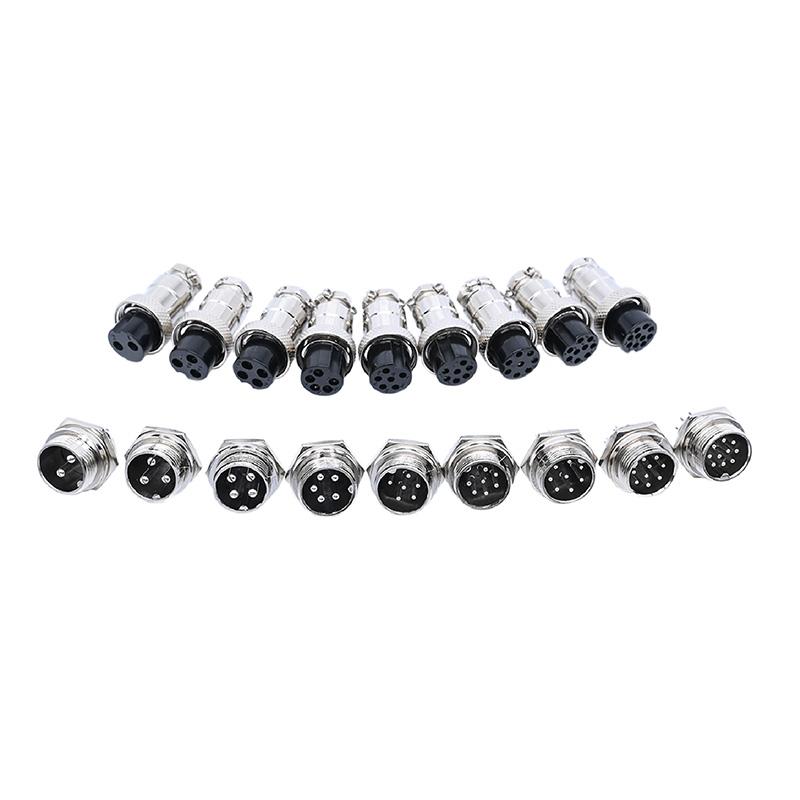

GX16 Circular Wide Compatibility: Available in 2 to 10 pin configurations, supporting various wiring needs for power, signal, and data transmission.

GX16 Circular Connector


GX16 Circular Connector High-Temperature Resistance: Withstands temperatures from -25°C to +85°C, suitable for industrial, automotive, and outdoor applications.

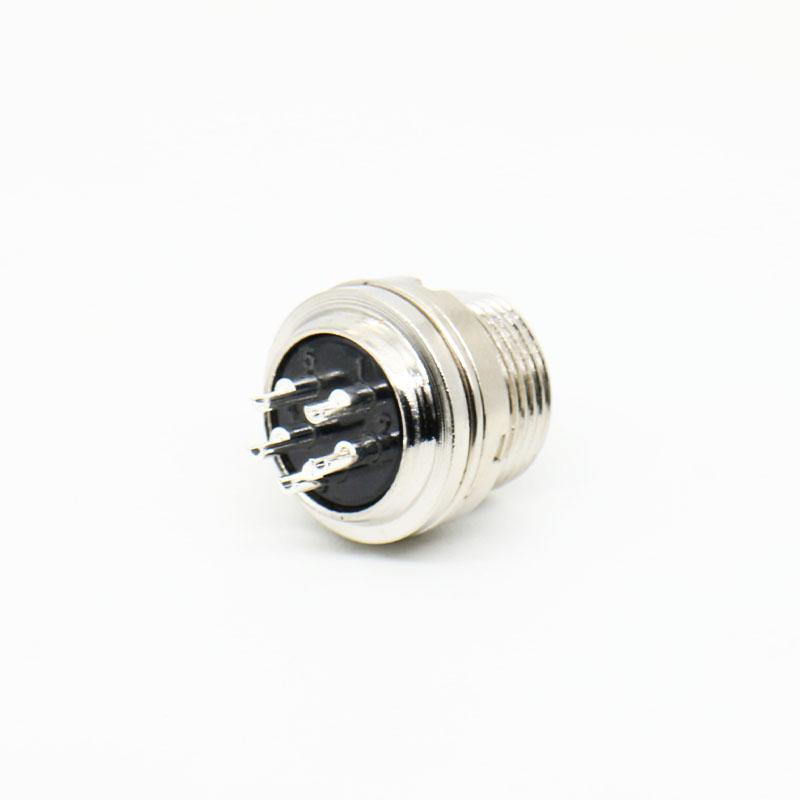

GX16 Electrical Connector


GX16 Circular Connector Easy Installation: Simple solder or crimp termination options for efficient assembly.

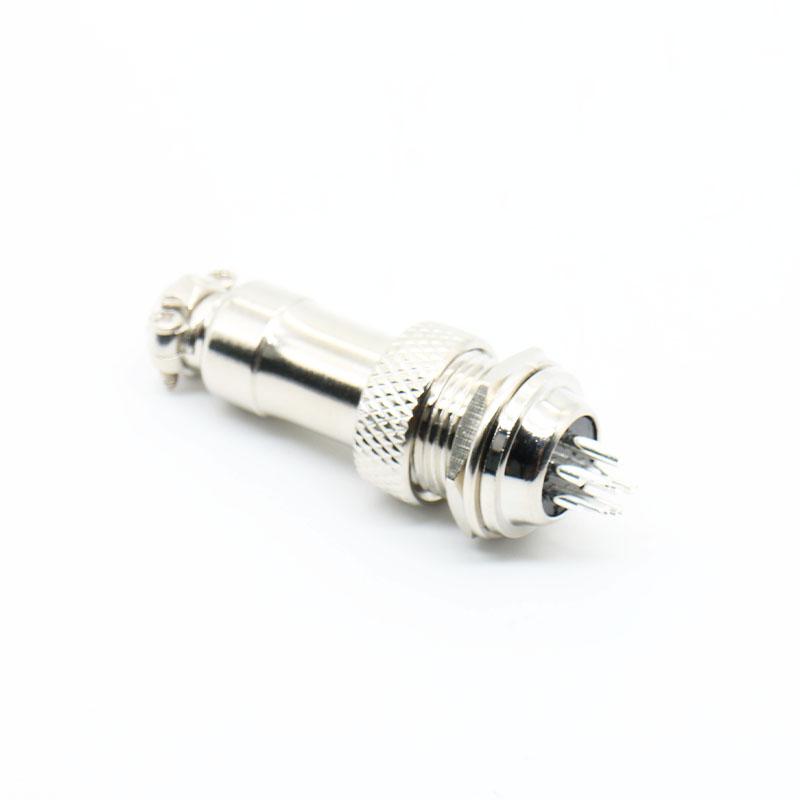

GX16 Plug




Item

Parameters

Number of Cores

2-10Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Silver

Insulator Material

Phenolics

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

15A(2-4Pin)/ 10A(5Pin)/ 7A(6-10Pin)

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Insulation Resistance (㏁)

≤5㏁

Termination

Solder




Related Products

More》

Related Catalogs

More》

Related Resource


GX16 Circular Connector
Related Catalog
Learn More
GX16 Aviation Connector
PDF
Download Resources
Get More Downloads >
GX16 Circular ConnectorMain Features
Strict Control of Material

Strict Control of Material

GX Aviation Plug features a nickel-plated zinc alloy housing, gold/silver-plated terminals, and flame-retardant insulation. Designed for harsh environments, it ensures high signal integrity, corrosion resistance, and compliance with RoHS/REACH standards, making it ideal for industrial and high-frequency applications.

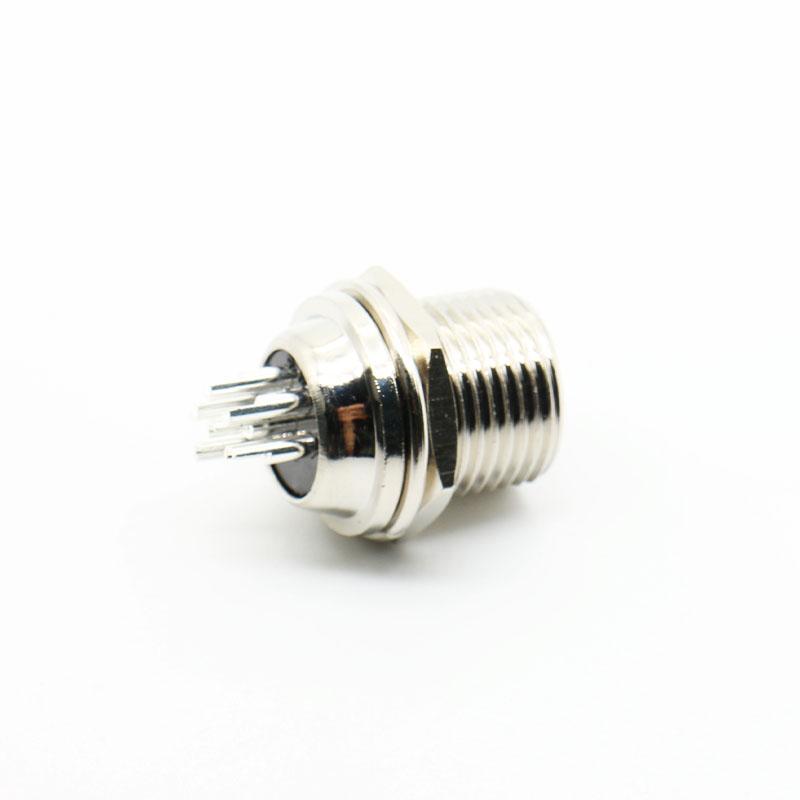

Engineered for Electrical Excellence

Engineered for Electrical Excellence

GX aviation connectors deliver ≤3mΩ contact resistance, 15A/250V rating, and 98% EMI shielding - exceeding industry standards for high-power, high-stability applications in industrial, automotive, and signal-sensitive environments.
GX Connectors: Built for Extreme Environments

GX Connectors: Built for Extreme Environments

GX aviation connectors operate from -55°C to +125°C, pass 72-hour salt spray tests, and withstand 10G vibration—outperforming standard connectors in extreme industrial, marine, and vehicle applications. Built for reliability where others fail.
