Din connector
< >

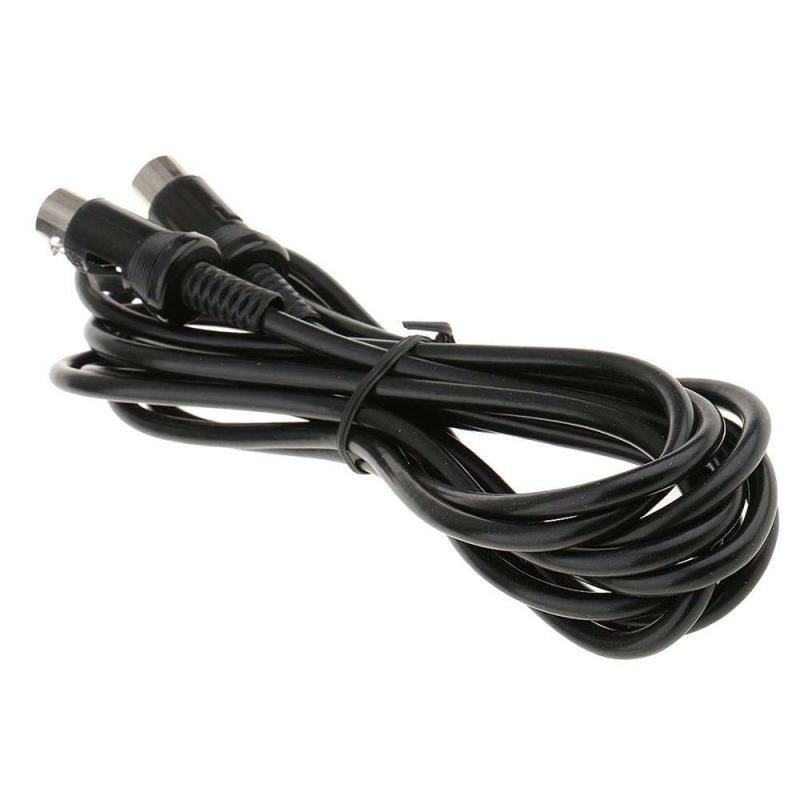

DIN 13 Pin Circular Connector for Industrial Power and Signal Transmission

>Number Of CoresNumber Of Cores 13 Pin
Contact DiameterContact Diameter(mm) 0.5 – 0.8mm
IP RatingIP Rating IP66
Shell MaterialShell Material Nickel-Plated Brass
Temperature RangeTemperature Range -25°C ~ +85°C
TerminationTermination Pre-Wired
Rated CurrentRated Current(A) 3-5A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) ≥1000 MΩ
Contact ResistanceContact Resistance (MΩ) ≤5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

DIN 13 Pin Circular Connector with Cable – Integrated Power & Signal Solution for Industrial Equipment
The DIN 13 Pin Circular Connector with Cable is designed for industrial systems that require multiple signal channels and stable power transmission through a single integrated cable assembly.
Instead of supplying only the connector component, this solution combines the connector and cable into a ready-to-install assembly, helping equipment manufacturers reduce wiring complexity and improve installation efficiency.
For industrial applications where connection reliability directly affects machine stability, an integrated cable solution often provides better consistency than separate connector and cable sourcing.


Why Integrated Cable Assemblies Matter
In many industrial environments, connection failures are not caused by the connector itself, but by:
Incorrect field wiring
Inconsistent cable termination
Poor contact assembly
Cable stress near connection points

The DIN 13 Pin connector with pre-assembled cable helps reduce these risks by delivering a more controlled and consistent connection structure.

This approach is especially useful for:
Industrial automation equipment
Control systems
Signal distribution units
Multi-function machinery interfaces

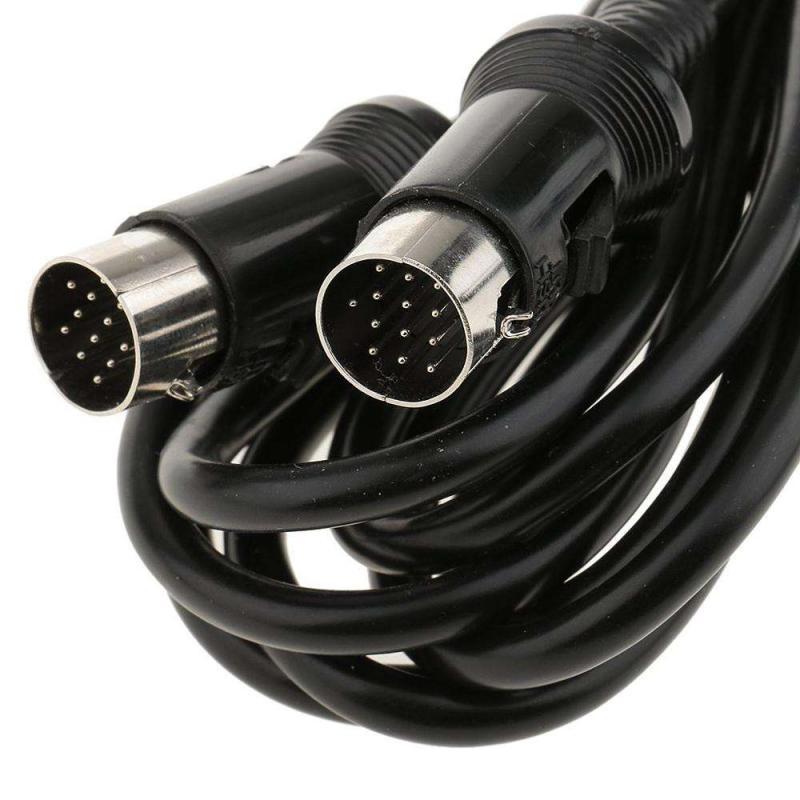

Din connector.jpg

13-Pin Structure for Multi-Channel Applications
Compared with low-pin connectors used for basic power transmission, the 13-pin configuration supports more complex system integration.
It allows a single interface to handle combinations of:
Power supply lines
Control signals
Sensor feedback
Communication channels
Auxiliary electrical functions
This reduces external wiring complexity and improves overall equipment organization.

Designed Around Real Industrial Operation
The connector assembly is engineered for long-term use in industrial environments where equipment may experience:
Continuous vibration
Frequent movement
Cable bending stress
Dust and operational contamination
Repeated connection cycles
The circular locking structure helps maintain secure engagement and stable electrical contact during operation.

Factory Strength - Cable Assembly Manufacturing Capability
A connector with cable assembly requires more than connector production alone.
The reliability depends heavily on the factory’s ability to control both the connector and cable integration process.

We are a professional connector manufacturer with over 15 years of experience in industrial connectivity and custom cable assembly production.

Connector

Integrated Connector & Cable Production
Our factory supports complete in-house production including:
Connector mold development
CNC machining and metal processing
Injection molding
Terminal stamping and plating
Cable cutting and processing
Soldering and assembly integration
Overmolding and strain relief production

Electrical continuity and performance testing

Connector

This integrated process helps ensure stable quality across the entire cable assembly.

Assembly-Focused Quality Control
Unlike standalone connectors, cable assemblies require additional process control.
Each DIN 13 Pin cable assembly undergoes:
Cable pull-force testing
Continuity and pin mapping verification
Insulation resistance testing
Signal stability inspection
Connector locking verification

Visual inspection for assembly consistency

Connector

This ensures reliable field performance and reduced installation issues.

Flexible OEM & ODM Support
We support customized industrial cable assembly projects including:
Cable length customization
Shielded cable options
Different wire specifications
Connector orientation adjustment
Logo printing and labeling
Customized packaging solutions
From prototype sampling to large-volume production, we support full project execution.

Applications
The DIN 13 Pin Circular Connector with Cable is widely used in:
Industrial automation systems
Machinery control interfaces
Sensor and signal transmission systems
Industrial testing equipment
Power and communication integration devices
Robotics and smart manufacturing systems

Electrical control cabinets


Why Choose This DIN 13 Pin Connector Assembly?
This product is designed to provide:
Simplified installation through integrated cable assembly
Stable multi-channel signal and power transmission
Reduced wiring and assembly errors
Reliable industrial-grade connection performance
Factory-controlled production consistency
It is an ideal solution for industrial systems requiring organized, durable, and ready-to-install connectivity.

Contact us today for professional DIN 13 Pin Circular Connector with Cable solutions for industrial power and signal transmission.

 Item

 Parameters

 Number of Cores

 13 Pin

 Gender

 Male/Female

 Housing Material

 Nickel-Plated Brass

 Temperature Range

 -25℃, +85℃

 Rated Current (A)

 5A

 Rated Voltage (AC.V)

 250V

 Test Voltage (AV.C)1Min

 1000V

 Insulation Resistance (㏁)

 ≥1000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Pre-wired cable
