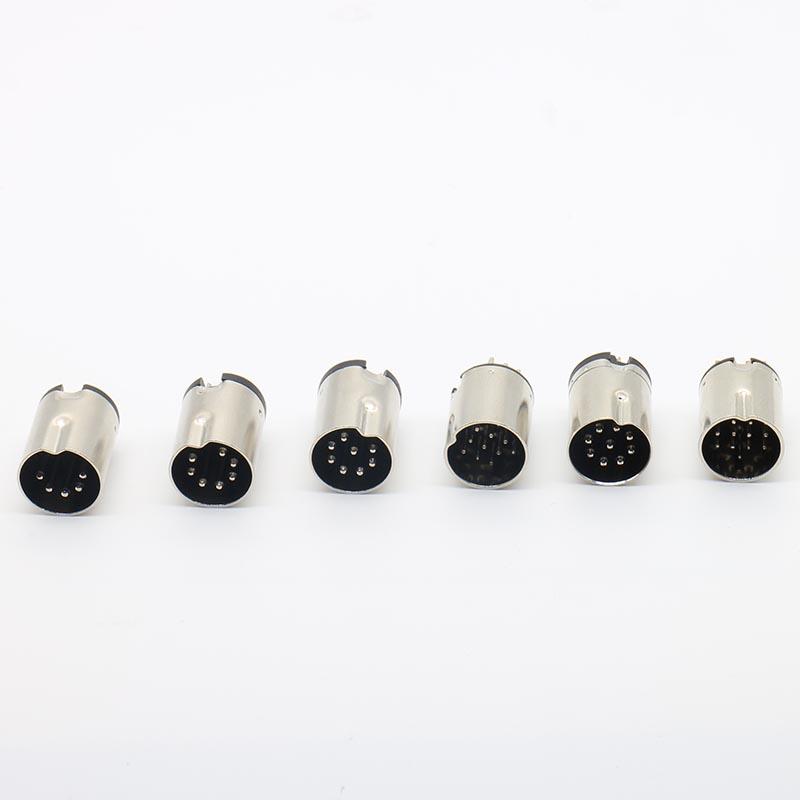

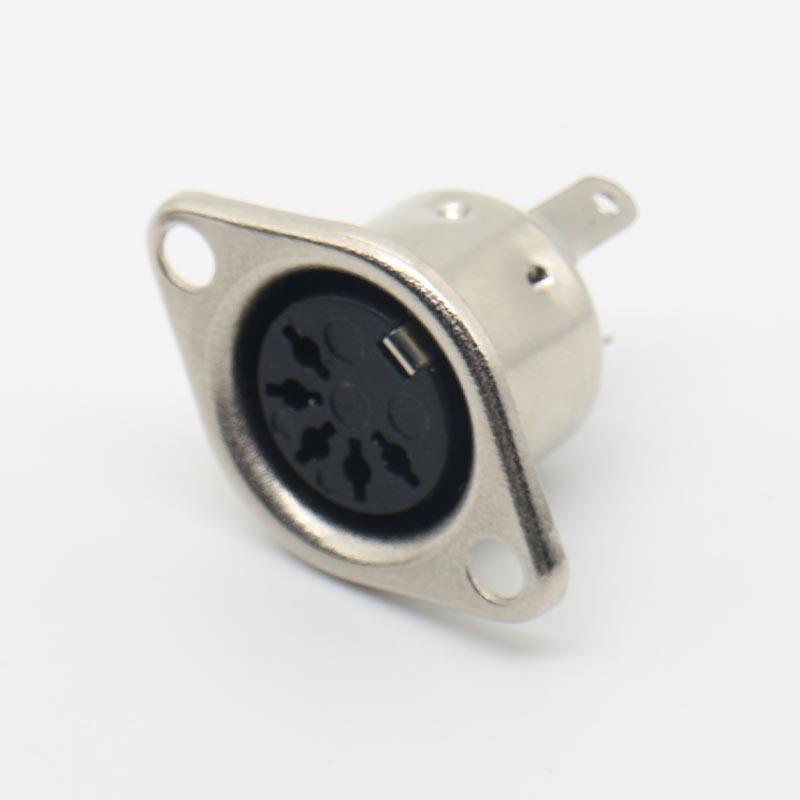

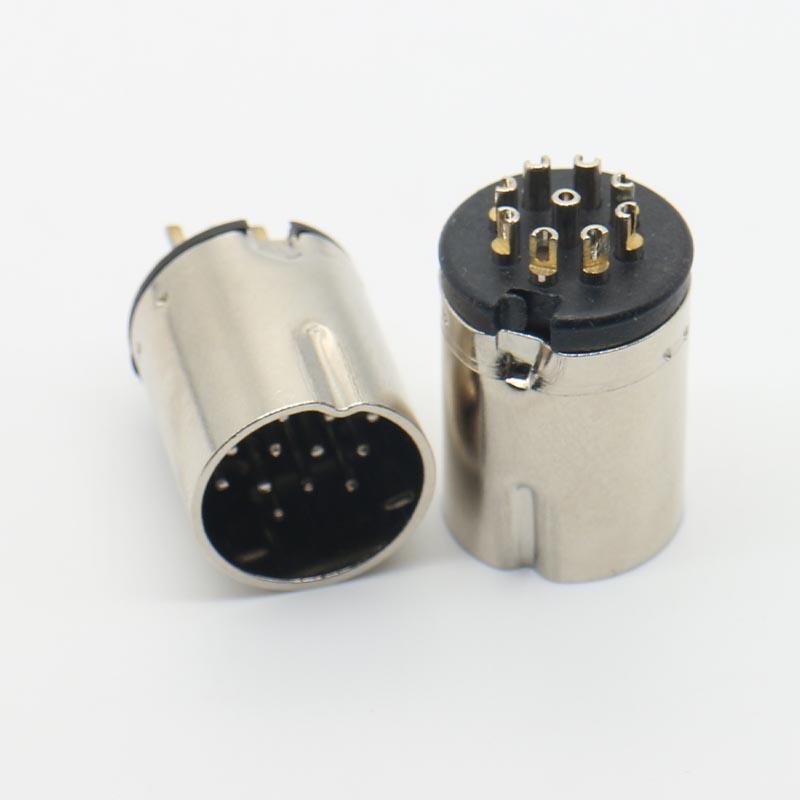

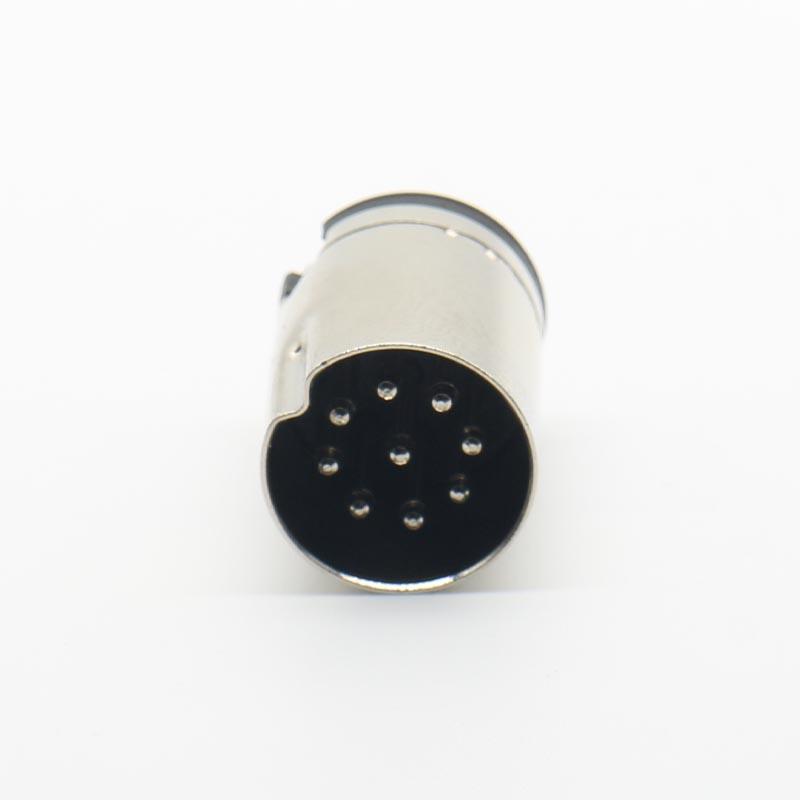

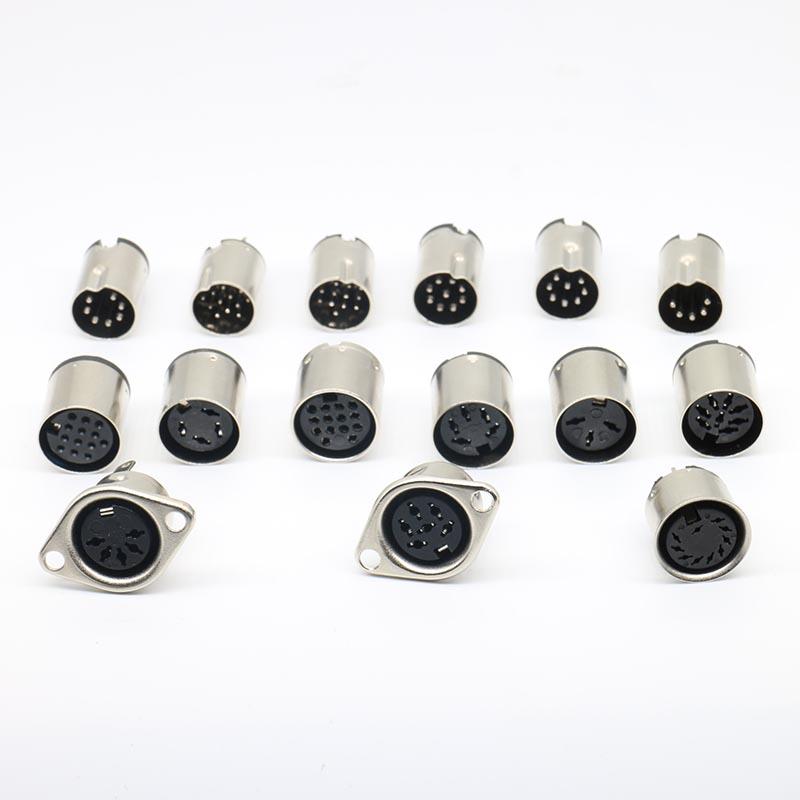

DIN Series Circular Connectors 2-14 Pin Screw Locking Industrial Interface

Din Circular Connector

DIN Series Circular Connectors – Modular Connection Platform for Industrial Systems

The DIN Series Circular Connectors are a standardized industrial connection platform designed for equipment manufacturers who need consistent electrical interfaces across multiple device types. Instead of focusing on a single connector structure, the DIN series works as a family of interface solutions, supporting different mounting styles, wiring methods, and application levels.

The core idea behind the DIN series is not just connection — but system compatibility and long-term interchangeability across industrial equipment.

A Connector Family Designed for System Consistency

In industrial equipment design, one of the biggest challenges is maintaining interface consistency across different machines and modules. The DIN Series solves this by offering a unified connection concept that allows:

• Standardized electrical interfaces across equipment lines
• Easier system expansion and upgrades
• Reduced engineering variation between models
• Simplified maintenance and replacement across platforms

Instead of redesigning connectors for each product, manufacturers can build around a shared connection architecture.

More Than a Connector – A Design Standard

The DIN Series is often used as part of a larger system design strategy:

• Control panels using unified interface layouts
• Modular industrial equipment design
• Standardized signal and power distribution points
• Cross-platform compatibility between devices

This makes it especially valuable for companies producing multiple product lines that must remain electrically compatible.

Functional Advantages of DIN Series Connectors

Unified Electrical Interface Structure

DIN connectors follow consistent interface logic, making system integration more predictable across different equipment designs.

Stable Signal and Power Transmission

Engineered for reliable electrical performance, supporting control signals, data transmission, and low-to-medium power circuits.

Mechanical Stability for Industrial Use

Designed to maintain stable connection under continuous vibration, frequent maintenance access, and long-term industrial operation.

Flexible Configuration Architecture

The DIN series supports multiple product variations, allowing engineers to select different mounting styles, various pin configurations, multiple housing structures, and application-specific designs.

Factory Capability Behind the DIN Series

We are a professional industrial connector manufacturer with over 15 years of experience, specializing in circular connectors, DIN interfaces, and customized connectivity systems for global industrial customers.

Rather than producing isolated products, our focus is on building repeatable and scalable connector platforms.

End-to-End Manufacturing System

Our production system includes:

• Industrial connector architecture design
• Precision mold engineering
• CNC machining for metal components
• Injection molding for insulating structures
• Terminal manufacturing and plating control
• Connector assembly and calibration
• Electrical performance validation

This allows us to maintain consistency across different DIN series variants.

System-Level Quality Control

Instead of testing only individual products, we focus on interface consistency across the entire product family, including:

• Contact alignment consistency
• Electrical performance stability
• Mechanical interchangeability testing
• Long-cycle durability verification
• Environmental stress validation

This ensures DIN connectors remain reliable even when used across different devices and generations of equipment.

OEM & Platform Customization Capability

We support industrial clients who require system-level customization:

• Unified connector platform development
• Private DIN interface standardization
• Custom pin architecture design
• Modular housing adaptation
• Branding and labeling for product families
• Integration support for multi-device systems

This is especially useful for manufacturers building product ecosystems rather than single devices.

Applications

The DIN Series Circular Connectors are widely used in:

• Industrial automation platforms
• Control system architectures
• Multi-device manufacturing equipment
• Electrical distribution systems
• Measurement and testing ecosystems
• Standardized industrial machinery families
• Smart factory infrastructure

Selection Considerations for DIN Series Connectors

When evaluating DIN Series connectors for your application, consider the following decision points:

• Pin count and layout: Confirm the number of cores (2-14 pin range) and the required pin arrangement for your signal or power circuit.
• Gender and mounting style: Determine whether male or female contacts are needed and whether panel mount, cable mount, or other configurations suit your enclosure design.
• Environmental exposure: Assess vibration levels, temperature range, and potential moisture or dust exposure in the operating environment.
• Mating-side compatibility: Verify the mating connector type and ensure both sides are specified together to avoid interface mismatches.
• Electrical load: Match the connector's rated current and voltage to your actual circuit requirements, not just the maximum values.

When DIN Series Connectors Are Suitable

DIN Series connectors are a practical choice when you need a standardized interface across multiple equipment lines, require reliable signal and low-to-medium power transmission, or want to simplify maintenance and spare-part management across product families. They are particularly well suited for control panels, modular machinery, and multi-device systems where interface consistency reduces engineering variation.

When to Consider Alternatives

For applications requiring high-current power distribution, extreme environmental sealing (such as continuous submersion), or very high pin counts beyond the 2-14 pin range, other connector families may be more appropriate. Similarly, if your application demands a specific keying orientation or a non-standard mounting footprint, verify that the DIN Series configuration can accommodate it before specifying.

Inquiry Checklist for DIN Series Connectors

To receive an accurate quotation and sample recommendation, please prepare the following information:

• Required pin count and gender (male/female)
• Mounting style (panel mount, cable mount, or other)
• Cable outside diameter and conductor size
• Electrical load (current, voltage, signal type)
• Operating environment (temperature, vibration, moisture)
• Mating connector requirement or drawing
• Estimated order quantity

For related interface solutions, see our 12G Series Circular Connectors or review the Din Circular Connector catalog for additional configuration options.

Contact Us

We provide sample evaluation support, system-level connector planning assistance, OEM/ODM platform development, fast production and global delivery, and factory-direct pricing. Contact us today to develop DIN Series Circular Connector solutions for industrial system integration.
