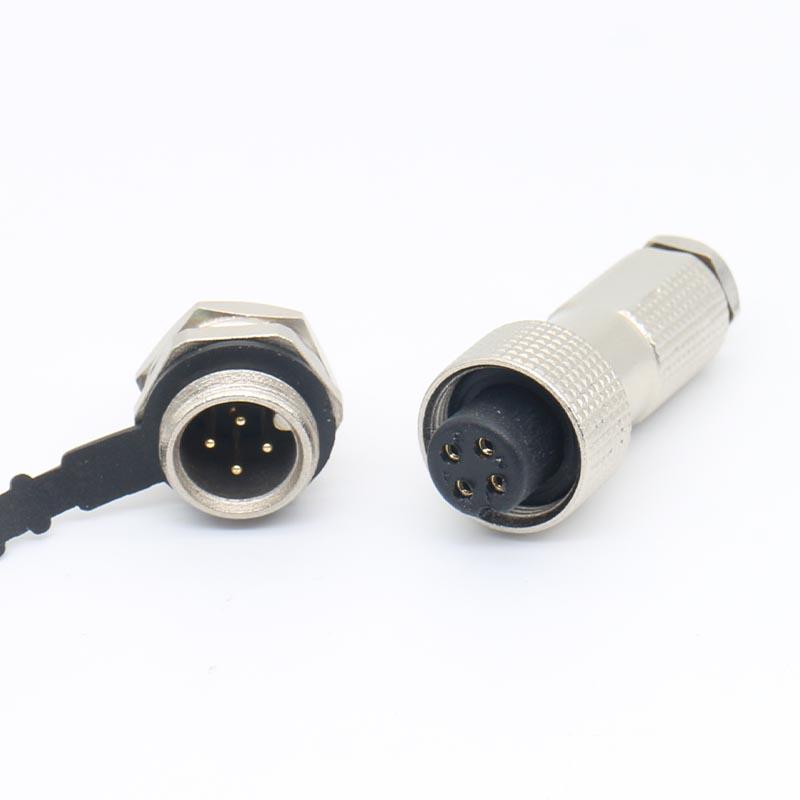

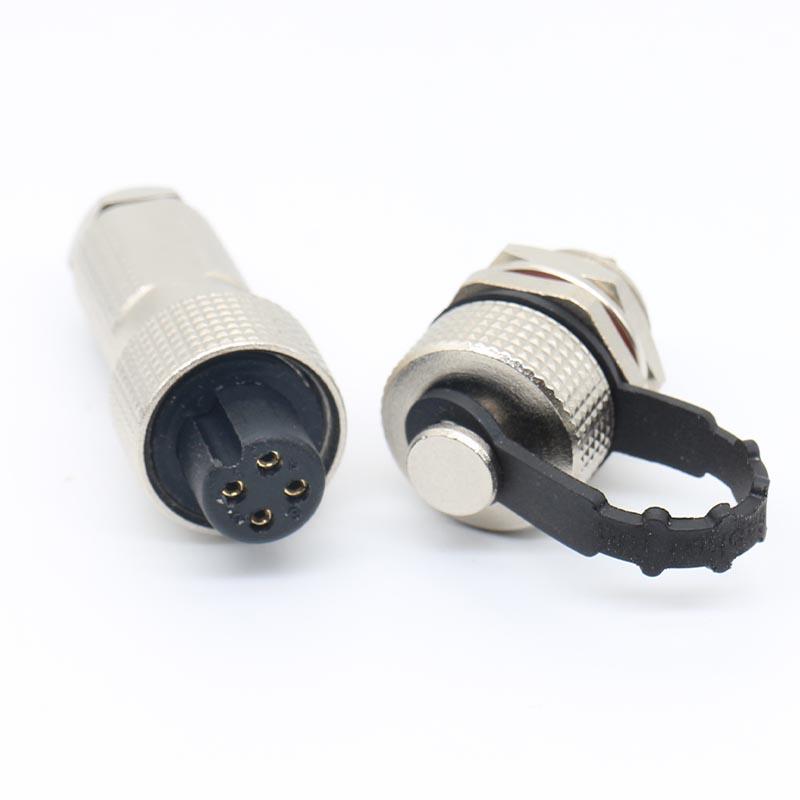

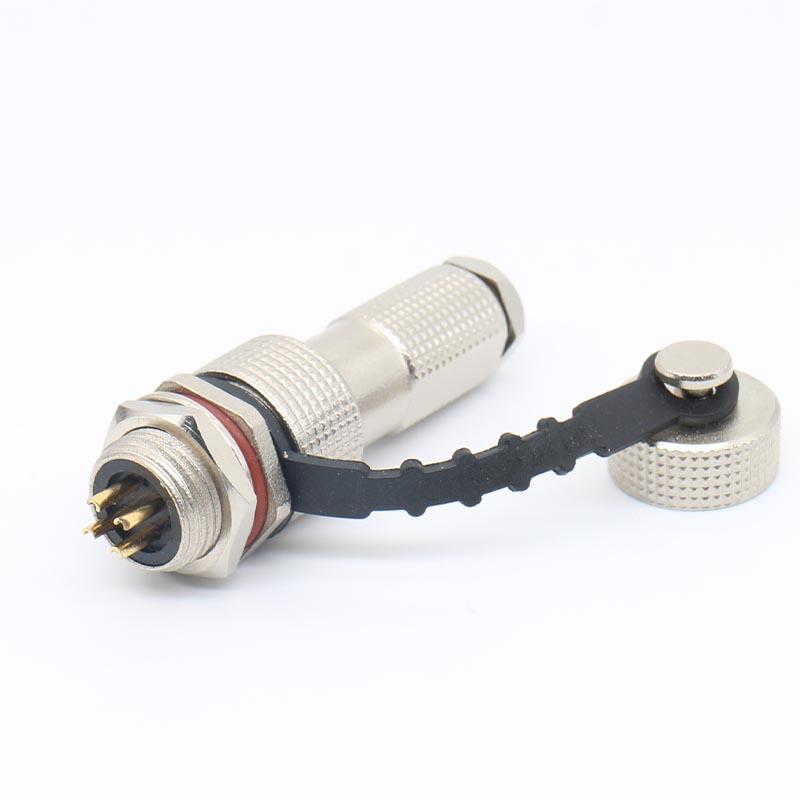

12G 2-10 Pin Aviation Circular Connector Overview

The 12G 2-10 Pin Aviation Circular Connector is engineered for high-reliability signal and power transmission in aerospace, defense, and industrial environments. Its compact circular design and flexible 2-10 pin configurations provide robust electrical performance and mechanical durability for demanding applications.

Selection Guidance: Matching the Connector to Your Application

Choosing the right aviation circular connector depends on your specific electrical, mechanical, and environmental requirements. Consider the following decision points when evaluating the 12G series:

• Pin Count and Configuration: Select from 2 to 10 pins based on the number of power or signal circuits you need to connect. Confirm the required pinout and gender (male or female) for your mating cable or panel interface.
• Electrical Load: Verify that the connector's rated current and voltage meet your system's power requirements. Refer to the Technical Specifications for confirmed values.
• Environmental Exposure: Assess the operating environment for moisture, dust, vibration, and temperature extremes. The 12G connector's zinc alloy housing with nickel plating offers corrosion resistance, but confirm the IP rating and sealing options for your specific conditions.
• Mechanical Fit: Ensure the connector's mounting style and dimensions are compatible with your panel cutout or cable assembly. Provide your cable outside diameter and conductor size for proper termination planning.

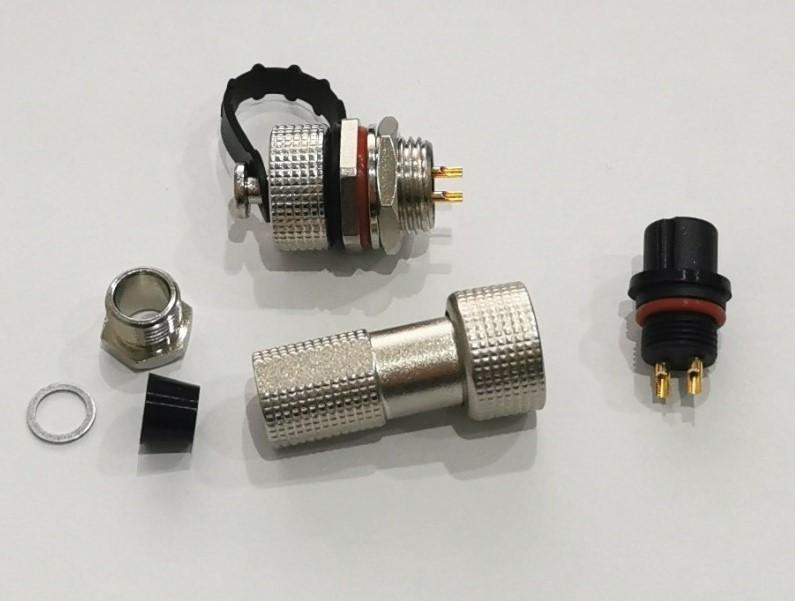

Construction and Material Integrity

The 12G connector is built with a zinc alloy housing with nickel plating for structural strength and corrosion resistance. The contacts are brass plated with gold, ensuring stable conductivity and low contact resistance for reliable signal integrity over repeated mating cycles.

This rugged circular structure reduces mechanical stress on the pins and maintains consistent electrical contact during long-term operation in high-vibration environments.

Key Product Features

• 2-10 Pin Configurations: Provides flexibility for simple power lines to complex multi-signal connections.
• Aviation-Grade Durability: Constructed to meet demanding mechanical and environmental standards.
• Compact Circular Design: Space-saving interface suitable for aircraft, vehicles, or industrial systems.
• High-Precision Contacts: Ensures stable conductivity and reliable signal integrity.
• Environmental Protection: Resistant to dust, water, and mechanical stress; optional sealing available for harsh conditions.

Manufacturing and Quality Assurance

As a professional manufacturer with over 15 years of experience, we produce aviation-grade connectors through a fully in-house process. Our production capabilities include high-precision mold design, CNC machining for metal and contact components, injection molding for insulating materials, and full assembly with cable integration.

Every 12G Aviation Circular Connector undergoes rigorous testing, including electrical continuity and insulation resistance verification, vibration and shock resistance testing, mating cycle durability tests, and dimensional inspections.

All products comply with UL, CE, RoHS, and ISO9001 international standards, ensuring reliability for mission-critical applications.

Customization Options

We provide tailored solutions for aerospace and industrial clients, including pin configuration customization, cable length and specification adjustment, shielded and anti-interference designs, housing material modifications, and OEM/ODM branding and packaging. Our engineering team supports projects from prototype development to mass production.

Suitable and Unsuitable Applications

The 12G connector is well-suited for aerospace and aviation systems, military and defense equipment, industrial machinery and automation, robotics and precision control devices, test and measurement instruments, and transportation electronics. It is not recommended for applications requiring high-density contacts beyond 10 pins, or where a different mating interface is already specified in your system design.

Inquiry Checklist

To receive an accurate quotation and technical recommendation, please provide the following information:

• Required pin count and pinout or wiring diagram
• Mating connector type (plug or socket) and gender
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment (temperature, moisture, vibration levels)
• Required IP rating or sealing level
• Order quantity and target delivery timeline

Contact us today for factory-direct aviation circular connector solutions and competitive quotations. We provide samples, technical support, and customized production services. For more details on the 12G series, please refer to the 12G Series Circular Connectors catalog. You may also review the 12G 4 Pin Aviation Connector Waterproof IP67 Industrial for a related configuration.
