GX16 Circular Connector for Industrial Robots in Germany

Din Circular Connector

Project Background: GX16 Connectors in German Industrial Robotics

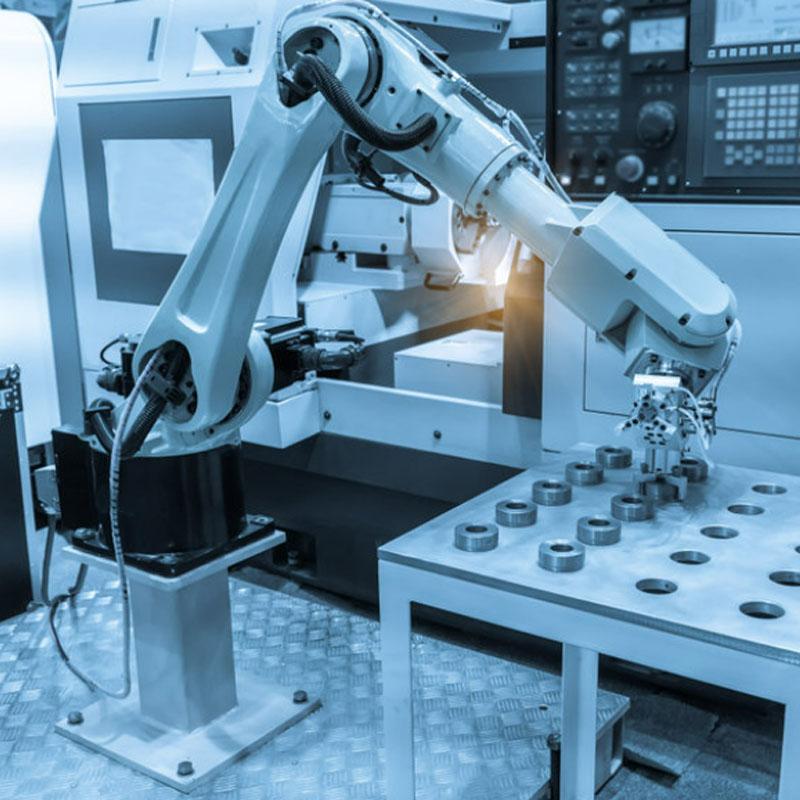

An industrial automation customer in Germany integrated GX16 circular connectors into their robotic systems. The connectors serve as the interface for power and signal transmission between robotic arms and control units, where stable electrical contact and mechanical reliability are critical for continuous production.

Interface and Environmental Requirements

The customer specified connectors that could meet the following operational demands:

• Support high-current transmission for industrial robotic motors
• Maintain stable signals for precise motion control
• Withstand continuous vibration and mechanical stress in robotic production lines

After evaluating multiple options, the customer selected GX16 connectors based on their robust mechanical design, high current capacity, and secure threaded locking mechanism, which are suited for demanding industrial robotics applications.

Connector Solution and Configuration

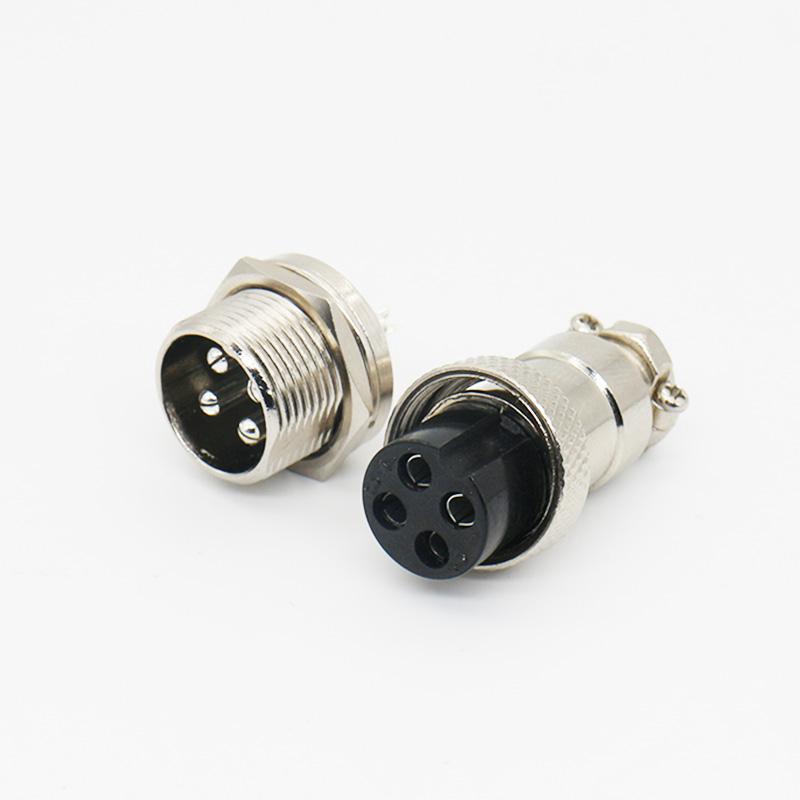

The GX16 series was chosen for its combination of electrical and mechanical properties. The threaded coupling provides a vibration-resistant connection, while the housing design supports reliable performance in continuous operation. The connector supports both power and signal lines within a single interface, simplifying the cabling between robotic arms and control cabinets.

Commissioning and Delivery Process

During the integration phase, the connectors were installed and tested in the robotic production line. The assembly process was straightforward, allowing for efficient wiring and maintenance access. The threaded locking mechanism was verified to prevent accidental disconnection during robotic arm movement and repeated cycling.

Verified Results and Performance

The customer reported that GX16 connectors improved the reliability and efficiency of their robotic systems. Key observed outcomes included:

• Stable power and signal transmission during long-term robotic operation
• Threaded locking prevented accidental loosening under vibration
• Durable housing maintained reliable mechanical performance
• Easy assembly and maintenance reduced downtime in production lines

These results contributed to reduced maintenance costs and improved operational uptime for the robotic systems.
