WS20 Connectors
< >

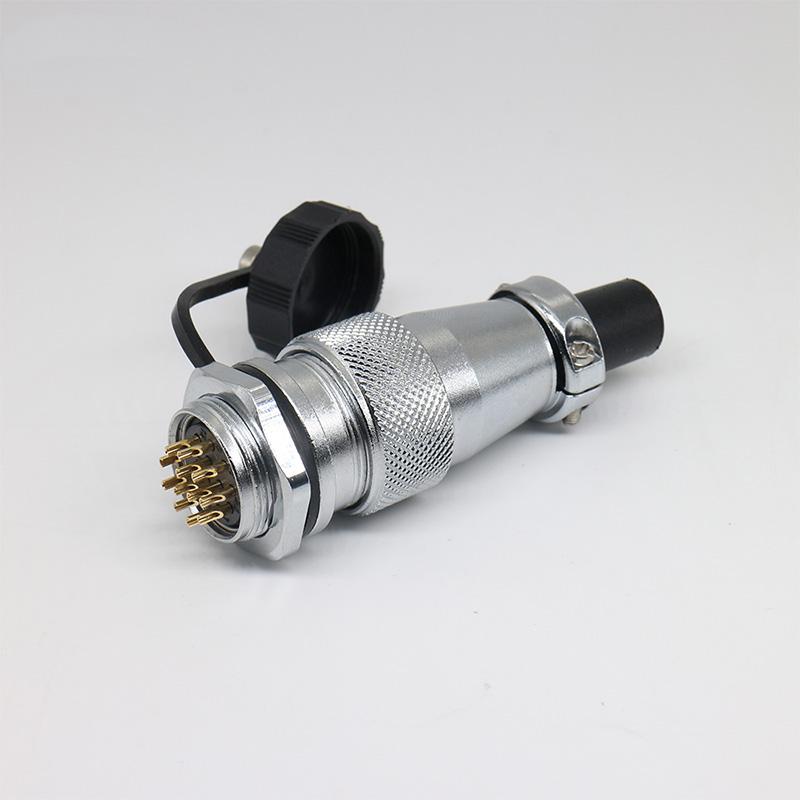

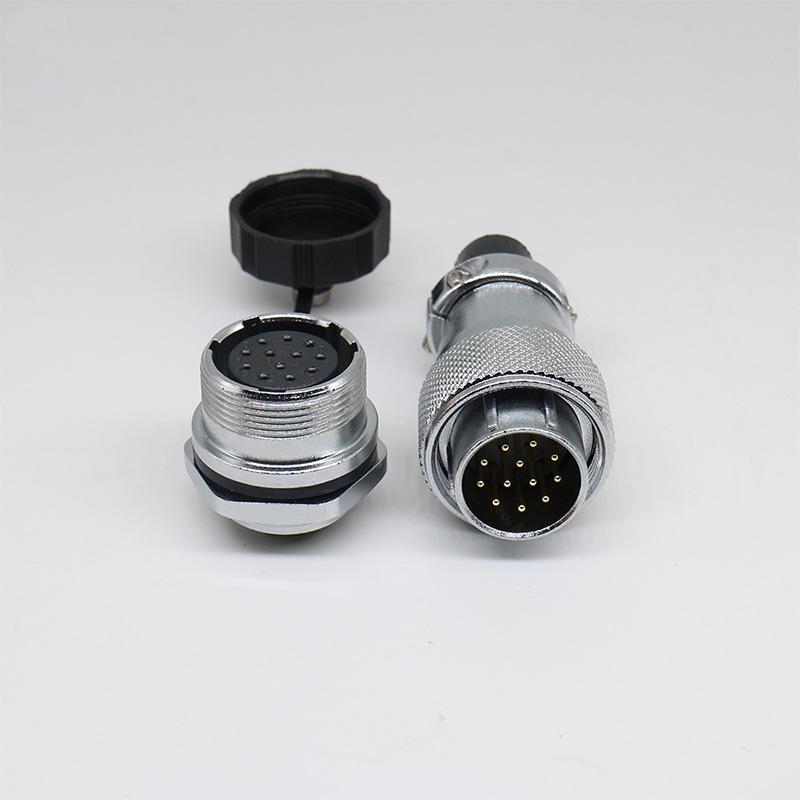

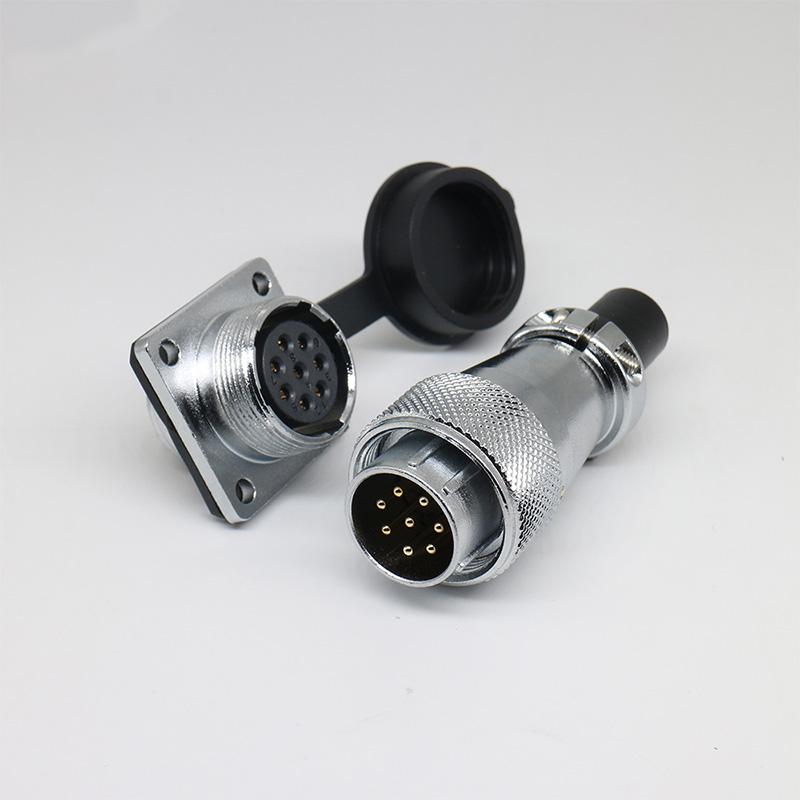

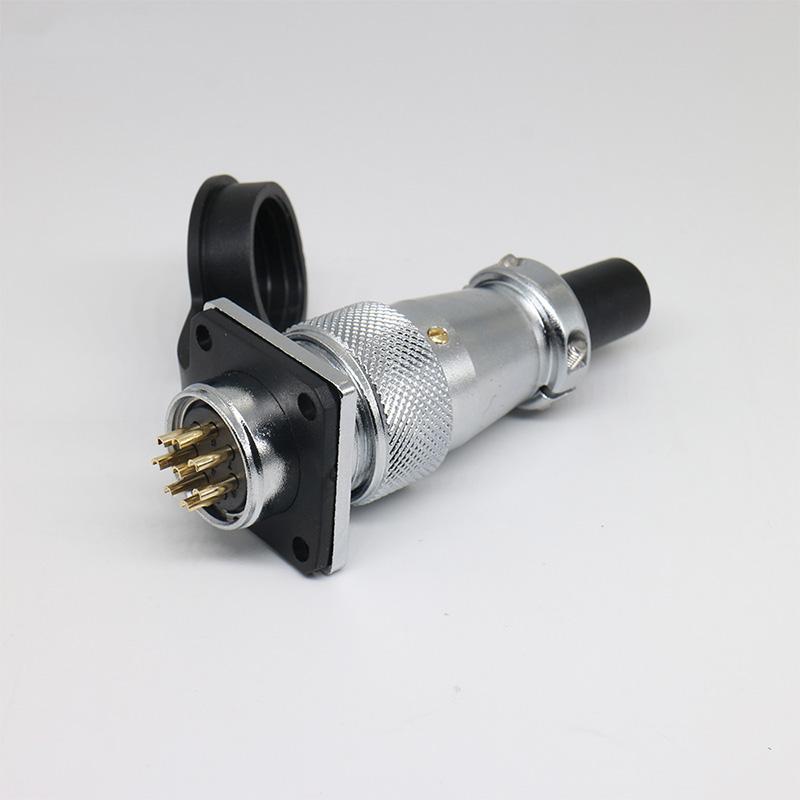

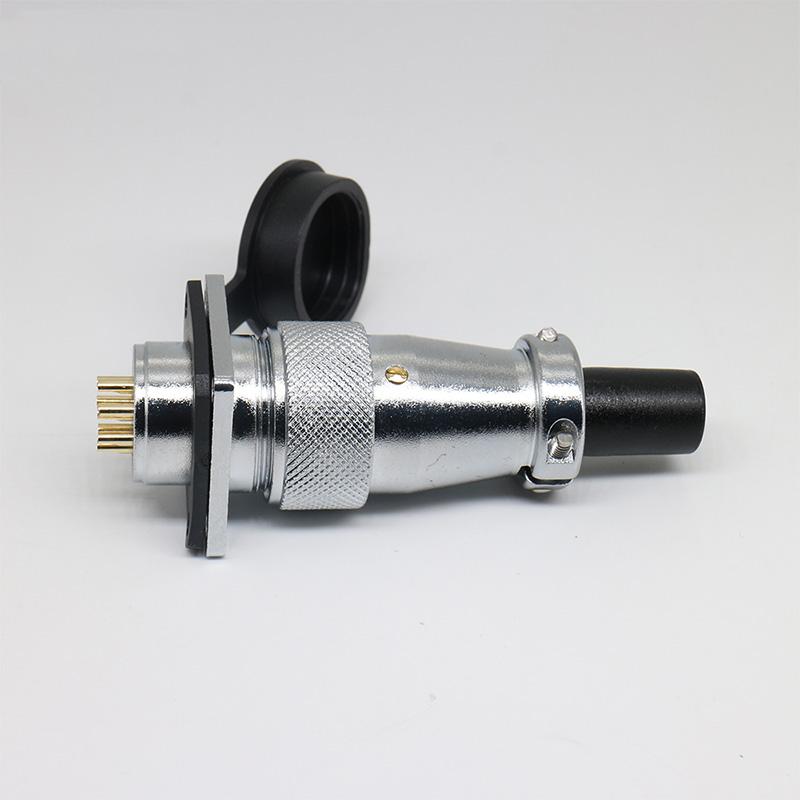

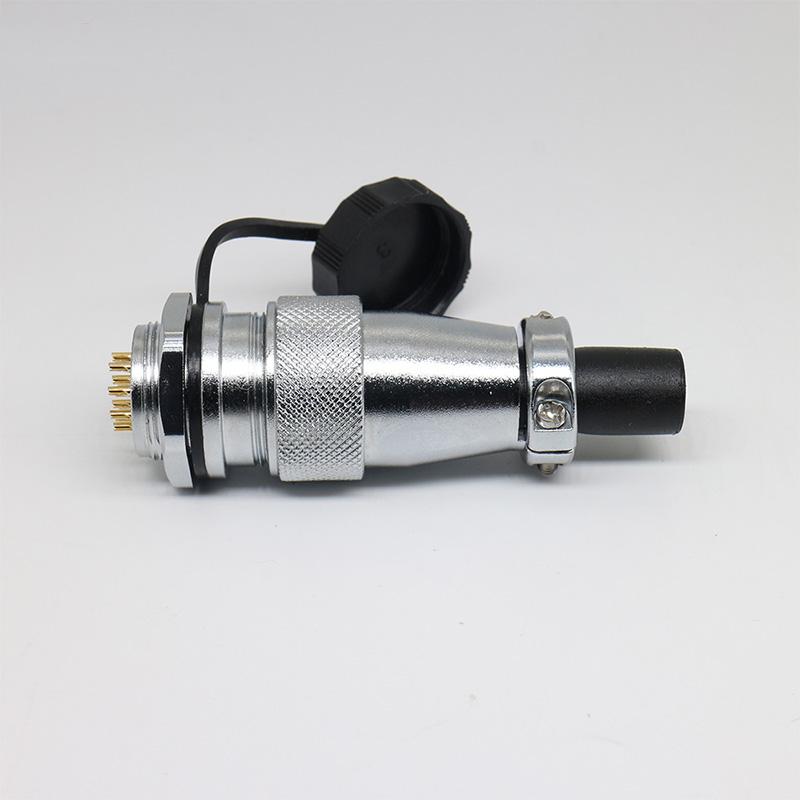

WS20 2-15 Pin Circular Connector for Industrial Robotics Automation

>Number Of CoresNumber Of Cores 2-15 Pin
Contact DiameterContact Diameter(mm) 1.0mm/1.5mm/2.0mm
IP RatingIP Rating IP65
Shell MaterialShell Material Zinc Alloy With Nickel Plated
Temperature RangeTemperature Range -20℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 5A - 15A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

WS20 2 - 15 Pin Circular Connector – Reliable Connectivity for Industrial Robotics & Automation
The WS20 2–15 Pin Circular Connector is a high-reliability industrial connector designed for robotics systems, automation equipment, and smart manufacturing lines. It provides a stable interface for power, signal, and data transmission, ensuring continuous performance in environments where machines operate with high speed, high repetition, and high precision.
Unlike standard industrial plugs that focus on basic connectivity, the WS20 series is engineered for dynamic automation systems, where connectors must withstand constant movement, vibration, and frequent mating cycles without performance loss.

Connectors

Designed for Robotics & Smart Automation Systems
Modern robotics and automated production require connectors that can operate reliably under motion and stress. The WS20 connector delivers:
Stable multi-signal and power transmission during continuous operation
Strong resistance to vibration, bending stress, and mechanical impact
Secure locking structure to prevent accidental disconnection in moving systems
Consistent electrical performance for precision automation control
Compact structure suitable for robotic arms and control modules
It is especially suitable for robotic joints, servo systems, automation controllers, and intelligent production equipment.

Key Product Advantages
Flexible 2 - 15 Pin Configuration
Supports a wide range of industrial functions:
Power supply circuits
Sensor and feedback signals
Control and communication lines
Multi-channel automation systems
Robust Circular Industrial Design

The WS20 features a reinforced structure designed for:
High-frequency mating cycles
Mechanical vibration and shock resistance
Long-term stable operation in automation systems
High-Precision Electrical Contacts

Ensures reliable performance through:
Low contact resistance
Stable signal integrity
Reduced transmission loss

Long operational lifespan


Industrial Environmental Protection
Designed to operate in demanding conditions with resistance to:
Dust and particulate contamination
Moisture and humidity

Oil mist and industrial pollutants


Factory Strength - Professional Connector Manufacturing Base

We are a professional industrial connector manufacturer with more than 15 years of production experience, specializing in circular connectors and customized cable assemblies for automation industries.

Connector

Unlike trading companies, we provide full in-house manufacturing control, ensuring stable quality and consistent performance.

Integrated Production Capability

Our factory includes complete production systems:
Precision mold development center
CNC machining workshops
Injection molding production lines
Metal stamping and die-casting processes
Connector assembly workshops
Cable harness production lines

Electrical and mechanical testing laboratories

Connector

This integrated system ensures fast delivery, stable quality, and flexible customization support.

Strict Quality Control System
Each WS20 connector undergoes comprehensive testing, including:
Electrical continuity and resistance testing
Plugging and mating cycle durability testing
Vibration and mechanical shock testing
Waterproof and sealing performance testing
Temperature cycling tests
Salt spray corrosion resistance testing
Connector
All products are manufactured under:
ISO9001 quality management system
CE certification standards
RoHS environmental compliance
UL requirements (where applicable)
OEM & ODM Customization Support
Connector
We provide flexible customization for industrial clients:
Pin configuration adjustments (2 - 15 pins)
Custom cable assemblies and wiring harnesses
Shielded or anti-interference designs
Housing material and structural modifications
Logo printing and branding services
Customized packaging solutions
We support projects from prototype design to mass production delivery.

Applications
The WS20 Circular Connector is widely used in:
Industrial robotics systems
Automation production lines
Smart manufacturing equipment
Servo motor and motion control systems
Sensor and actuator networks
Industrial control cabinets
AGV and intelligent logistics systems

Precision machinery and instrumentation


Why Choose WS20 Circular Connectors?
The WS20 2 - 15 Pin Connector delivers:
High reliability for dynamic automation systems
Strong mechanical durability
Flexible multi-pin configuration
Stable power and signal transmission
Factory-direct manufacturing support
It is an ideal solution for modern industrial robotics and automation environments requiring precision, stability, and long-term performance.

Contact Us
We provide:
Sample testing support
Technical consultation
OEM/ODM customization services
Fast production and global delivery
Factory-direct pricing advantages
Contact us today for professional WS20 Circular Connector solutions for robotics and industrial automation applications.

 Item

 Parameters

 Number of Cores

 2-15Pin

 Gender

 Male/Female

 Housing Material

 Zinc Alloy with Nickel Plated

 Cores Material

 Brass Plated with Gold

 Insulator Material

 PPS

 Locking System

 Screw Locking

 Temperature Range

 -20℃, +85℃

 Rated Current (A)

 5A - 15A

 Rated Voltage (AC.V)

 250V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
