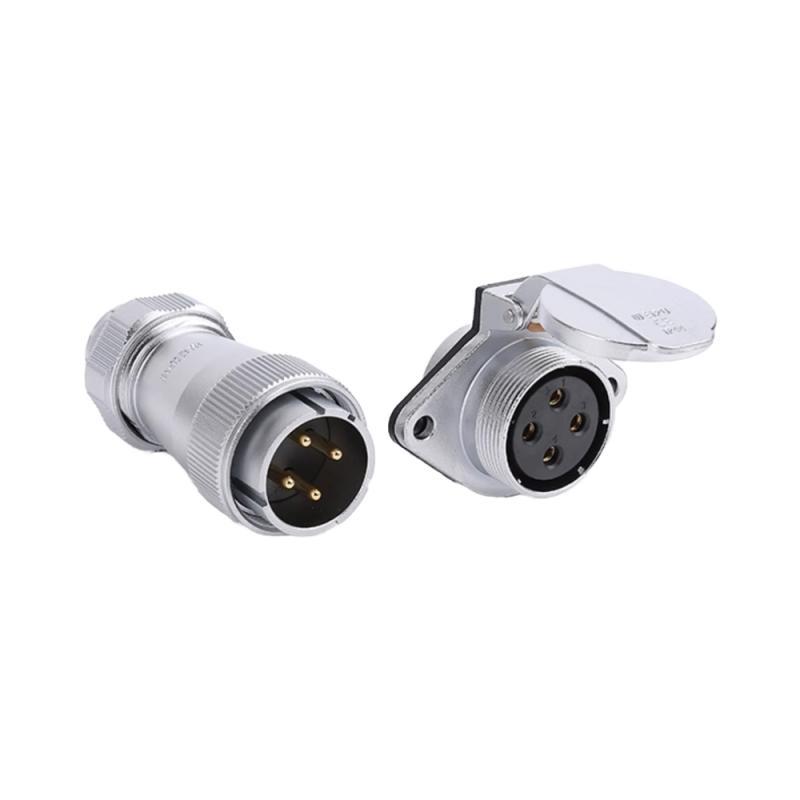

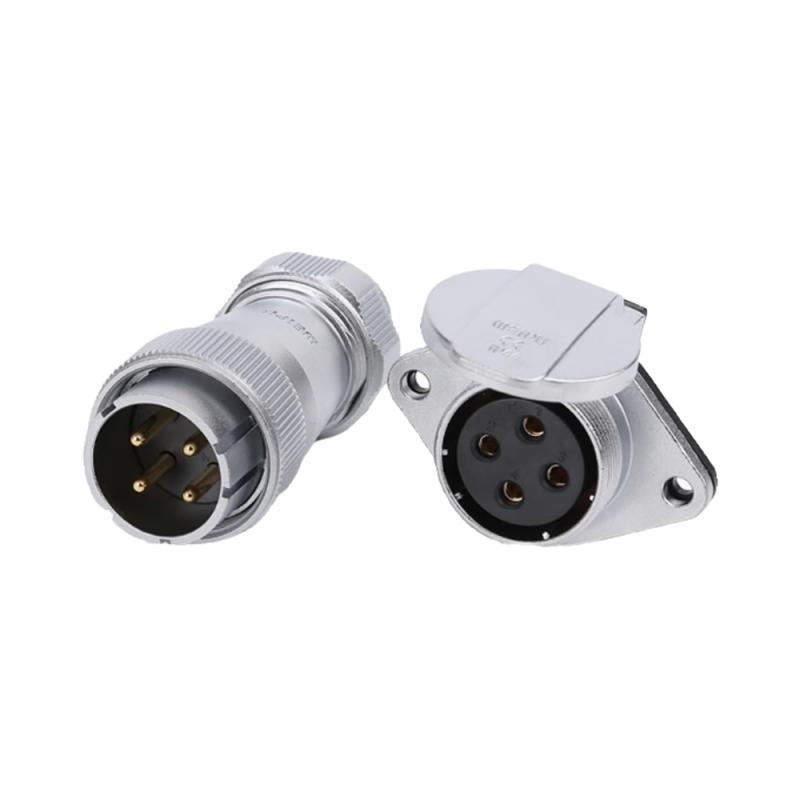

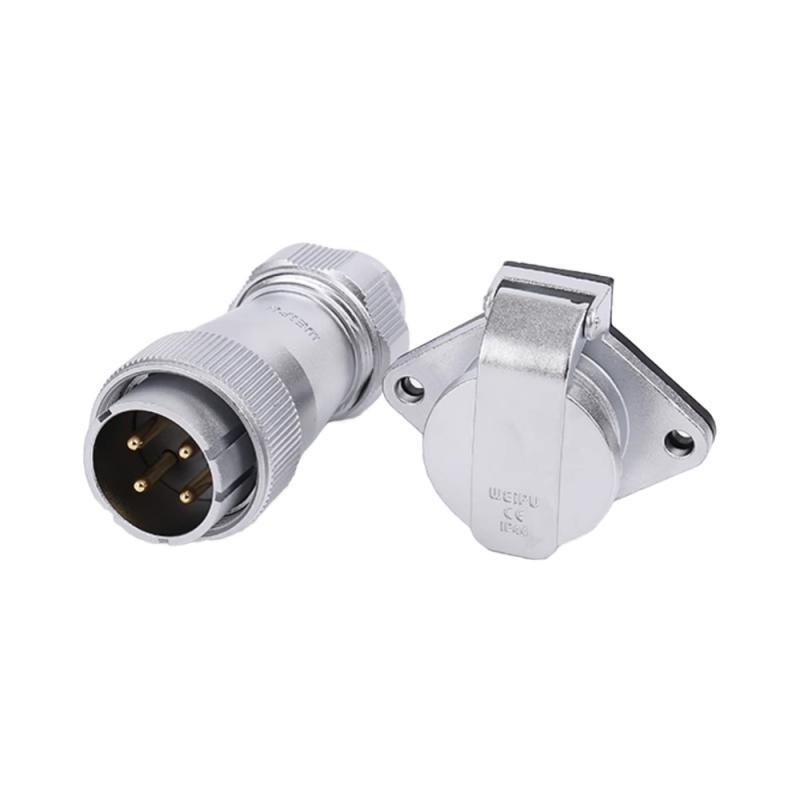

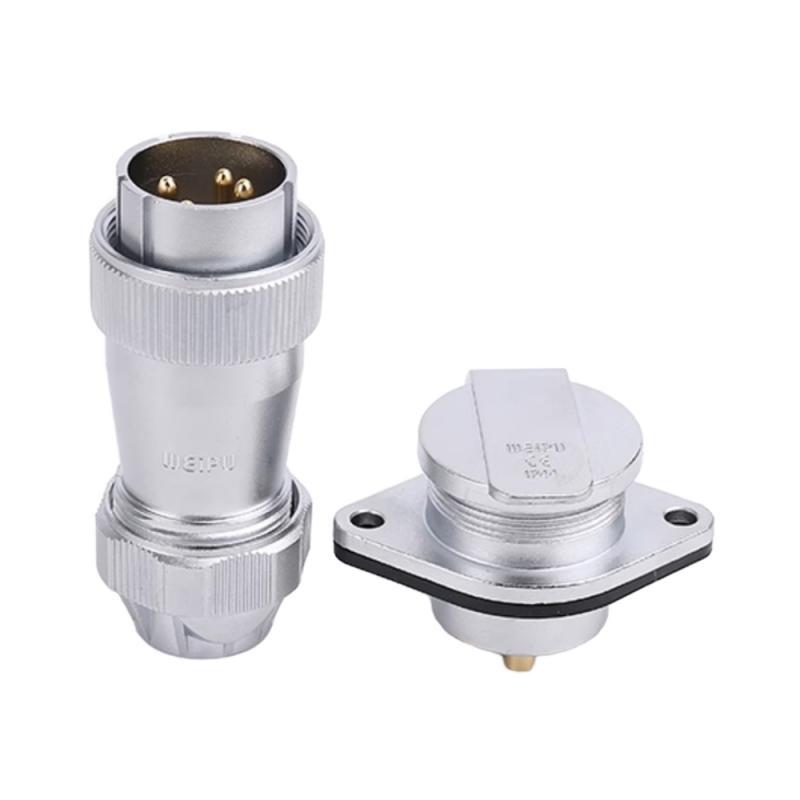

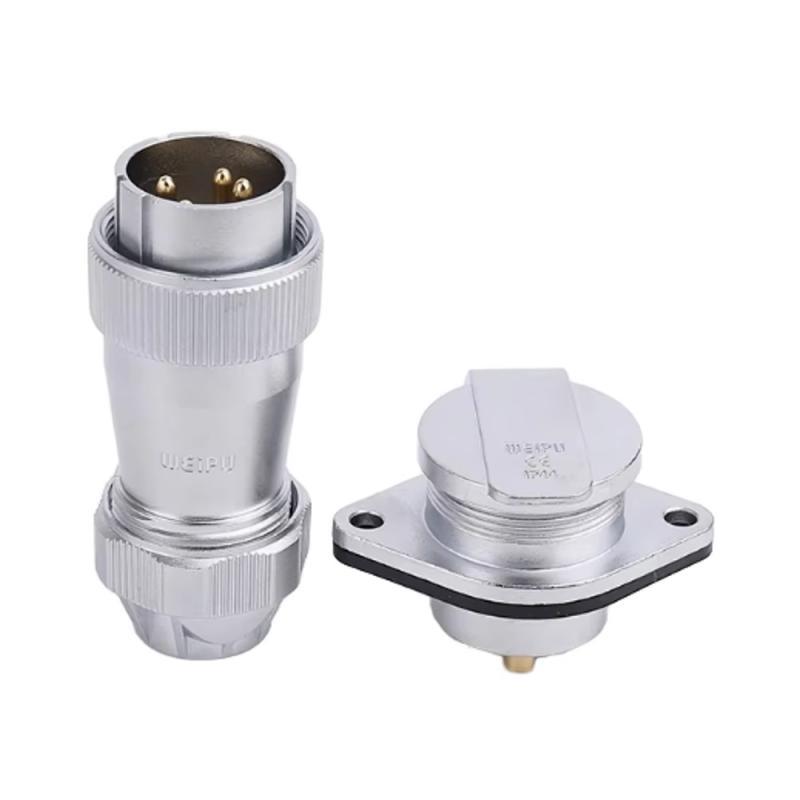

WF32 4-Pin Aviation Circular Connector Overview

The WF32 aviation circular connector is a heavy-duty electrical connector designed for reliable power and signal transmission in industrial environments. With its strong mechanical structure and dependable electrical performance, the WF32 connector suits industrial automation, machinery equipment, electrical control systems, and outdoor power installations.

Constructed with a chrome-plated zinc alloy housing, the WF32 connector offers durability and corrosion resistance. Its rugged design supports reliable operation in conditions involving vibration, moisture, and dust.

Available in a 4-pin configuration, the WF32 provides a practical solution for both signal and power connections in modern equipment.

Durable Zinc Alloy Chrome-Plated Housing

The WF32 connector features a zinc alloy die-cast shell with chrome plating, a material combination that enhances mechanical strength and environmental resistance. The zinc alloy body provides structural stability and impact resistance, while the chrome-plated surface improves corrosion protection and wear resistance.

Key advantages of the housing material include:

• Strong resistance to corrosion and oxidation
• High mechanical strength for industrial environments
• Improved durability under repeated connection cycles
• Long service life in demanding working conditions

These properties make WF32 connectors suitable for industrial facilities, outdoor equipment, and heavy-duty electrical systems.

Secure Screw Locking Connection Design

The WF32 aviation connector uses a screw locking mechanism to provide a secure connection between plug and socket. Once inserted and tightened, the threaded coupling ring keeps the connection firmly locked.

This locking structure offers several benefits:

• Prevents accidental disconnection
• Provides stable performance under vibration
• Ensures consistent electrical contact
• Allows easy installation and removal

The screw locking design is especially useful for equipment operating in mechanically demanding environments where reliable connections are critical.

Waterproof and Reliable Electrical Performance

The WF32 circular connector provides stable electrical transmission with environmental protection. When properly installed, the connector can achieve IP67 waterproof performance, protecting internal contacts from dust and moisture. This level of protection supports reliable operation in outdoor and industrial environments.

Typical electrical advantages include:

• Stable power and signal transmission
• Low contact resistance
• High insulation reliability
• Durable internal contact structure

These features help the connector maintain consistent performance in control systems, power distribution equipment, and electronic devices.

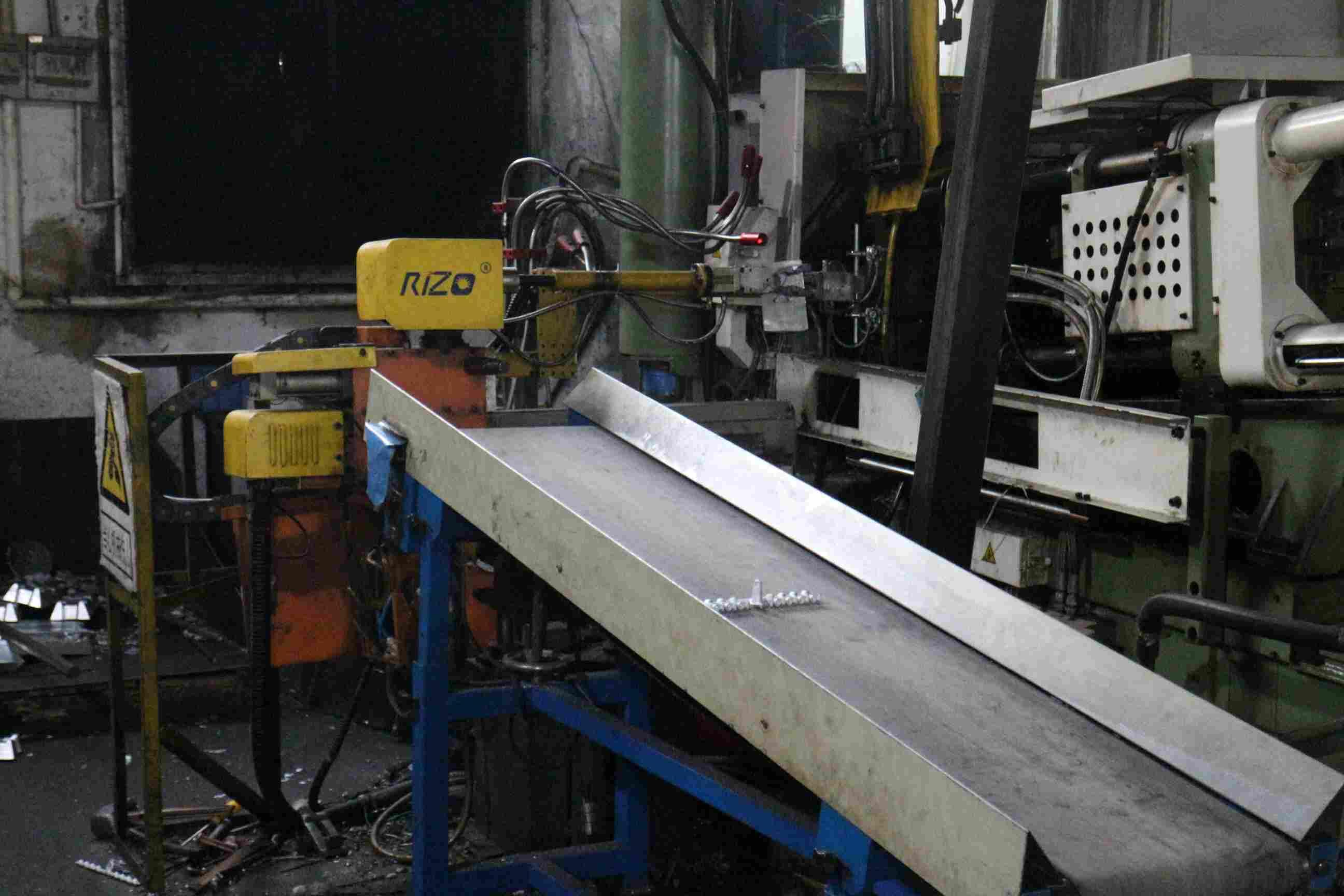

Factory Strength and Manufacturing Capability

Our factory has over 15 years of experience manufacturing WF series aviation connectors, delivering industrial-grade solutions:

• Advanced R&D: Designs optimized for industrial electrical and automation applications
• Precision Manufacturing: CNC machining, metal stamping, and injection molding for consistent tolerances

• In-House Assembly: Full integration of connector, cable, and panel mount ensures quality and reliability
• Comprehensive Testing: Electrical, mechanical, and environmental testing for long-term performance

• Customization & OEM/ODM: Flexible pin counts, cable lengths, housing materials, and branding options

Our vertical production and quality control deliver factory-direct WF32 connectors with durability and performance.

Applications

• Industrial automation machinery and control panels
• Electrical distribution and sensor networks
• Robotics and motion control systems
• Outdoor or harsh environment electrical installations
• Compact industrial devices requiring waterproof connectors
• Systems requiring secure, reliable, and space-saving electrical connections

Selection Considerations

When selecting a WF32 4-pin aviation connector, verify the following against your application requirements:

• Mating side: confirm whether you need plug, socket, or panel mount configuration
• Cable preparation: provide cable outside diameter and conductor size for proper termination
• Electrical load: confirm current and voltage requirements match the connector rating
• Environmental conditions: verify IP rating suitability for your installation environment

For related options, see the Aviation Plug Connectors range or the GOST OHS Circular Connector with Multiple Core Count Options.

Inquiry Checklist

To receive an accurate quotation and technical recommendation, please provide:

• Required pin count and gender (male/female)
• Mating connector type and mounting style
• Cable outside diameter and conductor size
• Electrical load (current, voltage)
• Operating environment and IP rating requirement
• Order quantity and target delivery schedule

Contact Us

We provide samples, technical support, and OEM/ODM customization services. Contact us today for factory-direct WF32 4-pin aviation circular connectors, combining precision engineering, waterproof performance, and flexible configurations for industrial electrical applications.
