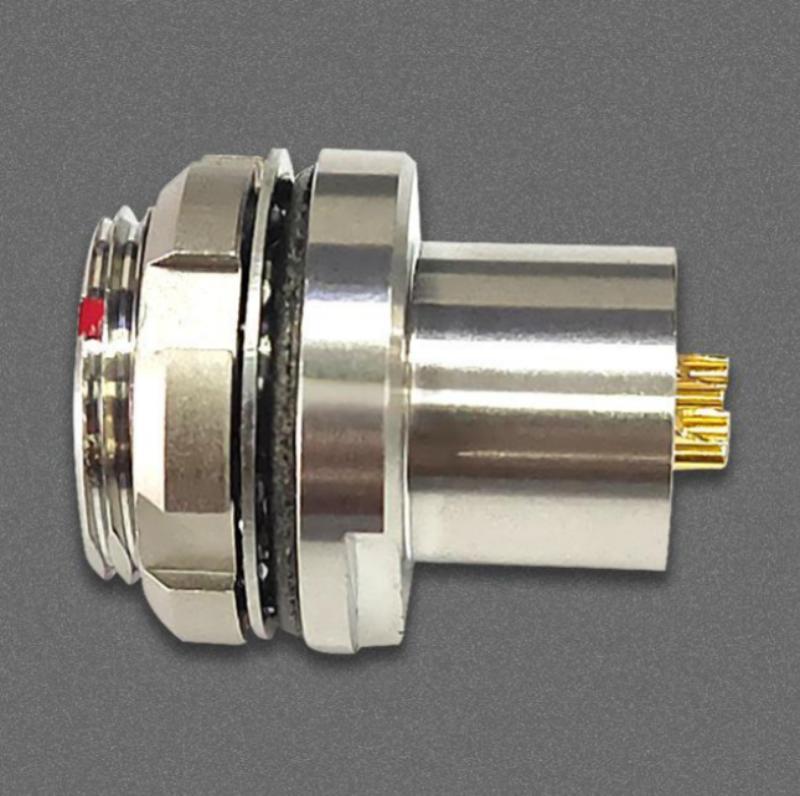

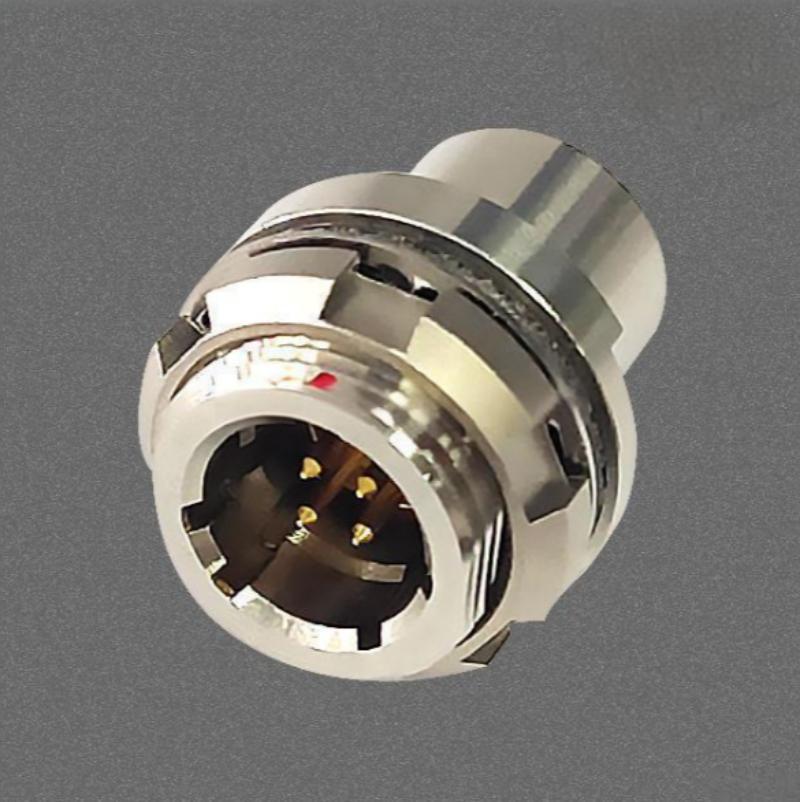

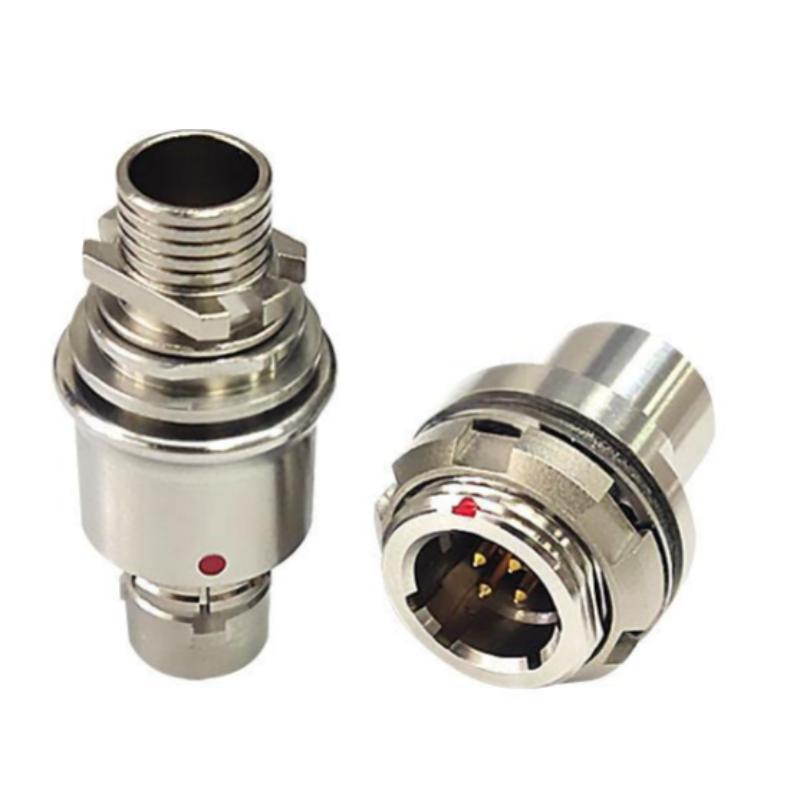

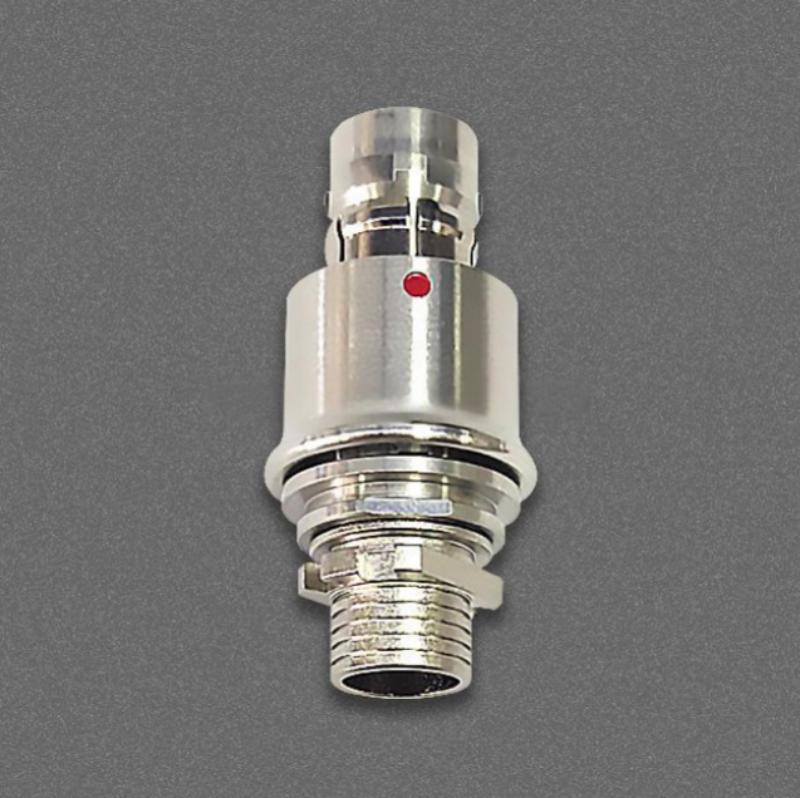

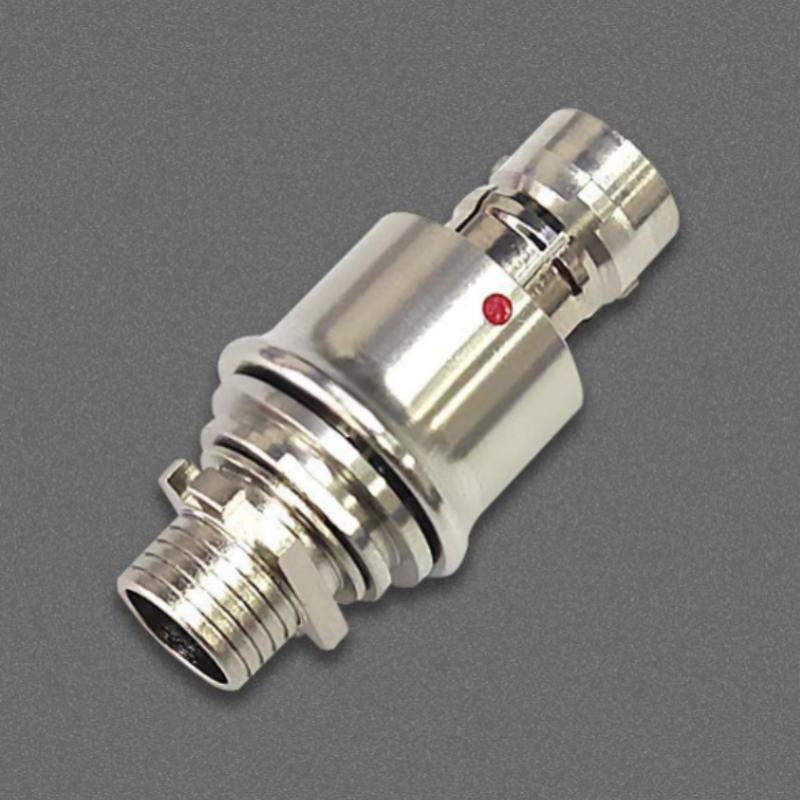

ST Series 4-Pin Push-Pull Circular Connector Overview

The ST Series 4-Pin Push-Pull Circular Connector is designed for automation systems, control panels, and machinery requiring fast, reliable connections. Its push-pull mechanism enables tool-free mating and demating, providing speed and security in demanding environments. With 4 pins, it supports power, signal, or combined circuits in a compact interface.

Push-Pull Locking Mechanism

The connector’s push-pull locking mechanism offers:

• Fast, tool-free connection and disconnection, saving assembly and maintenance time
• Automatic locking, preventing accidental disconnection under vibration or movement
• Stable electrical performance across repeated use
• Compact circular form, ideal for space-limited industrial installations

Key Features

• 4-Pin Configuration: Supports power, signal, or mixed circuits in a compact interface.
• Push-Pull Locking Mechanism: Provides secure, repeatable connections and eliminates the need for tools.
• Rugged Industrial Construction: Metal housing and precision contacts resist shock, vibration, and repeated mating cycles.
• Environmental Protection: Designed to withstand dust, moisture, and industrial conditions.
• Space-Saving Circular Design: Suitable for control panels, automation machinery, and sensor networks.

Factory Capabilities and Quality Assurance

Our factory has over 15 years of experience producing ST Series push-pull connectors, combining advanced engineering, precision manufacturing, and rigorous quality control.

• R&D Expertise: Innovative designs for industrial push-pull mechanisms
• Precision Production: CNC machining, metal stamping, and injection molding for housing and insulation

• In-House Assembly: Complete integration of push-pull mechanisms with cables or panel mount options
• Rigorous Testing: Electrical, mechanical, and environmental testing ensures durability and reliability
• Customization Options: Pin configuration, cable lengths, shielding, and OEM branding

Our vertical production system supports consistent quality and flexible customization for industrial applications.

Quality Assurance

• Electrical continuity and insulation resistance verification
• Mechanical shock and vibration testing
• Push-pull mating cycle durability assessment
• Environmental testing for dust and moisture

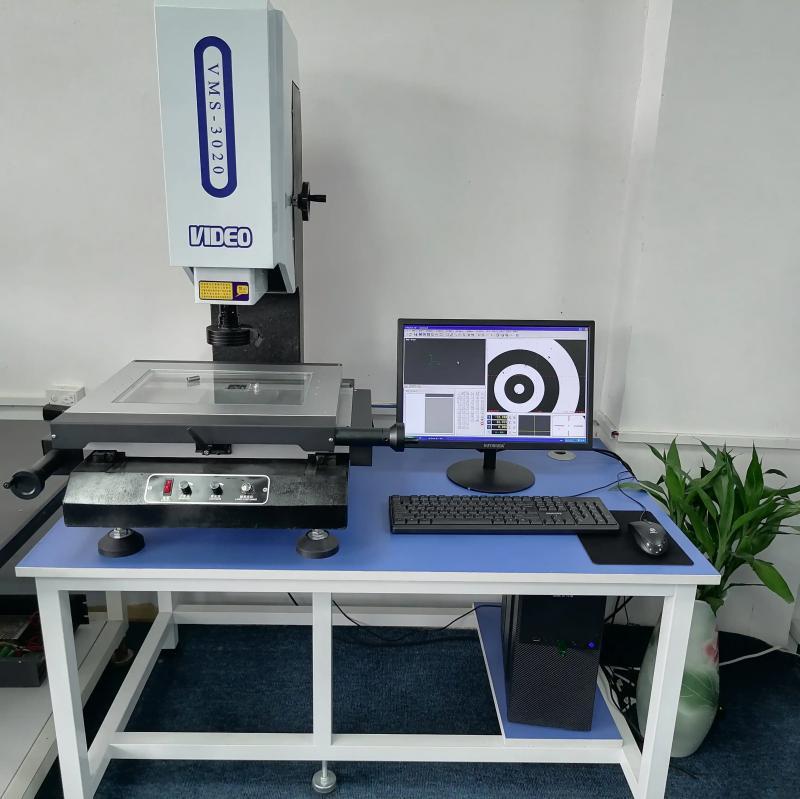

• Dimensional and structural inspections

All products meet ISO9001, CE, RoHS, and UL standards, ensuring long-term industrial reliability.

Applications

• Industrial automation machinery
• Control panels and electrical cabinets
• Robotics and motion control systems
• Sensors and actuator networks
• Power and signal distribution in harsh industrial environments
• Equipment requiring quick-connect interfaces

Selection Considerations

When selecting the ST Series 4-Pin connector, verify the mating-side interface, pinout, cable outside diameter, and electrical load requirements. Confirm the operating environment, including temperature, moisture, and vibration levels, to ensure the connector meets your application needs. For detailed electrical and mechanical specifications, refer to the Technical Specifications section.

Inquiry Checklist

To receive an accurate quotation and sample, please provide the following information:

• Mating-side connector requirement (plug or socket, male or female)
• Pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and mounting style
• Order quantity and delivery timeline

For related connector options, see 12G Series Circular Connectors or review the PC Series Circular Connector Types and Specifications.

Contact Us

We provide samples, technical support, and OEM/ODM customization services. Contact us today for factory-direct ST Series 4-Pin Push-Pull Connector solutions, ensuring high-quality, durable, and flexible connectivity for industrial applications.
